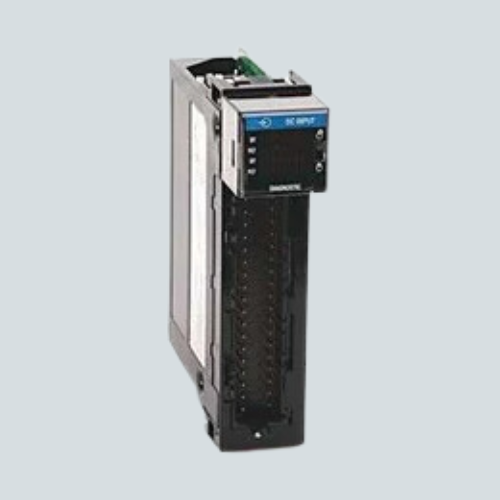

Overview of Allen Bradley 1756-IB16DK

The Allen Bradley 1756-IB16DK is a ControlLogix 16-point diagnostic input module designed for industrial automation systems. It supports a 10-30V DC input range with basic insulation providing 250V AC isolation between inputs and the backplane. This module features software-configurable diagnostics for improved system monitoring and reliability.

Key Features of Allen Bradley 1756-IB16DK

  • 16 Diagnostic Input Channels: Divided into groups for advanced monitoring.
  • Voltage Range: Supports 10 to 30V DC inputs for wide compatibility.
  • Isolation: 250V AC continuous basic insulation between inputs and backplane.
  • Software-Configurable Filters: Adjustable filter times (0 ms, 1 ms, 2 ms) to manage input noise and signal reliability.
  • Low Power Usage: Backplane power consumption of roughly 0.84W reduces energy costs.
  • Reverse Polarity Protection: Prevents damage from wiring errors.

Technical Specs

Specification Details
Input Channels 16 Diagnostic (4 per group)
Input Voltage Range 10-30V DC
Isolation Voltage 250V AC continuous, basic insulation
Power Dissipation Max 5.8 W @ 60 °C (140 °F)
Current Draw 3 mA @ 24V DC
Input Delay Time Off to On: 340 µs nominal + filter time
Operating Temperature 0 to 60 °C (32 to 140 °F)
Weight 0.336 kg

Applications / Use Case

This 1756-IB16DK module is suitable for manufacturing automation and process control systems requiring diagnostic input monitoring for operational safety and system integrity. Compatible with Allen Bradley ControlLogix controllers, it is ideal for industrial environments where input status diagnostics are critical.

Backed by Rockwell Automation, this product meets strict industry standards and certifications.
