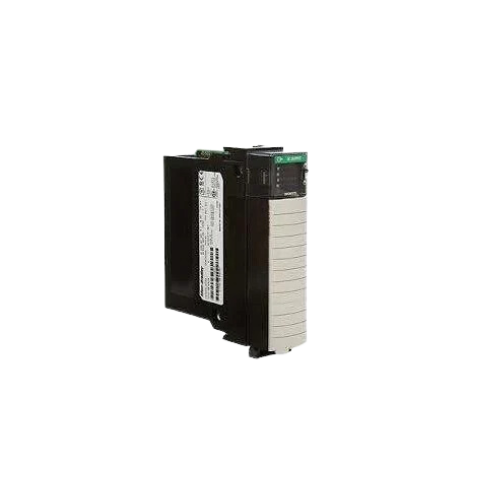

1756-IB16D

In Stock
$621.83
$621.83
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Have a target price? No worries, submit your target price below

Buy Allen-Bradley 1756-IB16D – Product Overview

The Allen-Bradley 1756-IB16D is a 16-point digital input module designed for ControlLogix automation systems. This 10–30 VDC diagnostic input module delivers reliable field signal acquisition with integrated diagnostics, making it essential for industrial control panels, process automation, and discrete manufacturing environments. The 1756-IB16D combines robust DC sink input technology with point-level fault detection in a compact 36-pin format compatible with standard ControlLogix backplanes.

Allen-Bradley 1756-IB16D Features & Benefits

  • 16 diagnostic digital inputs organized in 4 points per group
  • 10–30 VDC operating voltage range with 24 VDC nominal input
  • Hardware delay: 340 µs nominal, 1 ms maximum, with configurable software filtering
  • Field-side diagnostics for real-time fault detection and troubleshooting
  • Low power consumption: 3 mA @ 24V, 150 mA @ 5.1V
  • 250V isolation (continuous) between input groups and backplane
  • Electronic module keying for safe, tool-free configuration
  • Removable terminal block housing for flexible wiring integration

Allen-Bradley 1756-IB16D Specifications & Datasheet

Attribute Specification
Inputs 16 (4 points/group)
Voltage Category 12/24 VDC Sink
Operating Voltage 10–30 VDC
Off-State Leakage 1.2 mA minimum
Power Dissipation 5.8 W @ 60°C maximum
Cyclic Update Time 200 µs–750 ms
Time Stamp Accuracy ±1 ms diagnostics
Terminal Block 1756-TBCH or 1756-TBS6H

Allen-Bradley 1756-IB16D Applications in Industrial Automation

This module is commonly used in industrial automation, process control, machine automation, production line systems, and factory control panels worldwide. It excels in environments requiring high-reliability discrete input monitoring, such as proximity sensor arrays, limit switch detection, and status signal acquisition on automated assembly lines and manufacturing systems across North America, Europe, and Asia.

Allen-Bradley 1756-IB16D Price & Worldwide Availability

View Allen-Bradley 1756-IB16D pricing and stock status online for worldwide availability. Contact LeadTime.ca for bulk orders, international dispatch, and export pricing across global industrial markets.

Why Buy Allen-Bradley Products from LeadTime.ca

All products on LeadTime.ca are genuine, authentic original OEM components sourced from verified suppliers. We provide fast worldwide shipping across North America, Europe, Asia, and international industrial markets, backed by expert technical support and real-time inventory tracking for immediate order fulfillment.
