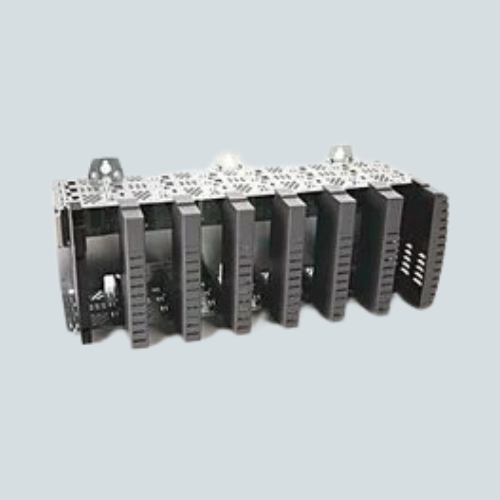

Overview of Allen Bradley 1756-A7XT ControlLogix Chassis

The Allen Bradley 1756-A7XT is a ControlLogix-XT chassis designed for harsh industrial environments. It features 7 slots and supports advanced modular control system configurations. The chassis is conformally coated for increased durability in ISA G3 industrial conditions, making it ideal for rugged applications.

Key Features of Allen Bradley 1756-A7XT Chassis

  • Slot Count: 7 total slots for flexible modular automation setups.
  • Conformal Coating: Protective coating enhances resistance to corrosion and contaminants in industrial environments.
  • Operating Temperature Range: Supports wide temperature operation from -25°C to 70°C (-13°F to 158°F).
  • Backplane Power Distribution: Delivers high current capacities at multiple voltages (1.2V, 3.3V, 5.1V, 24V) for connected modules.
  • Mounting Type: Designed for horizontal back-panel mounting with snap-on slot guides for secure module installation.
  • Durability: Suitable for panel mounting in rugged or outdoor enclosures.
  • Compliance: Meets industrial standards for operation in ISA G3 environments with high survivability.

Technical Specs of Allen Bradley 1756-A7XT Chassis

Specification Details
Model Number 1756-A7XT
Series ControlLogix-XT
Number of Slots 7
Operating Temperature -25°C to 70°C (-13°F to 158°F)
Backplane Current Capacity 1.2V DC - 1.5 A, 3.3V DC - 4 A, 5.1V DC - 15 A, 24V DC - 2.8 A
Dimensions (WxHxD) 498 mm x 158 mm x 186 mm (19.6 in x 6.2 in x 7.3 in)
Weight Approx. 2.4 lb (1.1 kg)
Mounting Horizontal back-panel mounting
Special Features Conformal coating for harsh environments, ISA G3 rated

Applications / Use Case

The Allen Bradley 1756-A7XT chassis is suited for industrial automation requiring ruggedized control systems. It supports assembly lines, process control, and panel-mounted modular control architectures, especially in harsh or corrosive environments.

Its design ensures system stability and extension capability while operating in extreme temperature and contaminant conditions.
