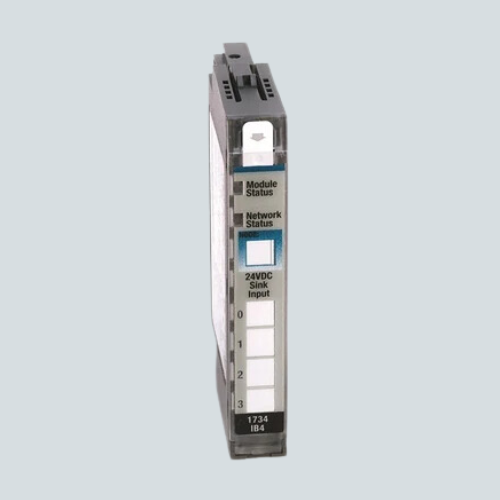

Overview of Allen-Bradley 1734-IB4K Digital Input Module
The Allen-Bradley 1734-IB4K is a 4-channel sinking digital input module, part of the POINT I/O family. It operates over a voltage range of 10 to 28.8 V DC and is conformally coated for protection in harsh industrial environments. The compact module design offers reliable signal input for industrial automation control systems.
Key Features of Allen-Bradley 1734-IB4K
- 4 Digital Inputs: Sinking type compatible with 24 V DC industrial sensors.
- Wide Voltage Range: Supports 10 to 28.8 V DC for flexible field power options.
- Conformal Coating: Protects circuitry against moisture and contaminants.
- Compact Size: Module measures approximately 56 mm x 12 mm x 75.5 mm.
- Diagnostics: Includes point-level diagnostics for input status and faults.
- Modular Mounting: Designed for use on 1734-TB or 1734-TBS wiring base assemblies.
Technical Specs of Allen-Bradley 1734-IB4K
| Specification | Details |
|---|---|
| Number of Inputs | 4 (sinking) |
| Input Voltage Range | 10–28.8 V DC |
| Input Current (nominal) | 6 mA per channel @ 24 V DC |
| Power Dissipation | 1.0 W max @ 28.8 V DC |
| Dimensions (HxWxD) | 56 mm x 12 mm x 75.5 mm |
| Operating Temperature | -20 to 60 °C |
| Weight | Approx. 31.8 g (1.12 oz) |
| Enclosure Rating | None (open-style), conformal coating applied |
Applications / Use Case
The 1734-IB4K is ideal for industrial automation systems requiring compact, reliable digital input detection. It is widely used in manufacturing environments for sensor monitoring and machine control.
Allen-Bradley products adhere to strict quality and safety standards, ensuring dependable operation in industrial applications.
-
