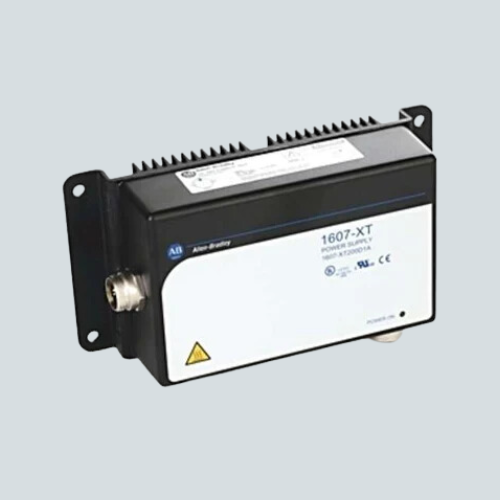

Overview of Allen-Bradley 1607-XT200D1A On-Machine Power Supply

The Allen-Bradley 1607-XT200D1A is a rugged on-machine power supply designed for industrial automation applications. It provides a 24 V DC output with a power rating of 192 W (288 W with Power Boost) and supports a wide input voltage range of 90-264 V AC and 100-300 V DC. The power supply features a single floating output, compact design, and offers high efficiency with built-in overcurrent and protection features.

Key Features of Allen-Bradley - 1607-XT200D1A

  • Output Voltage: 24 V DC (+1%) with a single floating output.
  • Power Rating: 192 W continuous output with 288 W Power Boost capability.
  • Input Voltage Range: 90-264 V AC, 100-300 V DC, suitable for varied industrial power sources.
  • Power Factor Correction (PFC): Active PFC with >0.98 efficiency.
  • Protection: Electronic current limiting, short-circuit protection, overload and overvoltage protection.
  • Operating Temperature Range: -25°C to 70°C with derating above 50°C.
  • Ingress Protection: IP67 rating for dust and water resistance.
  • Mounting: Suitable for direct mounting on machines or in control panels.
  • Status Indicators: LED indication for AC power presence.
  • High Reliability: MTBF > 500,000 hours at 40°C.

Technical Specifications

Model Number 1607-XT200D1A
Output Power 192 W continuous (288 W with Power Boost)
Output Voltage 24 V DC (+1%)
Output Current 8 A
Input Voltage Range 90-264 V AC, 100-300 V DC
Power Factor >0.98
Protection Features Overcurrent, short circuit, overload, over-voltage
Operating Temperature -25°C to 70°C (derating above 50°C)
Ingress Protection IP67
Dimensions (W x H x D) 245 mm x 74 mm x 122 mm
Weight Approximately 1.3 kg

Applications / Use Case

The 1607-XT200D1A on-machine power supply is ideal for providing reliable 24 V DC power in harsh industrial environments. It is used extensively in manufacturing equipment, control cabinets, and machinery requiring a compact, efficient, and protective power source with high ingress protection.
