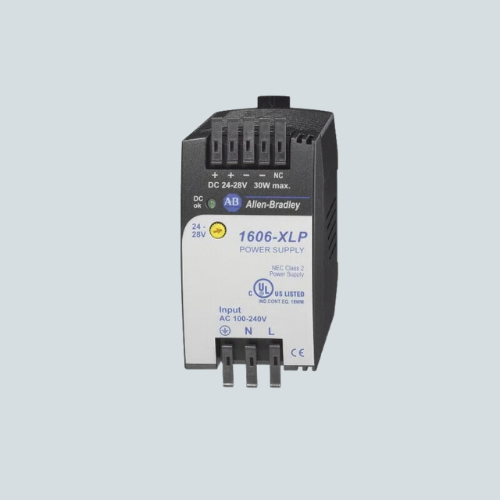

Overview of Allen Bradley 1606-XLP30E

The Allen Bradley 1606-XLP30E is a compact, efficient power supply engineered to provide reliable 24 to 28V DC output at 30 watts. It accepts a wide input voltage range from 85 to 375 VDC or 100 to 240 VAC at 50/60 Hz, making it highly adaptable for various industrial power systems. This power supply features spring-clamp terminals for easy and secure wiring without the need for specialized tools. Its small footprint and robust overload capabilities allow it to maintain output under demanding conditions, making it a trustworthy choice for automation and control applications. With certifications including Eurasion Economic Community and Australian RCM, the 1606-XLP30E meets stringent international standards. This product is ideal for users who require compact size combined with dependable DC power conversion in industrial environments.

Key Features of Allen Bradley 1606-XLP30E

  • Output voltage adjustable from 24 to 28V DC for flexible system integration
  • Wide input voltage range: 85-375 VDC and 100-240 VAC (50/60 Hz)
  • Compact size measuring approximately 45 x 75 x 91 mm for space-saving installations
  • Spring-clamp terminal design enabling quick, tool-free wiring
  • Power rating of 30 W with a nominal output current of 1.3 A
  • Exceptional overload tolerance with no shutdown up to 1.5 times nominal current
  • Certified for global use with approvals including C-TICK, CE, cUL, GOST, KC, and Marine standards
  • Built to handle transient voltages in industrial environments (transient immunity per VDE 0160/W2)
  • LED indicator for DC output status
  • Lightweight at approximately 620 g for easy mounting

Technical Specs of 1606-XLP30E

Specification Details
Input Voltage 85 - 375 VDC; 100 - 240 VAC, 50/60 Hz
Output Voltage 24 - 28 V DC (adjustable)
Output Power 30 W
Output Current 1.3 A nominal
Terminal Type Spring-clamp terminals
Dimensions (W x H x D) 45 x 75 x 91 mm
Weight Approx. 620 g
Certifications Eurasion Economic Community, Australian RCM, C-TICK, CE, cUL, GOST, KC, Marine
Overload Protection No shutdown up to 1.5x nominal current

Applications / Use Case

The Allen Bradley 1606-XLP30E power supply is suitable for a wide range of industrial automation and control applications where compact size and dependable DC power output are critical. It is commonly used in manufacturing production lines, conveyor systems, and motor control centers requiring stable 24V DC supply. The device’s robust overload tolerance and wide input voltage range make it ideal for applications exposed to fluctuating power conditions or requiring backup power resilience. Its tool-free spring-clamp terminals simplify installation and reduce downtime during maintenance. This power supply can also be integrated into safety systems, PLC control racks, and instrumentation panels where reliable power is essential to ensure continuous operation and system safety.
