1606-XLS480E
1606-XLS480E
Manufacturer: ALLEN BRADLEY
Condition: New and Unused, Surplus.

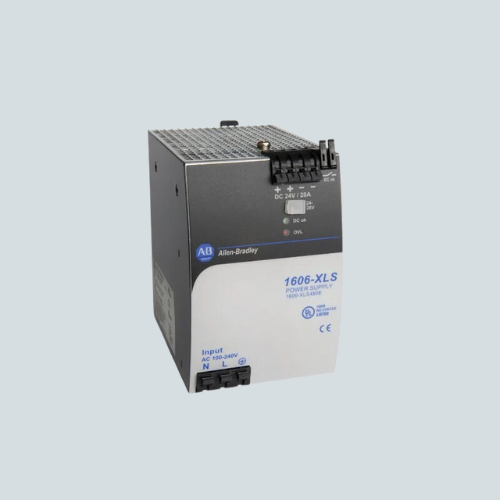

Overview of Allen-Bradley 1606-XLS480E Performance Switched Mode Power Supply
The Allen-Bradley 1606-XLS480E is a high-performance switched mode power supply designed for industrial applications, delivering 480 W of power with an output of 24 V DC at 20 A. It operates on a wide input voltage range of 100 to 240 V AC and 110 to 150 V DC, making it suitable for versatile usage in varied industrial environments.
Key Features of 1606-XLS480E
- Output power: 480 W with a continuous output current of 20 A at 24 V DC.
- Adjustable output voltage range from 24 to 28 V for customizable power delivery.
- Compact design with spring clamp terminals for easy installation.
- Active power factor correction and low input inrush current to ensure efficient and stable operation.
- Short-term power boost of 150% to handle load peaks and motor starting currents up to 5 seconds.
- High efficiency around 94.5% and low power losses (approximately 31.4 W typical).
- Integrated DC-OK relay and LED indicators for monitoring power status and overload conditions.
- Wide operating temperature range from -25°C to 70°C, with derating above 60°C.
- Meets industrial safety standards: UL, CE, ABS, GL, RINA certifications.
- DIN rail mounting capability and suitable for harsh industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Output Voltage | 24 to 28 V DC (adjustable) |
| Output Current | 20 A continuous |
| Output Power | 480 W |
| Input Voltage Range | 100 to 240 V AC / 110 to 150 V DC |
| Input Frequency | 47 to 63 Hz |
| Efficiency | 94.5% typical |
| Power Factor | 0.90 typical |
| Inrush Current | 9 A peak at 100 V AC, 7 A at 240 V AC |
| Hold-Up Time | 31 to 51 ms |
| Dimensions (HxWxD) | 124 mm x 82 mm x 127 mm |
| Operating Temperature | -25°C to 70°C (derate above 60°C) |
| Weight | Approx. 1.2 kg |
| Certifications | UL, CE, ABS, GL, RINA |
| Mounting | DIN rail mount |
Applications / Use Cases
The 1606-XLS480E power supply is ideal for use in control panels, industrial automation systems, and other applications requiring a reliable 24 V DC power source with high efficiency and power reserve capacity. Its compact size, high power density, and robust design make it suitable for factory and process automation environments.
