1606-XLP95E

Available on Request
$0.00
$0.00
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Have a target price? No worries, submit your target price below

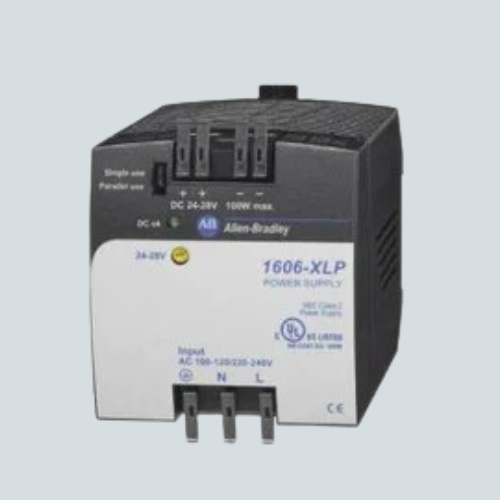

Overview of Allen Bradley 1606-XLP95E

The Allen Bradley 1606-XLP95E is a compact, reliable power supply unit designed to deliver consistent 24 to 28 V DC output at 95 watts. This model supports a wide input voltage range spanning 85 to 132 V AC and 100 to 375 V DC, making it versatile for various industrial power applications. Its typical efficiency of 90% helps reduce energy consumption and operational costs. The unit features stabilized output voltage and incorporates spring clamp connections for secure wiring. Its compact size and DIN rail mounting capability allow for easy installation in control panels. With an IP20 degree of protection and an operational temperature range from -10 °C, it suits many industrial environments needing stable and efficient DC power sources.

Key Features of Allen Bradley 1606-XLP95E

  • 95 W power output with stabilized 24 to 28 V DC voltage
  • Wide input voltage range: 85-132 V AC and 100-375 V DC compatibility
  • High efficiency of approximately 90% to limit energy loss
  • DIN rail mounting for compact and straightforward installation
  • Spring clamp connection ensures reliable and easy wiring
  • Operational temperature range from -10 °C, suitable for various environments
  • Low output ripple and noise, max 50 mV to protect sensitive electronics
  • IP20 degree of protection, suitable for industrial control panels
  • Class 2 NEC compliant for safety and regulatory adherence
  • Hold-up time greater than 40 ms at 230 V AC input for stable power delivery

Technical Specs of 1606-XLP95E

Specification Details
Power Output 95 W
Output Voltage 24–28 V DC (adjustable)
Output Current 3.9 A @ 24.5 V
Input Voltage 85–132 V AC / 100–375 V DC (auto-select)
Efficiency Approx. 90%
Operating Temperature -10 °C to suitable industrial range
Protection Degree IP20
Dimensions (HxWxD) 75 mm x 73 mm x 103 mm
Mounting DIN rail, wall mounting possible
Weight 360 g
Connection Type Spring clamp

Applications / Use Case

The Allen Bradley 1606-XLP95E power supply is ideal for industrial automation and control systems requiring dependable DC power. It is commonly used in manufacturing plants, assembly lines, and process control systems where consistent voltage and current output are critical. Its compact design suits tight panel spaces. It supports powering programmable logic controllers (PLCs), sensors, actuators, and other control devices. The wide input voltage range makes it suitable for global applications with varying power standards. Additionally, its NEC Class 2 compliance ensures safety in factory and hazardous environments. This model is well-suited for upgrading existing power supply units or integrating into new automation projects demanding a stable 24V power source.
