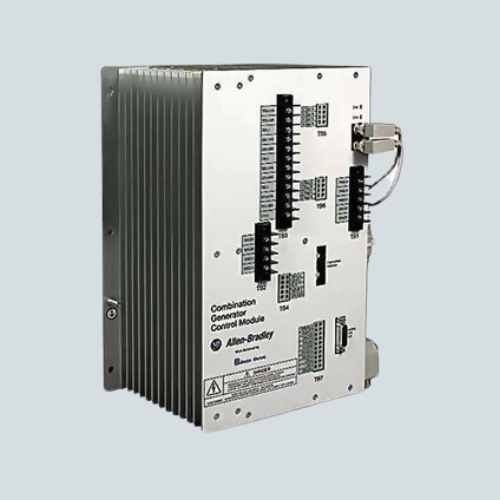

Overview of Allen-Bradley 1407-CGCM Combination Generator Control Module

The Allen-Bradley 1407-CGCM is a microprocessor-based combination generator control module that integrates generator protection, excitation control, synchronization, and full-featured metering. It is designed to work seamlessly with Rockwell Automation's Logix family programmable controllers via ControlNet. The module supports single-phase and three-phase systems with advanced control capabilities for generator applications.

Key Features of Allen-Bradley - 1407-CGCM

  • Integration of generator protection, excitation control, synchronization, and metering in one compact unit.
  • Supports ControlNet with redundant tap cables and thumbwheel node address configuration.
  • Communication ports include ControlNet 1.5 interface, DB9 redundancy port, and DB15 factory port.
  • Energy and metering values are provided in 32-bit floating-point format.
  • Configurable for single-phase and three-phase voltage and current sensing.
  • Auxiliary inputs support various control and monitoring functions.
  • Meets regulatory standards including ATEX, CSA, UL, and IEC for hazardous location suitability.
  • Operates reliably in harsh environments with tested shock, vibration, and salt fog resistance.

Technical Specifications of 1407-CGCM

Model Number 1407-CGCM
Voltage Range 57 to 208 V AC (±0.2%)
Current Range 0 to 5 A AC (±0.2%)
Frequency Range 10 to 90 Hz (±0.05 Hz)
Power Factor Range -0.5 to 0.5 (<0.4% error)
Environment -20 to 70 °C operating temperature
Communication ControlNet 1.5, redundancy port, factory port
Certification Class I, Division 2 hazardous locations, ATEX, CSA, UL, IEC

Applications / Use Case

The 1407-CGCM module is used in industrial generator control systems to provide comprehensive protection, excitation, synchronization, and metering functions. It ensures reliable operation of generators by integrating with ControlLogix automation systems for efficient and safe power management.
