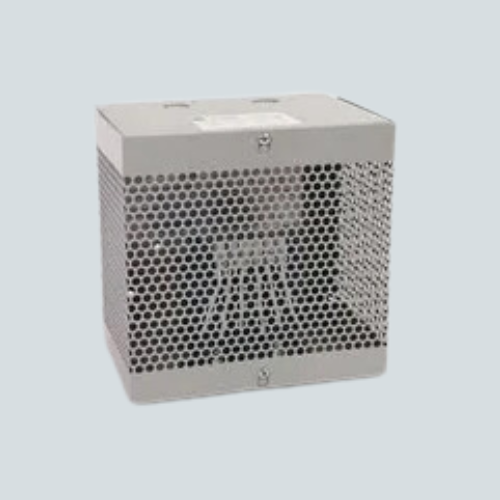

Overview of Allen Bradley 1321-3RA12-B Line Reactor

The Allen Bradley 1321-3RA12-B is a three-phase line reactor with a NEMA 1 enclosure, rated for 12 amps with 2.5 millihenries inductance. It is designed to reduce electrical noise, voltage spikes, and harmonics in industrial motor and variable frequency drive (VFD) applications. This line reactor enhances system reliability and extends the service life of connected equipment.

Key Features of Allen Bradley 1321-3RA12-B

  • Rated Current: 12 amps continuous current for light to medium industrial applications.
  • Inductance: 2.5 mH to effectively filter harmonics and transient voltage spikes.
  • Voltage Rating: Suitable up to 600V AC systems.
  • Enclosure: IP11 (NEMA 1) sheet steel enclosure for protection in indoor environments.
  • Terminals: Solid tin-plated aluminum box lugs providing secure cable connections.
  • Mounting: Floor mount with enclosure feet for stable installation.
  • Operating Temperature: Rated for operation at 50°C ambient temperature.

Technical Specs

Specification Details
Rated Current 12 Amps
Inductance 2.5 millihenries (mH)
Rated Voltage 600 VAC
Enclosure Type IP11 (NEMA 1)
Terminal Type Solid tin-plated aluminum box lugs
Mounting Style Floor mount with enclosure feet
Operating Ambient Temperature 50 °C
Dimensions (Approx.) Height: 228 mm, Width: 174 mm, Depth: 117 mm
Weight Approx. 8.9 kg

Applications / Use Case

The 1321-3RA12-B line reactor is ideal for VFD systems, industrial motor drives, and panel installations where reducing voltage spikes and harmonic distortion is critical for equipment longevity and performance.

Allen Bradley offers trusted, durable power conditioning products engineered for reliability in demanding industrial settings.
