Siemens SCALANCE XB008 6GK5008-0BA10-1AB2 — ATEX Switch Buyer's Guide

By Abdullah Zahid
12 min read

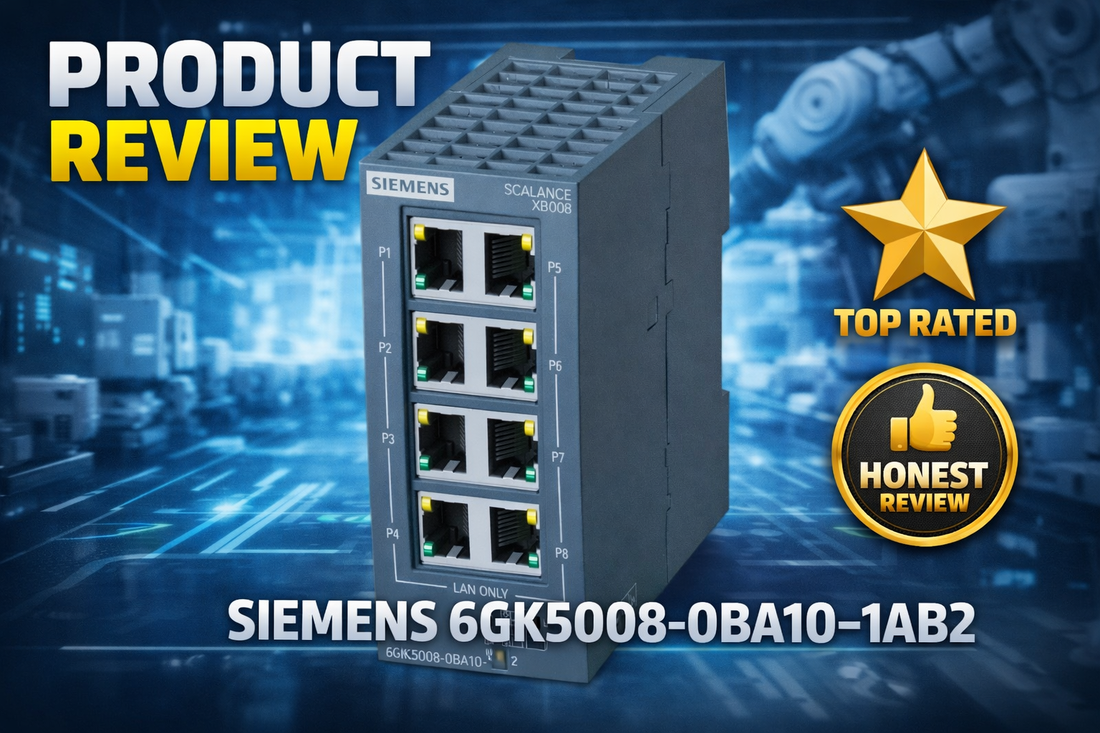

Siemens SCALANCE XB008 6GK5008-0BA10-1AB2 unmanaged 8-port industrial Ethernet switch for ATEX Zone 2 and DIN rail automation panels

Siemens SCALANCE XB008 6GK5008-0BA10-1AB2 Unmanaged Industrial Ethernet Switch: Specs, Pricing and Buyer's Guide

Controls engineers and panel builders searching for a compact, no-configuration industrial Ethernet switch for an 8-device network face a simple but consequential decision: unmanaged or managed, and which model actually fits the cabinet, the power budget, and the hazardous area classification. The Siemens SCALANCE XB008 6GK5008-0BA10-1AB2 answers that question for a specific, well-defined range of applications — 8-port star or line topologies running 10/100 Mbit/s, powered by a 24V AC/DC supply, in environments ranging from standard factory floors to ATEX Zone 2 classified facilities. At 45mm wide and 0.18 kg, it fits where most switches do not, and its 214-year published MTBF makes it a defensible choice in unattended remote installations.

If you have already confirmed this is the right part, check current pricing and availability for the 6GK5008-0BA10-1AB2 at LeadTime.ca — ships worldwide.

Who Should Buy the SCALANCE XB008 — and Who Shouldn't

The SCALANCE XB008 6GK5008-0BA10-1AB2 is the right choice when your application meets all of the following criteria:

  • You need exactly 8 RJ45 twisted pair ports running at 10/100 Mbit/s — no more, no fiber
  • Your panel supplies 24V AC or DC with a tolerance range of 19.2 to 28.8V
  • Unmanaged, plug-and-play operation is acceptable — no VLAN, no port mirroring, no QoS configuration needed
  • IP20 enclosure rating is adequate for your environment (not a washdown or submersion-rated installation)
  • Your enclosure has 35mm DIN rail or wall mounting available and can accommodate a 45mm wide footprint
  • ATEX Zone 2 or IECEx / UL hazloc certification is required or beneficial for your facility class

If you need more than 8 ports, fiber connectivity, Gigabit speeds, or managed features like VLAN or multiport mirroring, the SCALANCE XB008 is not the correct model. The SCALANCE XB016, XC series, or XM series are the appropriate alternatives depending on your specific requirement.

On this page:

What the SCALANCE XB008 Actually Does in a Running System

The SCALANCE XB008 6GK5008-0BA10-1AB2 is an unmanaged 8-port industrial Ethernet switch. Unmanaged means exactly what it says: there is no management interface, no web GUI, no CLI, and no configuration required. Power it up and it passes Ethernet traffic between all connected devices immediately. Every port auto-detects 10 or 100 Mbit/s and adjusts accordingly. This is passive data flow — the switch learns MAC addresses and forwards frames without any operator intervention.

What separates the XB008 from a generic office switch is the operating context it is certified for. It runs on 24V AC or DC industrial power, tolerates supply fluctuations between 19.2 and 28.8V, draws only 2.88W at 24V DC, and carries ATEX, IECEx, UL hazloc, and FM certifications for Zone 2 hazardous area deployment. Each of the 8 RJ45 ports has an individual LED indicator for real-time activity monitoring. The unit is built to operate continuously between -10 and +60 degrees C with no fan, no moving parts, and a published MTBF of 214 years — a figure that justifies its presence in remote, unattended pump stations and substations where a site visit costs more than the switch itself.

The PROFINET conformity class A rating means it integrates directly into PROFINET device networks without protocol adapters or additional configuration. It also supports Parallel Redundancy Protocol (PRP) operation, making it usable in dual-path redundancy architectures for critical process applications.

Where the XB008 Fits in a Typical Automation Architecture

The SCALANCE XB008 sits at the field device layer of a PROFINET or Industrial Ethernet network — between the controller or upstream managed switch and the individual field devices it connects. It is the last switching point before end devices, not a backbone or aggregation switch.

  • Upstream: PROFINET controller (Siemens S7-300, S7-400, S7-1500, or third-party PLC) or managed distribution switch connects to one port of the XB008
  • The XB008 distributes connectivity across up to 7 remaining RJ45 ports to field devices
  • Field devices on downstream ports: remote I/O modules, variable frequency drives with Ethernet interfaces, local HMI panels, sensors with Ethernet output
  • In line topology: the XB008 daisy-chains between two upstream network segments while providing local device connections
  • In PRP architecture: the XB008 operates as a pass-through node in a dual-path redundant ring, with no management configuration required

Industries and Applications That Specify This Switch

Water and wastewater treatment plants are among the most common deployment environments for the SCALANCE XB008 6GK5008-0BA10-1AB2. Remote pump stations typically house a single PLC, three to four I/O modules, a local HMI, and a communications gateway — all within a sealed NEMA 4X enclosure. The XB008's 45mm width and 2.88W power draw allow it to fit into tight panel designs alongside a compact 24V power supply, with enough UPS or battery capacity to maintain communications during power interruptions.

Oil and gas and chemical manufacturing facilities with Zone 2 ATEX classifications have historically faced a difficult choice between using a non-certified switch in a purged enclosure (expensive) or specifying a certified switch (often hard to source). The SCALANCE XB008 resolves this directly: ATEX Directive 2014/34/EU certification, IECEx, FM, and UL hazloc Class 1 Division 2 Groups A-D T4 approvals are standard on this model, not optional extras.

OEM machine builders integrate the XB008 into modular packaging and drive network assemblies where a simple, reliable Ethernet backbone is needed and no managed features are required. The compact form factor, DIN rail mounting, and 5-year warranty make it a defensible long-term embedded choice. Commissioning engineers also deploy the XB008 as a temporary network hub during startup and debugging phases before the permanent Ethernet backbone is commissioned — the zero-configuration operation makes setup in the field immediate.

Application Typical Deployment
Remote pump station PLC, 3-4 I/O modules, local HMI in NEMA 4X enclosure; XB008 as central Ethernet hub on 24V supply
ATEX Zone 2 retrofit Replacing uncertified star-topology wiring in classified chemical or oil and gas facility; XB008 provides ATEX/IECEx-compliant backbone
OEM machine integration Embedded in modular packaging or drive system; factory-wired with drives, sensors, and remote I/O on a compact DIN rail assembly
Temporary commissioning network Field deployment during plant startup; zero-configuration operation allows immediate use before permanent infrastructure is ready
PRP redundancy architecture Dual-path Parallel Redundancy Protocol network for critical process uptime; XB008 operates as PRP-capable node without management overhead
Substation and distribution automation Remote electrical substation with compact enclosure; low power draw compatible with battery-backed DC supply systems

Purchase-Decision Specifications at a Glance

Specification Value
Number of Ports 8 x RJ45 (twisted pair)
Data Rate per Port 10/100 Mbit/s (auto-detect)
Input Voltage 24V AC / 24V DC (19.2 to 28.8V tolerance)
Power Consumption 2.88W at 24V DC; 0.12A maximum current draw
Operating Temperature -10 to +60 degrees C
Protection Class IP20
Dimensions (W x H x D) 45mm x 100mm x 87mm
Net Weight 0.18 kg
Hazardous Area Certifications ATEX (II 3 G Ex nA IIC T4 Gc), IECEx, UL hazloc Class 1 Div 2 Groups A-D T4, FM, UKEX, CCC
Warranty 5 years from date of manufacture

Full technical specifications are available on the product page at LeadTime.ca.

SCALANCE XB008 vs. XB005 vs. XC Series: Which One Do You Actually Need?

Feature SCALANCE XB008 6GK5008-0BA10-1AB2 SCALANCE XB005 SCALANCE XC Series (Managed)
Port Count 8 x RJ45 5 x RJ45 8+ ports (model dependent)
Managed / Unmanaged Unmanaged Unmanaged Managed
PROFINET Support Class A Yes Yes (advanced)
VLAN / Port Mirroring No No Yes
ATEX Certified Yes (Zone 2, IIC T4) Yes No (standard models)
PRP Support Yes Limited Yes (with management)
Power Consumption 2.88W at 24V DC Lower Higher
Price Tier Mid Lower Higher
Best For 8-device unmanaged networks, hazardous areas, compact cabinets Smaller 5-device networks, same power and certifications Complex networks requiring diagnostics, VLAN, traffic management

If your application requires exactly 8 ports with ATEX Zone 2 certification and zero management overhead, the SCALANCE XB008 6GK5008-0BA10-1AB2 is the correct selection — check current stock and pricing at LeadTime.ca.

Expert Verdict: Honest Assessment and Procurement Reality

The SCALANCE XB008 6GK5008-0BA10-1AB2 earns its place in panel designs where space is constrained, power is limited, and the network is straightforward. The combination of a 214-year MTBF rating, a 5-year warranty, ATEX and IECEx hazardous area certifications, and a 2.88W power draw in a 45mm-wide enclosure is genuinely difficult to match at this price tier. For pump stations, remote I/O star topologies, embedded OEM machine networks, and Zone 2 classified facilities, this switch does exactly what is required without overcomplicating the system or the commissioning process. The Class of Service (CoS) support provides a basic level of traffic prioritization for mixed PROFINET and standard Ethernet environments without requiring configuration.

Where the XB008 falls short is equally clear. It has no management interface — full stop. If your network architect has specified VLAN segmentation, port mirroring for diagnostic tools, or advanced QoS beyond CoS, this switch cannot deliver those features. It is also limited to 10/100 Mbit/s per port; Gigabit applications must look at the SCALANCE XC or XM families. The IP20 rating means it requires an external enclosure for any environment involving water spray, washdown, or submersion risk. These are not flaws — they are design boundaries. Specifying correctly the first time avoids the cost and delay of a swap after installation.

From a procurement standpoint, the SCALANCE XB008 is a current, actively stocked product in the Siemens SCALANCE portfolio. Standard lead times in most markets run 2 to 4 weeks depending on region and distributor inventory. ATEX-certified units may carry slightly longer lead times due to certification handling requirements — worth confirming before committing to a build schedule. Volume orders of 10 or more units typically qualify for better pricing. If you are sourcing the 6GK5008-0BA10-1AB2 for multiple sites or as part of a repeat OEM build, view current stock and pricing at LeadTime.ca and ask about volume availability.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Power connects via a 3-pole screw terminal block — verify your 24V AC or DC supply sits within the 19.2 to 28.8V tolerance range before connecting; use a digital voltmeter on the supply lines before terminating
  • Install a 0.6A / 60V external fuse or breaker in the positive power line upstream of the switch — the internal fuse protection does not replace upstream circuit protection for the supply line
  • For DIN rail mounting, the switch mounts on a standard 35mm rail horizontally; ensure at least 45mm of clear rail space and a minimum 2cm air gap above and below for ventilation
  • All 8 network ports accept standard CAT5e or CAT6 RJ45 Ethernet cables; route network cables away from high-voltage wiring including variable frequency drives and motor starters to minimize EMI exposure
  • Wall mounting is supported as an alternative to DIN rail — confirm adequate cable bend radius at connectors and verify that M3 fasteners and pilot holes are accessible before committing to the mounting location

PROFINET and PRP Support: What Engineers Need to Know

The SCALANCE XB008 carries PROFINET conformity class A certification, which means it is verified compatible with standard PROFINET real-time communication stacks without protocol adapters or special configuration. Class A is the baseline for general PROFINET device networks and covers the vast majority of PLC-to-field-device applications. No changes to PROFINET controller settings are needed when adding the XB008 to an existing topology.

The PRP (Parallel Redundancy Protocol) support is an important differentiator for critical process applications. The XB008 can operate as a node within a PRP dual-path network architecture, providing a redundant communication path without requiring a management interface to configure it. Engineers should note that Redundant Network Access (RNA) is not supported — the XB008 operates in standalone PRP mode only. For applications requiring full RNA or HSR (High-availability Seamless Redundancy), a managed switch from the SCALANCE XC or XM series is the appropriate choice.

What Engineers Get Wrong When Ordering This Part

Before placing an order for the SCALANCE XB008 6GK5008-0BA10-1AB2, verify each of the following points against your project drawings and specifications. These are the most common sources of wrong-part orders and field installation problems:

  1. Confirm 8-port requirement (not 5, 10, or 16); verify RJ45 twisted pair only (no fiber)
  2. Verify 24V DC/AC supply availability in panel; check 19.2-28.8V range tolerance fits your system
  3. Confirm unmanaged operation is acceptable; no VLAN, priority queue, or traffic mirror needed
  4. Check IP20 enclosure rating adequate for environment (not IP65 washdown or IP67 submersion)
  5. If ATEX/hazardous area required, confirm your facility class/zone matches device certification (Zone 2, Group IIC T4)
  6. Validate DIN rail or wall mounting available in your enclosure; note no S7-1500 rail mount possible
  7. Ensure external fuse protection (0.6A/60V) or upstream protection device available
  8. Confirm internal 10/100 Mbit/s speeds sufficient; if Gigabit required, must choose SCALANCE XC or XM family

If any of these points raises a concern about fit, contact the LeadTime.ca team to confirm the correct part number before ordering — misspecification costs more to correct after delivery than before.

Frequently Asked Questions

Does the SCALANCE XB008 6GK5008-0BA10-1AB2 require any software configuration or commissioning tool?

No. The SCALANCE XB008 is an unmanaged switch and requires no software, web browser interface, or Siemens TIA Portal project to operate. Connecting 24V power and plugging in Ethernet cables is the complete commissioning procedure. All 8 ports become active immediately on power-up.

Can the SCALANCE XB008 be used in an ATEX Zone 1 classified area?

No. The SCALANCE XB008 carries ATEX certification for Zone 2 (II 3 G Ex nA IIC T4 Gc) — non-sparking equipment in areas where explosive atmospheres are not normally present but may occur under abnormal conditions. Zone 1 requires a higher protection category. Verify your facility's area classification against the device's ATEX designation before installation in any classified area.

What is the difference between the SCALANCE XB008 and the SCALANCE XB016?

The primary difference is port count. The SCALANCE XB016 provides 16 RJ45 ports compared to the XB008's 8 ports. Both are unmanaged switches in the same product family with similar power and certification profiles. If your application requires more than 8 connected devices, the XB016 is the logical next step before moving to the XM series managed switches.

Is the 5-year warranty on the SCALANCE XB008 tied to the purchase date or the manufacture date?

The 5-year limited warranty is calculated from the date of manufacture, not the purchase date. When sourcing from distribution stock, verify the manufacture date on the unit's label or packaging if warranty coverage timing is critical to your project. The warranty covers component defects and workmanship but does not cover misapplication, physical damage, or power surge damage.

Can the SCALANCE XB008 operate in a PRP network without a managed switch also present?

The SCALANCE XB008 supports PRP operation as a pass-through node in a dual-path PRP architecture. It does not require a managed switch to be present solely for its own operation. However, Redundant Network Access (RNA) is not supported — the XB008 operates in standalone PRP mode only. If your PRP architecture requires RNA or full ring management, a managed SCALANCE XC or XM switch is required for those functions.

What is the maximum cable run length supported on each RJ45 port?

The brief does not specify a maximum cable run length per port. For standard 10/100 Mbit/s twisted pair Ethernet over CAT5e or CAT6, the general IEEE 802.3 limit of 100 meters per segment applies. Consult the Siemens SCALANCE XB008 technical manual available from support.industry.siemens.com for any application-specific cabling guidance.

Why Order the 6GK5008-0BA10-1AB2 From LeadTime.ca

  • LeadTime.ca ships the SCALANCE XB008 6GK5008-0BA10-1AB2 worldwide — no regional restrictions on sourcing or delivery
  • Direct access to volume pricing for OEM builds and multi-site deployments — contact the team before placing large orders
  • Hard-to-source or longer-lead ATEX-certified variants can be tracked and quoted through the same channel as standard stock
  • Fast quote response for procurement teams under time pressure ahead of project milestones

At-a-Glance Summary

  • 8 x RJ45 ports at 10/100 Mbit/s auto-detect — unmanaged, zero configuration required
  • 24V AC/DC input with 19.2 to 28.8V tolerance; 2.88W power consumption at 24V DC
  • Compact 45mm x 100mm x 87mm footprint; 0.18 kg; fits standard 35mm DIN rail or wall mount
  • ATEX Zone 2 (II 3 G Ex nA IIC T4 Gc), IECEx, UL hazloc Class 1 Div 2 Groups A-D T4, FM, UKEX, and CCC certified
  • PROFINET conformity class A; Parallel Redundancy Protocol (PRP) operation supported
  • Published MTBF of 214 years; 5-year limited warranty from date of manufacture
  • IP20 protection class; operating temperature -10 to +60 degrees C; storage to -40 to +80 degrees C
  • RoHS compliant; ANSI/ISA-71.04 G3 air pollution rating; cULus and CSA C22.2 No. 60950-1 approved
  • Not suitable for applications requiring Gigabit speeds, fiber ports, managed features, or IP65/IP67 environmental protection
