Siemens S7-1214C vs S7-1215C: Which CPU Should You Choose?

By Abdullah Zahid
20 min read

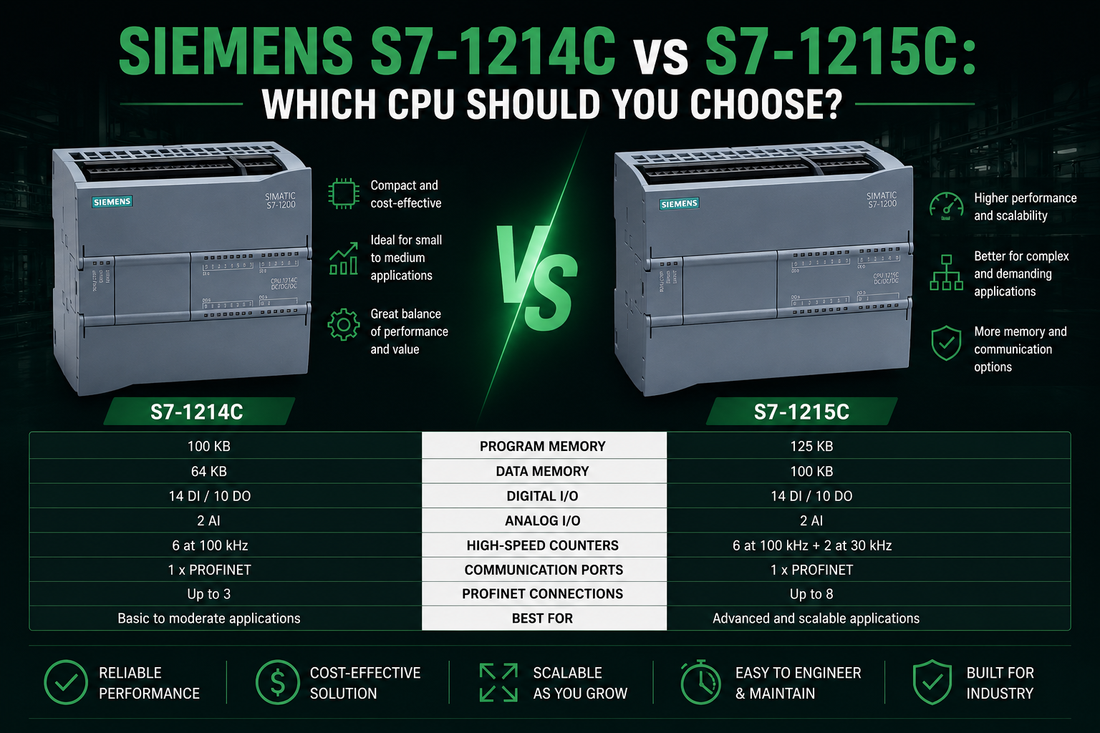

Siemens SIMATIC S7-1200 CPU 1214C and CPU 1215C side by side compact PLC comparison for machine control applications

Siemens S7-1214C vs S7-1215C CPU Comparison Guide: Which SIMATIC S7-1200 Controller Belongs in Your Machine?

Controls engineers specifying a new machine or standardizing an OEM platform on the SIMATIC S7-1200 family consistently arrive at the same decision point: SIMATIC S7-1200 CPU 1214C or SIMATIC S7-1200 CPU 1215C? Both are compact controllers in the same S7-1200 family, both run in TIA Portal, and both support standard and fail-safe variants — but they occupy different capacity tiers with meaningful differences in memory, integrated analog I/O, and Ethernet connectivity that directly affect your architecture choices and long-term flexibility. This guide cuts through the overlap to give you a scenario-based answer.

If you have already confirmed your catalog number and want to check current pricing and availability, visit LeadTime.ca — ships worldwide.

Does the SIMATIC S7-1200 CPU 1214C or CPU 1215C Fit Your Project?

This comparison is for engineers who have already chosen the SIMATIC S7-1200 platform and need to commit to a CPU tier. The right choice depends on five concrete factors:

  • Your total I/O count including projected expansion — not just the initial build
  • The number of Ethernet devices on your Profinet network: HMIs, drives, remote I/O, SCADA
  • Whether you need integrated analog outputs or only analog inputs
  • Program and data memory requirements driven by communication blocks, PID loops, and motion functions
  • Budget sensitivity across a fleet of machines versus single-machine cost

If your application is a compact machine with modest digital and analog I/O, one HMI, and a single Profinet segment, the SIMATIC S7-1200 CPU 1214C is likely your cost-effective answer. If you are connecting multiple HMIs, drives, and remote I/O stations, need more integrated analog capability, or expect the machine scope to grow, the SIMATIC S7-1200 CPU 1215C offers the memory headroom and communication resources to handle it without forcing an early hardware swap.

On this page:

What Stays the Same: Shared SIMATIC S7-1200 Platform Features

Before the differences matter, the common ground matters more. Both the SIMATIC S7-1200 CPU 1214C and the SIMATIC S7-1200 CPU 1215C are compact controllers within the same S7-1200 basic controller family. Both are programmed and commissioned in TIA Portal, share the same instruction set architecture, and support the same broad ecosystem of signal modules (SMs), communication modules (CMs and CPs), and signal boards (SBs). Engineers switching between these two CPUs within a project do not need to learn a new platform — only adapt the hardware configuration.

Both CPUs handle the control tasks that define small to medium machine automation: discrete I/O control, basic motion coordination, PID loop execution, communication with HMIs and variable frequency drives, and Profinet-based networking. Standard and fail-safe (FC) variants exist for both CPUs, and both are available in the newer G2 generation. The S7-1200 family as a whole — which spans from the 1211C up through the 1217C — is arranged in ascending order of memory and I/O capacity, with the 1214C and 1215C occupying adjacent mid-range and higher-capacity positions within that ladder.

Where they separate is in the resources available to handle more complex programs and richer network topologies — and that separation becomes significant when you push either CPU toward its practical ceiling.

Where They Diverge: Memory, I/O, and Analog Capability

The SIMATIC S7-1200 CPU 1215C sits at a higher memory tier than the CPU 1214C within the S7-1200 family. That distinction has direct program-level consequences. Larger programs with more function blocks, communication blocks, and motion or PID functions consume work and data memory faster than simple discrete control logic. When a 1214C project reaches a point where communication overhead or block count strains the available memory, engineers report hitting limits they did not anticipate at the design stage. The 1215C's higher memory tier provides buffer against that constraint — exact memory figures vary by catalog number and generation and must be confirmed against official Siemens datasheets before quoting.

On the integrated I/O side, both CPUs include onboard digital inputs and outputs suitable for small to medium machine applications. The more meaningful difference for many system designs is integrated analog capability. Many 1215C variants offer both integrated analog inputs and analog outputs, while 1214C variants in several configurations provide only analog inputs. If your machine requires integrated analog outputs — for valve positioners, variable speed references, or proportional control — the 1215C tier is the more direct fit and avoids the cost and complexity of adding a separate analog output signal module. Exact analog channel counts are variant-specific and must be verified per catalog number and generation.

Both CPUs support expansion through signal modules on the right side of the chassis, but the 1215C's higher resource base means it can better absorb larger module sets without straining communication or processing headroom. Neither CPU's exact module limit figures are replicated here, as they are variant-dependent — consult Siemens documentation for the specific catalog number you are evaluating.

Ethernet Ports and Profinet Topology: The Networking Difference That Matters

The most immediately visible hardware difference between these two CPUs in the original S7-1200 generation is the Ethernet port count. The original SIMATIC S7-1200 CPU 1214C has one Ethernet port. The original SIMATIC S7-1200 CPU 1215C has two switched Ethernet ports under a single Profinet interface. That distinction shapes your network architecture in practical ways.

With a single-port CPU like the original 1214C, a star topology through an external managed switch is the standard approach when connecting more than one Ethernet device. That works fine and is a common installation. With the two-port 1215C, you can daisy-chain HMIs, drives, or remote I/O directly through the CPU without an additional switch in some network configurations, simplifying panel wiring and reducing component count for smaller Profinet segments. Engineers building lines with three, four, or more Profinet field devices frequently cite this as a practical argument for the 1215C even when memory and I/O alone might not justify the upgrade.

In the G2 generation, Siemens standardized on two switched Ethernet ports across the S7-1200 CPU range, which means a G2-generation CPU 1214C also carries two ports. However, the 1215C G2 still provides more communication resources and performance to support larger numbers of concurrent connections and heavier data exchange. For G2 buyers, the port count advantage narrows, but the memory and resource advantage of the 1215C remains intact and becomes the primary differentiator.

Both CPUs support Profinet as the primary fieldbus protocol, and both support a basic integrated web server. Optional communication modules extend connectivity to additional protocols where required.

Scenario-Based CPU Selection: Which One Wins in Your Application?

There is no universal winner in this comparison. The right CPU is determined by what your specific application demands. The following scenarios and deployment table are drawn directly from the application profiles engineers face when specifying S7-1200 systems.

A compact packaging machine running 30 to 60 digital I/O points, a handful of analog inputs, one HMI, and one drive is the textbook 1214C application. The 1214C provides sufficient capacity at a lower cost, and adding a single analog input module if needed is straightforward. Stepping up to a 1215C in this scenario adds cost without adding value the application can use.

A small production line with several HMIs, multiple drives on Profinet, remote I/O stations, and more communication connections flips the equation. Here the 1215C's extra Ethernet port in the original generation simplifies topology, the higher memory tier handles the added communication blocks, and the integrated analog outputs avoid adding modules for proportional control. The 1215C is clearly the more appropriate platform.

Machines requiring significant analog control — valve positioning, multi-loop temperature, or motion with analog references — benefit from the broader integrated analog capability of 1215C variants, along with the memory headroom to run multiple simultaneous PID blocks without taxing the CPU.

Cost-sensitive OEMs standardizing across many simple machine variants often land on the 1214C as their baseline, with the 1215C reserved for machine variants that genuinely need the extra resources. That tiered standardization approach is common and practical.

For integration into a larger Siemens automation cell alongside a higher-level controller — such as an S7-1500 acting as a supervisory PLC — the 1215C's communication resources and scalability make it the more appropriate subordinate controller in complex architectures.

Application Scenario Key Requirement Recommended CPU Rating
Compact packaging machine, one HMI, limited analog 30–60 digital I/O, few analog inputs, one drive SIMATIC S7-1200 CPU 1214C 1214C advantage
Small line with multiple HMIs and drives on Profinet Several Ethernet devices, more communication connections SIMATIC S7-1200 CPU 1215C 1215C advantage
Machine with significant analog control (valves, temperature, position) Multiple analog inputs and outputs, PID loops SIMATIC S7-1200 CPU 1215C 1215C advantage
Cost-sensitive OEM standardizing across simple machines Repeatable design, moderate I/O, tight budget SIMATIC S7-1200 CPU 1214C (upsize to 1215C for demanding variants) Scenario-dependent
Safety-rich application with multiple safety I/O points Safety logic, several safety inputs/outputs SIMATIC S7-1200 CPU 1215FC (or 1214FC for simpler safety logic) Scenario-dependent
Migration from 1211C/1212C with growing I/O needs Preserve program, add I/O and communication SIMATIC S7-1200 CPU 1215C for significant growth; 1214C if modest Scenario-dependent
Integration into larger Siemens automation cell Communication to higher-level PLC, multiple field devices SIMATIC S7-1200 CPU 1215C 1215C advantage

Fail-Safe Variants: When to Evaluate 1214FC vs 1215FC

Both the CPU 1214C and CPU 1215C are available in fail-safe (FC) variants. The FC designation indicates the CPU supports safety-related programming for functional safety applications, including SIL and PL-rated configurations when combined with appropriate safety signal modules and following Siemens safety design requirements. Standard and fail-safe CPU selection are separate decisions — do not select between 1214C and 1215C without first determining whether a fail-safe CPU is required at all.

When a safety CPU is required, the same capacity logic applies. The 1214FC is appropriate for applications with simpler safety logic and fewer safety I/O points. The 1215FC provides more memory and resources for complex safety functions, larger numbers of safety I/O channels, and integration into systems where the safety program runs alongside demanding standard logic. Safety system design must follow Siemens manuals and applicable functional safety standards — the FC variant selection does not substitute for a formal safety assessment.

G2 Generation: What Changes and What Stays the Same Between 1214C and 1215C

The SIMATIC S7-1200 G2 generation introduces higher processing power, increased memory, and improved communication performance compared to the previous generation — verified by Siemens documentation. For engineers comparing 1214C and 1215C, the G2 update does not eliminate the tier difference between the two CPUs; it raises the floor for both while preserving the relative capacity advantage of the 1215C.

The most practically significant G2 change for this comparison is the standardization of two switched Ethernet ports across the S7-1200 CPU range. A G2 CPU 1214C carries two ports where the original did not, which removes the port-count argument for choosing 1215C in simpler network topologies. Engineers migrating from original-generation hardware to G2 should verify that their hardware configuration, firmware version, and module compatibility align with G2 platform requirements rather than assuming a direct drop-in equivalence. Configuration in TIA Portal requires updating the hardware template to the G2 variant.

For new designs starting on G2 hardware, the decision framework shifts slightly: the communication topology advantage of 1215C over 1214C narrows, while memory and resource headroom remain the primary differentiators.

Head-to-Head Feature Comparison Tables

The following tables compare the SIMATIC S7-1200 CPU 1214C and CPU 1215C on the factors that drive purchase decisions. Where exact values are variant-dependent and not confirmed in official documentation excerpts, comparisons are expressed qualitatively. Always verify specific catalog numbers against Siemens datasheets before quoting.

Feature SIMATIC S7-1200 CPU 1214C SIMATIC S7-1200 CPU 1215C Rating
Product family SIMATIC S7-1200 basic controller SIMATIC S7-1200 basic controller Neutral
Typical application size within S7-1200 Small to medium machines Medium to larger S7-1200 applications Scenario-dependent
Program and data memory tier Mid-range within S7-1200 family Higher tier within S7-1200 family 1215C advantage
Integrated analog capability Analog inputs in most variants; analog outputs absent in many Analog inputs and outputs in most variants 1215C advantage (variant-dependent)
Ethernet ports — original generation One Ethernet port Two switched Ethernet ports 1215C advantage
Ethernet ports — G2 generation Two switched Ethernet ports Two switched Ethernet ports Neutral (1215C still higher communication resources)
Profinet support Yes Yes Neutral
Fail-safe variant available Yes (1214FC) Yes (1215FC) Neutral
G2 generation available Yes Yes Neutral
Physical dimensions Smaller footprint Larger footprint Scenario-dependent (panel space constraints)

Full technical specifications are available on the product page at LeadTime.ca.

Aspect SIMATIC S7-1200 CPU 1214C SIMATIC S7-1200 CPU 1215C Note
Relative CPU price tier Lower Higher Market-typical estimate — verify with distributor before quoting
Likely total system cost when analog modules are added May increase if analog output modules are required Integrated analog outputs reduce module additions in many cases Scenario-dependent; calculate full BOM cost
Typical distributor availability Commonly stocked Commonly stocked; specific variants may have longer lead times Confirm current availability with LeadTime.ca before committing to a build schedule

If your project requires the broader analog capability or communication resources of the 1215C, confirm current stock and lead times at LeadTime.ca before locking in your BOM.

Expert Verdict: Which CPU Should You Specify?

The SIMATIC S7-1200 CPU 1214C earns its position as the go-to compact controller for straightforward machine applications. If your control task fits within its memory tier, your network consists of one or two Profinet devices reachable through a standard switch, and your analog requirements are limited to inputs, the 1214C delivers capable, cost-effective control without paying for capacity you will never use. It is the right choice for OEMs standardizing across fleets of simple machines and for engineers who have done the I/O and memory calculation and confirmed the fit. The peer engineering community consistently describes it as the sensible baseline for small to mid-size applications — not a compromise, but a deliberate match between machine requirements and hardware resources.

Where the 1214C shows its limits is in the scenarios where the machine grows beyond its original scope: additional HMIs commissioned late in the project, drives added to a second process stage, or analog outputs needed for proportional control. Engineers who have upgraded from a 1214C to a 1215C mid-project consistently report that the trigger was scope expansion, not a flaw in the original CPU. The SIMATIC S7-1200 CPU 1215C is the rational choice when multiple HMIs, drives, and remote I/O stations are part of the initial design, when integrated analog outputs are needed without adding signal modules, or when the program will carry substantial communication and motion blocks that benefit from higher memory headroom. In original-generation hardware, the two switched Ethernet ports alone justify the step up for lines with more than two or three Profinet field devices. In G2 hardware, the port count difference narrows, but the resource and memory advantage of the 1215C persists.

For procurement, the practical reality is that both CPUs are commercially available through specialist distributors, but specific catalog variants — particularly FC and G2 versions — may carry different lead times than standard catalog stock. Buying through a distributor who can confirm module compatibility, verify the exact catalog number against your BOM, and provide real lead time data before you commit is not a luxury in industrial automation; it is risk management. Check current pricing and availability for both CPUs at LeadTime.ca — ships worldwide, with sourcing support for standard, fail-safe, and G2 variants.

For volume pricing or to confirm lead times across a multi-machine build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Are Saying About the 1214C vs 1215C Decision

Across PLC forums, r/PLC discussions, and distributor technical communities, the consensus on the SIMATIC S7-1200 CPU 1214C is consistent: engineers describe it as the cost-effective and technically adequate choice for the majority of small machine applications they encounter. It is not seen as underpowered for its intended use — rather, it is viewed as a disciplined match between hardware cost and application requirements. The complaints that do surface are almost always retrospective: users who chose 1214C for a machine that later expanded in I/O scope, communication devices, or analog requirements, and found themselves pressed against the limits they had not accounted for at the design stage.

The 1215C earns consistent praise in discussions involving more connected machines. Engineers who work on lines with multiple HMIs, several drives, and remote I/O stations frequently note that the second Ethernet port in the original generation simplified their panel layouts and reduced the number of network switches needed for smaller Profinet segments. The higher memory tier is mentioned most often in projects where communication blocks — particularly for data exchange with higher-level systems — consumed more resources than initially estimated. A recurring pattern in community discussions is the OEM who standardized on 1214C for a machine platform and then added 1215C to the BOM when a customer variant required more connectivity or analog outputs than the original design anticipated.

The most common question in these communities — "Is 1214C enough, or do I need 1215C?" — is consistently answered with the same advice: map your actual Ethernet devices, count your analog outputs, estimate your program memory based on the function blocks you plan to use, and then check the numbers against verified Siemens datasheet figures rather than relying on general impressions. The second most common community caution is around the G2 generation — engineers who assumed G2 CPUs behaved identically to their predecessors in all respects ran into configuration surprises, particularly around port behavior and firmware-specific features. Verifying the exact generation and catalog number before committing remains the advice most repeated by experienced users on both sides of this choice.

Switching From 1214C to 1215C: What the Migration Actually Involves

Upgrading from a SIMATIC S7-1200 CPU 1214C to a CPU 1215C is not a simple drop-in swap, but it is a manageable process that engineers have executed on live machine platforms. The key considerations are:

  • Physical dimensions differ — the 1215C has a larger footprint than the 1214C, which may affect DIN rail space and terminal block positioning inside an existing enclosure.
  • If integrated analog outputs are present in the 1215C variant and were absent in the 1214C installation, wiring changes at the terminal strip will be required for any new analog output signals.
  • TIA Portal requires updating the hardware configuration to reflect the new CPU type; resource limits and available block counts will reflect the 1215C tier after the change, and compilation should be run to confirm no hidden compatibility issues.
  • Moving between original-generation and G2 hardware during an upgrade adds an additional layer of firmware and configuration validation — do not treat original-to-G2 as equivalent without a full hardware configuration review in TIA Portal.
  • Module compatibility should be re-verified for any signal modules or communication modules currently installed — both CPUs share the same S7-1200 ecosystem, but generation-specific differences may affect how certain modules interact with the CPU.

Engineers considering a migration should consult Siemens official migration documentation and the TIA Portal hardware configuration tool for their specific source and target catalog numbers before beginning the conversion.

Compatible Modules and System Expansion

Both the SIMATIC S7-1200 CPU 1214C and CPU 1215C share access to the same S7-1200 expansion ecosystem. The following module categories are compatible with both CPUs, subject to catalog-number and generation-specific confirmation:

  • Digital and analog signal modules (SMs) — expand integrated I/O counts for both digital and analog signals beyond the onboard channels
  • Communication modules (CMs) and communication processors (CPs) — add protocol support such as serial communications, PROFIBUS, or additional Ethernet interfaces beyond the onboard ports
  • Signal boards (SBs) — small plug-in boards that mount directly on the CPU face to add limited additional digital or analog channels without a full signal module
  • Technology modules — for specialized functions such as counter or position capture inputs, mounted in the same expansion rack as signal modules

The 1215C's higher resource base means it can absorb larger module sets with greater headroom than the 1214C before approaching practical resource limits. Exact module limits per CPU and generation must be confirmed against official Siemens documentation for the specific catalog numbers in your BOM.

Common Selection Mistakes When Choosing Between 1214C and 1215C

These are the specification errors engineers most commonly make when deciding between these two CPUs. Review each before committing to a catalog number:

  1. Have you estimated total I/O including future expansion, not just the initial build?
  2. Have you listed all Ethernet devices (HMIs, drives, remote I/O, higher-level PLC/SCADA) and checked whether one or two ports are required for your topology?
  3. Have you calculated approximate program memory requirements based on function blocks, communication blocks and motion or PID functions?
  4. Are you considering safety requirements (fail-safe FC variants) separately from standard CPU choice?
  5. Have you checked official Siemens datasheets for exact I/O counts, analog channels and module limits for the specific catalog numbers?
  6. Have you validated that your preferred signal modules, communication modules and signal boards are supported on the chosen CPU and generation (original vs G2)?
  7. Have you considered total installed cost (CPU + modules + engineering time), not just CPU price?

If any of these questions surface uncertainty in your design, contact LeadTime.ca before finalizing your BOM — our team can help verify catalog numbers, confirm module compatibility, and provide current lead time data for both CPUs and their associated expansion modules.

Frequently Asked Questions

Can I start with a 1214C and later upgrade to a 1215C without rewriting my entire TIA Portal program?

The program logic itself — function blocks, data blocks, and control routines — transfers between the two CPUs in TIA Portal through a hardware configuration update. You are not rewriting the program from scratch. However, you will need to recompile after changing the CPU type, verify that resource limits are respected under the 1215C configuration, and check any hardware-specific addressing that may have changed. Physical wiring changes may be required if integrated I/O pinouts differ between the two CPUs. This is a manageable migration, not a complete redesign, but it is not a zero-effort swap.

How do I know if I actually need the second Ethernet port of the 1215C?

Map every Ethernet device in your application — HMIs, drives, remote I/O stations, any higher-level PLC or SCADA connection — and draw your network topology. If everything connects through a managed switch in a star topology and you have no panel-space concern with adding a switch, a single-port CPU like the original 1214C is functionally adequate. If you want to daisy-chain devices through the CPU to simplify wiring or reduce switch count for a small Profinet segment, the two-port 1215C original generation provides that option. For G2 hardware, both CPUs carry two ports, which changes this calculation significantly.

Do both CPUs support the same S7-1200 signal modules and communication modules?

Both CPUs draw from the same SIMATIC S7-1200 module ecosystem, including digital and analog signal modules, communication modules, signal boards, and technology modules. Compatibility is generally consistent across the family, but specific module combinations and generation interactions should be verified against the Siemens hardware compatibility documentation for the exact CPU catalog number and firmware version you are using. Do not assume that a module tested on one generation works identically on another without checking.

What changes if I choose G2 versions of these CPUs instead of original generation?

The SIMATIC S7-1200 G2 generation delivers higher processing power, increased memory, and improved communication performance compared to the original generation — confirmed by Siemens documentation. The most practically significant G2 change for this comparison is that G2 CPUs, including the 1214C, now carry two switched Ethernet ports, which removes the port-count gap between the two CPUs in original hardware. The 1215C G2 still maintains its advantage in memory and communication resources. Hardware configuration in TIA Portal must reflect the G2 variant specifically; original-generation and G2 CPUs are not interchangeable in software configuration without hardware template changes.

Is the 1215C overkill for a basic conveyor or simple machine application?

For a machine with modest digital I/O, one or two Ethernet devices, no analog output requirements, and a straightforward control program, the 1215C delivers capability that the application will never utilize. The 1214C comfortably handles that application profile and does so at a lower cost. Choosing the 1215C in that scenario is not wrong, but it adds purchase cost without adding operational value. The risk of over-specifying is lower than under-specifying — but the right engineering decision is to match the CPU tier to the verified requirements, not to default to the larger part out of habit.

How do the fail-safe FC variants change the 1214C vs 1215C selection?

If your application requires a safety PLC — determined by a formal functional safety assessment, not by preference — the selection shifts from standard CPUs to FC variants. The same capacity logic applies: the 1214FC is appropriate for simpler safety applications with fewer safety I/O points and less complex safety logic, while the 1215FC provides the resources for more complex safety programs and larger safety I/O configurations. The FC variant selection does not replace a safety design review and must follow Siemens safety manual requirements and applicable standards for your SIL or PL target.

Which CPU is better for integrating into a larger Siemens automation system with an S7-1500 as the supervisory controller?

In an architecture where an S7-1200 functions as a subordinate machine controller reporting to a higher-level S7-1500, the 1215C's greater communication resources and memory headroom make it the more appropriate choice. The additional resources support the communication blocks required for reliable data exchange with the supervisory PLC alongside the machine's own control logic. For very simple subordinate machines with minimal data exchange requirements, a 1214C may still be adequate — but where scalability and reliable Profinet performance matter, the 1215C offers more headroom. For projects approaching the upper end of the compact-controller range, compare the S7-1200 vs S7-1500 platform before locking the architecture.

Why Order Through LeadTime.ca

  • LeadTime.ca ships SIMATIC S7-1200 CPUs and compatible modules worldwide — not restricted to any single region
  • Specialist sourcing support for standard, fail-safe (FC), and G2 CPU variants, including catalog number verification before you commit
  • Real lead time data before you finalize your BOM — avoiding build schedule surprises on long-lead items
  • Volume pricing available for OEM and multi-machine procurement — contact the team directly for project-scale quotes
  • Hard-to-find variants sourced globally when local distributor stock is unavailable

At-a-Glance Summary

  • Both CPUs belong to the SIMATIC S7-1200 basic controller family and are programmed in TIA Portal — shared platform, different capacity tiers
  • The SIMATIC S7-1200 CPU 1215C sits at a higher memory and resource tier than the CPU 1214C within the S7-1200 family
  • Original-generation CPU 1214C has one Ethernet port; original-generation CPU 1215C has two switched Ethernet ports — a direct topology impact for multi-device Profinet networks
  • G2-generation CPUs standardize on two switched Ethernet ports across the range, including the 1214C — verify generation before specifying
  • Many 1215C variants include integrated analog outputs where 1214C variants typically provide analog inputs only — verify per catalog number
  • Both CPUs are available in standard and fail-safe (FC) variants; safety application requirements must be evaluated separately from standard CPU capacity decisions
  • The SIMATIC S7-1200 G2 generation introduces higher processing power, increased memory, and improved communication performance compared to the previous generation
  • Total installed cost — CPU plus modules plus engineering time — not CPU purchase price alone, is the correct cost comparison framework
  • The deciding question: will your machine's I/O, analog, and Ethernet demands remain modest and stable, or is there meaningful chance they will grow during its lifetime?
  • Exact memory figures, I/O counts, and module limits are variant-specific — always verify against official Siemens datasheets for the catalog numbers in your BOM
