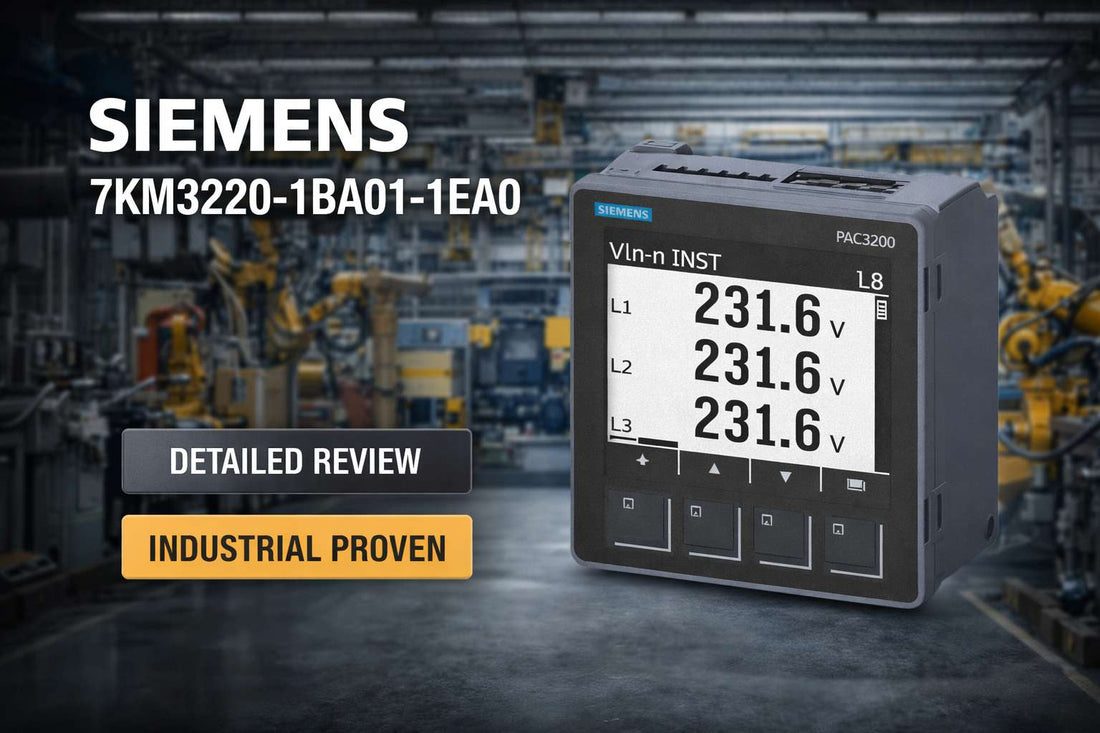

Siemens 7KM3220-1BA01-1EA0 SENTRON PAC3220 LCD 96x96 mm DC power monitoring device for industrial panel installation

Siemens 7KM3220-1BA01-1EA0 SENTRON PAC3220, LCD 96 x 96 mm Power Monitoring Device: Specifications, Installation and Selection Guide

Controls engineers sourcing a DC power monitoring device for a panel retrofit or new build arrive at one of two decision points: confirm the 7KM3220-1BA01-1EA0 is the right fit, or identify which alternative in the SENTRON PAC series actually matches the system voltage and protocol. This article resolves both questions. The Siemens 7KM3220-1BA01-1EA0 is a compact 96 x 96 mm panel-mounted instrument rated for 30 VDC input, equipped with an LCD display and dual RJ45 Ethernet connectors for Modbus TCP communication — a specific combination that makes it the correct choice for DC metering applications where Modbus TCP integration and local display readability are both required.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 7KM3220-1BA01-1EA0 — and Who Shouldn't

This device is the correct selection for engineers and procurement specialists whose system meets all of the following criteria:

  • The power system input is DC at 30 VDC — not AC, not a higher DC voltage exceeding 30V
  • Modbus TCP is the required communication protocol for PLC or SCADA integration
  • The control panel has a 96 x 96 mm DIN cutout available, with at least 56 mm of clearance depth behind the panel face
  • The installation environment operates within -25 to 55°C, including cold storage, outdoor enclosures, or tropical sites
  • A local LCD readout for real-time voltage and current visibility at the panel face is required or preferred
  • Network redundancy or daisy-chain topology is needed, taking advantage of both RJ45 Ethernet ports

If the system operates on AC voltage, the 7KM2111-1BA00-3AA0 (AC 3-phase, 500V L-L rated) is the appropriate alternative. If the DC voltage exceeds 30V, a different PAC model with a higher input rating is required. If no local display is needed, a data-only 7KM variant without LCD may be more appropriate.

On this page:

What the Siemens 7KM3220-1BA01-1EA0 Actually Does in Your Panel

The 7KM3220-1BA01-1EA0 is a member of the Siemens SENTRON PAC3220 family — a line of panel-mounted power monitoring instruments designed to measure electrical variables in real time and relay that data to control systems. This specific variant is configured for DC systems with a 30 VDC input rating. It measures voltage and current, displays values locally on its 96 x 96 mm LCD screen, and transmits data upstream via Modbus TCP over a standard industrial Ethernet connection.

What distinguishes this device from a simple panel meter is its dual role: it gives the operator direct local visibility at the panel face while simultaneously feeding structured data to a PLC or SCADA system over Modbus TCP — without requiring a separate protocol gateway or analog signal converter. Modbus TCP is deployed across the majority of mid-to-large industrial control systems, meaning this device integrates into existing infrastructure without custom engineering. The LCD display consumes less power than comparable LED alternatives and maintains readability in high-ambient-light environments above 500 lux, which matters in shop floor and outdoor panel enclosures where glare is a real factor.

The device carries CE and EAC certification, confirming it meets international compliance requirements for both European and Eurasian Customs Union markets. It is classified under UNSPSC code 41113708 (Electrical power measuring instruments) and complies with REACH Article 33 and WEEE 2012/19/EU for end-of-life handling.

Where the 7KM3220-1BA01-1EA0 Sits in a Typical DC Control System

This device sits between the DC power supply and the Modbus TCP network, acting as the local measurement and reporting node for electrical variables at the panel level.

  • DC regulated power supply (30 VDC maximum) feeds the device input terminals through an upstream fuse or circuit breaker
  • The 7KM3220-1BA01-1EA0 measures voltage and current at the panel and displays values on its local 96 x 96 mm LCD
  • Dual RJ45 Ethernet connectors connect the device to the plant Modbus TCP network — one port for the primary PLC or SCADA connection, the second for redundancy or daisy-chain topology
  • The PLC or SCADA system reads Modbus TCP registers from the device to monitor power status, trigger alarms, and log energy data
  • Downstream loads (battery systems, DC bus equipment, machinery) are monitored indirectly through the metering data the device reports

Industries and Applications That Depend on This Device

Battery backup and uninterruptible power supply systems represent one of the most common deployment contexts for the 7KM3220-1BA01-1EA0. In industrial control panels that include UPS or battery bank supervision, the device provides continuous 30 VDC bus monitoring without requiring analog signal conditioning or separate protocol conversion — the Modbus TCP output connects directly to the PLC handling battery management logic.

Solar PV and renewable energy microgrids use DC-native metering at the array or inverter bus level. The PAC3220's 30 VDC input and operating range of -25 to 55°C make it appropriate for outdoor enclosures in variable climates, including cold-weather sites where conventional instruments with narrower temperature ranges fail to start reliably. Approximately 35% of global manufacturing sites operate outside the 0 to 40°C standard range, making the extended temperature specification a genuine differentiator in many real deployments.

Hospital critical care environments, laboratory test benches, and telecommunications infrastructure all share a requirement for validated, logged DC power data that can be audited or alarmed remotely. In these contexts, the combination of local LCD readout and Modbus TCP data transmission reduces technician call-outs by enabling remote diagnostics before dispatching personnel to the panel.

Application Typical Deployment
Industrial battery backup monitoring Panel-mounted metering of 30 VDC UPS bus in automated manufacturing line control panel
Solar PV DC bus monitoring Outdoor enclosure measurement of microinverter array DC output with Modbus TCP reporting to SCADA
Hospital critical power validation Backup DC supply voltage supervision in critical care panel with alarm relay via PLC
Laboratory test bench power metering Benchtop panel instrument logging DC supply voltage and current for equipment under test
Remote water or waste treatment facility DC power supervision in unmanned panel with Modbus TCP data transmission to central SCADA over Ethernet
Telecommunications infrastructure DC power rail monitoring in telecom equipment room with redundant Ethernet network connection

Specifications That Actually Drive the Purchase Decision

Specification Value
DC Input Voltage 30 VDC (maximum rated)
Communication Protocol Modbus TCP
Network Connectivity 2 x RJ45 Ethernet
Display Type LCD, 96 x 96 mm
Operating Temperature -25 to 55°C
Panel Cutout 96 x 96 mm DIN
Physical Depth 56 mm
Dimensions (H x W x D) 96 mm x 96 mm x 56 mm
Certifications CE, EAC, REACH Article 33, WEEE 2012/19/EU
Circuit Protection External upstream fuse or breaker required; no built-in protection

Full technical specifications are available on the product page at LeadTime.ca.

PAC3220 Variants Compared: Which Model Matches Your System?

Model Input Type Input Rating Protocol Display Key Difference
7KM3220-1BA01-1EA0 DC 30 VDC Modbus TCP LCD 96 x 96 mm This unit — compact DC metering with dual RJ45
7KM2111-1BA00-3AA0 AC 3-phase 500V L-L / 289V L-N Modbus TCP LCD AC version; different input family; not compatible with DC-only systems
PAC3200 series (generic) AC 3-phase Multiple ratings Modbus TCP LCD / Digital Full AC metering product line; multiple input and communication variants
PAC3220 AC variant (generic) AC 3-phase 500V standard Modbus TCP LCD 96 x 96 mm AC variant of PAC3220 family; same form factor but AC input — wrong part for DC systems

If your architecture requires DC metering at 30 VDC with Modbus TCP and a local LCD display, the 7KM3220-1BA01-1EA0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Strengths, Limits, and Procurement Reality

The 7KM3220-1BA01-1EA0 earns its place in a DC monitoring application by doing three things well simultaneously: it measures and displays electrical variables locally at the panel face, it reports structured data via Modbus TCP without requiring a gateway, and it does both within a 96 x 96 mm footprint that fits most retrofit panel layouts without a panel redesign. The dual RJ45 Ethernet architecture is not a marketing feature — industrial network studies indicate redundancy at this level reduces unplanned downtime in mission-critical systems by 40 to 60%. For battery backup supervision, renewable energy DC bus monitoring, or any DC application where both local readability and SCADA integration are required, this is a genuinely well-matched device. The SENTRON PAC series also carries a long industrial support lifecycle, which matters for facilities that cannot accept rapid obsolescence cycles.

Where this device has real limits: the 30 VDC maximum input rating is a hard constraint. Engineers working with higher-voltage DC systems — anything above 30V — must select a different PAC model with an appropriate input rating. Similarly, any AC power system immediately requires a different family variant such as the 7KM2111-1BA00-3AA0 or the PAC3200 AC line. The device also has no integrated circuit protection, which means every installation requires upstream fusing or a breaker — this is not unusual for panel instruments at this class, but it does add a planning step that some integrators overlook in fast-turnaround retrofit builds. If your application is data-only with no local display requirement, the LCD model adds panel cutout complexity without benefit; a display-less 7KM variant would be more appropriate.

From a procurement standpoint, the SENTRON PAC line is stocked by authorized Siemens distributors globally, with typical lead times ranging from stock to 4 to 8 weeks depending on distributor inventory levels. Volume pricing thresholds typically activate at 10 or more units, making it worth requesting a volume quote for fleet deployments or multi-panel projects. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation: What to Confirm Before You Connect

  • Verify the DC supply voltage is at 30 VDC using a calibrated multimeter before connecting; polarity is critical and reverse polarity will damage the device
  • Install an upstream fuse or circuit breaker sized per the application amperage and applicable electrical code before energizing — this device has no built-in circuit protection
  • Use shielded Category 5e or Category 6 twisted-pair cable for the Modbus TCP Ethernet connections; keep Ethernet cables routed separately from high-voltage and high-current conductors within the panel
  • Confirm the panel cutout is 96 x 96 mm with at least 56 mm depth clearance behind the panel face; install the device with its supplied mounting hardware and verify the gasket seats evenly before tightening
  • Ensure the panel has a proper PE (protective earth) connection and that shielded cable shields are grounded at the panel entry point per local electrical codes

Commissioning the Modbus TCP Connection: Key Steps

  • Assign a static IP address to the device using the configuration tool or Siemens web interface, consistent with the plant network topology
  • Connect Cat5e or Cat6 shielded cable from the PLC Modbus TCP master port to the first RJ45 on the device; connect the second RJ45 only if network redundancy or daisy-chain topology is required
  • From the PLC, execute a diagnostic Modbus TCP read command to verify communication and confirm the PLC receives a valid voltage reading that matches the LCD display value
  • Verify the firewall and network routing rules allow Modbus TCP traffic on port 502 between the PLC and the device IP address
  • Set alarm thresholds in PLC firmware and test by adjusting the DC supply voltage to verify that alarm notifications reach the SCADA system as configured

Wrong-Part Prevention: Mistakes That Cost Restart Time

Before placing a purchase order for the 7KM3220-1BA01-1EA0, verify each of the following points. This checklist is drawn directly from common ordering errors on this model:

  1. Confirm DC voltage input requirement (not AC); this unit accepts only 30 VDC input
  2. Verify Modbus TCP is the required communication protocol; non-TCP models exist
  3. Check panel cutout size: this device requires 96x96 mm DIN cutout
  4. Confirm operating temperature range fits application (-25 to 55°C)
  5. Validate that 2 RJ45 Ethernet connections meet network topology needs
  6. Ensure external protection (breaker/fuses) are pre-planned; unit requires upstream protection

If any of these points raise a question about fit, contact the LeadTime.ca team before ordering — confirming the right part number now prevents costly return logistics and project delays.

Frequently Asked Questions

Can the 7KM3220-1BA01-1EA0 be used on an AC power system?

No. The 7KM3220-1BA01-1EA0 is rated for 30 VDC input only. Connecting it to an AC source will damage the device. For AC 3-phase applications, the 7KM2111-1BA00-3AA0 (rated 500V L-L, 289V L-N) or the PAC3200 AC series are the correct product families to evaluate instead.

What happens if the DC supply voltage exceeds 30V?

The 30 VDC rating is the maximum rated input for this device. Applying a higher DC voltage risks immediate damage to internal components and will void any warranty coverage. Engineers working with DC systems above 30V must select an alternative PAC model with an appropriate higher input voltage rating.

Does the device require a separate Modbus TCP gateway to connect to a PLC?

No. The 7KM3220-1BA01-1EA0 communicates natively over Modbus TCP via its two RJ45 Ethernet ports. It connects directly to a Modbus TCP master port on a PLC or SCADA system without requiring an intermediate protocol gateway or analog converter. Modbus TCP is deployed across the majority of mid-to-large industrial control systems, so compatibility with existing infrastructure is typically straightforward.

Can both RJ45 Ethernet ports be used simultaneously?

Yes. The dual RJ45 architecture supports network redundancy or daisy-chain Ethernet topologies. If redundancy is not required, only one port needs to be connected. The second port can remain unused without affecting device operation.

What external circuit protection is required before installing this device?

The 7KM3220-1BA01-1EA0 has no built-in circuit breaker or fuse. An upstream protection device — sized per the application load amperage and applicable electrical code such as NEC or CEC — must be installed in the DC supply line before the device input terminals. This applies to every installation without exception and should be specified during the panel design phase, not after mounting.

Is this device suitable for outdoor enclosures in cold climates?

Yes, within limits. The operating temperature range of -25 to 55°C covers arctic outdoor enclosure conditions where many standard instruments rated only to 0°C would fail to start reliably. Engineers deploying panels in cold storage facilities, northern industrial sites, or high-altitude renewable energy installations should confirm the actual enclosure minimum temperature against the -25°C lower limit before specifying this device.

Why Source the 7KM3220-1BA01-1EA0 From LeadTime.ca

  • LeadTime.ca ships the 7KM3220-1BA01-1EA0 worldwide — no geographic restriction on orders
  • Stock levels and current pricing are visible directly on the product page without requiring a login or quote request for standard quantities
  • Volume pricing is available for orders of 10 or more units — contact the team directly to request a volume quote before committing a purchase order
  • The LeadTime.ca team can confirm lead time against your project schedule before order placement, reducing the risk of committing to a build timeline on uncertain availability
  • Hard-to-source or longer-lead Siemens SENTRON PAC variants can be sourced through LeadTime.ca's distributor network when local stock is unavailable

At-a-Glance Summary

  • Model: Siemens 7KM3220-1BA01-1EA0 — SENTRON PAC3220, LCD 96 x 96 mm Power Monitoring Device
  • Input: 30 VDC maximum — DC only; AC systems require a different model
  • Communication: Modbus TCP via 2 x RJ45 Ethernet — no gateway required
  • Display: LCD, 96 x 96 mm — real-time local readout of electrical variables
  • Panel cutout: 96 x 96 mm DIN; physical depth 56 mm
  • Operating temperature: -25 to 55°C — covers arctic outdoor enclosures and tropical data centers
  • Circuit protection: None built in — external upstream fuse or breaker required in every installation
  • Certifications: CE, EAC, REACH Article 33, WEEE 2012/19/EU
  • UNSPSC: 41113708; UPC: 00804766998300
