Siemens 7KM3220-0BA01-1DA0 PAC3220 — Power Meter Buying Guide

By Abdullah Zahid
12 min read

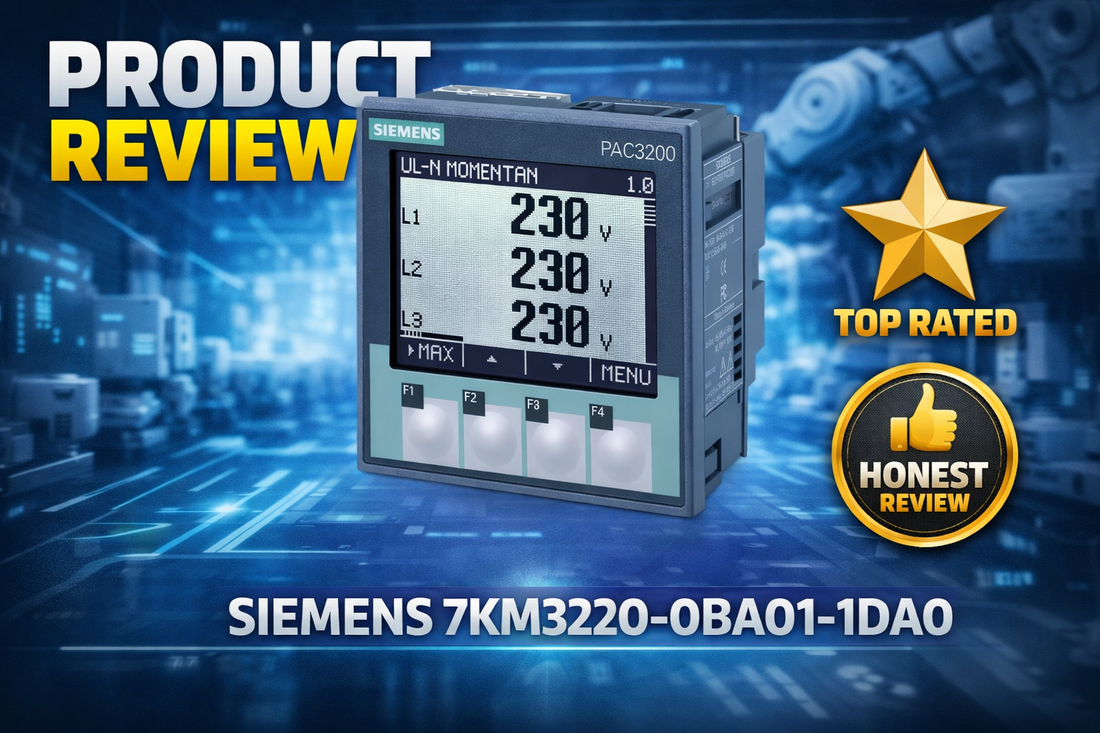

Siemens 7KM3220-0BA01-1DA0 SENTRON PAC3220 LCD 96x96mm power monitoring device for industrial panel installation

Siemens 7KM3220-0BA01-1DA0 SENTRON PAC3220 LCD 96 x 96 mm Power Monitoring Device: Specifications, Selection Guide, and Procurement Review

Controls engineers and facility electrical teams searching for the Siemens 7KM3220-0BA01-1DA0 are typically at a clear decision point: they have identified a need for networked power quality monitoring in an industrial panel and need to confirm this specific device fits their communication architecture, panel space, and measurement requirements before committing to a purchase order. The SENTRON PAC3220 is a panel-mounted LCD power monitoring device measuring over 100 electrical parameters — including voltage, current, active and reactive power, THD, and harmonics to the 31st order — and communicating via Modbus TCP over dual 10/100Base-T Ethernet ports. At 96 x 96 mm, it fits a standard DIN panel cutout and includes 2 digital inputs and 2 digital outputs.

If you have already confirmed this is the right part, check current pricing and availability for the 7KM3220-0BA01-1DA0 at LeadTime.ca — we ship worldwide.

Who Should Buy the 7KM3220-0BA01-1DA0 — and Who Shouldn't

The Siemens 7KM3220-0BA01-1DA0 is the right choice for engineers deploying a networked, multi-parameter power quality monitoring solution inside an industrial distribution panel. Buy this device if your project meets the following criteria:

  • Your control system uses Modbus TCP over Ethernet and requires data from a panel-mounted power meter
  • Your panel can accommodate a 96 x 96 mm front cutout and rear terminal access depth
  • You require THD and harmonic analysis up to the 31st order for power quality auditing or compliance documentation
  • You need dual Ethernet connectivity for network redundancy or ring topology support
  • Your signaling architecture can work with 2 digital inputs and 2 digital outputs
  • You need 100+ electrical measurements — voltage, current, power, energy accumulation, phase imbalance — consolidated into a single device

If your application requires analog outputs instead of Modbus TCP networking, a lower-cost device without Ethernet (such as the PAC3200), or integrated protection relay functions beyond monitoring, the 7KM3220-0BA01-1DA0 is not the correct selection — review the variant comparison table below before ordering.

On this page:

What the SENTRON PAC3220 Does in a Real Distribution System

The Siemens 7KM3220-0BA01-1DA0 is not a simple panel voltmeter. It is a full-featured power monitoring device from the SENTRON 7KM PAC Measuring Devices family that consolidates over 100 electrical parameter measurements — including active power (kW), reactive power (kVAR), apparent power (kVA), power factor, frequency, phase angle, phase imbalance, energy accumulation (kWh), individual harmonics from the 2nd through the 31st order, and Total Harmonic Distortion (THD) — into a single 96 x 96 mm LCD display unit. This replaces multiple analog gauges and eliminates the need for separate power quality analyzers in many retrofit and new-build panel designs.

What differentiates the PAC3220 from lower-tier devices in the same family is its dual 10/100Base-T Ethernet connectivity running Modbus TCP. This means the device can be polled directly from a PLC, SCADA system, or building energy management platform without a separate gateway or serial converter. The dual Ethernet ports support ring or mesh network topologies, providing a path to network redundancy that a single-port device cannot offer. The 2 digital inputs and 2 digital outputs extend its role beyond passive monitoring — digital outputs can trigger alarms or control downstream devices based on configurable measurement thresholds.

Facilities pursuing ISO 50001 energy management certification increasingly deploy networked meters like the PAC3220 at distribution branch points because the Modbus TCP integration eliminates manual data collection and enables continuous consumption tracking. Industry data from commissioning projects indicates that comprehensive power metering supports 10–18% reduction in energy waste within the first 12 months through identification of non-optimal loading and power factor correction opportunities.

Typical System Architecture: Where the 7KM3220-0BA01-1DA0 Sits

The 7KM3220-0BA01-1DA0 sits at the measurement layer of a power distribution system, positioned between the upstream distribution circuit and the downstream loads, feeding measurement data upstream to a control or energy management network via Modbus TCP.

  • PLC or SCADA server (Modbus TCP master) polls the PAC3220 over the plant Ethernet network
  • Dual 10/100Base-T Ethernet ports on the PAC3220 connect to the plant LAN or a dedicated metering network segment
  • Voltage measurement inputs connect directly to the distribution bus or via voltage transformers for high-voltage circuits
  • Current measurement inputs connect via external current transformers (CTs) mounted on the bus conductors or feeder cables
  • Digital outputs connect to alarm annunciators, PLC digital input modules, or load control devices based on configured threshold logic

Industries and Applications Where This Power Meter Gets Deployed

In food and beverage processing plants, the 7KM3220-0BA01-1DA0 is deployed in motor control centers to track phase imbalance and voltage sag patterns on compressor and conveyor motor circuits. Catching early harmonic distortion from aging variable frequency drives before it causes motor insulation damage is a documented use case — predictive maintenance programs using real-time harmonic data can extend motor service life by 15–25% through early detection of electrical stress.

In automotive manufacturing, the PAC3220 supports energy cost allocation across production cells by providing kWh accumulation data per distribution branch, feeding a central energy management dashboard via Modbus TCP. Chemical and pharmaceutical facilities use the THD and harmonic-to-the-31st-order measurement capability to document power quality compliance for utility reporting and EN 50160 supply voltage quality verification.

Water treatment facilities and utility substations deploy the device for demand response monitoring, tracking peak demand logging and frequency measurement to support compliance with utility interconnection agreements. Data centers use the dual Ethernet ports to maintain continuous monitoring even during network cable maintenance, leveraging the redundancy path to ensure no gap in UPS load tracking data.

Application Typical Deployment
Production line motor control center Phase imbalance and THD monitoring on VFD-driven motors; Modbus TCP to PLC SCADA
Building energy management system Modbus TCP integration across multiple distribution panels for centralized kWh tracking
Utility substation power quality compliance Harmonic content documentation to 31st order for IEC 61000-3-2 and EN 50160 reporting
Food and beverage processing facility Predictive maintenance via voltage sag and harmonic trend analysis on compressor circuits
Data center UPS monitoring Dual Ethernet redundancy for continuous inverter load and efficiency tracking
ISO 50001 energy audit retrofit Energy accumulation (kWh) and power factor logging across distribution branch circuits

Purchase-Decision Specifications: 7KM3220-0BA01-1DA0 at a Glance

Parameter Specification
Display LCD, 96 x 96 mm
Panel Mounting Cutout 96 x 96 mm (standard DIN spacing)
Network Interface 2 x 10/100Base-T Ethernet RJ45
Communication Protocol Modbus TCP
Digital Inputs 2
Digital Outputs 2
Measurement Parameters 100+ including voltage, current, active/reactive/apparent power, power factor, frequency, THD, harmonics to 31st order, energy accumulation, phase imbalance
Harmonic Analysis Individual harmonics 2nd through 31st order
Current Input Via external current transformers
Operating Temperature -10 to +50°C

Full technical specifications are available on the product page at LeadTime.ca.

PAC3220 vs. PAC3200 vs. PAC5100: Which Device Do You Actually Need?

Device Modbus TCP Ethernet Ports Harmonic Analysis Display Best For
Siemens PAC3200 No None No 96 x 96 mm LCD Simple load monitoring without networking requirements
Siemens 7KM3220-0BA01-1DA0 (PAC3220) Yes Dual 10/100Base-T Yes, to 31st order 96 x 96 mm LCD Networked power quality monitoring with harmonics and THD
Siemens PAC5100 Yes Yes Yes 96 x 96 mm LCD Multi-circuit submetering infrastructure (separate device per branch)

If your architecture requires Modbus TCP with dual Ethernet redundancy and harmonic analysis to the 31st order in a 96 x 96 mm panel footprint, the 7KM3220-0BA01-1DA0 is the correct selection — check current availability and pricing at LeadTime.ca.

Expert Verdict: Honest Assessment and Procurement Reality

The Siemens 7KM3220-0BA01-1DA0 earns its place in networked industrial power monitoring systems because it consolidates what would otherwise require multiple separate instruments — a power quality analyzer, an energy meter, and a network gateway — into a single 96 x 96 mm device. The dual 10/100Base-T Ethernet ports running Modbus TCP are the distinguishing feature at this tier. For engineers integrating this device into a SCADA system or PLC network, the dual-port topology support reduces single-point-of-failure risk in critical monitoring loops, and the 100+ measurement parameters mean one Modbus register map covers the full spectrum of energy management and predictive maintenance data collection in a single poll cycle.

There are clear cases where this device is not the right answer. If your panel already has Ethernet congestion or your control system uses a serial-only Modbus RTU architecture without TCP capability, the PAC3220's connectivity advantage is wasted and a simpler variant is more appropriate. If you need protection relay functionality — not just monitoring — the PAC3220 does not provide that and you need a different product family entirely. The 96 x 96 mm LCD format is also not ideal for operator visibility at distance; for large display boards or remote readout requirements, consider a different display format before finalizing your panel layout. The device also relies on external current transformers for all current measurement — there is no built-in CT — so CT procurement, ratio matching, and polarity verification are pre-purchase engineering steps that cannot be skipped.

On the procurement side, the 7KM3220-0BA01-1DA0 carries Active Product status, which confirms ongoing manufacturing support. Typical lead times from authorized distributors fall within 1–2 weeks for standard stock, though special configurations or high-demand periods can extend this to up to 10 weeks. If you are working against a retrofit project deadline, confirming stock before finalizing your build schedule is worth a direct call. Volume orders typically qualify for tiered pricing — worth confirming if you are deploying multiple units across a facility metering project. If this device matches your system requirements, view current stock and pricing for the 7KM3220-0BA01-1DA0 at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following points cover the key considerations for installing the 7KM3220-0BA01-1DA0. Full wiring procedures and terminal diagrams are in the Siemens SENTRON PAC3220 technical manual.

  • Prepare a 96 x 96 mm panel cutout using a drilling template to ensure flush front-panel alignment; secure the device with supplied mounting brackets and confirm rear terminal clearance before routing cables
  • Connect device supply voltage to power input terminals — verify the supply matches the rated voltage on the device nameplate before energizing
  • Connect voltage measurement inputs directly to the distribution bus conductors or via voltage transformers; confirm secondary voltage levels are within the device input range
  • Connect current measurement inputs via external current transformers — never open a CT secondary circuit under load; verify CT secondary continuity with an ohms check before commissioning
  • Connect Ethernet cables using shielded CAT5e or CAT6 cable rated for the -10 to +50°C operating range; maintain at least 300 mm separation from high-current power cables to prevent Modbus TCP communication interference

Commissioning Overview: IP Configuration and First Power-Up

  • Before applying power, verify supply voltage at the device terminals matches nameplate rating; confirm all CT ratio entries are ready based on the nameplate data from your installed current transformers
  • After power-up and LCD display boot confirmation, access the configuration menu to enter the external CT ratios — an incorrect ratio (e.g., entering 100:5 instead of 1000:5) will cause current and power readings to be off by an order of magnitude
  • Assign the device IP address and subnet mask to match your plant network — DHCP is supported, but a static IP is recommended for Modbus TCP polling stability in production environments
  • Configure alarm thresholds for voltage limits, current limits, and THD percentage based on your application's acceptable operating ranges; digital output relay behavior can be tied to these thresholds
  • Validate Modbus TCP communication by performing a register read from your control system or engineering interface before declaring commissioning complete; also simulate digital input signals to confirm register updates reflect correctly

Wrong-Part Prevention Checklist Before You Order

Before placing your purchase order for the Siemens 7KM3220-0BA01-1DA0, verify every item on this checklist. These are the most common sources of incorrect orders and post-delivery returns in the PAC3220 product family:

  1. Verify rated voltage and frequency match your application (confirm AC/DC specification)
  2. Confirm Modbus TCP and Ethernet connectivity match your control system protocol
  3. Check panel mounting cutout size accommodates 96 x 96 mm display
  4. Validate that 2 digital inputs and 2 digital outputs meet your signaling needs
  5. Ensure primary/secondary current transformer ratios are compatible with your configuration
  6. Confirm that measurement resolution and update rate meet your application timing requirements
  7. Verify that the device is Active Product status (not obsolete or end-of-life)

If any item on this checklist raises a question about fit, contact the LeadTime.ca team before ordering — we can help confirm the correct variant for your application.

Frequently Asked Questions

Does the 7KM3220-0BA01-1DA0 require external current transformers, or does it have built-in CTs?

The PAC3220 measures current via external current transformers — there are no built-in CTs in the device. You must specify and procure CTs separately based on your bus conductor current rating, and you must enter the primary-to-secondary CT ratio (for example, 1000:5) into the device configuration menu during commissioning. An incorrect ratio entry is the most common cause of wrong current and power readings after installation.

Can the 7KM3220-0BA01-1DA0 communicate with a Siemens S7 PLC or SIMATIC WinCC SCADA?

The device communicates via Modbus TCP over its dual 10/100Base-T Ethernet ports. Modbus TCP is a widely supported protocol, and many Siemens PLC platforms and SCADA systems support Modbus TCP client functionality either natively or via communication modules. Confirm your specific PLC firmware and communication module supports Modbus TCP master mode before finalizing your integration architecture.

What harmonic orders does the PAC3220 measure, and does it support THD percentage reporting?

The 7KM3220-0BA01-1DA0 measures individual harmonics from the 2nd through the 31st order and includes Total Harmonic Distortion (THD) in its 100+ parameter measurement set. This makes it suitable for documenting power quality compliance for IEC 61000-3-2 equipment emissions standards and EN 50160 supply voltage quality verification in regulated facilities.

How does the dual Ethernet port design work — is one port a backup or can both be active simultaneously?

The dual 10/100Base-T Ethernet ports on the PAC3220 support ring or mesh network topology configurations, enabling network redundancy so that data flow is maintained if one cable segment fails. This is particularly relevant in critical monitoring applications where a gap in measurement data during cable maintenance or a network fault would be operationally unacceptable. Refer to the Siemens SENTRON PAC3220 technical manual for specific port configuration and redundancy topology setup.

What is the typical lead time for the 7KM3220-0BA01-1DA0 and is it an active product?

The 7KM3220-0BA01-1DA0 carries Active Product status, confirming ongoing manufacturing support from Siemens. Typical delivery from authorized distributors is within 1–2 weeks for standard stock. Depending on supply chain conditions and order volume, lead times can extend to up to 10 weeks for certain configurations. For a confirmed lead time on your specific order, contact LeadTime.ca directly.

Is the Modbus TCP communication on the PAC3220 encrypted or secure by default?

Modbus TCP as a protocol does not include built-in encryption. For critical monitoring applications where network security is a concern, Siemens recommends network segmentation and following their published security guidelines for SENTRON device firmware management. The PAC3220 has no wireless connectivity — all communication is over hardwired Ethernet, which limits the attack surface compared to wireless-enabled meters.

Why Source the 7KM3220-0BA01-1DA0 from LeadTime.ca

  • LeadTime.ca ships the Siemens 7KM3220-0BA01-1DA0 worldwide — no regional restrictions on order fulfillment
  • Current pricing and stock levels are visible on the product page without requiring a distributor account setup
  • Volume pricing is available for multi-unit metering projects — contact us before finalizing your BOM
  • The team can assist with CT accessory identification and variant confirmation to prevent wrong-part orders before they happen

At-a-Glance Closing Summary

  • Model: Siemens 7KM3220-0BA01-1DA0 — SENTRON PAC3220 LCD 96 x 96 mm Power Monitoring Device
  • Measures 100+ electrical parameters including active power (kW), reactive power (kVAR), apparent power (kVA), THD, individual harmonics 2nd–31st order, phase imbalance, energy accumulation (kWh)
  • Dual 10/100Base-T Ethernet RJ45 ports running Modbus TCP — supports ring/mesh network redundancy topologies
  • Panel cutout: 96 x 96 mm standard DIN spacing; operating temperature -10 to +50°C
  • Includes 2 digital inputs and 2 digital outputs with configurable alarm threshold logic
  • Current measurement via external current transformers — CT ratio must be entered into device configuration
  • Active Product status — typical distributor stock lead time 1–2 weeks; up to 10 weeks for special configurations
  • Supports ISO 50001 energy auditing, IEC 61000-3-2 harmonic compliance documentation, and EN 50160 power quality verification
  • Predictive maintenance data: harmonic trend analysis can support 15–25% motor service life extension through early electrical stress detection
