Siemens 6SL3255-0AA00-4JA2 — SINAMICS IOP-2 Selection Guide

By Abdullah Zahid
13 min read

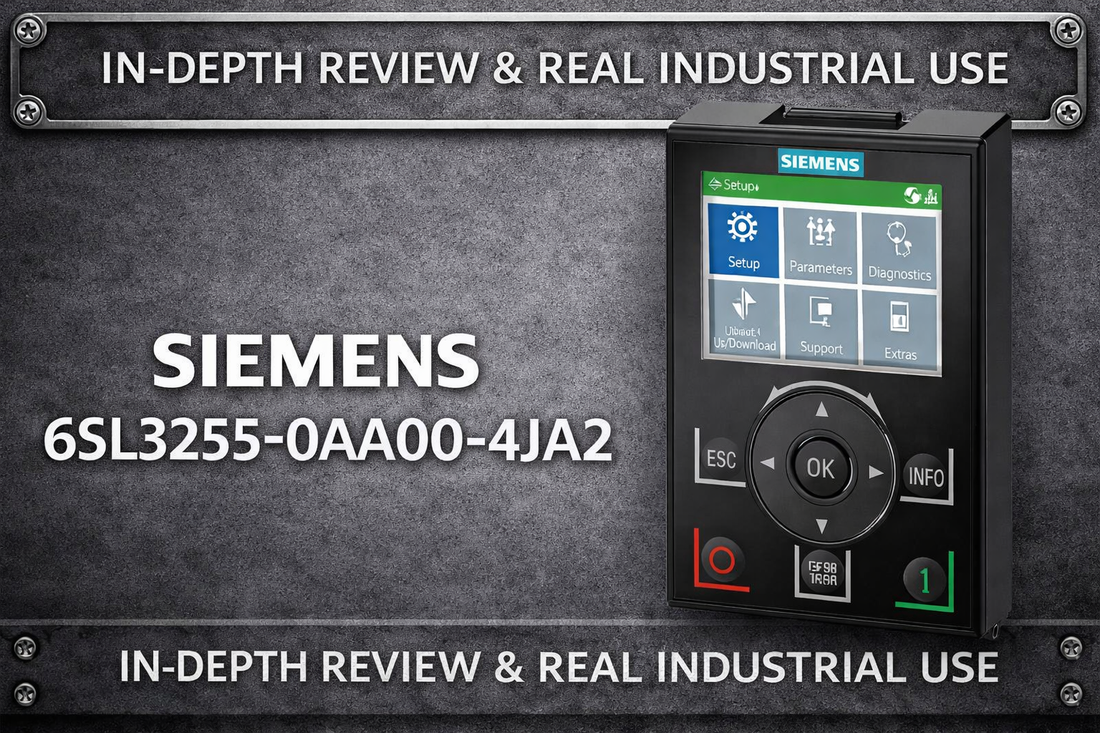

Siemens 6SL3255-0AA00-4JA2 SINAMICS G Intelligent Operator Panel IOP-2 mounted on industrial control enclosure

Siemens 6SL3255-0AA00-4JA2 SINAMICS Intelligent Operator Panel IOP-2: Complete Specs, Compatibility, and Selection Guide

Controls engineers specifying a local operator interface for a SINAMICS G120 or related G-series variable frequency drive often face the same question: is a dedicated touchscreen panel worth it, or is a basic keypad sufficient? The Siemens 6SL3255-0AA00-4JA2 — the SINAMICS G Intelligent Operator Panel IOP-2 — answers that question with a 3.15-inch color LCD touchscreen, IP55 protection, and native compatibility with G120, G120P, G110M, G110D, G120D, G120C, and ET 200PRO FC-2 drives, all in a compact 70 mm x 106.85 mm x 19.65 mm enclosure that mounts directly on the machine or panel door without a separate PC or HMI software license.

If you have already confirmed this is the right part for your drive, check current pricing and availability at LeadTime.ca — ships worldwide.

Is the 6SL3255-0AA00-4JA2 the Right Choice for Your System?

The IOP-2 is the correct operator interface for engineers who need a standalone, machine-mounted control panel for a SINAMICS G-series drive without adding PLC programming, gateway hardware, or HMI software overhead.

  • Your drive is one of the confirmed compatible models: SINAMICS G120, G120P, G110M, G110D, G120D, G120C, or ET 200PRO FC-2
  • Your installation environment requires at minimum IP55 protection — washdown, dusty production areas, or outdoor enclosures
  • You need a color touchscreen for real-time parameter display, fault readout, and run/stop control at the machine level
  • Your site operates in one or more of the 14 supported languages: German, English, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Czech, Polish, Turkish, Finnish, or Simplified Chinese
  • Your operating environment falls within 0 to 50°C standard, or up to 55°C with the optional door installation kit
  • Your drive firmware is version 4.7 or later — earlier firmware versions do not support IOP-2 connectivity

If you need wireless or remote monitoring capability, integration with non-Siemens drives, or a display larger than 3.15 inches with custom SCADA functionality, the IOP-2 is not the right fit — a full-size SIMATIC HMI panel or Windows-embedded workstation will better serve those requirements.

On this page:

What the SINAMICS IOP-2 Actually Does on the Plant Floor

The Siemens 6SL3255-0AA00-4JA2 is a standalone touchscreen HMI device that connects directly to SINAMICS G-series variable frequency drives and gives the operator — or the maintenance technician standing in front of the machine — immediate access to run/stop control, frequency setpoint adjustment, live drive status, and fault codes. It is not a PLC. It does not replace a SCADA system. Its role is specific: provide a local, intelligent interface at the drive level that eliminates the need for a full industrial PC or a centralized control workstation for single or small multi-drive applications.

The 3.15-inch 320 x 240 pixel color LCD is a meaningful step above the monochrome keypads that preceded it in this product family. Color coding of status conditions — run, fault, warning — reduces operator interpretation time on a busy production floor. The panel ships pre-configured with SINAMICS-specific parameter screens and function blocks, so there is no blank-slate custom programming required to get a machine running. For OEMs embedding this into packaged machinery, that pre-configuration translates directly into faster factory acceptance testing and fewer commissioning hours at the customer site.

At 0.134 kg and 19.65 mm deep, the IOP-2 adds negligible weight and projection to a control enclosure door. The IP55 rating — equivalent to UL type 12 — means it can be mounted on the outside face of a wash-down enclosure in a food processing plant or on outdoor pump control panels without additional protective housing, provided the manufacturer mounting instructions are followed.

Typical System Architecture for IOP-2 Deployments

The IOP-2 sits at the operator-facing end of the drive control chain, connecting directly to the SINAMICS G-series drive and passing commands and status data over a serial link — no intermediate controller required in standalone applications.

  • Motor — driven by the SINAMICS G120, G120C, G120P, or related drive variant
  • SINAMICS G-series drive — receives power from the supply, controls motor output, hosts the serial communication port that powers the IOP-2
  • 24 VDC power for IOP-2 — sourced directly from the drive; no separate power supply required
  • Serial communication link — carries parameter data, command signals, and status feedback between drive and IOP-2 panel
  • IOP-2 (6SL3255-0AA00-4JA2) — panel-mounted or door-mounted at the machine or enclosure; operator interaction point for start/stop, setpoint, and diagnostics

Where Engineers Are Using the IOP-2: Industries and Use Cases

In food and beverage plants, the IP55 rating is often the deciding factor. Operators need a control panel that survives daily washdown cycles without additional enclosure upgrades. The IOP-2 mounts directly on process equipment — filling lines, mixers, conveyor drives — and holds up to the cleaning protocols that would damage a standard IP20 panel.

Material handling and conveyor system integrators use the IOP-2 as the standard machine-level interface when centralized SCADA is not required. A single conveyor drive with a local start/stop and speed trim function is a textbook application — the IOP-2 provides exactly that capability with no custom code and no communication gateway.

Water and wastewater treatment facilities frequently specify the IOP-2 for pump and blower VFD control in outdoor pump stations. The operating temperature range and IP55 protection support installation in utility enclosures without climate control, provided ambient does not exceed 50°C — or 55°C with the optional door installation kit.

OEM packaging machinery builders often embed the 6SL3255-0AA00-4JA2 as the standard operator interface for drives shipped as part of a complete machine package. The 14-language support means the same hardware configuration ships to North American, European, and Asian customers without hardware changes — only language selection differs at first boot.

Retrofit projects replacing obsolete analog panels or basic push-button stations on legacy conveyor or process equipment represent a strong secondary use case. The IOP-2 drops into the same panel cutout footprint class as many older operator devices, and the pre-configured SINAMICS parameter screens eliminate the engineering time typically associated with a full HMI replacement project.

Application Typical Deployment
Food and beverage processing Panel-mounted on wash-down conveyor or mixer enclosure; IP55 required
Water and wastewater pump stations Door-mounted on outdoor utility enclosure; optional door kit for 55°C ambient
OEM packaged machinery Embedded as standard drive interface in dryers, compressors, blowers; ships with machine
Material handling and conveyor systems Machine-level local start/stop and frequency trim; no centralized PLC required
Retrofit and modernization projects Replaces analog push-button station on existing G120 drive; improves diagnostics capability
Multi-site manufacturing Identical IOP-2 units across all plants with same G120 drives; eliminates operator retraining

Purchase-Decision Specs: What You Need to Know Before Ordering

Specification Value
Display 3.15-inch color LCD touchscreen, 320 x 240 pixels
Protection Rating IP55 / UL type 12
Operating Temperature 0 to 50°C (32 to 122°F); 55°C with optional door installation kit
Storage Temperature -40 to 70°C
Dimensions (W x H x D) 70 mm x 106.85 mm x 19.65 mm
Weight 0.134 kg (0.30 lb)
Languages Supported German, English, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Czech, Polish, Turkish, Finnish, Simplified Chinese
Compatible Drives SINAMICS G120, G120P, G110M, G110D, G120D, G120C, ET 200PRO FC-2
Certifications CE, cULus, EAC, KCC, RCM, RoHS Compliant
Country of Origin GB (Great Britain)

Full technical specifications are available on the product page at LeadTime.ca.

IOP-2 vs. Full-Size HMI: Which Operator Interface Do You Actually Need?

Criteria IOP-2 (6SL3255-0AA00-4JA2) Full-Size SIMATIC HMI / Windows Panel
Display size 3.15-inch color touchscreen 7-inch to 19-inch range
Drive compatibility SINAMICS G-series only (native) Multi-vendor with gateway hardware
Custom programming required No — pre-configured for SINAMICS Yes — engineering software and runtime licensing
Remote monitoring Local wired connection only Network, cloud, and remote access capable
Protection rating IP55 / UL type 12 Varies by model; IP65 available at higher cost
Typical price range USD $295 to $397 Significantly higher; software licensing additional
Best fit 1 to 5 drives, machine-level local control 6+ drives, multi-vendor, centralized control

If your architecture is based on SINAMICS G120 or a compatible G-series drive with a requirement for local touchscreen control and IP55 protection, the 6SL3255-0AA00-4JA2 is the correct and most cost-efficient choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment of the IOP-2 for Controls Engineers

The Siemens 6SL3255-0AA00-4JA2 earns its place in the SINAMICS G-series ecosystem by doing exactly what a local drive operator panel should do: deliver immediate, no-programming-required control and diagnostics at the machine level. The 3.15-inch color touchscreen is genuinely useful — fault code readout in color with plain-language descriptions is faster to interpret than a seven-segment numeric code on a legacy keypad. The IP55 rating makes this viable in environments where most operator panels require an additional protective enclosure, and the 0.134 kg weight means door-mounting stress on the enclosure is negligible. For OEMs, the 14-language support and pre-configured parameter blocks mean the same unit ships globally without hardware variation.

Where the IOP-2 has real limits: it is a local-only, wired interface. If your application requires remote monitoring, alarming to a central SCADA, or connectivity to non-Siemens equipment, the IOP-2 cannot fulfill those requirements without additional infrastructure. It also tops out at the SINAMICS G-family — if your drive roster includes G130, G150, or any servo family (S110, S150), do not order this panel. Those drives use different operator interfaces. Engineers specifying a growing multi-drive system should also evaluate early whether a full SIMATIC HMI investment makes more long-term sense than multiple IOP-2 units, particularly if data logging or recipe management will be required later.

On the procurement side, the 6SL3255-0AA00-4JA2 is an active product with normal stock at major Siemens distributors globally. Typical pricing runs USD $295 to $397 at list; volume orders of 10 or more units typically qualify for further reduction — worth discussing with the LeadTime.ca team before committing to a multi-unit project. Country of origin is GB, which may have minor tariff implications for North American orders depending on current trade classifications — confirm with your procurement team. Lead times for in-stock units run 2 to 5 business days at standard; if stock is depleted, plan for 4 to 6 weeks from manufacturing. For large projects or builds with firm commissioning dates, ordering 6 to 8 weeks ahead is sound practice. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Power for the IOP-2 is sourced at 24 VDC directly from the SINAMICS G drive — no separate power supply is required; verify the drive's 24 VDC output is available and stable before connecting the panel
  • The serial communication cable runs from the IOP-2 connector to the SINAMICS G drive connection point; use shielded twisted-pair cable for runs longer than 5 m and ground the shield at the drive end only to prevent ground loops
  • Panel cutout follows the datasheet dimensions of 70 mm width by 106.85 mm height; the optional door installation kit is required for control enclosure door mounting and extends the operating temperature ceiling to 55°C
  • Connector type varies by drive variant — confirm whether your specific G120 variant uses an RS485, PROFIBUS, or M12 A-coded connector before finalizing cable selection; consult the drive wiring diagram
  • IOP-2 ships pre-configured for standard serial link operation; PROFIBUS DP node address assignment and baud rate configuration are completed at the drive's parameter level — full procedures are available in the Siemens SINAMICS IOP-2 operating instructions document

Compatible Drives and System Expansion

The 6SL3255-0AA00-4JA2 is confirmed compatible with the following SINAMICS G-series drives and distributed I/O frequency converter platform. Verify drive firmware version 4.7 or later before connecting the IOP-2.

  • SINAMICS G120 — standard frequency converter for AC motors; the primary pairing for this panel
  • SINAMICS G120P — performance-extended variant with additional parameter sets supported by IOP-2
  • SINAMICS G120C — compact form factor G-series drive for space-constrained applications
  • SINAMICS G120D — solution-focused distributed drive variant
  • SINAMICS G110M — ultra-compact drive for OEM space-constrained machine integration
  • SINAMICS G110D — dedicated pump control drive variant
  • ET 200PRO FC-2 — modular frequency converter in the ET 200PRO distributed I/O platform; IOP-2 connection confirmed compatible
  • Optional door installation kit — required accessory for enclosure door mounting; extends ambient temperature tolerance to 55°C

What Engineers Get Wrong When Ordering This Part

Before placing an order for the 6SL3255-0AA00-4JA2, work through the following checklist verbatim — these are the most common ordering errors that result in project delays or returns.

  1. Verify your SINAMICS drive model is listed in the compatible range: G120, G120P, G110M, G110D, G120D, G120C, or ET 200PRO FC-2. Do NOT order if using G130, G140, G150, or other non-compatible families.
  2. Check that your installation environment matches the IP55 rating. If spray/moisture protection is optional, verify whether IP20 variant is sufficient before upgrading to IP55.
  3. Confirm operating temperature range includes your site condition (standard 0-50°C; order door installation kit separately if 55°C is needed for door mounting).
  4. Verify your region and application require the full 13-language set included; custom single-language units may have different part numbers.
  5. Check that your SINAMICS drive firmware version supports IOP-2 connectivity (generally firmware 4.7 and later; consult Siemens documentation for your specific drive serial number).
  6. Confirm no third-party communication module is installed that might conflict with the IOP-2 serial connection.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can help verify compatibility against your specific drive model and firmware version.

Frequently Asked Questions

Does the IOP-2 work with the SINAMICS G110 drive?

The confirmed compatible SINAMICS G110-family drives are the G110M and G110D variants. The base SINAMICS G110 (non-M, non-D) is not listed in the confirmed compatibility matrix. If you are specifying for a G110M or G110D, the 6SL3255-0AA00-4JA2 is compatible. For any other G110 variant, verify against Siemens documentation before ordering.

What firmware version does my SINAMICS G120 drive need to run the IOP-2?

The IOP-2 generally requires SINAMICS G120 firmware version 4.7 or later for standard serial link connectivity. If your drive is running an earlier firmware version, a firmware update may be required before the IOP-2 will communicate correctly. Verify your drive's firmware version via its built-in diagnostics or drive nameplate data, and consult Siemens documentation for the specific upgrade path for your serial number.

Can the IOP-2 be used for remote monitoring or network-connected SCADA integration?

No. The 6SL3255-0AA00-4JA2 is a local, wired operator interface. It does not support wireless communication, Ethernet networking, or direct SCADA integration. For remote monitoring of SINAMICS G-series drives, separate Siemens cloud or edge connectivity solutions are required. The IOP-2 is designed for machine-level, in-enclosure or on-panel local control only.

What languages are pre-loaded on the IOP-2, and can the language be changed after initial setup?

The 6SL3255-0AA00-4JA2 supports 14 languages: German, English, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Czech, Polish, Turkish, Finnish, and Simplified Chinese. Language is selected at first boot. If your installation requires a language not in this list, a different part number may be required — consult your distributor before ordering for custom language configurations.

Is the door installation kit included with the 6SL3255-0AA00-4JA2, or is it a separate purchase?

The door installation kit is a separate accessory and is not included with the base 6SL3255-0AA00-4JA2 unit. If you are mounting the IOP-2 on a control enclosure door and your ambient temperature may reach 55°C, the door kit is required. Order the accessory simultaneously with the main panel to avoid project delays. Contact LeadTime.ca to confirm current part number and availability for the door installation kit.

What is the typical lead time for the 6SL3255-0AA00-4JA2, and does LeadTime.ca ship internationally?

For in-stock units, typical ship time is 2 to 5 business days. If stock is depleted, manufacturing lead time is typically 4 to 6 weeks. LeadTime.ca ships worldwide — there is no geographic restriction on ordering. For large project quantities or firm commissioning schedules, contacting the team 6 to 8 weeks ahead of your commissioning date is recommended.

Price, Lead Time, and How to Order From Anywhere in the World

  • LeadTime.ca ships the 6SL3255-0AA00-4JA2 worldwide — no regional restriction on orders
  • Typical pricing: USD $295 to $397 at list; volume pricing available for multi-unit project orders
  • In-stock lead time: 2 to 5 business days; out-of-stock lead time typically 4 to 6 weeks
  • Hard-to-find or short lead-time Siemens control components sourced globally — contact the team if standard channels show extended lead times
  • Bundle orders including the IOP-2 plus compatible drive accessories can be quoted together to simplify procurement

At-a-Glance Summary

  • Model: Siemens 6SL3255-0AA00-4JA2 — SINAMICS G Intelligent Operator Panel IOP-2
  • Display: 3.15-inch color LCD touchscreen at 320 x 240 pixel resolution
  • Protection: IP55 / UL type 12 — dust-tight and water jet resistant
  • Operating temperature: 0 to 50°C standard; 55°C with optional door installation kit
  • Storage temperature: -40 to 70°C
  • Dimensions: 70 mm W x 106.85 mm H x 19.65 mm D; weight 0.134 kg
  • Compatible drives: SINAMICS G120, G120P, G110M, G110D, G120D, G120C, ET 200PRO FC-2
  • Not compatible with: SINAMICS G130, G140, G150, S110, S150, or non-Siemens VFDs
  • Languages: 14 pre-loaded including English, French, Spanish, Chinese, Russian, and others
  • Firmware requirement: SINAMICS G120 firmware 4.7 or later
  • Certifications: CE, cULus, EAC, KCC, RCM, RoHS
  • Typical price: USD $295 to $397; country of origin GB
  • Life cycle status: Active product
