Siemens 6SL3246-0BA22-1FA0 — PROFINET Control Unit Buying Guide

By Abdullah Zahid
11 min read

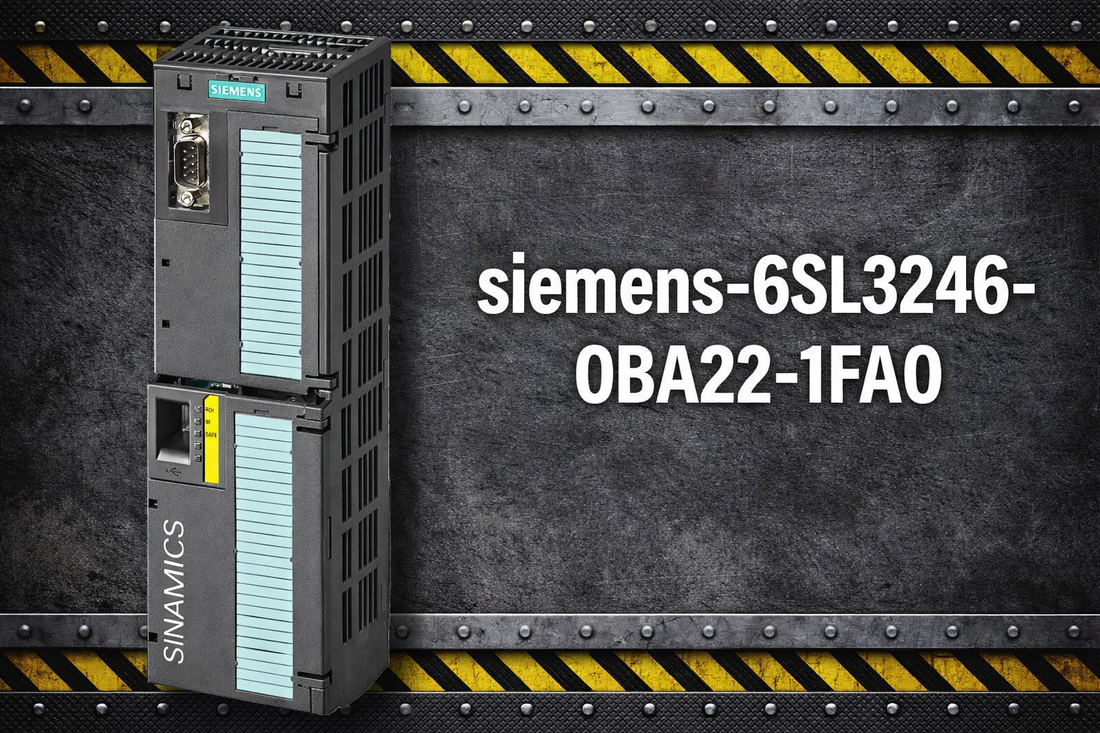

Siemens 6SL3246-0BA22-1FA0 SINAMICS G120 CU250S-2 PN control unit module for PROFINET automation systems

Siemens 6SL3246-0BA22-1FA0 SINAMICS G120 CONTROL UNIT CU250S-2 PN — Specifications, PROFINET Features, and Selection Guide

Controls engineers evaluating the Siemens 6SL3246-0BA22-1FA0 are typically at a specific decision point: they have a PROFINET-connected automation system, they need integrated safety functions, and they want to confirm this exact control unit module is the correct component before committing to a build. The 6SL3246-0BA22-1FA0 is the SINAMICS G120 CONTROL UNIT CU250S-2 PN — a compact modular control unit measuring 24.0 cm × 9.3 cm × 6.8 cm, delivering native PROFINET connectivity, SIL3/PLe-capable safety functions, and EPOS positioning firmware support in a single module that draws a maximum of 2.00 A at DC 24 V nominal.

If you have already confirmed this is the correct part for your system, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6SL3246-0BA22-1FA0 — and Who Shouldn't

This control unit is the right choice when your application checks all of the following boxes:

  • Your system architecture requires PROFINET (not PROFIBUS or analog terminal-only control)
  • Available panel space fits a 24.0 cm × 9.3 cm × 6.8 cm footprint alongside a compatible SINAMICS G120 power module
  • Safety-integrated functions — STO, SBC, or SS1 — are required without adding a separate safety relay or controller
  • Your motor feedback device uses D-CLIQ, HTL, TTL, SSI, or RESOLVER encoder types
  • Your I/O signal count is accommodated by 6 digital inputs, 3 digital outputs, 2 analog inputs, and 2 analog outputs
  • You require a DC 24 V external supply in the range DC 20–29 V for control circuit power

If your existing fieldbus infrastructure is PROFIBUS rather than PROFINET, the correct variant is 6SL3246-0BA22-1PA0. If networking and safety are not required and cost is the primary driver, a simpler analog-control CU230P may be the more appropriate choice.

On this page:

What the SINAMICS G120 CU250S-2 PN Actually Does in Your System

The 6SL3246-0BA22-1FA0 is not a complete variable frequency drive. It is the control intelligence layer of the SINAMICS G120 modular drive system — a component that processes motion commands, manages I/O signals, handles PROFINET communication, and executes safety logic. It physically connects to a separate SINAMICS G120 power module such as the PM240 or PM250, and together the stack forms a complete drive assembly. Without the power module, the control unit cannot drive a motor.

The value of the modular architecture is scalability and function density. The CU250S-2 PN integrates three capabilities that would otherwise require separate hardware: a PROFINET fieldbus interface, SIL3/PLe-capable safety functions (STO, SBC, SS1), and EPOS positioning firmware (available via extended license). This compression of function into a 0.6 kg module with a DC 24 V control supply and a maximum power loss of 12.00 W is what makes it attractive for distributed multi-motor installations where panel space and wiring cost are both constrained.

Typical System Architecture for the 6SL3246-0BA22-1FA0

The 6SL3246-0BA22-1FA0 sits at the interface layer between the plant-level PROFINET network and the motor power stage — receiving motion commands from the PLC and translating them into precise drive control signals via the power module.

  • Central PLC or motion controller sends cyclic PROFINET commands via industrial Ethernet switch to the CU250S-2 PN
  • The CU250S-2 PN processes I/O signals (6 DI, 3 DO, 2 AI, 2 AO) and executes motion or safety logic internally
  • Control commands pass to the attached SINAMICS G120 power module (e.g., PM240 or PM250) which handles motor power conversion
  • Motor encoder feedback (D-CLIQ, HTL, TTL, SSI, or RESOLVER) returns position and velocity data to the control unit for closed-loop control
  • External DC 24 V supply (DC 20–29 V range, max 2.00 A) powers the control circuit independently from the motor power stage

Where Engineers Deploy the CU250S-2 PN

Packaging machinery is one of the most common homes for the 6SL3246-0BA22-1FA0. The combination of EPOS positioning firmware (via extended license) and PROFINET real-time communication makes it well suited to synchronized multi-axis film feed, sealing, and cut-off sequences where motor timing must be coordinated across a line.

In food and beverage processing, the integrated STO and SS1 safety functions allow the drive to participate directly in machine safety zones without a separate safety relay module. A conveyor system requiring safe ramp-down on guard door opening can implement that logic directly in the CU250S-2 PN, reducing both component count and certification scope.

Material handling conveyors and pick-and-place systems that use PROFINET as the fieldbus backbone benefit from the native integration — no gateway or fieldbus coupler required, which simplifies diagnostics and reduces single points of failure in the network chain.

In automotive component manufacturing and textile processing, where multiple drives share a PROFINET segment and I/O-heavy panel wiring is a cost concern, the modular G120 architecture allows one CU250S-2 PN to manage a motor while sharing a common DC bus through the power module, reducing overall installation cost.

Application Typical Deployment
Packaging line multi-axis control EPOS-licensed CU250S-2 PN coordinating film feed and sealing axes via PROFINET to central PLC
Food and beverage conveyor safety STO/SS1 safety functions handling guard interlock logic; SIL3/PLe compliance without external relay
Pick-and-place robotic arm Real-time PROFINET motion commands from PLC; HTL or D-CLIQ encoder feedback for position control
Distributed multi-motor drive system Multiple CU250S-2 PN modules on shared PROFINET ring; eliminates panel wiring runs between cabinets
Test bench or lab motor control USB commissioning via STARTER software; SD/MMC configuration loading; flexible encoder support

Purchase-Decision Specs and Variant Comparison

Parameter Specification
Control Supply Voltage (Nominal) DC 24 V
Control Supply Range DC 20–29 V
Maximum Current Consumption 2.00 A
Power Loss at Rated Load 12.00 W
Digital Inputs / Outputs 6 DI (3 fast-input capable) / 3 DO (1 fast-output capable)
Analog Inputs / Outputs 2 AI / 2 AO
Fieldbus Interface PROFINET (1 × RJ45)
Encoder Support D-CLIQ, HTL, TTL, SSI, RESOLVER
Dimensions (L × W × H) 24.0 cm × 9.3 cm × 6.8 cm
Protection Rating / Certifications IP20 / UL, CSA, CE

Full technical specifications are available on the product page at LeadTime.ca.

Feature 6SL3246-0BA22-1FA0 (PROFINET) 6SL3246-0BA22-1PA0 (PROFIBUS) CU230P (Analog)
Network Protocol PROFINET (Industrial Ethernet) PROFIBUS (legacy fieldbus) None — terminal I/O only
External Coupler Required No No N/A
Integrated Safety (STO/SS1) Yes — SIL3/PLe capable Yes Basic only
EPOS Positioning Firmware Available via license Available via license Not available
Encoder Support D-CLIQ, HTL, TTL, SSI, RESOLVER D-CLIQ, HTL, TTL, SSI, RESOLVER Limited
Industry Adoption Trend Growing — modern installations Declining — legacy systems Cost-sensitive simple applications

If your system architecture already runs PROFINET and requires SIL3-rated safety logic, the 6SL3246-0BA22-1FA0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Strengths, Limits, and Procurement Reality

The 6SL3246-0BA22-1FA0 earns its place in modern automation panels because it solves three expensive problems simultaneously: it eliminates the PROFINET gateway module, it handles SIL3/PLe safety logic without an external safety relay, and it provides EPOS positioning capability via license in the same physical footprint. For a controls engineer designing a packaging or material handling system with a PROFINET backbone, those three savings — in hardware, panel space, and certification scope — are material. The I/O configuration of 6 DI, 3 DO, 2 AI, and 2 AO with two relay changeover contacts covers the majority of single-axis distributed drive applications without expansion. The IP20 rating and DIN rail-compatible mounting make it straightforward to integrate into standard industrial enclosures.

The limits are real and worth stating plainly. This is not a standalone drive — you will always need a compatible SINAMICS G120 power module, and confirming compatibility between the control unit and your chosen power module is a mandatory pre-order step. The IP20 rating means it cannot be deployed in wet, washdown, or high-particulate environments without a secondary enclosure, which adds cost and space. If your I/O signal count exceeds 6 DI, 3 DO, 2 AI, and 2 AO, you need a larger control unit or additional expansion modules — do not assume this module scales beyond those counts. The EPOS positioning and extended safety functions both require separately purchased licenses; if your application needs either, budget for them before the project cost is locked.

On procurement: standard lead times for stocked variants run 2–4 weeks; non-stock or special-order configurations can extend to 6–10 weeks. Given ongoing demand for SINAMICS G120 components in packaging and automotive sectors, confirming lead time at the quote stage is strongly recommended before finalizing a project schedule. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • The control unit requires a DC 24 V external supply within the DC 20–29 V range; the supply must be capable of delivering up to 2.00 A and should be protected by an external circuit breaker or fused supply — there is no integrated protection in the control unit itself
  • Digital input wiring uses conductors in the 0.05–1.50 mm² (30–16 AWG) range; the 0→1 logic transition threshold is 11 V, and the 1→0 threshold is 5 V — verify field signal levels before wiring
  • Digital output terminals are rated at DC 30 V at 1 A resistive load maximum; verify that connected loads stay within this rating before commissioning
  • PROFINET connects via a single RJ45 port to a PROFINET-capable network switch or directly to a PLC port; auto-negotiation is typical — confirm switch port configuration matches industrial Ethernet requirements
  • Encoder cable must be connected to the designated terminal block with shield grounded per installation documentation; encoder type (D-CLIQ, HTL, TTL, SSI, or RESOLVER) determines terminal assignment — verify pinouts against the Siemens terminal diagram before wiring

Commissioning Overview

  • Assemble the modular stack — control unit mated to the compatible SINAMICS G120 power module — before applying power; verify mechanical coupling is complete
  • Apply DC 24 V control power and verify LED status indicators: green indicates ready state, amber indicates a warning condition, and red indicates a fault requiring diagnosis before proceeding
  • Connect PROFINET Ethernet cable and confirm link indicator is active at the RJ45 port; assign PROFINET node address via Siemens STARTER software before network communication begins
  • Access commissioning via USB (Type B port) or SD/MMC card upload using STARTER software; configure motor parameters, encoder type, I/O signal assignments, and any required license activation (EPOS or extended safety)
  • After parameter load, run a motor test at reduced speed to verify direction, load response, and encoder feedback; if safety licenses are enabled, test STO and SS1 functions with an external button or switch before declaring the system ready

What Engineers Get Wrong When Ordering This Part

The most costly ordering errors with the 6SL3246-0BA22-1FA0 all come from the same root cause: treating the last segment of the model number as interchangeable. Use this checklist verbatim before submitting a purchase order:

  1. Confirm that PROFINET (PN) communication is required; do not substitute the PROFIBUS variant (1PA0) if PN is specified.
  2. Verify that the power module being ordered is compatible with the CU250S-2 (check Siemens modular compatibility matrix).
  3. Confirm that encoder type in use is supported (D-CLIQ, HTL, TTL, SSI, or RESOLVER via terminal); verify terminal pinouts.
  4. Check that 6 DI, 3 DO, 2 AI, 2 AO counts are sufficient; do not assume additional I/O can be added without extra modules.
  5. Verify EPOS motion control and extended safety licenses are available if positioning or SIL functions are required.
  6. Confirm that USB and SD/MMC interfaces will be accessible in the final panel layout (needed for commissioning and diagnostics).
  7. Check that IP20 protection rating is acceptable for the environment; do not use in washdown or high-moisture areas without additional enclosure.

If any item on this checklist raises a compatibility question, contact the LeadTime.ca team before ordering — getting the wrong variant on a tight project schedule is a costly delay that is entirely preventable.

Frequently Asked Questions

Does the 6SL3246-0BA22-1FA0 work as a standalone drive without a power module?

No. The 6SL3246-0BA22-1FA0 is a control unit module and requires a compatible SINAMICS G120 power module (such as the PM240 or PM250) to form a complete drive assembly capable of running a motor. Ordering the control unit alone without confirming the power module is one of the most common procurement mistakes with this product family.

Is the EPOS positioning firmware included, or does it require an additional license?

EPOS positioning firmware and extended safety functions both require separately purchased licenses. The base 6SL3246-0BA22-1FA0 includes PROFINET connectivity, base safety functions (STO, SBC, SS1), and standard I/O capability. If your application requires multi-axis synchronized positioning or SIL3/PLe extended safety, budget for the appropriate license activation before the project cost is finalized.

What is the difference between the 6SL3246-0BA22-1FA0 and the 6SL3246-0BA22-1PA0?

The 1FA0 suffix denotes PROFINET (Industrial Ethernet) communication; the 1PA0 suffix denotes PROFIBUS communication. These two variants are not interchangeable on a live system — the fieldbus protocol must match the infrastructure. PROFINET is the growing standard for modern installations; PROFIBUS is found in legacy systems where infrastructure upgrades are not planned. Confirm your network protocol before ordering.

What encoder types are supported, and can I mix encoder types across a system?

The 6SL3246-0BA22-1FA0 supports D-CLIQ (plug-in), HTL, TTL, SSI (via terminal), and RESOLVER (via terminal with HTL-capable variant). A single control unit is configured for one encoder type at a time via terminal assignment. Across a multi-motor system with multiple CU250S-2 PN modules, different encoder types can be used on different axes, but each control unit must be configured and wired for its specific motor feedback device.

What are the realistic lead times for the 6SL3246-0BA22-1FA0?

Standard stocked variants typically ship within 2–4 weeks from authorized distributors. Non-stock or low-demand configurations can require 6–10 weeks. Lead times in the SINAMICS G120 family have improved as semiconductor supply has normalized, but confirming current stock status at the quote stage is strongly recommended for projects with fixed installation dates.

Can the CU250S-2 PN be used in a wet or dusty environment?

The 6SL3246-0BA22-1FA0 carries an IP20 protection rating, which is appropriate for indoor, climate-controlled environments only. For washdown, high-humidity, or dusty industrial environments, the control unit must be installed inside a secondary enclosure with an adequate IP rating for the environment. Do not mount IP20-rated components in unprotected outdoor or process-area locations.

Why Order the 6SL3246-0BA22-1FA0 from LeadTime.ca

  • LeadTime.ca ships the 6SL3246-0BA22-1FA0 and compatible SINAMICS G120 power modules worldwide — no geographic restriction on orders
  • Real-time stock visibility and quoted lead times are available before you commit to an order, reducing schedule risk on time-sensitive builds
  • Volume pricing is available for OEM and multi-unit orders — contact the team directly for project-level quotes
  • Hard-to-find variants and low-stock industrial automation components are a sourcing specialty — if the standard channel is showing extended lead times, LeadTime.ca is worth checking

At-a-Glance Summary

  • Product: Siemens 6SL3246-0BA22-1FA0 — SINAMICS G120 CONTROL UNIT CU250S-2 PN
  • Control supply: DC 24 V nominal, DC 20–29 V range, 2.00 A maximum, 12.00 W power loss
  • I/O: 6 DI (3 fast-input capable), 3 DO (1 fast-output capable), 2 AI, 2 AO, 2 relay changeover contacts
  • Fieldbus: Native PROFINET via 1 × RJ45 — no external coupler required
  • Safety: STO, SBC, SS1 base functions; SIL3/PLe capable with extended safety license
  • Encoder support: D-CLIQ, HTL, TTL, SSI, RESOLVER
  • Dimensions: 24.0 cm × 9.3 cm × 6.8 cm; weight 0.6 kg; IP20; UL, CSA, CE certified
  • Wiring: 0.05–1.50 mm² (30–16 AWG); digital input switching at 11 V (0→1) and 5 V (1→0)
  • Not standalone: Requires compatible SINAMICS G120 power module and external DC 24 V supply
  • EPOS positioning and extended safety functions require separately purchased license activation
  • Typical lead time: 2–4 weeks stocked; 6–10 weeks non-stock — confirm at quote stage
