Siemens 6SL3244-0BB12-1FA0 — CU240E-2 PN Control Unit Review

By Abdullah Zahid
11 min read

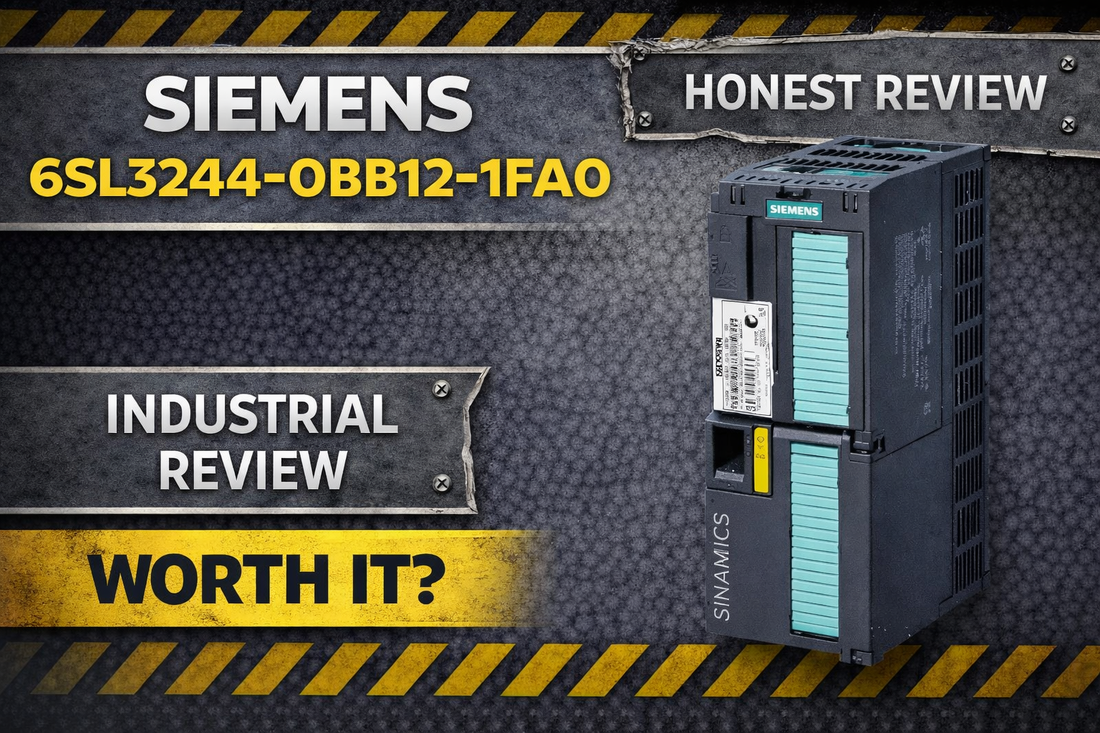

Siemens 6SL3244-0BB12-1FA0 CU240E-2 PN SINAMICS G120 control unit with PROFINET and Safety Integrated STO

Siemens 6SL3244-0BB12-1FA0 — SINAMICS G120 Control Unit CU240E-2 PN with Safety Integrated, PROFINET and EtherNet/IP: Specifications, Price and Alternatives

If you are sourcing a control unit for a SINAMICS G120 variable frequency drive build or retrofit, you have likely narrowed your selection to a handful of SKUs. The Siemens 6SL3244-0BB12-1FA0 — officially designated the SINAMICS G120 CONTROL UNIT CU240E-2 PN — Safety Integrated with STO, PROFINET — is the go-to choice when your plant network runs PROFINET or EtherNet/IP and your machinery category demands integrated Safe Torque Off without an external safety relay. It is compact at 73 x 199 x 46 mm and weighs 0.49 kg, making it practical for standard control cabinet installation.

If you have already confirmed this is the correct part for your G120 build, check current pricing and availability for the 6SL3244-0BB12-1FA0 at LeadTime.ca — we ship worldwide.

Who Should Buy the 6SL3244-0BB12-1FA0 — and Who Shouldn't

This control unit is the right choice when all of the following conditions are true for your project:

  • You have already selected a SINAMICS G120 power module — the 6SL3244-0BB12-1FA0 is a control head, not a standalone drive
  • Your cabinet provides a stable DC 24V supply capable of delivering at least 0.50 A to this unit alone
  • Your plant network uses PROFINET and/or EtherNet/IP as the fieldbus backbone
  • Your I/O requirements fit within 6 standard digital inputs, 1 fail-safe digital input, 2 relay outputs, 2 differential analog inputs, and 2 non-isolated analog outputs
  • Your motor control method is V/f, sensorless vector, or encoderless torque — not encoder-based closed-loop vector
  • Your installation region requires CE, UL, cUL, or RCM certification

If your network runs CANopen only, the CU240D is the more cost-appropriate choice. If you need more than 2 analog input channels or an integrated Ethernet switch for multi-drive topologies, step up to the CU320 series instead.

On this page:

What the 6SL3244-0BB12-1FA0 Actually Does in a Drive System

The 6SL3244-0BB12-1FA0 is the control head of the SINAMICS G120 modular drive platform. It does not generate the motor output power — that job belongs to the G120 power module it mounts to. What this control unit does is process the commands coming in from the fieldbus or local I/O, execute the motor control algorithm, enforce safety states, and report drive status back to your PLC or SCADA system.

In practical terms, this means the CU240E-2 PN is where your PROFINET or EtherNet/IP cable terminates, where your digital and analog field signals connect, and where your Safe Torque Off function is implemented. Removing this unit from a G120 system and replacing it with a different CU variant is how engineers change communication protocol or safety level without replacing the power electronics — a significant advantage during platform standardization or plant-wide retrofits where the PROFINET backbone already exists.

The unit draws a maximum of 0.50 A at DC 24V, dissipating 5.50 W, and operates across an ambient range of -10 to 55°C. Its IP20 protection rating requires cabinet mounting with appropriate enclosure ventilation.

Typical System Architecture for a SINAMICS G120 Build

The 6SL3244-0BB12-1FA0 sits between the plant PLC or controller and the G120 power module, acting as the intelligence layer that translates fieldbus commands into motor control actions.

  • Plant PLC or DCS (running PROFINET or EtherNet/IP network) connects via RJ45 to the CU240E-2 PN control unit
  • The 6SL3244-0BB12-1FA0 mounts directly onto the SINAMICS G120 power module base unit
  • Local field signals (sensors, emergency stop buttons, analog speed references) wire into the 6 digital inputs, 2 analog inputs, and fail-safe input on the control unit terminal strip
  • The control unit outputs relay signals to downstream contactors, pilot lights, or safety monitoring circuits via its 2 relay changeover outputs
  • The G120 power module drives the AC motor based on control commands processed by the CU240E-2 PN

Industries and Applications Where This Control Unit Fits

Centrifugal pump applications in water treatment and building HVAC are one of the most common deployments for this control unit. Sensorless vector control delivers high starting torque without encoder hardware, and the EtherNet/IP or PROFINET fieldbus connection feeds real-time speed and current data back to building management systems or SCADA platforms.

Conveyor and material handling lines benefit directly from the integrated fail-safe input. Rather than adding an external safety relay module to achieve Safe Torque Off on an emergency stop event, the CU240E-2 PN handles it natively — reducing component count and cabinet space in packaging and logistics applications.

Machine tool spindle drives running encoderless torque control use this unit for rapid acceleration and load-sharing profiles. The dual-protocol support means the same control unit works on a PROFINET-primary Siemens TIA Portal machine as easily as on an EtherNet/IP-primary Allen-Bradley architecture.

In semiconductor fabs and cleanroom environments, the SEMI F47 certification covers the 6SL3244-0BB12-1FA0 for voltage sag immunity requirements — relevant for cooling pump and HVAC drives in critical process areas.

Application Typical Deployment
Centrifugal pump speed control Water utility or HVAC circulation; sensorless vector on G120 power module, PROFINET to BMS
Conveyor speed regulation Packaging line with fail-safe emergency stop wired to dual-channel DI; STO triggered on e-stop
Machine tool spindle modulation Encoderless torque control for rapid acceleration; EtherNet/IP to ControlLogix PLC
HVAC fan coil and boiler pump V/f ECO mode for energy savings; PROFINET to building automation controller
Semiconductor cleanroom cooling SEMI F47 voltage-sag-compliant drive for critical process cooling loops
Pilot line retrofit Drop-in replacement for legacy analog control where PROFINET backbone already exists

Purchase-Decision Specs: What You Need to Know Before Ordering

Parameter Value
Operating Voltage (Internal) DC 24V via power module
External Supply Voltage Range DC 20–29V
Max Power Consumption 0.50 A
Power Loss 5.50 W
Communication Protocols PROFINET, EtherNet/IP (simultaneous)
Digital Inputs 6 standard (0→1 at 11V; 1→0 at 5V) + 1 fail-safe
Analog Inputs / Outputs 2 differential inputs / 2 non-isolated outputs
Degree of Protection IP20 — cabinet mounting required
Operating Ambient Temperature -10 to 55°C (14 to 131°F)
Dimensions (W x H x D) 73 x 199 x 46 mm — Net weight 0.49 kg

Full technical specifications are available on the product page at LeadTime.ca.

CU240E-2 PN vs. CU240D vs. CU320: Which One Do You Actually Need?

Feature CU240E-2 PN — 6SL3244-0BB12-1FA0 CU240D CU320
Fieldbus PROFINET, EtherNet/IP (simultaneous) CANopen only PROFINET, EtherNet/IP + integrated Ethernet switch
Safety Integrated Yes — STO built-in No — external relay required Yes
Digital Inputs 6 standard + 1 fail-safe 4 standard 8 standard + 2 fail-safe
Relay Outputs 2 changeover 2 4
Analog Inputs 2 differential 1 4 mixed
Analog Outputs 2 non-isolated 1 4
Form Factor Compact — 73 x 199 x 46 mm Compact Larger module
Approximate Price (USD) 400–600 250–350 700–1000
Typical Use Case PROFINET/EtherNet/IP factories; safety-critical machinery CANopen-only networks; cost-sensitive single drives High-complexity drives; multi-axis coordination; Ethernet backbone

If your architecture runs PROFINET or EtherNet/IP and the application falls within the I/O count of the CU240E-2 PN, this is the correct variant — check current availability and pricing at LeadTime.ca.

Expert Verdict: Honest Assessment for Controls Engineers

The 6SL3244-0BB12-1FA0 earns its place as the standard control unit selection for SINAMICS G120 builds in PROFINET-networked facilities. The simultaneous PROFINET and EtherNet/IP support is a genuine advantage in mixed-PLC environments — particularly during plant modernization projects where Siemens and Allen-Bradley controllers coexist on the same network segment. The integrated STO function eliminates a discrete safety relay for many machinery category requirements, which reduces cabinet BOM cost and wiring complexity in conveyor, pump, and fan applications. At 0.49 kg and 73 x 199 x 46 mm, it installs without space compromise in standard enclosures.

Where this unit has real limits: the 2 differential analog inputs and 2 non-isolated analog outputs will constrain engineers running multi-loop PID control or applications with high analog signal density. The absence of encoder-based vector control is a hard stop for precision spindle or servo-style applications — those require a different CU variant. The IP20 rating means this unit should never be installed outside a sealed cabinet; it is not a standalone panel-mount solution. And like all G120 control units, it has no value without a compatible G120 power module already in the design.

From a procurement perspective, the 6SL3244-0BB12-1FA0 typically carries a lead time of 2 to 6 weeks for in-stock units through authorized channels, extending to 8 to 12 weeks on special-order or low-volume situations. Volume buyers ordering 10 or more units can typically negotiate 5 to 10% below list price; at 25 or more units, 10 to 15% discount tiers are common. If you are building a multi-drive line and need confirmed delivery windows, requesting an RFQ before committing to a project schedule is the right move. View current stock and pricing for the 6SL3244-0BB12-1FA0 at LeadTime.ca before locking your project timeline.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation: What to Verify Before You Start

  • Confirm your 24 VDC supply falls within DC 20–29V and can sustain the 0.50 A draw of the control unit; budget additional current separately for the power module — no internal circuit protection is provided on this unit, so external fusing at cabinet level is mandatory
  • Signal cable conductors must fall within 0.05–1.50 mm² (AWG 28–16); verify available wire stock in your cabinet before pulling cable
  • Shield signal cables and bond the shield at the cabinet wall entry point only — bonding at both ends creates ground loops that corrupt analog input readings on the 2 differential AI channels
  • For the fail-safe digital input used with STO, dual-channel redundant wiring runs are required if the installation is rated to ISO 13849-1 or EN 61508 SIL 2 / PLd — verify your safety architecture requirement before wiring
  • Analog outputs are non-isolated; do not connect the analog output common to an external 0V reference unless optical isolation is added in the signal chain

Commissioning the 6SL3244-0BB12-1FA0: Key Steps Before Full-Speed Operation

  • Verify stable 24V supply at control unit terminals and confirm the status LED reaches green before any fieldbus configuration
  • For PROFINET: load the GSDML device descriptor file into TIA Portal or your engineering tool and assign either a static IP or DHCP address before attempting network connection
  • For EtherNet/IP: load the EDS file into your scanner (ControlLogix or equivalent); confirm Class 1 and Class 3 messaging is configured to match your PLC program
  • Test each relay output under no-load with a multimeter before energizing downstream contactors or pilot devices
  • Ramp motor speed gradually on first sensorless vector startup — the observer algorithm requires controlled acceleration over 10–30 seconds to converge before full-speed operation is safe

Wrong-Part Prevention: Seven Checks Before You Order

The following checklist addresses the most common ordering errors for the 6SL3244-0BB12-1FA0. Work through every item before submitting a purchase order.

  1. Confirm you already own or have selected the SINAMICS G120 power module base unit; this control unit cannot operate standalone
  2. Verify your cabinet has stable 24V supply available and can spare 0.50A+ for this unit
  3. Check that your network uses PROFINET or EtherNet/IP; non-fieldbused setups cannot use this unit efficiently
  4. List all required digital and analog inputs/outputs and compare to: 6 standard DI, 1 fail-safe DI, 2 relay DO, 2 differential AI, 2 non-isolated AO
  5. Confirm motor type (AC induction, permanent magnet, etc.) is compatible with sensorless vector or V/f control method required
  6. Validate your region certifications: CE (EU), UL/cUL (North America), RCM (AU/NZ)
  7. Confirm signal cable sizes available in your shop match 0.05–1.50 mm² (AWG 28–16) range

If every item on this list checks out, confirm availability and request a quote for the 6SL3244-0BB12-1FA0 at LeadTime.ca. If any item flags a mismatch, contact the LeadTime.ca team for variant guidance before ordering.

Frequently Asked Questions

Can the 6SL3244-0BB12-1FA0 operate without a SINAMICS G120 power module?

No. The CU240E-2 PN is a control unit only — it processes commands and manages drive functions but does not generate motor output power. It must be mounted to a compatible SINAMICS G120 power module. Ordering this unit without confirming the G120 power module is already in the design is the most common procurement error for this SKU.

Does this control unit support encoder-based closed-loop vector control?

No. The 6SL3244-0BB12-1FA0 supports V/f control (linear, square-law, ECO), sensorless vector, and encoderless torque control — all without an encoder. Vector control with a physical encoder is not supported on this unit. Applications requiring encoder feedback for precise speed regulation need a different CU variant within the SINAMICS G120 family.

Can PROFINET and EtherNet/IP run simultaneously on the 6SL3244-0BB12-1FA0?

Yes. Both PROFINET and EtherNet/IP are supported simultaneously on this control unit. This is a practical advantage in mixed-PLC environments or during phased modernization projects. Network load per protocol depends on the device cycle time configured in your engineering tool — typically in the 10–100 ms range per protocol.

What certifications cover this unit for North American installations?

The 6SL3244-0BB12-1FA0 carries UL and cUL approval for North American use, in addition to CE marking (Low-Voltage Directive 2014/35/EC) and RCM for Australia and New Zealand. SEMI F47 compliance is also confirmed, covering semiconductor cleanroom and voltage-sag-sensitive applications. For Canadian installations, the cUL approval aligns with Canadian Electrical Code requirements for 24V control circuits.

What is the typical lead time for the 6SL3244-0BB12-1FA0 and are volume discounts available?

Lead times typically run 2 to 6 weeks for in-stock units through authorized distributors, extending to 8 to 12 weeks on lower-volume or special-order situations. Volume pricing tiers become available at 10 or more units (typically 5–10% below list) and scale further at 25 or more units (10–15%) and 100 or more units (15–25%). For confirmed lead time and volume pricing, requesting an RFQ before project commitment is the most reliable approach.

What happens to the fail-safe STO function if the 24V supply drops below 20V?

The external supply voltage range for the 6SL3244-0BB12-1FA0 is DC 20–29V. If supply voltage drops below the minimum threshold, the control unit will not maintain normal operation, which includes STO function execution. A stable, regulated 24V power supply with headroom above the 0.50 A maximum draw is a hard prerequisite — this is not a unit that tolerates poorly regulated DC power budgets.

Why Source the 6SL3244-0BB12-1FA0 from LeadTime.ca

  • LeadTime.ca ships the 6SL3244-0BB12-1FA0 worldwide — no geographic restrictions on quoting or fulfillment
  • Hard-to-find or low-volume SKUs across the SINAMICS G120 family can be sourced through our distributor network with lead time transparency before you commit
  • Volume pricing requests for 10 or more units are handled directly — contact us before placing a large order to confirm discount eligibility
  • Parts ship in original manufacturer packaging with full documentation
  • Our team can assist with companion G120 power module selection and compatible accessory identification to simplify BOM consolidation

At-a-Glance Summary

  • Official designation: SINAMICS G120 CONTROL UNIT CU240E-2 PN — Safety Integrated with STO, PROFINET
  • Mounts to SINAMICS G120 power module — not a standalone drive; power module must be selected separately
  • Simultaneous PROFINET and EtherNet/IP communication on a single unit
  • 6 standard digital inputs (switching at 11V / 5V), 1 fail-safe digital input, 2 relay changeover outputs
  • 2 differential analog inputs, 2 non-isolated analog outputs
  • Integrated Safe Torque Off (STO) — meets IEC 61800-5-1 SIL 2 / PLd when correctly wired
  • Motor control methods: V/f linear, V/f square-law, V/f ECO, sensorless vector, encoderless torque — no encoder-based vector
  • Operating ambient: -10 to 55°C; IP20; 73 x 199 x 46 mm; 0.49 kg
  • 24V external supply range DC 20–29V; max draw 0.50 A; power loss 5.50 W
  • Signal cable: 0.05–1.50 mm² (AWG 28–16)
  • Certifications: CE (2014/35/EC), UL, cUL, RCM, SEMI F47
  • Approximate price range: USD 400–600 depending on distributor and volume; lead time 2–12 weeks
