Siemens 6SL3055-0AA00-5CA2 SMC30 — Encoder Module Selection Guide

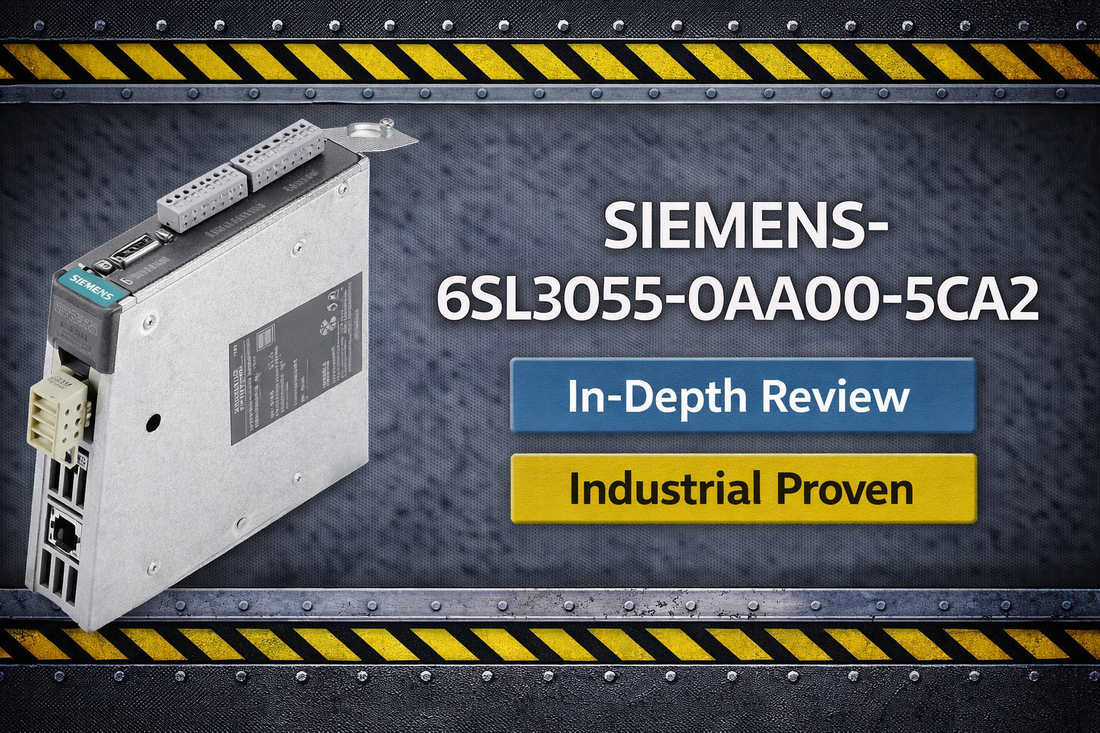

Siemens 6SL3055-0AA00-5CA2 SINAMICS SMC30 Sensor Module for Incremental Encoder (TTL/HTL or Combi-Encoder SSI with Incremental Tracks or Encoder SSI Without Incremental Signals, Without DRIVE-CLiQ Cable)
Controls engineers retrofitting SINAMICS drives for closed-loop encoder feedback face a specific procurement decision: which sensor module variant matches the encoder type, drive platform, and cabling setup already in place. The Siemens 6SL3055-0AA00-5CA2 is the SINAMICS SMC30 Sensor Module that handles TTL, HTL, SSI combi-encoder, and pure SSI encoder signals in a single 30 mm cabinet-mounted unit — without an included DRIVE-CLiQ cable. If you are replacing a failed module, specifying for a new OEM build, or adding encoder feedback to an existing SINAMICS G120 or S120 installation, this is the part most engineers reach for first.
If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.
Who Should Buy the 6SL3055-0AA00-5CA2 — and Who Shouldn't
This module is the correct choice when your application requires a modular, OEM-grade encoder interface for an existing SINAMICS drive that lacks integrated encoder support. Buy this part when all of the following are true:
- Your encoder outputs TTL (5 V), HTL (6–26 V), SSI with incremental tracks, or SSI without incremental signals
- Your drive is SINAMICS G110, G120, or S120 running firmware V6.4 HF1 or higher
- Your cabinet has 30 mm of available DIN rail or backplane width for the module
- You have an available DRIVE-CLiQ port on the drive controller (cable must be sourced separately)
- Your application is digital encoder feedback only — this module does not process analog 4–20 mA signals
If you need the DRIVE-CLiQ cable included in the shipment, the correct SKU is 6SL3055-0AA00-5CA3. If your drive runs pre-V6.4 firmware and an upgrade is not planned, a firmware-compatible alternative or full drive replacement should be evaluated before ordering.
On this page:
- What the SMC30 Actually Does in a SINAMICS System
- Where the 6SL3055-0AA00-5CA2 Sits in the Signal Chain
- Which Applications and Industries Use This Module Most
- Specs Engineers Use to Confirm Purchase Decisions
- 6SL3055-0AA00-5CA2 vs. Other SMC30 Variants: What Actually Differs
- Expert Verdict: When to Buy This Module and When to Look Elsewhere
- Installation and Wiring Overview
- Compatible Drive Platforms and Firmware Requirements
- Wrong-Part Prevention: What to Verify Before You Order
- Frequently Asked Questions
- Why Order From LeadTime.ca
- At-a-Glance Summary
What the SMC30 Actually Does in a SINAMICS System
The 6SL3055-0AA00-5CA2 is a standalone sensor interface card. Its sole job is to translate pulse-based encoder signals — TTL, HTL, SSI with incremental tracks, or pure SSI — into a DRIVE-CLiQ protocol signal that SINAMICS drive controllers can process for closed-loop speed and position feedback. Without a module like this, a SINAMICS drive that has no onboard encoder port cannot run in closed-loop vector mode with an external encoder attached.
The module is physically compact at 30 mm cabinet mounting width and is DIN rail compatible. It does not include the DRIVE-CLiQ cable — that must be ordered and routed separately. Its item weight is 0.41 kg and it ships at 1.00 kg, which places it firmly in the category of small but precisely specified drive accessories where the wrong SKU costs weeks, not just dollars.
The OEM reliability argument for this module is grounded in the SINAMICS platform's support architecture. Siemens SINAMICS components carry a minimum 10-year availability window for standard industrial modules, which matters significantly in production environments where a spare-parts strategy has to remain viable across long equipment lifecycles.
Where the 6SL3055-0AA00-5CA2 Sits in the Signal Chain
The SMC30 sits between the physical encoder mounted on the motor or driven shaft and the SINAMICS drive controller — converting encoder pulse data into the DRIVE-CLiQ digital protocol the drive uses for feedback processing.
- SINAMICS drive controller (G110, G120, or S120) — processes speed and position commands via DRIVE-CLiQ
- DRIVE-CLiQ cable (sourced separately) — carries protocol communication between the drive and the SMC30 module
- 6SL3055-0AA00-5CA2 SMC30 Sensor Module — converts incoming TTL, HTL, or SSI encoder signals into DRIVE-CLiQ format
- Shielded encoder cable — carries raw encoder pulse signals from the encoder to the module input terminals
- Incremental or SSI encoder — mounted on the motor shaft, conveyor, spindle, or driven axis
Which Applications and Industries Use This Module Most
The most common deployment scenario is a retrofit of existing SINAMICS G120 drives where encoder feedback was not originally specified but is now required for tighter speed regulation. Rather than replacing the drive, the SMC30 adds the encoder interface at a fraction of the cost — replacing a full SINAMICS drive to gain encoder feedback capability typically costs 300–500% more than adding a modular sensor module to an existing drive.
Precision packaging machinery is a strong fit: frame counting, registration accuracy, and speed stability across multiple axes all depend on real-time encoder feedback, and the SMC30 handles the TTL incremental encoders most packaging OEMs use without requiring signal conditioning hardware.
Machine tool spindle control applications use this module for real-time speed feedback where closed-loop vector performance is required. Conveyor and sortation systems use it for barrel-to-barrel speed matching, where encoder-based feedback keeps transfer speeds consistent across zones. Multi-axis motion systems on automotive subassembly lines also rely on this module when SINAMICS S120 configurations need synchronized drive control from encoder-based position data.
| Application | Typical Deployment |
|---|---|
| Legacy SINAMICS drive retrofit | SMC30 added to G120 drive lacking integrated encoder port; TTL incremental encoder connected |
| Precision packaging machinery | Frame counting and speed stability using HTL encoder with SMC30 feeding G120 closed-loop control |
| Machine tool spindle control | SSI combi-encoder connected via SMC30 for real-time speed feedback on S120 modular system |
| Conveyor speed matching | Multiple SMC30 modules on multi-zone conveyor with encoder-based barrel-to-barrel synchronization |
| Multi-axis motion systems | SMC30 modules in S120 backplane configuration for synchronized position feedback across axes |
| OEM equipment new builds | SMC30 specified at design stage for mixed encoder environments (TTL, HTL, SSI) on single platform |
Specs Engineers Use to Confirm Purchase Decisions
| Specification | Detail |
|---|---|
| Catalog Number | 6SL3055-0AA00-5CA2 |
| Product Family | SINAMICS SMC30 |
| Supported Encoder Types | TTL (5 V), HTL (6–26 V), SSI with incremental tracks, SSI without incremental signals |
| DRIVE-CLiQ Cable Included | No — must be sourced separately |
| Cabinet Mounting Width | 30 mm (DIN rail compatible) |
| Item Weight | 0.41 kg |
| Shipping Weight | 1.00 kg |
| Overall Dimensions (L × W × H) | 35 cm × 18 cm × 4 cm |
| Country of Origin | Germany (DE) |
| Minimum Firmware (SINAMICS) | V6.4 HF1 or higher |
Full technical specifications are available on the product page at LeadTime.ca.
6SL3055-0AA00-5CA2 vs. Other SMC30 Variants: What Actually Differs
| Variant / Model | Key Difference | When to Choose Instead |
|---|---|---|
| 6SL3055-0AA00-5CA2 (this product) | TTL, HTL, SSI combi, SSI-only support; no DRIVE-CLiQ cable included | When cable is sourced separately or already on hand |
| 6SL3055-0AA00-5CA3 | Includes integrated DRIVE-CLiQ cable | Simplified procurement; known cable spec; first-time installation |
| SSI-only variants | TTL/HTL not supported; reduced cost | Pure SSI encoder applications only |
| SMC20 (legacy) | Older generation, limited compatibility | Only when required for legacy system support |
| CANopen encoder module | Network-based encoder feedback over CAN | Distributed I/O systems requiring multi-drive CAN networking |
If your procurement process includes sourcing the DRIVE-CLiQ cable in the same order, the 6SL3055-0AA00-5CA3 eliminates one line item — check current availability of the 6SL3055-0AA00-5CA2 at LeadTime.ca and contact the team to confirm the matching cable part number for your drive model.
Expert Verdict: When to Buy This Module and When to Look Elsewhere
The 6SL3055-0AA00-5CA2 earns its place as the default SMC30 selection for mixed encoder environments. Supporting TTL, HTL, SSI with incremental tracks, and pure SSI in a single 30 mm module means a controls engineer specifying for an OEM production line does not need to maintain separate SKUs for different encoder types — one part number covers the full encoder format range used on most industrial machinery. The retrofit economics are compelling: adding this module to an existing SINAMICS drive is substantially less disruptive and less costly than replacing the drive to gain integrated encoder support.
The honest limitation is the missing DRIVE-CLiQ cable. Engineers who have not carefully read the product descriptor frequently reach the commissioning stage and discover the cable was not in the box. This is not a product defect — it is clearly documented in the SKU — but it causes real project delays. If your procurement process cannot guarantee a same-order cable, the 6SL3055-0AA00-5CA3 variant eliminates that risk. Additionally, this module is only valid on drives running firmware V6.4 HF1 or higher. Legacy SINAMICS installations on older firmware need a firmware upgrade path planned and tested before this module is ordered. Drives with built-in encoder inputs have no use for this module at all.
From a procurement standpoint, the SMC30 is generally available through major industrial distributors with lead times that support most project timelines. Volume orders for OEM production runs benefit from consolidated purchasing. If this matches your system requirements, view current stock and pricing at LeadTime.ca.
For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.
Installation and Wiring Overview
The following covers key installation considerations. Engineers needing full wiring diagrams and step-by-step commissioning procedures should refer to the Siemens SMC30 installation manual for their specific drive platform.
- Mount the SMC30 on DIN rail or backplane in a 30 mm width slot; verify the slot is available and no adjacent modules conflict with connector access
- Connect encoder signal wires to the module input terminals; use shielded twisted pair cabling for all encoder signal runs and terminate cable shield at a single cabinet ground point to prevent noise injection
- Route encoder cables in separate conduit from power cables; signal integrity on TTL (5 V) signals is sensitive to induced noise from adjacent motor cables
- Connect the DRIVE-CLiQ cable (sourced separately) between the module output port and the designated DRIVE-CLiQ port on the drive controller; verify no other device is assigned to that port
- After powering up, verify module LED indicators for powered and active communication status before proceeding to software configuration in SINAMICS DCC
Compatible Drive Platforms and Firmware Requirements
The 6SL3055-0AA00-5CA2 is validated for use across the SINAMICS drive family where an available DRIVE-CLiQ port exists and firmware meets the minimum version requirement. SINAMICS firmware V6.4 HF1 and later provides consistent SMC30 module support across G110, G120, and S120 platforms, enabling a standardized encoder feedback architecture in multi-product system designs.
| Drive Platform | Firmware Requirement | Compatibility Status | Notes |
|---|---|---|---|
| SINAMICS G110 | V6.4 HF1 or higher | Compatible | Verify module installation kit availability for G110 chassis |
| SINAMICS G120 | V6.4 HF1 or higher | Compatible — most common retrofit application | Most frequent SMC30 deployment scenario |
| SINAMICS S120 | V6.4 HF1 or higher | Compatible | Modular system; verify backplane slot availability |
| SINAMICS (pre-V6.4 firmware) | Pre-V6.4 | Not Supported | Firmware upgrade path required before module will be recognized |
| Non-Siemens drives | Varies | Not Compatible | Use manufacturer-specific encoder interface modules |
Wrong-Part Prevention: What to Verify Before You Order
The following checklist reflects the most common ordering errors for this specific SKU. Work through each item before submitting a purchase order.
- Verify your drive controller model supports external SMC30 modules before ordering
- Confirm your encoder type (TTL, HTL, SSI) matches this module specification
- Check that your cabinet has available 30 mm mounting width in DIN rail or backplane
- Determine if you need the DRIVE-CLiQ cable separately (not included in this SKU)
- Verify your drive firmware version supports SMC30 integration (V6.4 HF1 or higher recommended)
- Cross-reference against competing modules: Beckhoff EL5021 (EtherCAT) or Allen-Bradley encoder modules if multi-protocol is required
- Confirm supply voltage matches your cabinet power rail (typically 24 VDC)
- Check that your application does not require simultaneous analog feedback (SMC30 is digital-only)
If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — confirming the right part number now prevents a costly return and project delay later.
Frequently Asked Questions
Does the 6SL3055-0AA00-5CA2 include the DRIVE-CLiQ cable?
No. This SKU is explicitly described as "without DRIVE-CLiQ cable." The cable must be identified from your drive manual and ordered separately. If you need the cable included in a single shipment, evaluate the 6SL3055-0AA00-5CA3 variant instead. Factor cable lead time into your project schedule when placing the order.
What is the minimum firmware version required for this module to function?
SINAMICS firmware V6.4 HF1 or higher is required for SMC30 module recognition across the G110, G120, and S120 platforms. If your drive is running pre-V6.4 firmware, the module will not be recognized and no encoder feedback will be processed. Plan a firmware upgrade and test it in a non-production environment before deploying the module on a live machine.
Can I use this module with TTL, HTL, and SSI encoders interchangeably?
The 6SL3055-0AA00-5CA2 supports all four encoder configurations: TTL (5 V), HTL (6–26 V), SSI with incremental tracks, and SSI without incremental signals. This makes it the most flexible single SKU for mixed encoder environments. You configure the active encoder type in SINAMICS DCC software during commissioning — the physical module hardware is the same regardless of encoder type selected.
Is this module compatible with CANopen or PROFIBUS encoders?
No. The 6SL3055-0AA00-5CA2 does not support CANopen or PROFIBUS network protocol encoders. Those signal types require a separate gateway or interface module specific to the network protocol. If your encoder communicates over a fieldbus rather than a direct TTL, HTL, or SSI signal line, a different module family is required.
What happens if I install this on a SINAMICS drive that already has a built-in encoder input?
If your SINAMICS drive already includes integrated encoder support, adding an SMC30 module is unnecessary and adds cost without benefit. Consult your drive's technical documentation to confirm whether an encoder port is already present on the control unit before specifying this module. The SMC30 is specifically for drives that lack this native capability.
Can this module support analog 4–20 mA feedback signals?
No. The SMC30 is a digital encoder interface module. It processes TTL, HTL, and SSI digital signals only. Analog 4–20 mA feedback requires a separate analog input module appropriate to your drive platform. Mixing analog and digital feedback in the same module is not supported by this SKU.
Why Order From LeadTime.ca
- LeadTime.ca ships the Siemens 6SL3055-0AA00-5CA2 worldwide — no regional restrictions on sourcing
- Sourcing support for hard-to-find SINAMICS accessories including companion DRIVE-CLiQ cables for this SKU
- Volume pricing available for OEM production builds and multi-unit retrofit projects — contact the team directly
- Fast response on lead time confirmation before you commit to a project schedule
- Single-source procurement for the SMC30 module plus companion drive accessories
- View current pricing and stock for the 6SL3055-0AA00-5CA2 at LeadTime.ca
- Contact the LeadTime.ca team for a quote or lead time confirmation
At-a-Glance Summary
- Catalog number: 6SL3055-0AA00-5CA2 — SINAMICS SMC30 Sensor Module
- Supported encoder types: TTL (5 V), HTL (6–26 V), SSI with incremental tracks, SSI without incremental signals
- DRIVE-CLiQ cable: not included — must be sourced separately; see 6SL3055-0AA00-5CA3 if cable inclusion is required
- Cabinet mounting width: 30 mm, DIN rail compatible
- Item weight: 0.41 kg; shipping weight: 1.00 kg; dimensions: 35 cm × 18 cm × 4 cm
- Compatible drive platforms: SINAMICS G110, G120, S120 — firmware V6.4 HF1 or higher required
- Country of origin: Germany (DE)
- Retrofit economics: adding this module costs substantially less than full drive replacement to gain encoder feedback — typically 300–500% cost differential
- Encoder format flexibility: four signal standards in one module, eliminating the need for multiple SKUs in mixed encoder environments
- Not suitable for: analog 4–20 mA feedback, CANopen encoders, PROFIBUS encoders, drives with pre-V6.4 firmware
