Siemens 6SL3040-1MA01-0AA0 — CU320-2 Control Unit Buying Guide

By Abdullah Zahid
12 min read

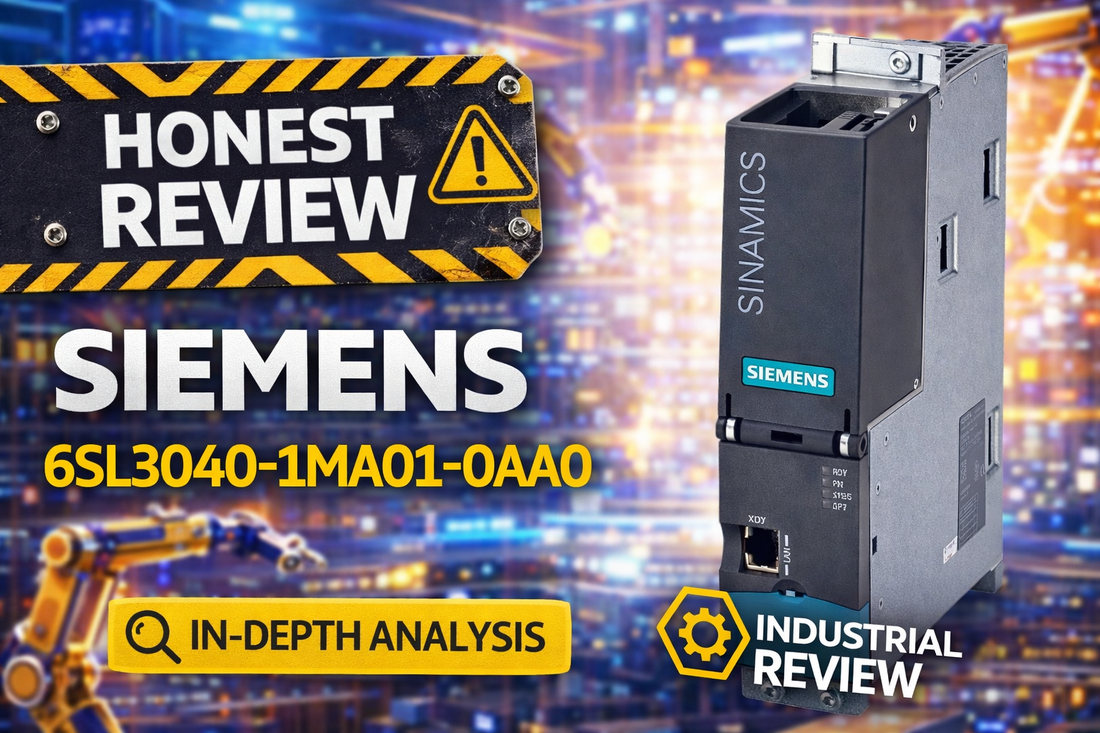

Siemens 6SL3040-1MA01-0AA0 CU320-2 PN SINAMICS S120 control unit module for industrial motor drive systems

Siemens 6SL3040-1MA01-0AA0 SINAMICS CONTROL UNIT CU320-2 PN WITHOUT COMPACT FLASH CARD — Specifications, Compatibility, and Procurement Guide

When a SINAMICS S120 drive system goes down unexpectedly or a plant engineer is specifying control modules for a new build, the part number 6SL3040-1MA01-0AA0 comes up fast. This is the CU320-2 PN control unit — the programmable brain of the SINAMICS S120 modular drive family — supplied without a Compact Flash card and requiring a 24 VDC control voltage from the customer cabinet. If you already know this is the right part, the next step is confirming stock and lead time.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6SL3040-1MA01-0AA0 — and Who Shouldn't

This control unit is the correct choice for engineers and procurement specialists working with SINAMICS S120 modular drive systems who need a replacement, expansion, or new-build control module. It is the right fit when all of the following are true:

  • Your power module is confirmed SINAMICS S120 — not S110, S150, or any other family
  • Your electrical cabinet supplies 24 VDC control voltage (not 48 VDC or 230 VAC)
  • Your sensor outputs fall within the -3 to 30 VDC range compatible with the 12 digital inputs
  • Your ambient cabinet temperature stays within 0 to 55°C under normal operating conditions
  • You have your own Compact Flash card and program backup, or your application does not require a pre-loaded card from the factory
  • You are not replacing a CU320-1 or CU310-2 and expecting a drop-in swap — connector pinouts differ

If your application requires a pre-loaded Compact Flash card out of the box — for example, an emergency field replacement where no program backup is accessible — the correct model is 6SL3040-1MA01-0BA0, which ships with a factory-loaded card. If your site runs consistently above 55°C ambient without cabinet cooling, look at the extended-temperature variant instead.

On this page:

What the CU320-2 PN Actually Does Inside a SINAMICS S120 System

The 6SL3040-1MA01-0AA0 is the control intelligence layer of a SINAMICS S120 modular drive system. It does not regulate motor power directly — that is the role of the power module. Instead, it processes control logic, manages 12 potential-free digital inputs with a voltage range of -3 to 30 VDC, executes programmed sequences, communicates with supervisory systems, and coordinates with the power module to regulate motor speed and torque. Without a functioning CU320-2, the entire S120 drive system is inoperable, which is why this component appears so frequently in emergency replacement searches.

The unit draws 24 W from a customer-supplied 24 VDC source and includes an onboard digital display for status indication and basic parameter entry. It weighs 5.35 lb and is manufactured in Germany as an active, current-generation product — not a legacy or end-of-life module. Communication protocols including PROFIBUS, PROFINET, and CANopen are supported through separately ordered option cards; the PN designation in CU320-2 PN indicates PROFINET-readiness in the hardware architecture, but the actual PROFINET communication card is a separate purchase.

One fact that creates the most procurement errors: this model ships WITHOUT a Compact Flash card. Program storage on the control unit requires a separately purchased card. Engineers replacing a failed unit who have a program backup stored on an external system will have no issue. Those without a backup need to order the 6SL3040-1MA01-0BA0 variant instead.

Where the 6SL3040-1MA01-0AA0 Sits in a Typical Drive System Architecture

The CU320-2 PN occupies the control layer between the plant-level supervisory system and the power-stage hardware that physically drives the motors. Understanding this position helps engineers visualize what must be present in the cabinet before this module can function.

  • Plant supervisory system or PLC (upstream) — sends speed, torque, and sequence commands via PROFIBUS, PROFINET, or CANopen to the CU320-2
  • CU320-2 PN (this module) — executes programmed logic, interprets digital input signals from field sensors, and issues control commands to the power module
  • SINAMICS S120 power module — receives commands from CU320-2 and regulates the actual power output to the motor
  • AC or DC motor — driven by the power module; speed and torque are regulated by the system
  • Field sensors and I/O devices — connect to the 12 digital inputs on the CU320-2, providing process feedback such as position signals, limit switches, or speed reference pulses

Industries and Applications Where the CU320-2 Is the Standard Choice

Paper and pulp mills rely on the SINAMICS S120 CU320-2 architecture for coordinating motor speed across multi-stage press sections where synchronization between drive axes directly affects sheet quality. The modular design means a failed control unit can be swapped without replacing the entire drive stack.

Steel mills and metal processing facilities use this control unit for rolling mill motor torque and speed synchronization, where the 12 digital inputs handle position and speed feedback from multiple sensors simultaneously. The 0 to 55°C operating range covers most indoor mill environments with basic cabinet ventilation.

Water and wastewater treatment plants deploy SINAMICS S120 systems with CU320-2 units for variable-speed pump motor control, where duty cycling and demand-based speed adjustment reduce energy draw. The modular architecture allows individual control unit replacement during scheduled maintenance windows without decommissioning the power stage.

Food and beverage processing lines — particularly bottling lines and mixing systems — use this control unit for conveyor speed sequencing. OEM machine builders specify the 6SL3040-1MA01-0AA0 across product families to reduce spare parts SKU count and keep technician training consistent.

Crane and hoist systems depend on the CU320-2 for dual-motor load balancing and sway control, where precise torque coordination between drive axes is safety-critical. Mining conveyor systems and aggregate processing equipment also appear frequently in installed base data for this module.

Application Typical Deployment
Paper and pulp mill Multi-stage press section motor synchronization using S120 modular drive with CU320-2 as central control unit
Steel rolling mill Hot or cold rolling mill motor torque regulation with digital input feedback from speed sensors
Water treatment plant Variable-speed pump motor control with demand-based duty cycling via PROFINET connection to SCADA
Food and beverage line Bottling conveyor speed control and sequencing; OEM cabinet build with standardized control module
Crane and hoist system Dual-motor load balancing on overhead crane; CU320-2 coordinates torque output across drive axes
Mining conveyor Speed ramp management under variable load on aggregate processing feeders and screens

Key Specifications Every Engineer Needs Before Ordering

Specification Value
Model Number 6SL3040-1MA01-0AA0
Product Family SINAMICS S120 CU320-2 PN
Control Voltage Input 24 VDC (customer-supplied)
Power Consumption 24 W
Operating Temperature 0 to 55°C
Digital Inputs 12 potential-free, -3 to 30 VDC
Dimensions (H x W x D) 11.81 x 1.97 x 8.9 inches
Weight 5.35 lb (2.38 kg)
Communication Protocols PROFIBUS / PROFINET / CANopen (option cards sold separately)
Compact Flash Card Not included — must be purchased separately

Full technical specifications are available on the product page at LeadTime.ca.

6SL3040-1MA01-0AA0 vs. 0BA0 vs. 0CA0: Which CU320-2 Variant Do You Actually Need?

Model Compact Flash Card Best For Key Limitation
6SL3040-1MA01-0AA0 (this model) Not included Replacement where program backup exists; OEM builds with central program management; new builds with existing program archive Cannot store program without separately purchased Compact Flash card
6SL3040-1MA01-0BA0 Included (pre-loaded) Emergency field replacement without program backup; standalone systems requiring onboard program storage; commissioning by technician without PC access Higher unit cost; factory-loaded card may require parameter adjustment for site-specific configuration
6SL3040-1MA01-0CA0 Variant-specific — verify at ordering Sites exceeding 55°C ambient; outdoor installations; extreme-climate enclosures Premium pricing; confirm exact temperature specification with distributor

If your system requires program storage on the control unit itself and no backup is available at the time of installation, the 6SL3040-1MA01-0BA0 is the correct choice — check current availability of all CU320-2 variants at LeadTime.ca.

Expert Verdict: Honest Assessment for Purchase Decision

The 6SL3040-1MA01-0AA0 is a well-established control module with a strong installed base across heavy industrial motor drive applications. The 12 digital inputs rated at -3 to 30 VDC cover the majority of standard industrial sensor outputs, the 24 W power draw is modest, and the modular architecture of the SINAMICS S120 family means this unit can be replaced or upgraded without touching the power stage. For maintenance engineers holding the part number on a work order, this is a straightforward procurement item — known quantity, active product, normally stocked by major distributors. SINAMICS S120 systems are deployed in more than 80 percent of medium to large-scale motor drive applications across Europe and North America, reflecting an installed base that makes distributor availability reliable and technician familiarity high.

Where this specific model creates problems is the Compact Flash card omission. It is the single most common source of commissioning delay on this product. The physical unit looks complete in the box. There is nothing visually missing. But without a Compact Flash card, program storage is not available on the control unit itself, and an engineer arriving on site expecting a ready-to-run spare will face an unplanned stop. The 0 to 55°C operating temperature is also a genuine constraint — not a theoretical one. Cabinet temperatures in summer conditions at industrial sites without forced cooling can exceed this limit, and operating the unit above 55°C will cause thermal throttling or shutdown. If your site sits close to that threshold, plan cooling or specify the extended-temperature variant proactively rather than after a field failure.

On the procurement side, this is a normally stocked item through authorized distributors globally. Emergency replacement scenarios — the most time-critical purchase situation — can typically be resolved within 24 to 48 hours from a local distributor with inventory. Volume orders or non-standard configurations carry longer lead times. If you are specifying this module for a multi-unit OEM build or purchasing spares inventory in quantity, volume pricing is available. If you need to confirm this is the right part, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following points cover the key requirements and configurations for installing the 6SL3040-1MA01-0AA0. For full wiring diagrams and step-by-step procedures, refer to the Siemens SINAMICS S120 commissioning documentation.

  • The unit requires a customer-supplied 24 VDC control voltage connected to the power terminals — verify polarity before energizing, as reverse polarity will prevent startup and may damage the unit
  • All 12 digital inputs accept -3 to 30 VDC signals; verify that connected sensor outputs fall within this range before wiring — higher-voltage sensor outputs will cause input incompatibility
  • Mount on DIN rail in standard upright orientation and ensure cabinet airflow is unobstructed around the module to maintain the 0 to 55°C operating temperature requirement
  • The communication cable between the CU320-2 and the SINAMICS S120 power module must be fully seated with crimp connectors secured — partial connections are a common source of communication faults at first startup
  • If a Compact Flash card is required, it must be installed before first power-on; the card seats with a click resistance and should not be forced

Compatible Modules and System Expansion

The 6SL3040-1MA01-0AA0 operates within the SINAMICS S120 modular architecture. The following module types are part of the compatible system ecosystem based on information in the product brief:

  • SINAMICS S120 power modules — required for motor power regulation; the CU320-2 cannot operate without a compatible S120 power module in the system (verify specific power module model against S120 compatibility documentation)
  • Compact Flash card (sold separately) — required for on-unit program storage; this model ships without one
  • PROFIBUS option card — enables PROFIBUS communication; ordered separately from the CU320-2 base unit
  • PROFINET option card — enables active PROFINET communication (PN hardware readiness is built into the CU320-2 PN, but the active card is a separate order)
  • CANopen option card — enables CANopen protocol support for applications requiring this fieldbus
  • TIA Portal or Step 7 software license — required on programming PC for parameter loading, motor configuration, and program download to the control unit

What Engineers Get Wrong When Ordering This Part

Before finalizing your purchase order for the 6SL3040-1MA01-0AA0, verify every item on this checklist. These are the exact failure points identified from real procurement and commissioning errors with this model:

  1. Confirm your base power module is SINAMICS S120 (not S110, S150, or other families; CU320-2 is exclusive to S120)
  2. Check if application requires Compact Flash card for program storage; this model ships WITHOUT card
  3. Verify 24 VDC control voltage is available in your electrical cabinet (mismatch to 230 VAC or 48 VDC will prevent operation)
  4. Confirm 12 digital inputs at -3 to 30 V specification matches your sensor outputs (if you have higher voltage sensors, incompatibility occurs)
  5. Do not confuse CU320-2 with older CU320-1 (different pin configuration; will not fit); verify part number casing exactly
  6. Check whether existing system already has CU320-2 module present; stacking two control units will cause conflict
  7. If your cabinet runs hotter than 55°C without cooling, this module will throttle or shut down; plan for cooling or select industrial-grade variant

If any item on this checklist raises a question about your specific system, contact the LeadTime.ca team before placing the order — getting the right part the first time is faster than processing a return.

Frequently Asked Questions

Does the 6SL3040-1MA01-0AA0 come with a Compact Flash card pre-installed?

No. The 6SL3040-1MA01-0AA0 ships without a Compact Flash card. The product descriptor explicitly states WITHOUT COMPACT FLASH CARD. If your application requires a factory-loaded card for program storage, the correct model is 6SL3040-1MA01-0BA0. If you supply your own Compact Flash card and have a program backup, this model works without change.

Is the CU320-2 backward compatible with CU310-2 or CU320-1 hardware slots?

No. The CU320-2 has a different pin configuration from both the CU310-2 and CU320-1. Physical dimensions may appear similar, but the connectors and pin assignments differ. Attempting to substitute a CU310-2 for a failed CU320-2 will result in a unit that fits mechanically but fails to communicate. Always verify the full three-digit designation (320 vs. 310) before ordering a replacement.

What communication protocols does the CU320-2 PN support, and are they included with this model?

The CU320-2 PN supports PROFIBUS, PROFINET, and CANopen. However, the PN designation refers to hardware readiness for PROFINET — the actual communication option cards for PROFIBUS, PROFINET, and CANopen are all ordered separately. This model does not include any protocol card. Budget for the appropriate communication card as part of your system BOM.

What is the typical lead time for the 6SL3040-1MA01-0AA0, and is it stocked for emergency replacement?

The 6SL3040-1MA01-0AA0 is an active, currently stocked product available through authorized distributors globally. Emergency replacement scenarios can typically be fulfilled within 24 to 48 hours from a distributor with local inventory. Bulk orders or non-standard configurations may carry lead times of 4 to 10 weeks. Contact LeadTime.ca directly for current stock status and lead time confirmation before committing to a build timeline.

Can the CU320-2 PN operate in a cabinet that reaches 60°C in summer conditions?

No. The rated operating temperature range for the 6SL3040-1MA01-0AA0 is 0 to 55°C. Operating above 55°C will cause thermal throttling or shutdown. If your cabinet environment reaches or exceeds 55°C under normal operating conditions, you must either add forced cabinet cooling or specify the extended-temperature variant (6SL3040-1MA01-0CA0). Confirm the exact temperature specification for the extended variant with your distributor at the time of order.

What voltage must be supplied to the CU320-2, and what happens if the wrong voltage is connected?

The 6SL3040-1MA01-0AA0 requires a customer-supplied 24 VDC control voltage drawing approximately 24 W. Connecting 230 VAC or 48 VDC will destroy the unit — it cannot be repaired after an overvoltage event. Before wiring, confirm the specific 24 VDC breaker in the cabinet with a voltmeter and label it clearly on the electrical schematic and the cabinet interior to prevent technician error during future maintenance.

Why Order the 6SL3040-1MA01-0AA0 From LeadTime.ca

  • LeadTime.ca ships worldwide — whether you are sourcing from North America, Europe, or anywhere internationally, orders are processed and dispatched globally
  • Hard-to-find and normally stocked industrial automation parts are sourced and held for rapid fulfillment, including active Siemens drive components like the CU320-2 series
  • Volume pricing is available for OEM builds, spares inventory purchases, and multi-unit project orders — contact the team before placing large orders to confirm pricing and lead time
  • The LeadTime.ca team can confirm compatibility, clarify variant differences, and assist procurement specialists who need to verify part numbers before committing to a purchase order

At-a-Glance Summary

  • Model: 6SL3040-1MA01-0AA0 — SINAMICS CONTROL UNIT CU320-2 PN WITHOUT COMPACT FLASH CARD
  • Control voltage: 24 VDC, customer-supplied; power consumption 24 W
  • Digital inputs: 12 potential-free, rated -3 to 30 VDC
  • Operating temperature: 0 to 55°C — cabinet cooling required if ambient exceeds this range
  • Compact Flash card: NOT included — order separately or specify 6SL3040-1MA01-0BA0 if pre-loaded card is required
  • Communication: PROFIBUS, PROFINET, CANopen supported via separate option cards — none included with this model
  • Dimensions: 11.81 x 1.97 x 8.9 inches; weight 5.35 lb (2.38 kg)
  • Compatible system: SINAMICS S120 exclusively — not compatible with S110, S150, or other families
  • Life cycle status: Active product, Made in Germany, EU RoHS and Buy American compliant
  • EAN: 4042948660126 — verifiable identifier for procurement documentation
