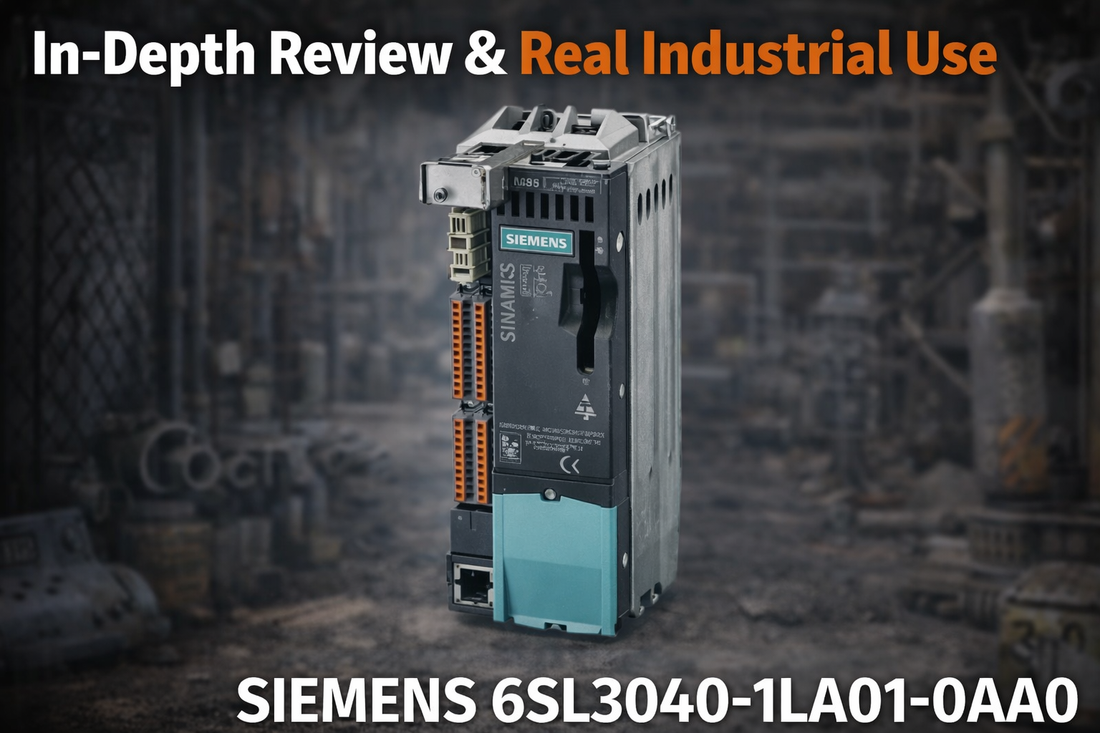

Siemens 6SL3040-1LA01-0AA0 SINAMICS S120 CU310-2 PN control unit for industrial motion control systems

Siemens 6SL3040-1LA01-0AA0 SINAMICS S120 Control Unit CU310-2 PN with PROFINET Interface without CompactFlash Card: Specifications and Selection Guide

If you are specifying or replacing the control unit in a SINAMICS S120 drive system and your facility runs PROFINET, the Siemens 6SL3040-1LA01-0AA0 is almost certainly the part number you need. This compact embedded control unit — the CU310-2 PN — acts as the intelligent interface between the S120 power module and your factory network, processing motion commands and communicating drive status in real time via PROFINET Industrial Ethernet. It ships without a CompactFlash card, meaning firmware management requires a connected engineering workstation, a constraint worth confirming before you order.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6SL3040-1LA01-0AA0 — and Who Shouldn't

The CU310-2 PN is the correct control unit for automation engineers and systems integrators who have already committed to SINAMICS S120 architecture and need networked, real-time drive control. You are in the right place if all of the following apply:

  • Your facility control system communicates over PROFINET Industrial Ethernet (IEC 61158 Type 10) — not Profibus
  • Your S120 power module (PM240, PM251, PM260, or similar) is listed as compatible with the CU310-2 in your machinery documentation
  • Your application requires position control, closed-loop velocity control, electronic gearing, or flying shear synchronization
  • Firmware updates and commissioning will be performed via an engineering workstation connected to the PROFINET network — not via onboard CompactFlash
  • Your operating environment falls within the -25°C to +60°C industrial temperature range

If your facility is standardized on Profibus, you need the CU310-2 DP variant, not this model. If standalone field commissioning without a connected workstation is a hard requirement, choose the CU310-2 PN variant that includes a CompactFlash card slot.

On this page:

What the CU310-2 PN Actually Does in an S120 Drive System

The 6SL3040-1LA01-0AA0 is not a standalone drive or a PLC output card — it is the embedded intelligence layer that makes the SINAMICS S120 power stage functional. Without a control unit, the S120 power module cannot accept motion commands, regulate speed or position, or report diagnostic data to the rest of the automation system. The CU310-2 PN receives command signals from an upstream PLC or SCADA controller via PROFINET, translates those commands into real-time motor control instructions, and returns status and fault data back across the same network connection.

Where this part earns its place over standard I/O cards is in dynamic applications. PROFINET-based motion synchronization in S120 systems achieves sub-10-millisecond cycle times, enabling electronic line shafting and flying shear applications within 0.1% position error tolerance — a level of precision not attainable with standard VFD controllers or legacy Profibus-only systems. SINAMICS S120 control systems are also deployed in over 500,000 industrial machines globally, which reflects how well-proven the CU310-2 platform is in crane, conveyor, and synchronized motion roles.

The absence of a CompactFlash card slot in this specific model is the single most important product distinction to internalize before ordering. All firmware downloads, parameter transfers, and drive profile updates require a direct Ethernet connection from an engineering workstation running TIA Portal or equivalent Siemens software. This is a standard workflow for most facility engineering teams, but it is a real constraint in remote or field-commissioning environments where IT access is limited.

Typical System Architecture for the 6SL3040-1LA01-0AA0

The CU310-2 PN sits between the plant-level control network and the SINAMICS S120 power stage, serving as the translation and execution layer for all motion commands. A typical deployment chain looks like this:

  • Plant PLC or motion controller (e.g., Siemens S7-1500) sends real-time drive commands over PROFINET via an industrial-grade managed Ethernet switch
  • The 6SL3040-1LA01-0AA0 receives those commands and manages acceleration profiles, velocity loops, positioning targets, and electronic gearing logic
  • The CU310-2 PN interfaces directly with the SINAMICS S120 power module (PM240, PM251, PM260, or equivalent) to convert control signals into motor drive output
  • Encoder or resolver feedback from the motor returns to the CU310-2 PN for closed-loop position and velocity correction
  • Drive health data, fault codes, and performance telemetry flow back through PROFINET to the PLC, HMI panel, and SCADA layer for monitoring and logging

Where Engineers Deploy This Control Unit

Crane and hoist applications represent one of the primary use cases for the CU310-2 PN, where precise load positioning and controlled deceleration under variable loads require the kind of closed-loop velocity and position control this unit provides. Multi-zone conveyor and material handling systems similarly depend on the electronic gearing and synchronization features to maintain product spacing and transfer timing across drive zones.

In textile and paper processing lines, flying shear and electronic line shafting applications take advantage of the sub-10-millisecond PROFINET cycle time to maintain cut-length accuracy and web tension synchronization across multiple drive axes. Packaging machinery and automotive assembly line motion control use the same synchronization capability for indexing, pick-and-place coordination, and servo-equivalent positioning without a full servo drive investment.

A significant proportion of CU310-2 PN orders are replacement units for existing S120 systems — either planned maintenance swaps or emergency replacements after control unit failures. In these cases, buyers are purchasing an exact part number match and need the parameter file already backed up from the original installation. Industrial customers report SINAMICS S120 control units operating continuously for 15+ years in production environments with proper maintenance, and MTBF in commercial duty cycle is typically 50,000+ hours, so replacement is usually an infrequent but operationally critical event.

Application Typical Deployment
Crane and hoist control Single CU310-2 PN per hoist drive zone, PROFINET to main crane PLC for load positioning and safe stop integration
Multi-zone conveyor synchronization Multiple CU310-2 PN units on shared PROFINET segment with electronic gearing for product spacing control
Flying shear and electronic line shafting Low-latency PROFINET ring topology with CU310-2 PN units driving synchronized cut or draw rollers
Packaging machinery motion control CU310-2 PN integrated with S7-1500 motion controller via TIA Portal for multi-axis indexing sequences
Legacy PROFINET retrofit New isolated motion loop with CU310-2 PN added to facility without disrupting existing Profibus segments
Control unit replacement (field swap) Exact part number replacement in existing S120 cabinet with parameter file restore via engineering workstation

Purchase-Decision Specs: What You Need to Confirm Before Ordering

Specification Value
Official Product Name SINAMICS S120 Control Unit CU310-2 PN with PROFINET Interface without CompactFlash Card
Communication Protocol PROFINET Industrial Ethernet (IEC 61158 Type 10)
CompactFlash Card Not included — firmware updates via engineering workstation
Operating Temperature Range -25°C to +60°C
Storage Temperature Range -40°C to +85°C
Network Cycle Time Sub-10 ms real-time capability for motion synchronization
Power Supply 24 V DC (confirm exact current draw per datasheet)
Mounting DIN rail or standard S120 system enclosure
Protection Class Typical IP20 — verify for washdown or wet environments
Life Cycle Status Active product

Full technical specifications are available on the product page at LeadTime.ca.

CU310-2 PN vs. CU310-2 DP vs. CU310-2 PN with CompactFlash

Feature CU310-2 PN — 6SL3040-1LA01-0AA0 CU310-2 DP CU310-2 PN + CompactFlash
Network Protocol PROFINET Profibus DP PROFINET
CompactFlash Slot No Optional Yes
Firmware Update Method Engineering workstation via Ethernet Profibus network or workstation Offline via CompactFlash card
Best For Modern PROFINET facilities, TIA Portal integration Legacy Profibus systems Field commissioning without IT access
IEC 61131-3 Support Full Full Full
Typical Lead Time 8–12 weeks 8–12 weeks 10–14 weeks
Price Tier Standard Standard Moderate premium

If your architecture uses PROFINET and commissioning will be performed via a connected engineering workstation, the 6SL3040-1LA01-0AA0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Is the 6SL3040-1LA01-0AA0 the Right Control Unit for Your System?

The CU310-2 PN is a well-proven control unit for any engineer building or maintaining a SINAMICS S120 motion system in a PROFINET environment. Its strongest advantages are native PROFINET integration — which eliminates the gateway hardware and protocol conversion overhead that drive up commissioning time in mixed-network facilities — and its industrial temperature range of -25°C to +60°C, which makes it viable in machine-embedded installations without supplemental thermal management. For applications like crane hoists, flying shear lines, and multi-drive conveyor synchronization, the sub-10-millisecond PROFINET cycle time is a genuine performance differentiator. Siemens has also certified over 300 third-party industrial device vendors for PROFINET compatibility, which means encoder, safety module, and gateway choices are not locked to a single supplier chain.

The honest limits of this specific model are worth stating clearly. The absence of a CompactFlash card is not a flaw — it is a deliberate product variant — but it does mean your commissioning workflow must include a workstation with TIA Portal physically present on the PROFINET network segment during initial setup and any firmware update. If your site has no IT infrastructure or your maintenance team will be performing firmware updates in the field without a laptop, the CompactFlash variant is a better fit. Similarly, if your facility is on Profibus and migration is not on the roadmap, order the CU310-2 DP. Ordering the wrong protocol variant typically results in a 2–4 week return-and-reorder cycle — a costly delay when a production line is waiting.

On procurement: the CU310-2 PN carries an active product status with typical market lead times of 8–12 weeks for new stock builds. Availability fluctuates with industrial supply conditions, so confirming stock before committing a project schedule is worthwhile. Volume orders and bundled S120 system sourcing may be eligible for pricing consideration. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following points cover the key requirements and checks for a standard CU310-2 PN installation. For complete wiring diagrams, terminal assignments, and step-by-step procedures, refer to the official Siemens SINAMICS S120 installation documentation.

  • Power the control unit from a 24 V DC supply rated to handle the combined current draw of the CU310-2 PN and connected S120 components — confirm exact current rating in the datasheet before sizing the supply and overcurrent protection device
  • Connect the PROFINET interface using industrial-grade shielded Ethernet cable to a managed switch that supports real-time industrial Ethernet; consumer-grade switches or unmanaged hubs will cause communication timeouts under motion synchronization loads
  • Verify cable routing separates PROFINET signal cables from motor power cabling to minimize EMI interference — shielding and grounding practices are critical in S120 cabinet environments
  • Before applying power, confirm the S120 power module is fully wired and that firmware version documentation for that module is available to the commissioning engineer
  • After initial power-up, use TIA Portal on a workstation connected to the same PROFINET network segment to assign the control unit IP address, download motion parameters, and verify status LED indicators confirm successful network registration

Compatible SINAMICS S120 Power Modules

The 6SL3040-1LA01-0AA0 is designed to operate with the SINAMICS S120 power module family. The following power module series are typically compatible — always verify the specific model number against the Siemens compatibility matrix for your exact S120 generation before ordering.

  • PM240 (0.5–18.5 kW) — standard compatibility, widely deployed with CU310-2 PN in conveyor and hoist applications
  • PM251 (0.5–37 kW) — compatible; confirm firmware version match between power module and control unit
  • PM260 (18.5–90 kW) — compatible for larger motion systems requiring higher power output
  • Higher-power S120 modules (110 kW and above) — compatibility likely but must be confirmed with a Siemens systems integrator before specifying
  • Legacy PM modules (pre-2015 design) — verify with integrator; older power module generations may have firmware version restrictions that affect CU310-2 PN compatibility

What Engineers Get Wrong When Ordering This Part

The following checklist is drawn directly from the most common ordering errors and compatibility issues associated with the CU310-2 PN. Review every item before placing your order.

  1. Confirm the SINAMICS S120 power module model in your system is listed as compatible with CU310-2 in your machinery documentation.
  2. Verify your facility control system and network topology support PROFINET protocol; Profibus systems require a different CU model (e.g., CU310-2 DP variant).
  3. Check whether your application requires CompactFlash card slot for firmware management; this model does not include one.
  4. Confirm operating environment temperature range (typically -25°C to +60°C) matches your machinery enclosure conditions.
  5. Verify the number of drives you plan to control does not exceed the processing limits of a single CU310-2; multiple control units may be required for large motion systems.
  6. Check with your Siemens systems integrator whether any firmware version or parameter set restrictions apply to your S120 power module generation.

If any of these checks raise questions before you order, contact the LeadTime.ca team — we can help confirm compatibility and check current availability before you commit to a purchase.

Frequently Asked Questions

Can the 6SL3040-1LA01-0AA0 be used as a direct replacement for a failed CU310-2 PN in an existing S120 system?

Yes, provided you have a backup of the original parameter file and the firmware version on the replacement unit is compatible with your S120 power module. The most common commissioning risk in a field swap is missing or outdated parameter files — confirm your backup exists and is accessible before the replacement unit arrives on site. If the original parameter file was never backed up, your systems integrator or the machine OEM may be the only source for recovery.

Does this control unit work with a standard consumer Ethernet switch?

No. PROFINET Industrial Ethernet motion synchronization requires a managed industrial switch that supports real-time Ethernet with the latency characteristics defined under IEC 61158 Type 10. Consumer-grade or unmanaged switches introduce variable latency that causes communication timeouts and synchronization errors under dynamic motion loads. Budget for an industrial managed switch if your PROFINET infrastructure is not already in place.

What is the typical lead time for the 6SL3040-1LA01-0AA0 and should I order early?

General market lead times for the CU310-2 PN run 8–12 weeks for new stock builds in current supply conditions. Stock availability fluctuates, so confirming current availability before locking in a project schedule is strongly recommended. For production-critical applications or volume orders, early procurement or safety stock is worth considering. Check live availability at LeadTime.ca.

Is a CompactFlash card available as a separate accessory for this model?

The 6SL3040-1LA01-0AA0 does not include a CompactFlash card slot — it is a hardware variant distinction, not a missing accessory. If your workflow requires onboard CompactFlash for firmware management or offline commissioning, you need to order the CU310-2 PN variant that includes the CompactFlash slot, which carries a moderate price premium and a slightly longer typical lead time of 10–14 weeks.

Can the CU310-2 PN integrate with a third-party PROFINET-enabled controller, or does it require a Siemens PLC?

The PROFINET interface on the CU310-2 PN conforms to IEC 61158 Type 10, and Siemens has certified over 300 third-party industrial device vendors for PROFINET compatibility. Integration with non-Siemens PROFINET controllers is technically feasible, but parameter configuration and drive profile downloads will still require Siemens engineering software (TIA Portal or equivalent). Confirm third-party controller compatibility with your systems integrator before specifying.

What happens if the PROFINET network goes down while the drive is running?

The CU310-2 PN will detect a PROFINET communication fault and respond according to the fault reaction configured in the drive parameters — typically a controlled deceleration to stop or a safe torque off state. The exact behavior depends on the parameter settings downloaded during commissioning. Configure and test the network loss response as part of your commissioning procedure, particularly in safety-critical crane and hoist applications.

Price, Lead Time, and How to Order From Anywhere in the World

At-a-Glance Summary

  • Model: Siemens 6SL3040-1LA01-0AA0 — SINAMICS S120 Control Unit CU310-2 PN with PROFINET Interface without CompactFlash Card
  • Communication: PROFINET Industrial Ethernet, IEC 61158 Type 10, sub-10 ms cycle time for motion synchronization
  • No CompactFlash card — firmware and parameter updates require engineering workstation connected to PROFINET network
  • Operating temperature: -25°C to +60°C; storage temperature: -40°C to +85°C
  • Power supply: 24 V DC (confirm exact current draw in datasheet)
  • Compatible with S120 power modules including PM240, PM251, and PM260 series — verify firmware match before ordering
  • Typical market lead time: 8–12 weeks for new stock builds
  • SINAMICS S120 control systems deployed in over 500,000 industrial machines globally; reported MTBF of 50,000+ hours in commercial duty cycle
  • Profibus facilities must order CU310-2 DP variant; field commissioning without workstation requires CompactFlash variant
  • Active product status — check current availability at LeadTime.ca
