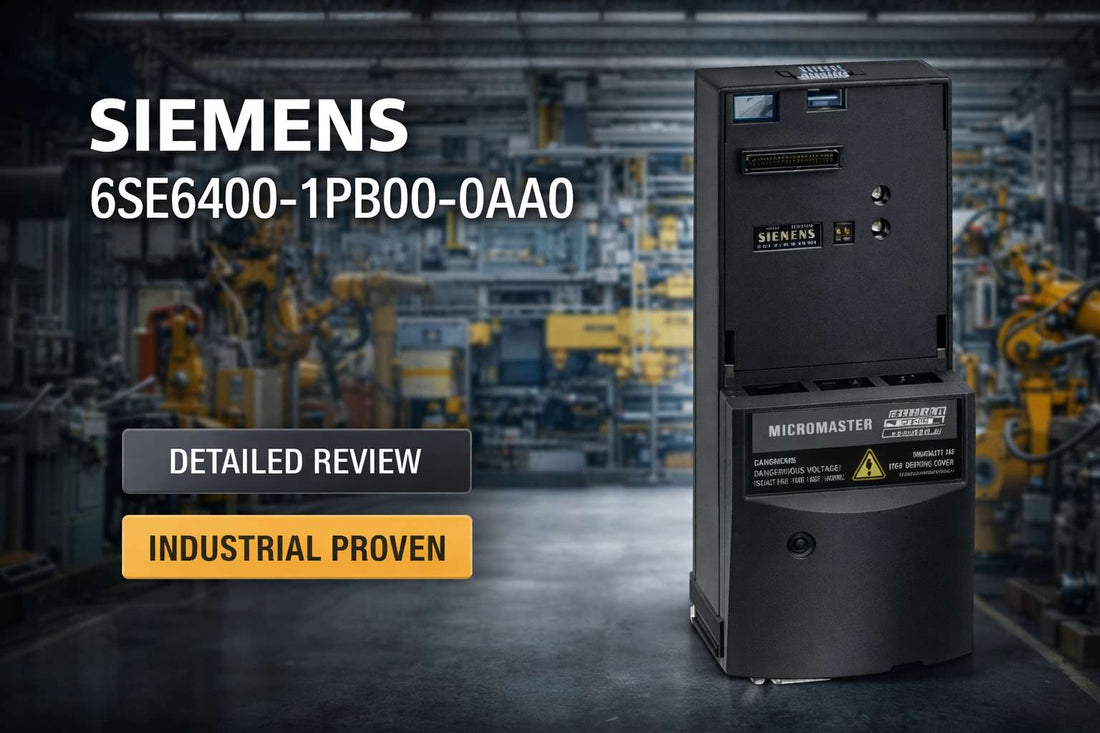

Siemens 6SE6400-1PB00-0AA0 PROFIBUS-DP communication module for MICROMASTER 4 variable frequency drives

Siemens 6SE6400-1PB00-0AA0 PROFIBUS-DP Communication Module for MICROMASTER 4 — Specifications, Integration, and Ordering Guide

If you are managing a MICROMASTER 4 installation and need to bring those drives onto a PROFIBUS network without replacing hardware, the Siemens 6SE6400-1PB00-0AA0 is the direct plug-in answer. This PROFIBUS-DP communication module inserts into the MICROMASTER 4 drive's FX or GX connector slot, immediately converting the inverter into a PROFIBUS slave device compliant with IEC 61158 — the international fieldbus standard. The module supports real-time bidirectional communication, parameter access, fault logging, and speed control from any PROFIBUS-DP master on the network, with no drive firmware changes required.

If you have already confirmed the 6SE6400-1PB00-0AA0 is the right part for your system, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6SE6400-1PB00-0AA0 — and Who Shouldn't

This module is the correct choice for engineers and procurement specialists who need to add PROFIBUS-DP fieldbus capability to existing MICROMASTER 4 drives without modifying the drive itself. It is a good fit when all of the following apply:

  • Your drive is a MICROMASTER 4 series unit (MM410, MM420, MM430, or MM440) with an FX or GX connector designation confirmed on the drive's data label
  • Your automation system includes a PROFIBUS-DP master controller — Siemens or any IEC 61158-compliant third-party system
  • 24V DC control power is available at the module mounting location inside the cabinet
  • Cabinet ambient temperature is maintained within -10°C to +50°C
  • Your fieldbus protocol requirement is specifically PROFIBUS-DP, not CANopen, DeviceNet, or an Ethernet-based protocol

If your control system uses CANopen (consider the 6SE6400-1CN00-0AA0 equivalent), DeviceNet (see 6SE6400-1DN00-0AA0), or requires SIL-rated safety communication beyond standard PROFIBUS-DP capabilities, this module is not the right fit — confirm your protocol before ordering.

On this page:

What the 6SE6400-1PB00-0AA0 Actually Does in a Live System

The 6SE6400-1PB00-0AA0 is a plug-in PROFIBUS-DP communication module that functions as a network interface between MICROMASTER 4 inverters and higher-level automation controllers. Without this module, a MICROMASTER 4 drive operates in isolation — receiving speed references via analog inputs or the local operator panel with no network visibility, no remote parameter access, and no fault data flowing upstream to the control system. Installing the 6SE6400-1PB00-0AA0 changes that completely.

Once inserted into the drive's FX or GX connector slot and powered via the 24V control terminals, the module operates as a PROFIBUS-DP slave device. The PROFIBUS master — whether a Siemens S7 controller or a third-party IEC 61158-compliant system — can then issue speed commands, read drive status and fault codes, adjust parameters, and log operational data in real time. The onboard address selector switch handles node assignment without software tools, and two integrated status indicators provide immediate visual confirmation of module and drive condition. This is the hardware that bridges a legacy VFD installation to a modern networked automation architecture.

The Siemens MICROMASTER 4 series remains one of the most widely deployed economical VFD platforms globally, with millions of units in active service worldwide. The 6SE6400-1PB00-0AA0 extends the useful life of that installed base by adding IEC 61158-compliant PROFIBUS-DP communication without a drive replacement program.

Typical System Architecture for MICROMASTER 4 PROFIBUS Integration

The 6SE6400-1PB00-0AA0 sits between the MICROMASTER 4 drive's internal control electronics and the plant-level PROFIBUS fieldbus backbone, acting as the translator that converts PROFIBUS master commands into drive control signals and returns drive data upstream. A typical deployment chain looks like this:

  • PROFIBUS-DP master controller (Siemens S7-300, S7-1500, or any IEC 61158-compliant master) issues speed and control commands over the fieldbus network
  • Shielded twisted-pair PROFIBUS cable with 9-pin D connectors carries the fieldbus signal to the automation cabinet housing the MICROMASTER 4 drive
  • The 6SE6400-1PB00-0AA0 module, inserted into the drive's FX or GX connector slot and powered by 24V DC from the cabinet supply, receives PROFIBUS frames and translates them to drive control actions
  • The MICROMASTER 4 inverter (MM410, MM420, MM430, or MM440) responds to speed, direction, and parameter commands received through the module
  • Motor and load downstream of the drive execute the commanded speed profile; fault and status data travel back up the same PROFIBUS link to the master system in real time

Where This Module Gets Deployed: Industries and Use Cases

The most common deployment scenario is the legacy upgrade: a plant running MICROMASTER 4 drives on manual or analog speed control needs to integrate those drives into a centralized PROFIBUS-based supervisory system without the capital cost of drive replacement. The 6SE6400-1PB00-0AA0 makes that transition a module installation rather than an equipment procurement project.

In food and beverage processing and water treatment facilities, the module enables real-time motor load monitoring and energy reporting for pumps and fans driven by MICROMASTER 4 units. Facility managers can access running data and fault histories from the control room without dispatching technicians to the drive cabinet.

Conveyor and material handling systems benefit from the module's ability to pass speed commands and status data across large distributed PROFIBUS networks without additional gateway hardware. Automotive assembly and discrete manufacturing applications use it to consolidate standalone inverter control panels into a single PROFIBUS master topology, reducing panel footprint and wiring complexity.

OEM equipment builders integrating MICROMASTER 4 drives into packaged machinery use the 6SE6400-1PB00-0AA0 to deliver PROFIBUS connectivity as a standard feature without redesigning the drive selection.

Application Typical Deployment
Legacy analog speed control upgrade Replace 4-20mA or 0-10V wiring with PROFIBUS slave module; retain existing MM4 drive hardware
Water treatment pump and fan networks Integrate MM4-driven pumps into PROFIBUS energy management system for real-time monitoring and remote control
Conveyor and material handling systems Distribute speed commands across multiple MM4 drives on a single PROFIBUS trunk from one master controller
HVAC and building automation Connect MM4 fan drives to building management system via PROFIBUS for centralized control and fault logging
OEM packaged machinery Factory-install PROFIBUS communication capability in new machines using MM4 drives as standard specification
Automotive and discrete manufacturing Consolidate multiple standalone MM4 panels into centralized PROFIBUS master architecture to reduce wiring and panel count

Specifications That Matter for the Purchase Decision

Parameter Value Notes
Operating Temperature -10°C to +50°C Industrial cabinet standard range
Control Voltage 24V DC Onboard terminals labeled +24V and 0V
Protection Class IP20 Cabinet mounting only; not rated for open-field or wash-down
PROFIBUS Speed Up to 12 Mbps Standard DP transmission rates
Protocol Standard IEC 61158 PROFIBUS-DP Slave device only; no master mode
Address Range 0–125 (typical) Manual configuration via onboard selector switch
Cable Interface 9-pin D connector IEC 61158 standard fieldbus connector
Status Indicators 2 displays Module status and drive condition
Connector Requirement 6GK1500-0EA02 Mechanical coupling device; order separately if not supplied
Compatible Drives MICROMASTER 4 (MM410, MM420, MM430, MM440) FX or GX connector variant required; confirm on drive data label

Full technical specifications are available on the product page at LeadTime.ca.

6SE6400-1PB00-0AA0 vs. Other MICROMASTER 4 Communication Modules

Module Protocol Best Fit Key Limitation
6SE6400-1PB00-0AA0 PROFIBUS-DP (IEC 61158) Siemens S7 systems, large distributed networks, multivendor PROFIBUS architectures No master mode; PROFIBUS infrastructure must exist
6SE6400-1DN00-0AA0 DeviceNet Allen-Bradley or Rockwell-based control systems using DeviceNet topology Not compatible with PROFIBUS master systems
CANopen variant (e.g., 6SE6400-1CN00-0AA0) CANopen Motion control applications, automotive OEM builds, smaller node count networks Lower maximum node count; not suitable for large PROFIBUS networks
Analog/PWM control (no module) 4-20mA / 0-10V Simple standalone speed control with no network requirement No diagnostics, no parameter access, no remote control capability

If your architecture uses PROFIBUS-DP and your drives are MICROMASTER 4 series, the 6SE6400-1PB00-0AA0 is the correct module — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Controls Engineers

The 6SE6400-1PB00-0AA0 does exactly what it is designed to do — no more, no less. For any engineer managing a MICROMASTER 4 installed base and needing PROFIBUS-DP network integration, this is the cleanest solution available. The IEC 61158 compliance means the module works with any PROFIBUS master on the market without vendor negotiation or gateway hardware. The onboard address switch is a genuine time-saver during commissioning, eliminating the need for software tools just to assign a node address. The two status indicators give you immediate feedback on module health and drive condition without opening a laptop. For retrofitting legacy drives into modern PROFIBUS networks, this module's form factor and fit are exactly right — no cabinet rework, no firmware updates, no additional protection hardware required within the specified operating conditions.

Where this module has real limits: it is strictly a PROFIBUS-DP slave device. If your project requires Ethernet-based communication (PROFINET, EtherNet/IP), safety-rated SIL communication, or CANopen for motion synchronization applications, this part will not fulfill those requirements regardless of how well it fits the drive. The IP20 protection class also means it is not suitable outside a control cabinet — any application exposing the drive to moisture, dust, or wash-down conditions needs a drive enclosure solution, not just a different module. Engineers evaluating this part for hybrid networks with both PROFIBUS and Ethernet masters should note that the 6SE6400-1PB00-0AA0 handles PROFIBUS only; a separate gateway or a different drive generation would be needed for multi-protocol topologies.

On the procurement side, communication modules for the MICROMASTER 4 family are available through major industrial automation distributors with in-stock or short lead time availability. Standard orders typically ship within 5–10 business days; expedite options exist for in-stock units. Volume pricing is generally available for multi-unit orders, making this a practical choice for fleet upgrades across large MICROMASTER 4 installations. Remember to confirm the 6GK1500-0EA02 mechanical connector as a separate line item — it is not always included with the module. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Installation and Wiring Overview

The following points cover the key requirements for physically installing and connecting the 6SE6400-1PB00-0AA0. Full installation procedures are provided in the Siemens MICROMASTER 4 communication module documentation — consult manufacturer documentation before commissioning.

  • Isolate the MICROMASTER 4 drive from AC mains and apply lockout/tagout before inserting or removing the module from the FX or GX connector slot
  • Align the module's latching mechanism with the drive connector slot guide structure; push firmly until the latch engages completely — tactile or audible confirmation indicates secure seating
  • Connect 24V DC control power to the module's onboard terminals (+24V and 0V); verify supply voltage is within tolerance before powering up
  • Connect the PROFIBUS cable using a 9-pin D connector; ensure shielded twisted-pair cable is used and cable shielding is properly grounded at the cabinet entry point per IEC 61158 installation guidelines
  • After power-up, confirm both status indicators illuminate with normal operational indication before proceeding to network configuration

Commissioning Overview: Address Configuration and Network Integration

The following is a high-level overview of the commissioning sequence for the 6SE6400-1PB00-0AA0. Full step-by-step configuration procedures are contained in the Siemens MICROMASTER 4 PROFIBUS module documentation.

  • Before setting the node address, document all currently assigned PROFIBUS addresses on the network (range 0–125) to avoid conflicts; select an unused address and set it using the onboard address selector switch
  • Load the GSD file for the 6SE6400-1PB00-0AA0 into your PROFIBUS master system's configuration database — most master systems require the GSD file before device discovery can complete successfully
  • Initiate a network scan from the PROFIBUS master configuration tool and confirm the module appears at the assigned address before mapping any control variables
  • Map drive parameters — speed command, status word, fault codes — to master controller variables and verify bidirectional read/write access with a test command at reduced speed before enabling production control
  • Monitor the master system's communication diagnostic statistics for zero CRC errors and zero timeouts over a sustained polling period to confirm network stability before going live

Wrong-Part Prevention Checklist Before You Order

The following checklist is drawn directly from verified compatibility requirements for the 6SE6400-1PB00-0AA0. Work through every item before placing your order to avoid returns, project delays, or integration failures.

  1. Verify your MICROMASTER 4 drive model and confirm FX or GX connector designation before ordering
  2. Confirm your automation system supports PROFIBUS-DP slave devices (check master controller documentation)
  3. Check that 24V control power is available at the module mounting location
  4. Ensure cabinet temperature remains within -10°C to +50°C operating range
  5. Verify part number exactly as 6SE6400-1PB00-0AA0 to avoid confusion with DeviceNet (6SE6400-1DN00-0AA0) or other modules
  6. Confirm you do not need CANopen protocol variant for your system
  7. Check that you have or can obtain the correct mechanical connector (6GK1500-0EA02)

If any item on this checklist raises a question about your specific configuration, contact the LeadTime.ca team before ordering — we can help confirm compatibility and check stock on any associated parts including the 6GK1500-0EA02 connector.

Frequently Asked Questions

Does the 6SE6400-1PB00-0AA0 work with all MICROMASTER 4 drive variants, or only specific models?

The module is designed for the MICROMASTER 4 series, which includes the MM410, MM420, MM430, and MM440. However, physical compatibility depends on the connector variant — the drive must have an FX or GX connector designation on its data label. Verify this before ordering, as the mechanical fit requires this specific connector type along with the 6GK1500-0EA02 mechanical coupling device.

Can I use the 6SE6400-1PB00-0AA0 with a non-Siemens PROFIBUS master controller?

Yes. Because the module follows the IEC 61158 PROFIBUS-DP international standard, it operates as a standard slave device with any compliant PROFIBUS-DP master — including controllers from Beckhoff, Bachmann, EATON, Omron, and others. You will need to load the GSD file for the 6SE6400-1PB00-0AA0 into the master system's configuration database before network discovery. There is no vendor lock-in inherent to this module.

What is the most common reason the module installs correctly but the PROFIBUS master shows it as offline or unknown?

The most frequent cause is either a missing or incorrectly loaded GSD file in the master system, or a node address mismatch between the module's onboard selector switch setting and the address configured in the master system. Verify both before suspecting hardware failure. Also confirm that 24V control power is present at the module terminals — the module will not respond on the network without control power regardless of drive status.

Is the 6SE6400-1PB00-0AA0 a safety-rated communication module for SIL applications?

No. The 6SE6400-1PB00-0AA0 provides standard PROFIBUS-DP communication only and does not include SIL-rated safety functions. It is designed for standard industrial control applications. If your application requires safety-rated fieldbus communication, you will need a different hardware solution that explicitly carries the required SIL certification.

What happens to the MICROMASTER 4 drive if the PROFIBUS communication module loses network connection during operation?

The drive behavior on communication loss depends on how the PROFIBUS master system and drive parameters are configured. Most PROFIBUS master systems offer configurable fault responses — including controlled stop, last-known-speed hold, or fault trip — when a slave device goes offline. Confirm your master system's watchdog and fault response settings during commissioning and test the behavior deliberately before enabling production operation.

Does ordering the 6SE6400-1PB00-0AA0 include the 6GK1500-0EA02 mechanical connector?

The 6GK1500-0EA02 is a separate mechanical coupling device required for correct physical installation of the module on the MICROMASTER 4 drive. It is not guaranteed to be included with the module as a standard package item. Confirm with LeadTime.ca at the time of ordering whether the connector is supplied with the module or must be ordered as a separate line item to avoid installation delays on site.
