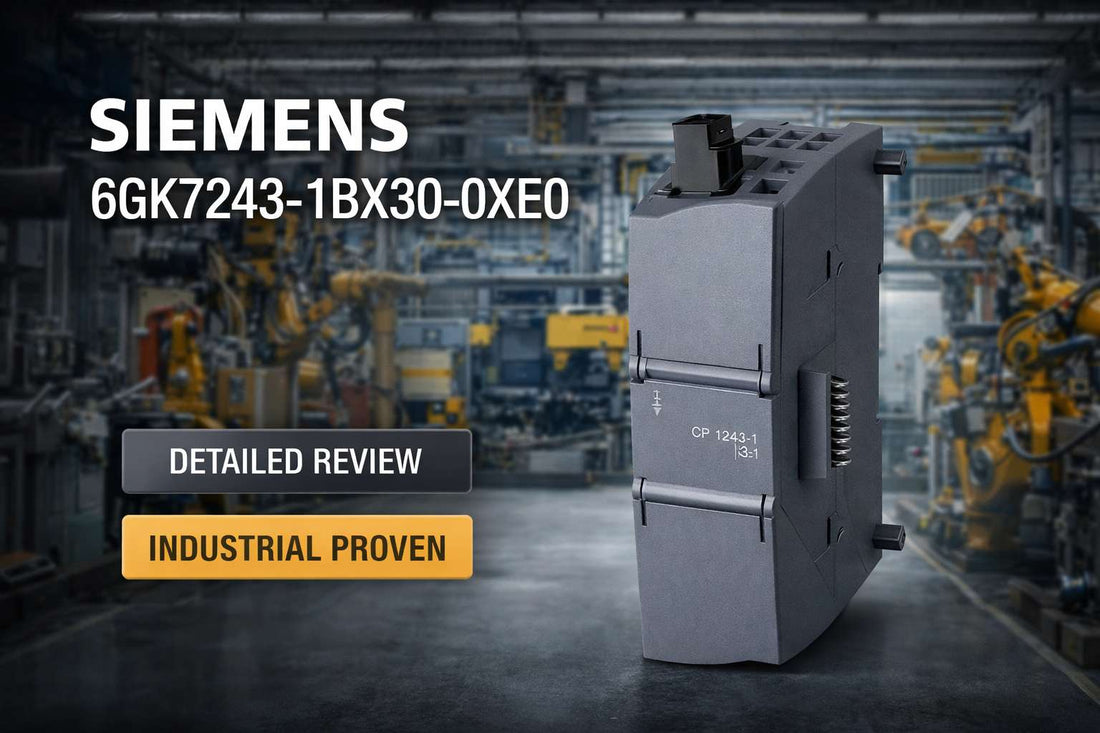

Siemens 6GK7243-1BX30-0XE0 CP 1243-1 communications processor module for SIMATIC S7-1200 telecontrol and SCADA applications

Siemens 6GK7243-1BX30-0XE0 Communications Processor CP 1243-1 for SIMATIC S7-1200: Specifications, Pricing, and Selection Guide for Telecontrol Systems

Controls engineers sourcing an Ethernet telecontrol module for a SIMATIC S7-1200 application — whether for utility SCADA, water treatment telemetry, or remote monitoring — typically arrive at this page with one specific question: is the Siemens 6GK7243-1BX30-0XE0 CP 1243-1 the right module for their system, or is there a better fit? This compact 30 mm communications processor slots directly into the S7-1200 CPU bay and adds native DNP3, IEC 60870-5, and TeleControl Basic protocol support alongside an integrated firewall and VPN, making it the standard choice for small-to-medium telecontrol deployments where a separate external gateway is neither practical nor cost-justified.

If you have already confirmed this is the correct part for your system, check current pricing and availability for the Siemens 6GK7243-1BX30-0XE0 at LeadTime.ca — ships worldwide.

Who Should Buy the CP 1243-1 — and Who Shouldn't

The Siemens 6GK7243-1BX30-0XE0 CP 1243-1 is the right choice if all of the following apply to your project:

  • Your CPU is a SIMATIC S7-1200 with at least one available module slot — this module is not compatible with S7-1500, S7-200, or any other PLC family
  • Your SCADA or control center requires DNP3, IEC 60870-5, or TeleControl Basic protocol — not PROFINET, Modbus, or standard Ethernet-only communication
  • Your application requires integrated firewall and VPN security without adding a separate security appliance to the panel
  • You need data buffering during connection loss — the CP 1243-1 stores up to 64,000 events in non-volatile memory and transmits them upon reconnection
  • Your panel layout has a minimum 30 mm width slot available with 110 mm height clearance for the module
  • You are connecting to Telecontrol Server Basic, WinCC, or PCS7 on the control center side

If your CPU is an S7-1500, you need a different module — the CP 1243-7 is the appropriate variant for that platform. If your protocol requirement is PROFINET or real-time industrial Ethernet for factory automation, a different communications module in the S7-1200 family is the correct selection.

On this page:

What the CP 1243-1 Does in a Real System

The SIMATIC S7-1200 CPU ships with one fixed Ethernet port suited to general engineering and standard network tasks. That single port is not sufficient for applications that require simultaneous connection to an engineering workstation and a remote SCADA control center — and it provides no native support for the telecontrol protocols that utilities, water treatment operators, and remote monitoring systems depend on. The Siemens 6GK7243-1BX30-0XE0 CP 1243-1 solves both problems in a single 30 mm module.

Installed directly into the S7-1200 module bay, the CP 1243-1 acts as an independent Ethernet interface dedicated to telecontrol communication. It handles DNP3, IEC 60870-5, and TeleControl Basic protocols natively — no protocol converters, no middleware, no external gateway hardware. The integrated firewall and VPN handle security at the module level, which matters in utility and remote monitoring deployments where control center connectivity must meet defense-in-depth requirements. The 64,000-event data buffer maintains continuity during network interruptions, transmitting all stored data once the connection to the SCADA system is restored.

The practical effect: a single CP 1243-1 module reduces panel footprint, simplifies network topology, and eliminates the cost and wiring complexity of a separate Ethernet gateway appliance. Up to 3 units can be installed on a single S7-1200 CPU, supporting multi-channel telecontrol deployments with up to 500 data points per station.

Typical System Architecture

The CP 1243-1 sits between the S7-1200 CPU and the upstream SCADA or control center infrastructure, acting as the dedicated telecontrol communications interface. Here is where it fits in a standard deployment chain:

  • SCADA control center or Telecontrol Server Basic (running WinCC or PCS7) connects over Ethernet to the CP 1243-1 using DNP3 or IEC 60870-5 protocol
  • The CP 1243-1 module, installed in the S7-1200 module bay, terminates that telecontrol connection and exchanges data with the S7-1200 CPU via the internal module bus
  • The S7-1200 CPU runs the local control program, reading field devices — sensors, actuators, I/O modules — connected to its I/O bus
  • The CPU's native Ethernet port remains available for engineering workstation access via STEP 7, keeping SCADA traffic and engineering traffic on separate network paths
  • NTP time synchronization flows from the control center or an NTP server through the CP 1243-1 to coordinate timestamps across the distributed system

Applications and Industries Where the CP 1243-1 Is Specified

Utility substation automation is the most common deployment context. The S7-1200 functions as a local RTU, with the CP 1243-1 providing the DNP3 or IEC 60870-5 connection back to the utility's SCADA control center. This eliminates the legacy serial gateway hardware that older RTU installations required, and the integrated VPN satisfies the encrypted connectivity requirements common in power distribution environments.

Water and wastewater treatment applications rely on the CP 1243-1 for distributed telemetry across pump stations, lift stations, and treatment facilities. The IEC 60870-5 protocol support enables these remote sites to report status and alarms to central SCADA platforms without requiring protocol conversion at each node. The -20 to +70°C operating temperature range (horizontal mounting) and IP20 protection class are appropriate for field cabinet installations at these sites.

OEM equipment manufacturers embed the S7-1200 and CP 1243-1 combination into packaged systems where the end customer requires SCADA connectivity. The integrated security features — firewall and VPN — allow the OEM to deliver a system that meets utility-grade cybersecurity requirements without adding a separate security appliance to the package.

Legacy SCADA migration projects use the CP 1243-1 to retrofit existing protocol-based systems with modern Ethernet connectivity while maintaining backward compatibility with the existing DNP3 or IEC 60870-5 infrastructure already in place at the control center.

Application Typical Deployment
Utility substation automation S7-1200 as RTU; CP 1243-1 connects to SCADA via DNP3 over Ethernet
Water/wastewater telemetry Distributed S7-1200 nodes reporting alarms and status via IEC 60870-5 to central SCADA
Building automation and energy management Remote HVAC and lighting monitoring from central BMS via VPN-secured Ethernet
OEM embedded control systems Packaged equipment with S7-1200 + CP 1243-1 delivering SCADA connectivity to end customer
Legacy SCADA migration Retrofit of serial-protocol RTU with Ethernet while maintaining DNP3/IEC 60870-5 compatibility
Distributed generation monitoring Wind and solar endpoint connectivity to utility SCADA via TeleControl Basic

CP 1243-1 Specifications: The Numbers That Matter for Procurement

Specification Value
Power Supply 24V DC nominal (from S7-1200 module shelf)
Maximum Current Draw 0.25 A
Power Loss 1.25 W
Operating Temperature -20 to +60°C (vertical) / -20 to +70°C (horizontal)
Dimensions (W × H × D) 30 mm × 110 mm × 75 mm
Protection Class IP20
Protocols Supported DNP3, IEC 60870-5, TeleControl Basic
Data Buffering 64,000 events (non-volatile)
Maximum Data Points 500 per station
Maximum Units per S7-1200 CPU 3

Full technical specifications are available on the product page at LeadTime.ca.

CP 1243-1 vs. CP 1243-7 vs. External Gateway: Which One Fits Your Architecture?

Criterion CP 1243-1 (6GK7243-1BX30-0XE0) CP 1243-7 External Ethernet Gateway
Target CPU SIMATIC S7-1200 only SIMATIC S7-1500 Any PLC with Ethernet port
Form Factor Integrated compact module (30 mm width) Integrated module External enclosure, separate panel space
Protocols DNP3, IEC 60870-5, TeleControl Basic Similar telecontrol protocols Depends on gateway model
Installation Direct slot insertion into CPU bay Direct slot insertion Separate mounting, additional cabling required
Total Cost Lower — no external enclosure or additional cabling Moderate Higher — enclosure plus cabling
Upgrade Path Limited — CPU-bound to S7-1200 Scalable with S7-1500 Flexible — can serve multiple PLC types

If your architecture is built on SIMATIC S7-1200 and requires DNP3 or IEC 60870-5 telecontrol protocol, the 6GK7243-1BX30-0XE0 is the correct choice — check current availability and pricing at LeadTime.ca.

Expert Verdict: Honest Assessment for Engineers and Buyers

The Siemens 6GK7243-1BX30-0XE0 CP 1243-1 earns its place as the standard telecontrol communications module for S7-1200 systems by doing one thing exceptionally well: it collapses what would otherwise be a multi-component gateway solution — external enclosure, protocol converter, security appliance — into a single 30 mm module that draws 0.25 A and costs a fraction of the alternative. For utility SCADA, water telemetry, and remote monitoring applications where DNP3 or IEC 60870-5 is mandated by the control center, there is no simpler path to compliance. The 64,000-event buffer is a genuine operational advantage in environments where WAN connectivity is intermittent, and the integrated firewall and VPN address defense-in-depth requirements without additional hardware spend.

The limits are real and worth stating plainly. This module is strictly S7-1200 — if your CPU roadmap points toward S7-1500, the CP 1243-7 is the correct module and you should plan accordingly before committing to panel design. The CP 1243-1 does not support PROFINET or real-time factory automation protocols; engineers who need both telecontrol and PROFINET connectivity on the same CPU will need separate modules for each function. The 500 data point per station ceiling is adequate for typical distributed RTU deployments but may constrain large-scale substation applications that require higher point counts. If your application needs more than 3 CP 1243-1 units on a single CPU, the architecture requires a different approach.

From a procurement standpoint, the 6GK7243-1BX30-0XE0 is an active product with a verified 2025 datasheet, which means sourcing risk is low for near-term builds. Typical lead times run 2 to 8 weeks depending on stock levels. Volume pricing applies at quantities of 5 or more units, which is relevant for multi-site utility rollouts where the same module is specified across multiple RTU panels. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation: What to Verify Before You Mount the Module

  • Confirm the S7-1200 CPU is powered down before inserting the CP 1243-1 into the module slot — the module slides horizontally into the CPU bay and seats with an audible click onto the 35 mm DIN-rail
  • Verify that 24V DC auxiliary power is present and within capacity on the S7-1200 module shelf before energizing — the CP 1243-1 draws its 0.25 A supply directly from the shelf rail with no separate power wiring required
  • Confirm the panel has a minimum 30 mm width slot and 110 mm height clearance — the module dimensions are 30 mm × 110 mm × 75 mm and there is no provision for half-width installation
  • Check that the Ethernet cable routed to the CP 1243-1 is on the correct network segment for SCADA traffic — keep this interface segregated from the engineering workstation network on the CPU's native port where security policy requires it
  • Verify mounting orientation against temperature requirements — horizontal busbar mounting allows operation to +70°C while vertical mounting limits the upper operating temperature to +60°C

Commissioning Overview: STEP 7 Configuration and Telecontrol Server Setup

  • Add the CP 1243-1 to your STEP 7 Basic or Professional project by selecting it from the Communications Processor library in the device configuration view — this is the required engineering software; no third-party configuration tool is supported
  • In the module configuration dialog, select the required telecontrol protocol — DNP3, IEC 60870-5, or TeleControl Basic — assign a static IP address or configure DHCP, and set gateway and DNS parameters to match your network topology
  • Enable firewall and VPN settings in the security policy tab of the module configuration if your deployment requires encrypted control center connectivity — these features are configured at this stage, not post-installation
  • Configure Telecontrol Server Basic on a separate workstation or server, add the CP 1243-1 as a data source using its IP address and selected protocol, then map up to 500 data points per station to the corresponding S7-1200 register addresses
  • After downloading the configuration to the CPU, confirm communication using the web-based diagnostics interface by entering the CP 1243-1's IP address in a browser — this provides real-time connection status, protocol counters, and error codes without requiring STEP 7 to be open

Mistakes Engineers Make When Ordering the 6GK7243-1BX30-0XE0

Before issuing a purchase order for the Siemens 6GK7243-1BX30-0XE0 CP 1243-1, verify every item on this checklist. These are the most common sources of wrong-part orders and project delays:

  1. Confirm CPU is SIMATIC S7-1200 with available module slot (not S7-1500, S7-200, or smart controller)
  2. Verify telecontrol protocol is DNP3, IEC 60870-5, or TeleControl Basic (not PROFINET, Modbus, or standard Ethernet only)
  3. Check that control center uses Telecontrol Server Basic, WinCC, or PCS7 as expected by datasheet
  4. Confirm DIN-rail panel has minimum 30 mm width slot available and 110 mm height clearance
  5. Verify 24V DC auxiliary power supply is present at PLC module shelf
  6. Confirm maximum 3 CP 1243-1 units required (datasheet limit = 3 per CPU)

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team — we can help verify compatibility before the PO is issued.

Frequently Asked Questions

Can the CP 1243-1 be used with an S7-1500 CPU?

No. The Siemens 6GK7243-1BX30-0XE0 CP 1243-1 is designed exclusively for the SIMATIC S7-1200 platform. For S7-1500 applications requiring telecontrol communications, the CP 1243-7 is the appropriate module. Attempting to install the CP 1243-1 in an S7-1500 system will result in an incompatible hardware configuration.

Does the CP 1243-1 support PROFINET or real-time industrial Ethernet protocols?

No. The CP 1243-1 is specialized for telecontrol protocols: DNP3, IEC 60870-5, and TeleControl Basic. It is not a PROFINET communications module and does not support real-time factory automation network traffic. If your application requires PROFINET in addition to telecontrol, a separate communications module is needed for the PROFINET function.

How many CP 1243-1 modules can be installed on a single S7-1200 CPU?

The datasheet specifies a maximum of 3 CP 1243-1 modules per S7-1200 CPU. Each module supports up to 500 data points per station, so a three-module configuration on a single CPU can address multiple independent telecontrol connections. Verify your point count and station requirements against these limits during system design.

Is a separate Telecontrol Server required, or is that function built into the module?

A separate Telecontrol Server Basic installation is required on a workstation or server to act as the intermediary between the CP 1243-1 and the SCADA control center. The protocol termination and data exchange happen at the module, but the SCADA integration layer — data point mapping, connection management — resides in Telecontrol Server Basic, WinCC, or PCS7.

What happens to buffered data if the CP 1243-1 loses its connection to SCADA?

The CP 1243-1 stores up to 64,000 events in non-volatile memory during a SCADA connection outage. When the connection is restored, the buffered events are transmitted to the control center in sequence. This behavior is the default configuration and is particularly relevant for utility and remote monitoring deployments where transient WAN interruptions are a normal operational condition.

What configuration software is required to set up the CP 1243-1?

The CP 1243-1 requires SIMATIC STEP 7 Basic or Professional for configuration. Protocol selection, IP addressing, firewall rules, and VPN settings are all configured within the STEP 7 device configuration environment. Post-installation diagnostics can be accessed via the module's web-based interface by entering the module's IP address in a standard browser without STEP 7 open.
