Siemens 6GK5208-0BA00-2AC2 — SCALANCE XC208 Buying Guide

By Abdullah Zahid
12 min read

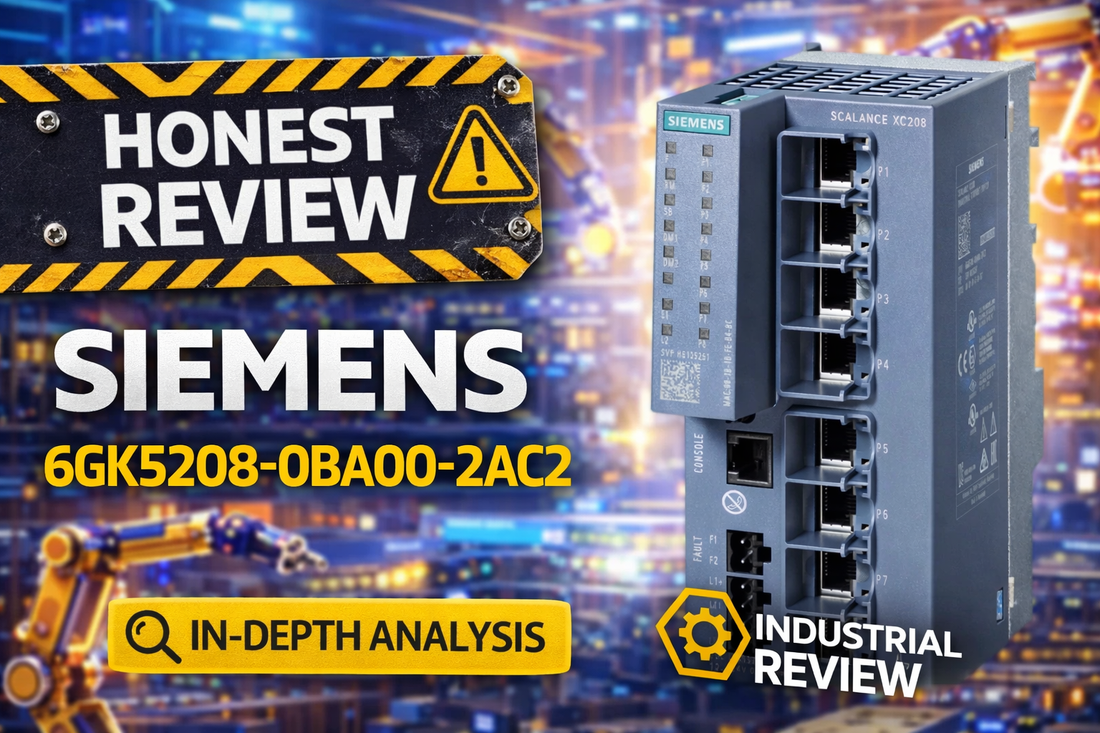

Siemens 6GK5208-0BA00-2AC2 SCALANCE XC208 managed Layer 2 industrial Ethernet switch on DIN rail in automation cabinet

Siemens 6GK5208-0BA00-2AC2 SCALANCE XC208 Managed Layer 2 Industrial Ethernet Switch — Specs, Review, and Buying Guide

When an automation engineer or procurement specialist searches for the Siemens 6GK5208-0BA00-2AC2, they are typically at the final stage of a decision: confirming that this specific SKU covers their port count, power architecture, hazardous area classification, and cybersecurity compliance requirements before a purchase order is issued. The SCALANCE XC208 is a manageable Layer 2 Industrial Ethernet switch featuring 8 x 10/100 Mbit/s RJ45 ports, dual redundant 24 VDC power inputs across a 9.6–31.2 V operating range, IEC 62443-4-2 industrial cybersecurity certification, and ATEX/IECEx approval for hazardous zone deployment — all in a 60 mm wide DIN-rail-mounted enclosure rated from -40 to +70°C.

If you have already confirmed this is the right part, check current pricing and availability for the 6GK5208-0BA00-2AC2 at LeadTime.ca — ships worldwide.

Who Should Buy the 6GK5208-0BA00-2AC2 — and Who Should Not

The SCALANCE XC208 is the right choice if your application checks the following criteria:

  • You need exactly 8 copper RJ45 Ethernet ports running at 10/100 Mbit/s on the plant floor — not 16, not 24, and not fiber.
  • Your power architecture is 24 VDC and you require dual redundant supply inputs (9.6–31.2 V range) to eliminate single-point-of-failure risk.
  • Your installation site is a classified hazardous area requiring ATEX II 3G / II 3D, IECEx, or FM registration, or you are subject to IEC 62443-4-2 cybersecurity audit requirements.
  • Your cabinet operates within -40 to +70°C and you need a compact 60 mm wide DIN-rail device that also mounts on S7 mounting rails.
  • You require integrated network management — web interface, CLI, STEP 7 configuration, SNMP MIB, NTP/SNTP — without a separate network management appliance.

If you need more than 8 ports, look at the XC216 or XC224 within the SCALANCE family. If your run distances or EMI environment demand fiber connectivity, evaluate SCALANCE models with SC/ST fiber ports such as the XC-208F or XF-200BA. If your application requires cut-through switching for ultra-low latency, this model's Store-and-Forward architecture is a constraint to evaluate before ordering.

On this page:

What the XC208 Actually Does in a Plant-Floor Network

The Siemens 6GK5208-0BA00-2AC2 is not a routing device — it is a managed Layer 2 switch, which means its job is to move Ethernet frames between connected devices within a single network segment or set of VLANs, not to route IP traffic between subnets. That distinction matters when scoping a system: the XC208 belongs at the edge or distribution layer of a plant network, aggregating connections from PLCs, distributed I/O nodes, servo drives, HMIs, and sensors into a single managed switching point.

What separates the 6GK5208-0BA00-2AC2 from an unmanaged switch in the same cabinet space is the combination of VLAN segmentation, RSTP (Rapid Spanning Tree Protocol), SNMP MIB diagnostics, email TRAP alerts, and NTP/SNTP time synchronization — all in a single device that also carries ATEX, IECEx, IEC 62443-4-2, FM, cULus, and EN 50121-4 railway certifications simultaneously. The 48-year MTBF figure and 5-year manufacturer warranty are not marketing claims; they reflect the design reliability expectation for a device intended to run in production infrastructure for a decade or more without replacement.

The Store-and-Forward switching method means each frame is fully received and checked for errors before forwarding. This adds a small amount of latency compared to cut-through switching but prevents corrupt frames from propagating across the network — a meaningful advantage in high-noise industrial environments where cable integrity cannot always be guaranteed.

Where the 6GK5208-0BA00-2AC2 Sits in Your Automation System

The SCALANCE XC208 sits at the plant-floor edge layer, between the automation controller level and the field device level, consolidating copper Ethernet connections into a managed, monitored switching node. A typical deployment chain looks like this:

  • Site backbone or SCADA server network (upstream router or Layer 3 switch) connects into the XC208's uplink port or any of its 8 RJ45 ports.
  • PLC or PAC controllers (e.g., Siemens S7 series) connect directly to the XC208, with PROFINET IO device communication managed through the switch fabric.
  • Distributed I/O nodes, servo drives, variable frequency drives, and Ethernet/IP-compliant sensors connect to the remaining ports, each potentially on separate VLANs for traffic isolation.
  • Dual 24 VDC power supplies from separate circuit breakers or UPS sources connect to the 4-pole terminal block, providing hot-standby redundancy so a single PSU failure does not take the network segment offline.
  • An NTP server (GPS-referenced or plant master clock) synchronizes the XC208's internal clock, ensuring all event logs, TRAP alerts, and diagnostic timestamps are correlated across the automation system.

Industries and Applications Where the XC208 Earns Its Place

In discrete manufacturing, the XC208 provides the switching infrastructure to link multiple machine control stations — each running PLCs and servo drive Ethernet connections — with NTP-synchronized timing that keeps event logs correlated across a production line. The 8-port count fits neatly within a typical machine cell or panel, and the DIN-rail form factor means no additional mounting hardware beyond what is already in the cabinet.

In process industries — chemical plants, pharmaceutical manufacturing, food and beverage facilities — the ATEX II 3G / II 3D and IECEx approvals are not optional; they are legally mandated for network equipment installed in explosive atmosphere zones. The 6GK5208-0BA00-2AC2 provides these certifications without requiring separate zone barriers or enclosure upgrades. For pharmaceutical environments subject to GAMP 5 validation, the IEC 62443-4-2 cybersecurity certification and SNMP MIB audit trail support documentation requirements.

In remote and distributed site applications — water and wastewater treatment facilities, renewable energy installations, and railway signaling systems — the -40 to +70°C operating range and IP20 protection class (in a suitable enclosure) allow deployment in uncontrolled environments. The EN 50121-4 railway compliance certification opens the device to transit system infrastructure procurement.

In OEM machine building, the compact 60 mm width and S7 mounting rail compatibility allow machine builders to standardize on a managed switch that ships pre-certified for all major markets, reducing the per-machine compliance engineering burden across a global installed base.

Application Typical Deployment
Discrete manufacturing cell Central switch linking PLCs, servo drives, and HMI on a PROFINET segment with redundant 24 VDC power
Chemical or pharmaceutical plant ATEX/IECEx-certified switch in classified explosive atmosphere zone, VLAN-isolated from business IT
Water / wastewater treatment DIN-rail switch in outdoor or uncontrolled cabinet, -40°C operation with NTP-synchronized event logging
Railway / transit signaling EN 50121-4 compliant switch in trackside cabinet, redundant power from two independent supply rails
OEM machine builder Pre-certified managed switch standardized across machine variants, configured via STEP 7 or TIA Portal
Oil and gas / mining site FM-registered and ATEX-approved switch in hazardous zone automation panel, Store-and-Forward switching for high-noise cable environments

Key Specifications: What Engineers Check Before Ordering

Specification Detail
Switching type Layer 2 managed, Store-and-Forward
Data ports 8 x RJ45, 10/100 Mbit/s
Supply voltage Dual redundant 24 VDC inputs, 9.6–31.2 V operating range
Rated power consumption 4.2 W
Maximum current 0.35 A at 24 VDC
Dimensions (W x H x D) 60 mm x 147 mm x 125 mm
Operating temperature -40 to +70°C
Protection class IP20
Key certifications IEC 62443-4-2, ATEX, IECEx, FM, cULus, CE, EN 50121-4, RoHS 2
MTBF / Warranty 48 years MTBF / 5-year manufacturer warranty

Full technical specifications are available on the product page at LeadTime.ca.

SCALANCE XC208 vs. XC216, XC-208F, and Non-Redundant Alternatives

Model Ports Media Redundant Power Best For
6GK5208-0BA00-2AC2 (XC208) 8 x RJ45 10/100 Mbit/s Copper only Yes — dual 24 VDC inputs Compact cabinet, hazardous zone, 8-port copper requirement
SCALANCE XC216 16 x RJ45 10/100 Mbit/s Copper Yes — same architecture Higher port density in same managed Layer 2 family
SCALANCE XC-208F / XF-200BA Mixed RJ45 + fiber SC/ST Copper and fiber Yes Long-distance runs, EMI-heavy environments, fiber backbone
Non-redundant single-PSU switch Varies Varies No Non-critical networks where single-point failure is acceptable

If your architecture demands fiber connectivity for EMI immunity or runs exceeding standard copper distance limits, the SCALANCE XC-208F or XF-200BA family is the correct choice — check current availability of the 6GK5208-0BA00-2AC2 at LeadTime.ca and contact the team to discuss fiber-port variants if needed.

Expert Verdict: Honest Assessment for Procurement and Engineering Teams

The Siemens 6GK5208-0BA00-2AC2 does one thing exceptionally well: it delivers a fully managed, redundancy-ready, hazardous-area-certified Layer 2 switch in the smallest practical DIN-rail footprint in the SCALANCE lineup. The combination of IEC 62443-4-2, ATEX/IECEx/FM, EN 50121-4 railway, cULus, and CE certification on a single device is genuinely rare and eliminates the validation overhead that comes with mixing certified and non-certified network components in a compliant automation system. The 48-year MTBF and 5-year manufacturer warranty are meaningful numbers in a capital equipment context — annual failure rates below 2% translate directly into reduced unplanned downtime risk over a 10-to-15-year service life.

Where the XC208 has real constraints: it is a copper-only, 8-port, 10/100 Mbit/s device that uses Store-and-Forward switching. If your plant network is migrating to Gigabit Ethernet backbone speeds, this switch is not the aggregation point for that tier. If you have more than 8 field devices per cabinet segment, you will need to either chain switches — introducing additional latency and cable management — or move to the XC216. And if sub-millisecond switching latency is a hard requirement for your motion control or time-sensitive networking application, the Store-and-Forward architecture is a constraint to evaluate seriously before ordering. These are not deficiencies in the product; they are design boundaries that define where it fits and where it does not.

From a procurement perspective, the 6GK5208-0BA00-2AC2 is an actively produced Siemens SCALANCE part available through authorized distributors globally. New units typically ship within standard lead times, and the hazardous area certifications do not add lead time penalties compared to non-hazardous variants. If you are sourcing this part, view current stock and pricing at LeadTime.ca — volume pricing and bundled orders can be arranged directly with the team.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Connect both 24 VDC supplies to the 4-pole terminal block — positive (+) and negative (−) for each source — and verify polarity markings on the device before energizing; the rated current is 0.175 A nominal, 0.35 A maximum.
  • Install external fusing or a circuit breaker rated for 24 VDC upstream of both power inputs per IEC standards; the device includes internal fusing but external protection is required for supply wiring compliance.
  • Use Cat.5e or Cat.6 cabling on the 8 RJ45 data ports; the console RJ45 port is reserved for CLI access only and is not a data switching port.
  • Mount on DIN rail or S7 mounting rail with the device oriented to maintain the 60 mm width allocation; allow ventilation clearance above and below the unit to keep operating temperature within the -40 to +70°C range.
  • Confirm the cabinet ambient temperature will not exceed +70°C in worst-case summer or heat-load conditions; use thermostatic cabinet fans or monitoring if the enclosure is unventilated or near heat-generating equipment.

Commissioning Overview: Console, Web, and STEP 7 Configuration

  • Initial IP assignment is done via the console RJ45 port using a CLI terminal; assign a static IP address or configure DHCP before attempting web management access.
  • Web management is accessed by navigating to the assigned IP address from a host on the same subnet; use the web interface to configure VLAN membership, RSTP topology, and Layer 2 switching tables.
  • Configure email TRAP alerts for redundant power failure and port link-down events via the web interface TRAP settings section; verify outbound SMTP routing from the switch's IP subnet before relying on alerts in production.
  • NTP or SNTP client mode is configured in the time synchronization section of the web interface or CLI; reference a plant master clock or GPS NTP server to ensure correlated timestamps across all connected devices.
  • For Siemens automation projects, the device can be integrated and configured via STEP 7 or TIA Portal, defining network topology and PROFINET IO device communication parameters within the automation project context.

Wrong-Part Prevention Checklist Before You Order

Before submitting a purchase order for the 6GK5208-0BA00-2AC2, verify each of the following against your application requirements:

  1. Confirm operating temperature range: -40 to +70°C during operation (not storage range -40 to +85°C).
  2. Verify power supply: requires 24 VDC (not 120/240 VAC); check available voltage range 9.6–31.2 V is compatible.
  3. Confirm port count matches design: exactly 8 RJ45 Ethernet ports at 10/100 Mbps, plus 1 console port (not 1 Gbps).
  4. Check hazardous zone rating: ATEX II 3G or II 3D classification — verify correct directive version needed in your region.
  5. Ensure external fusing required: device has internal fusing but requires external protection per IEC standards.
  6. Verify management interface: web-based or CLI only (not SNMP agent standalone); requires network connectivity for remote management.
  7. Confirm cable/connector specs: RJ45 for data, 4-pole terminal block for redundant 24 VDC power inputs.

If any item above reveals a mismatch with your application, contact the LeadTime.ca team to identify the correct SCALANCE variant — or review the full product page for confirmed specifications before ordering.

Frequently Asked Questions

Can the 6GK5208-0BA00-2AC2 operate on a single 24 VDC supply if a second supply is not available?

Yes, the SCALANCE XC208 will operate on a single 24 VDC input within the 9.6–31.2 V range. However, connecting only one supply eliminates the redundancy benefit of the dual-input architecture — a single power source failure will take the switch offline. For mission-critical applications, both inputs should be fed from independent supply sources or circuit breakers.

Is the 6GK5208-0BA00-2AC2 compatible with PROFINET and Ethernet/IP simultaneously?

The SCALANCE XC208 supports Ethernet-based communication protocols including PROFINET IO device communication and Ethernet/IP. As a Layer 2 managed switch, it transports frames between connected devices on the same network segment. VLAN configuration can be used to isolate PROFINET real-time traffic from Ethernet/IP or standard TCP/IP traffic on the same physical switch.

What does the IEC 62443-4-2 certification mean for my cybersecurity audit?

IEC 62443-4-2 is the component-level industrial cybersecurity standard within the IEC 62443 framework. Certification at this level means the device has been independently verified to meet defined security capability requirements for industrial automation components, including authentication, access control, and event logging. For sites subject to IEC 62443 security audits, using a certified device like the 6GK5208-0BA00-2AC2 reduces the documentation burden compared to using uncertified networking hardware.

Does Store-and-Forward switching create latency problems for PROFINET real-time communication?

Store-and-Forward switching introduces more latency than cut-through switching because each frame is fully received and error-checked before forwarding. For standard PROFINET IO communication, this latency is typically within acceptable limits. However, for PROFINET IRT (Isochronous Real-Time) applications with strict cycle time requirements, the switching method and overall network topology should be validated against the application's timing budget before deployment.

What is the expected service life of the 6GK5208-0BA00-2AC2 in a production environment?

The 48-year MTBF figure represents the statistical design reliability of the device — an annual failure rate below 2%. In practice, most industrial automation deployments operate managed switches for 10–15 years before a technology refresh cycle. The 5-year manufacturer warranty covers the early years of deployment, and the device's rated operating temperature range of -40 to +70°C supports long-term operation in demanding environments without derating.

Can I configure the XC208 without Siemens STEP 7 or TIA Portal?

Yes. The 6GK5208-0BA00-2AC2 supports web-based management and CLI configuration independently of STEP 7 or TIA Portal. A standard web browser and network connectivity to the switch's management IP address are sufficient for VLAN configuration, RSTP setup, TRAP alert configuration, and NTP synchronization. STEP 7 and TIA Portal integration is available for engineers working within an existing Siemens automation project but is not required for standalone commissioning.

Why Order the 6GK5208-0BA00-2AC2 from LeadTime.ca

  • LeadTime.ca ships worldwide — procurement teams and systems integrators in any region can place orders and receive support in English.
  • Hard-to-find and long-lead Siemens SCALANCE parts are a sourcing specialty — stock status and lead time can be confirmed before you commit to a build schedule.
  • Volume pricing is available for multi-unit orders; contact the team directly to discuss project-quantity pricing on the 6GK5208-0BA00-2AC2 and related SCALANCE switches.
  • New, refurbished, and surplus stock options may be available depending on demand — the team can advise on condition and warranty coverage for each option.
  • Response time is fast — quote requests are handled by technical staff who understand automation BOMs, not a generic sales queue.

At-a-Glance Summary

  • Model: Siemens 6GK5208-0BA00-2AC2 — SCALANCE XC208 manageable Layer 2 Industrial Ethernet switch
  • 8 x RJ45 data ports at 10/100 Mbit/s plus 1 console port; Store-and-Forward switching
  • Dual redundant 24 VDC power inputs on a 4-pole terminal block; 9.6–31.2 V operating range; 4.2 W rated consumption; 0.35 A maximum current
  • Compact DIN-rail form factor: 60 mm W x 147 mm H x 125 mm D; IP20 protection class
  • Operating temperature: -40 to +70°C; storage/transport: -40 to +85°C; relative humidity up to 95% (no condensation)
  • Certifications: IEC 62443-4-2, ATEX II 3G / II 3D, IECEx, FM, CE, cULus, EN 50121-4, RoHS 2
  • Management: web-based interface, CLI, STEP 7 / TIA Portal integration, SNMP MIB, email TRAPs, NTP/SNTP/SICLOCK
  • MTBF: 48 years; manufacturer warranty: 5 years
  • Protocols: PROFINET IO device, Ethernet/IP compliant; RSTP and VLAN support
