Siemens 6GK5208-0BA00-2AB2 SCALANCE XB208 — Specs & Buyer Review

By Abdullah Zahid
13 min read

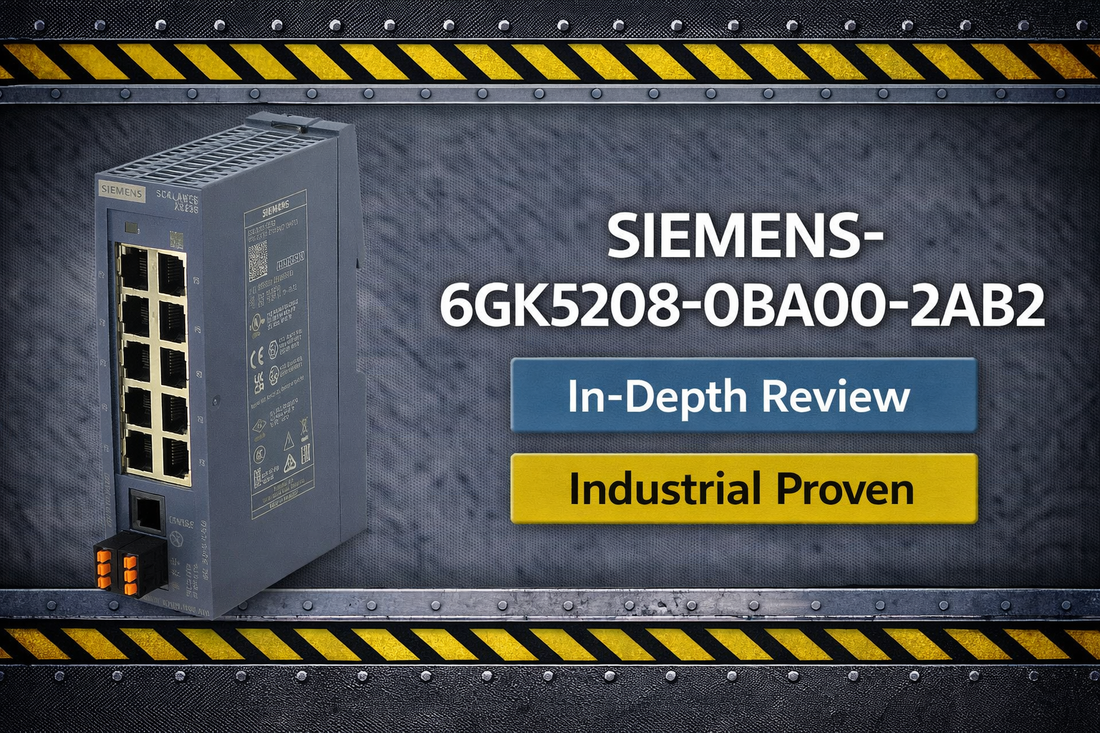

Siemens 6GK5208-0BA00-2AB2 SCALANCE XB208 managed Layer 2 industrial Ethernet switch DIN rail mounted automation cabinet

Siemens 6GK5208-0BA00-2AB2 SCALANCE XB208 Managed Layer 2 IE Switch — Industrial Specs, Hazardous Zone Certification and Alternatives

Controls engineers sourcing an 8-port managed industrial Ethernet switch for a PROFINET or EtherNet/IP network face a specific challenge: finding a compact, DIN-rail device that combines real traffic management capabilities with hazardous location approvals — without oversizing the cabinet footprint. The Siemens 6GK5208-0BA00-2AB2, sold under the SCALANCE XB208 designation, addresses that combination directly. It delivers 8 x 10/100 Mbit/s RJ45 ports, redundant 24 VDC power input, ATEX/IECEx/UL/FM hazardous location certification, and IEC 62443-4-2:2019 IT security compliance — all in a 40 mm wide DIN-rail enclosure weighing 0.25 kg.

If you have already confirmed this is the correct SKU for your network design, check current pricing and availability for the 6GK5208-0BA00-2AB2 at LeadTime.ca — ships worldwide.

Who Should Buy the SCALANCE XB208 — and Who Shouldn't

The 6GK5208-0BA00-2AB2 is the right choice for engineers deploying managed Ethernet switching in space-constrained industrial cabinets where hazardous location compliance and network diagnostics are non-negotiable requirements.

  • You need exactly 8 copper RJ45 ports at 10/100 Mbit/s — not 4, not 16
  • Your facility requires ATEX, IECEx, UL hazloc, or FM certification on network hardware
  • You are running redundant 24 VDC supplies (19.2 to 28.8 VDC tolerance) to eliminate single-point failure
  • VLAN segmentation, IGMP snooping, port mirroring, or PROFINET default configuration is required in your network design
  • DIN rail space is limited — 40 mm width is a hard constraint in your cabinet layout
  • IEC 62443-4-2:2019 security certification is mandated by your site's cybersecurity policy or third-party audit requirements

If you need more than 8 ports, consider the SCALANCE XB308 (16-port managed variant). If fiber optic connectivity is required for long runs or EMI-heavy environments, look at the SCALANCE XB200F fiber variants. If managed features are not required and hazardous certification is not a constraint, the SCALANCE XB105 or XB106 unmanaged models offer a lower-cost alternative.

On this page:

What the SCALANCE XB208 Actually Does in an Automation Network

The 6GK5208-0BA00-2AB2 is a managed Layer 2 industrial Ethernet switch — not a controller, not a gateway, not a fieldbus converter. Its job is intelligent traffic aggregation and management between field-level devices (sensors, drives, safety controllers, remote I/O) and the upstream PLC or SCADA layer. It reduces the Ethernet port load on the PLC by centralizing switching logic, and it gives the network engineer the diagnostic and segmentation tools — VLAN, IGMP snooping, port mirroring — that an unmanaged switch cannot provide.

Out of the box, the SCALANCE XB208 ships with PROFINET as its default protocol configuration, which means it integrates immediately into a Siemens SIMATIC environment without protocol translation overhead. It also supports EtherNet/IP and can operate in dual-protocol mode through the web management interface or STEP 7 integration. The 1x RJ11 console port provides CLI access independently of network connectivity — critical for initial commissioning or recovering from a misconfiguration without needing a live IP connection to the switch.

The redundant 24 VDC power input is not a marketing feature — it is a real hardware change in how the device handles power failure. With two independent supplies connected (Supply A and Supply B at the terminal block), the switch continues operating if either supply is interrupted. The internal fuse at each power input means a blown fuse on one feed does not cascade to the second feed. An MTBF of 84 years under standard industrial operating conditions at 25 °C ambient reflects the component qualification level Siemens applies to this product family.

Typical System Architecture for the 6GK5208-0BA00-2AB2

The 6GK5208-0BA00-2AB2 sits at the network aggregation layer — between the field devices on its 8 RJ45 downlink ports and the main controller or upstream switch on one of those same ports acting as an uplink. Here is how the typical component chain looks:

  • Enterprise MES or SCADA system at the top layer connects via uplink Ethernet to the main plant backbone switch
  • Plant backbone switch (or PLC CPU with integrated Ethernet) connects via one RJ45 port to the SCALANCE XB208
  • SCALANCE XB208 aggregates up to 7 remaining downstream field devices — remote I/O stations, variable frequency drives, HMI panels, safety controllers, or sensors with Ethernet interfaces
  • Redundant 24 VDC Supply A and Supply B from two independent breaker circuits connect to the 6-pole terminal block on the switch, keeping the network segment alive during supply switching events
  • A diagnostics laptop or packet analyzer can be connected temporarily to any mirrored port for live traffic capture without interrupting production traffic

Where the 6GK5208-0BA00-2AB2 Gets Deployed: Industries and Use Cases

In petrochemical and refining facilities, the SCALANCE XB208's ATEX, IECEx, UL hazloc, and FM certifications make it one of the few compact managed switches that can be installed directly in Zone 2 hazardous areas without requiring a separate enclosure purging solution. A single SKU satisfies multiple regional certification authorities — a meaningful reduction in documentation burden during facility qualification.

In discrete manufacturing environments — automotive assembly, appliance production, packaging lines — the XB208 acts as the local network hub for a machine island, aggregating 6 to 8 Ethernet-connected components (robot controllers, servo drives, vision systems, safety PLCs) before uplink to the production MES. IGMP snooping ensures that multicast traffic from PROFINET I/O devices does not flood ports that are not subscribers, keeping real-time communication deterministic.

Food and beverage processing facilities benefit from the IP20 compact enclosure in cabinet-mounted applications and the high relative humidity tolerance — up to 95% at 25 °C without condensation — which matters in facilities with regular washdown operations nearby, even where the switch itself is in a protected panel.

Water and wastewater utilities deploying redundant network topologies use the dual power input as a building block in a larger high-availability architecture. Two independent 24 VDC feeds from separate UPS circuits ensure the network segment serving pump controls and SCADA nodes stays live even during a power distribution event.

Application Typical Deployment
Hazardous Zone 2 plant floor network Connecting sensors, drives, and safety controllers with ATEX/IECEx certification in explosive atmosphere areas
Multi-island automation architecture Aggregating 6–8 local control nodes before uplink to enterprise MES or plant backbone switch
M2M communication hub Centralizing Ethernet traffic from multiple field devices, reducing PLC port load with IGMP snooping
Redundant power topology Dual 24 VDC Supply A and B feeds ensuring network segment stays active during supply switching
PROFINET I/O backbone Managed switch handling hard real-time and soft real-time PROFINET device traffic with port mirroring for diagnostics

Purchase-Decision Specs: What You Need to Know Before Ordering

Parameter Value
Number of Ports 8 x RJ45 (copper) + 1 x RJ11 console port
Data Transfer Rate 10 Mbit/s, 100 Mbit/s per port
Supply Voltage 24 VDC redundant (19.2 to 28.8 VDC tolerance)
Max Current Draw 0.17 A
Operating Temperature 0 to +60 °C
Storage / Transport Temperature -40 to +70 °C
IP Rating IP20
Dimensions (W x H x D) 40 mm x 117 mm x 109 mm
MTBF 84 years
Hazardous Location Certifications ATEX, IECEx, UL hazloc, FM, CCC (GB hazard zones)

Full technical specifications are available on the product page at LeadTime.ca.

SCALANCE XB208 vs. XB308, XB106, and XB200F — Which One Do You Actually Need?

Model Port Count Port Type Managed Hazardous Certification Best For
6GK5208-0BA00-2AB2 (XB208) 8 RJ45 Copper only Yes (Layer 2) ATEX, IECEx, UL, FM 8-device islands, hazloc zones, PROFINET networks with diagnostic requirements
SCALANCE XB308 16 RJ45 Copper only Yes (Layer 2) Varies by variant Larger device density in a single switch; lower cost per port at higher counts
SCALANCE XB106 6 RJ45 Copper only No (Unmanaged) Not required Simple daisy-chain topologies, lower cost, no VLAN or traffic management needed
SCALANCE XB200F (fiber) Mixed RJ45 + fiber Fiber optic + copper Yes (Layer 2) Varies by variant Runs exceeding 100 m, EMI-heavy environments, optical/electrical layer separation

If your device count is exactly 8 or fewer and your facility requires ATEX or IECEx certification on network hardware, the 6GK5208-0BA00-2AB2 is the correct choice — check current availability and pricing at LeadTime.ca.

Expert Verdict: Honest Assessment for Engineers at the Buy Decision

The 6GK5208-0BA00-2AB2 earns its place in a Siemens-centric automation environment because it solves three problems at once that typically require compromises: hazardous location certification, managed Layer 2 switching intelligence, and a compact physical footprint. The 40 mm width on a 35 mm DIN rail is genuinely compact for a managed switch with redundant power and full diagnostics capability. The MTBF of 84 years and the IEC 62443-4-2:2019 IT security certification are not marketing copy — they are verifiable third-party validated claims that reduce the justification burden during system design review and cybersecurity audits. The PROFINET default configuration means an experienced Siemens integrator can have this device commissioned and visible in STEP 7 within a single work session.

Where the XB208 has real limits: the 10/100 Mbit/s ceiling means it is not appropriate for networks that are migrating to Gigabit bandwidth — if your PROFINET I/O update cycles or camera vision traffic is already pushing port utilization above 70% at 100 Mbit/s, size up to a Gigabit-capable switch. The RJ45-only copper design is also a hard limit — if any segment of your network requires fiber for distance or electrical isolation, this model will not serve that segment, regardless of other specifications. Finally, if you are running an EtherNet/IP-first environment without any Siemens PLCs, the native PROFINET default and STEP 7 integration advantages disappear, and a different managed switch family may offer a more neutral starting point.

From a procurement standpoint, the SCALANCE XB-200 managed family is an active product line with no announced end-of-life, which means firmware updates and technical bulletins remain available through support.industry.siemens.com. Lead times from major distributors typically run 4 to 8 weeks for in-stock scenarios, with longer lead times possible when sourcing from overseas stock. If your build schedule is tight, confirming stock before issuing a purchase order avoids the most common sourcing delay. If this matches your system requirements, view current stock and pricing for the 6GK5208-0BA00-2AB2 at LeadTime.ca.

For volume pricing on multiple units or to confirm lead time before committing to a panel build schedule, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Physical Installation Overview

  • Mount on a standard 35 mm DIN rail — the 40 mm x 117 mm x 109 mm enclosure (polycarbonate PC-GF10, 0.25 kg) requires no additional ventilation or cooling and operates passively within the 0 to +60 °C operating range
  • Connect Supply A (+/-) and Supply B (+/-) to the 6-pole terminal block per the datasheet terminal assignments — both feeds must be within 19.2 to 28.8 VDC under load before power-on; measure at the terminal block with a multimeter and log the values in commissioning records
  • All 8 RJ45 network ports accept standard Cat5e or Cat6 Ethernet cables up to 100 m per IEEE 802.3 — use shielded cable for runs in areas with VFD drives or motor starters to avoid CRC errors from induced noise
  • The RJ11 console port provides CLI access for initial IP assignment and configuration recovery without requiring a live network connection — terminal emulation software is required; consult the commissioning guide for baud rate and connection parameters
  • Power LED and per-port link LEDs provide immediate visual status on installation — confirm all connected ports show green link status after power-on before proceeding to software configuration

Compatible Management Features and System Expansion

The 6GK5208-0BA00-2AB2 integrates directly with the following management tools and system components without requiring additional hardware:

  • STEP 7 and TIA Portal — native PROFINET device discovery and configuration within the Siemens engineering environment
  • Web-based management interface — accessible via any RJ45 port for VLAN configuration, IGMP snooping setup, port statistics, and alarm management without specialized software
  • SNMP (MIB support) — integrates with third-party network monitoring platforms for centralized asset visibility and fault alerting
  • RMON (Remote Network Monitoring) — enables remote network performance monitoring and baselining from a management station
  • Email TRAPs — configurable alarm notifications to operations or IT personnel when port status changes, power events, or network errors are detected
  • I&M0 and I&M1 device identification — supports electronic identification and asset tracking in systems complying with IEC identification standards
  • Port mirroring (single and multi-port) — connect a Wireshark-equipped laptop to a mirror destination port for live packet capture without interrupting production traffic

Wrong-Part Prevention: 8-Point Verification Checklist Before You Order

Before submitting a purchase order for the 6GK5208-0BA00-2AB2, verify each of the following points against your project specifications — this checklist reflects the most common ordering errors on this product:

  1. Verify you need 8 ports (not 16 or 4) - review device count in your automation island
  2. Confirm 10/100 Mbit/s is sufficient (not 1000 Mbit/s/Gigabit)
  3. Check that hazardous location certification applies to your facility (ATEX/IECEx/UL)
  4. Ensure 24 VDC redundant supply is available (not single supply only)
  5. Confirm DIN-rail space is 40 mm width minimum
  6. Verify PROFINET is your primary protocol (or EtherNet/IP compatibility is acceptable)
  7. Check operating temperature range: 0 to +60 °C operational (not higher/lower extremes)
  8. Confirm you do not need fiber ports - this model is RJ45 copper only

If all eight points confirm a match, view the 6GK5208-0BA00-2AB2 product page at LeadTime.ca for current pricing, availability, and datasheet access. If any point raises a conflict, contact the LeadTime.ca team to identify the correct SCALANCE variant for your application.

Frequently Asked Questions

What is the difference between the 6GK5208-0BA00-2AB2 and the 2TB2 telecom variant?

The suffix 2AB2 identifies the industrial version of the SCALANCE XB208 with PROFINET as the default protocol and the full ATEX/IECEx/UL/FM hazardous location certification set. The 2TB2 suffix denotes a telecom variant with a different default protocol configuration and different certification profile. Always verify the complete part number including the suffix before issuing a purchase order — the two variants are not interchangeable in industrial automation applications.

Can the SCALANCE XB208 operate on a single 24 VDC supply if redundant power is not available at installation?

The 6GK5208-0BA00-2AB2 can operate on a single 24 VDC supply connected to either terminal block input. However, doing so eliminates the redundancy benefit — if that single supply fails, the network segment goes offline. The device is designed for dual-supply operation; if only one supply is available at commissioning, plan to add the second supply before commissioning is complete. Verify that the available supply is within the 19.2 to 28.8 VDC tolerance under load before powering on.

Does the SCALANCE XB208 support EtherNet/IP, or is it PROFINET only?

The 6GK5208-0BA00-2AB2 ships with PROFINET as its default configuration, but it also supports EtherNet/IP and can operate in dual-protocol mode. Protocol configuration is handled through the web management interface or STEP 7. Engineers deploying the switch in a mixed PROFINET and EtherNet/IP environment do not need to order a separate variant — the protocol setting is software-configurable on the same hardware.

What does the IEC 62443-4-2:2019 certification mean for my plant's cybersecurity requirements?

IEC 62443-4-2:2019 is the component-level security standard within the IEC 62443 industrial control system security framework. Certification confirms the SCALANCE XB208 meets defined baselines for network protection, access control, and secure communication at the device level. For plants subject to third-party cybersecurity audits or internal security mandates, this pre-certified compliance eliminates the need to perform component-level security assessment on the switch independently — it arrives with documented conformance that can be referenced directly in audit documentation.

What are realistic lead times for the 6GK5208-0BA00-2AB2 when ordering through a distributor?

Lead times for the SCALANCE XB-200 managed series from major distributors typically range from 4 to 8 weeks when stock is available. If regional distribution stock is depleted, sourcing from overseas inventory can extend lead times to 12 to 16 weeks. The SCALANCE XB-200 family is an active Siemens product line with no announced end-of-life, which means stock is generally maintained at multiple distribution points. Confirming stock status before finalizing your build schedule is the most reliable way to avoid procurement delays on this component.

Is port mirroring on the SCALANCE XB208 disruptive to live network traffic during diagnostics?

Port mirroring on the 6GK5208-0BA00-2AB2 copies traffic from the selected source port(s) to a designated mirror destination port without interrupting traffic on the source ports. The production network continues operating normally during a mirroring session. The diagnostic laptop or packet analyzer connected to the mirror port receives a copy of the traffic — bidirectional or unidirectional depending on configuration — which can be captured with Wireshark or equivalent tools. The only bandwidth consideration is that the mirror destination port must have sufficient capacity to receive the mirrored traffic volume without dropping frames.
