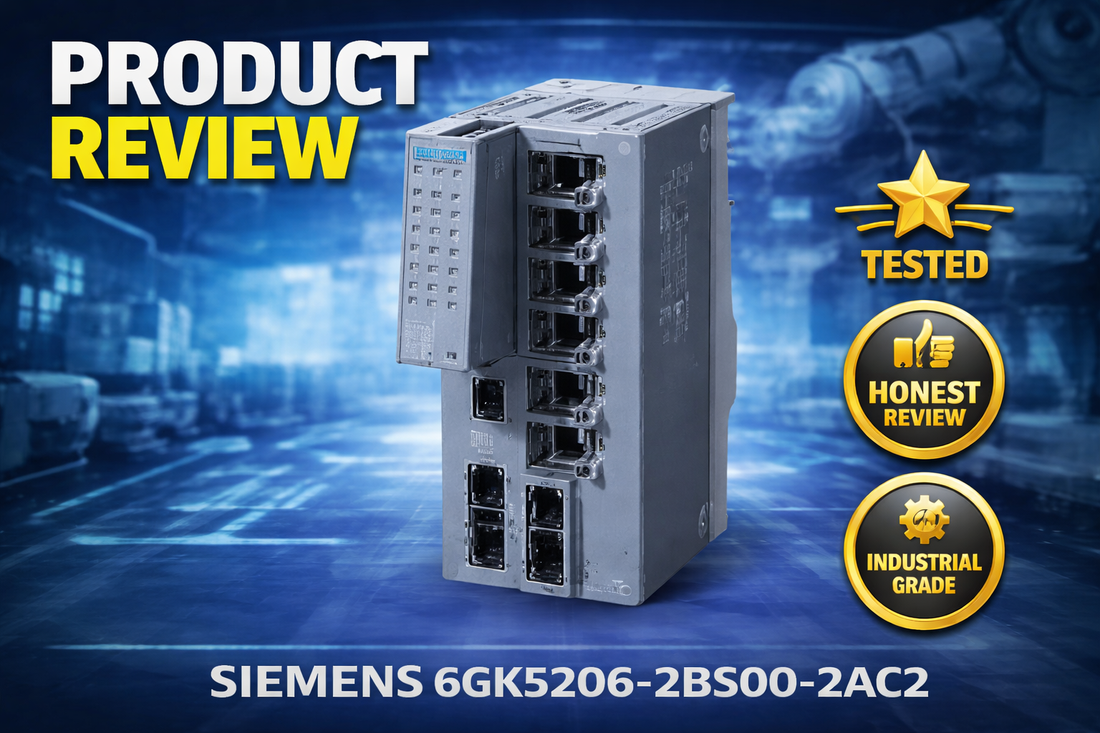

Siemens 6GK5206-2BS00-2AC2 SCALANCE XC206-2SFP managed Layer 2 industrial Ethernet switch for production cell automation

Siemens 6GK5206-2BS00-2AC2 SCALANCE XC206-2SFP Managed Industrial Ethernet Switch: Specifications, Applications, and Buyer Guide

Controls engineers and OT network administrators searching for Siemens 6GK5206-2BS00-2AC2 specifications are typically at one of two moments: confirming this exact SKU satisfies a project requirement, or deciding between this model and a larger SCALANCE variant before submitting a purchase order. The Siemens 6GK5206-2BS00-2AC2 is the SCALANCE XC206-2SFP manageable Layer 2 IE switch — a compact managed industrial Ethernet switch combining 6 copper RJ45 ports at 10/100 Mbit/s with 2 SFP slots supporting 100/1000 Mbit/s uplinks, IEC 62443-4-2 security certification, and Spanning Tree redundancy in a DIN rail form factor. For production cells connecting mixed-speed devices to a managed backbone, this is a well-specified choice that eliminates several sourcing and compliance headaches at once.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Siemens 6GK5206-2BS00-2AC2 — and Who Shouldn't

This switch is the right choice when your application requires Layer 2 managed switching with a compact, mixed-port footprint and documented OT security compliance. Specifically, buy this model if all of the following apply:

  • You need Layer 2 managed capabilities including VLAN 802.1Q traffic segmentation and Spanning Tree Protocol for redundant path failover
  • Your device count fits within 6 copper RJ45 ports at 10/100 Mbit/s plus 2 SFP uplink slots at 100/1000 Mbit/s
  • Your project requires IEC 62443-4-2 certification for OT security compliance in automotive, pharmaceutical, or food and beverage environments
  • Your installation environment is a sealed industrial cabinet or enclosed control panel consistent with IP20 protection rating
  • You need redundant power supply support and a console port for direct management access

If you need more than 6 copper ports, the XC308-2 (8 RJ45 + 2 SFP) or XC312-2 (12 RJ45 + 2 SFP) are the appropriate upgrades. For simple flat networks with no redundancy or segmentation requirement, the unmanaged SCALANCE X005 or X006 series carries a lower cost. For edge routing or firewall features, look at the SCALANCE X300 or X500 series instead.

On this page:

What the SCALANCE XC206-2SFP Actually Does in a Production Network

The Siemens 6GK5206-2BS00-2AC2 is a manageable Layer 2 IE switch in the SCALANCE XC206 series. Its practical role is serving as a network backbone component within PROFINET, EtherCAT, or general industrial Ethernet architectures — connecting PLCs, HMIs, I/O modules, and distributed control devices while giving the network engineer meaningful control over how traffic flows between them.

The distinction between this and an unmanaged switch matters operationally. VLAN 802.1Q support allows you to separate real-time PROFINET control traffic from MES or ERP traffic on the same physical switch — preventing lower-priority data floods from affecting deterministic control communication. Spanning Tree Protocol means that if you configure both SFP ports as uplinks to a backbone switch, the secondary path activates automatically on primary path failure, maintaining production continuity without manual intervention. The console port and per-port diagnostic LEDs reduce troubleshooting time when network issues occur, a critical factor in unattended production environments where tracing a fault to a specific port quickly can mean the difference between a brief interruption and an extended outage.

IEC 62443-4-2 certification is not a marketing label on this device — it is a documented compliance point that eliminates 4 to 8 weeks of third-party security audit delays during manufacturing facility compliance validation, according to industry deployment experience. For automotive, pharmaceutical, and food processing facilities undergoing periodic OT security audits, this certification on the switch datasheet resolves a common procurement bottleneck.

Typical System Architecture for the 6GK5206-2BS00-2AC2

The 6GK5206-2BS00-2AC2 typically sits at the access layer of a hierarchical industrial Ethernet network, aggregating field devices in a production cell and connecting upward to a backbone or core switch via SFP uplinks. Here is how the component chain typically looks:

  • Core or backbone switch (higher-port-count managed switch, often on a separate floor or in a central MCC room) connects downward via fiber or copper SFP
  • Siemens 6GK5206-2BS00-2AC2 SCALANCE XC206-2SFP receives that uplink on one or both SFP slots, providing Spanning Tree failover between them
  • 6 copper RJ45 ports at 10/100 Mbit/s fan out to PLCs, I/O modules, HMI terminals, and distributed sensors within the local production cell
  • VLAN segmentation on the switch isolates PROFINET real-time traffic on assigned ports from general data traffic using 802.1Q tagging
  • 24 VDC supply feeds the switch from the cabinet power distribution rail; redundant PSU module available for continuous-operation requirements

Industries and Applications Where This Switch Gets Deployed

Automotive manufacturing plants use the SCALANCE XC206-2SFP as a cell-level aggregation switch connecting robot controllers, servo drives, safety PLCs, and operator HMIs within a single assembly station. The SCALANCE managed switch series is deployed in over 70% of large-scale automotive assembly plants in North America requiring IEC 62443 network security compliance, reflecting how consistently this product family maps to those environments.

Food and beverage processing lines with hygienically sensitive areas benefit from the sealed cabinet deployment model the IP20 rating requires — the switch itself stays protected while its ports serve wash-down area devices through appropriately rated cable runs. Pharmaceutical production facilities cite IEC 62443-4-2 certification as a primary selection criterion for network components, making the 6GK5206-2BS00-2AC2 a natural fit for that compliance context.

Multi-floor manufacturing facilities use the SFP ports to extend network segments across floors using fiber optic runs, eliminating the distance and noise immunity limitations of copper. A packaging or assembly line undergoing a managed-switch upgrade from an unmanaged predecessor can preserve all existing 100 Mbit/s field device connections across the 6 RJ45 ports while gaining VLAN and Spanning Tree capabilities in the same cabinet footprint.

Application Typical Deployment
Automotive assembly cell 6 RJ45 ports connecting robot controllers, servo drives, safety PLC, and HMI; SFP uplink to floor backbone switch
PROFINET traffic segmentation VLAN 802.1Q separating real-time PROFINET from MES/ERP traffic on same physical switch
Multi-floor manufacturing facility SFP fiber uplinks connecting floors without copper distance constraints; Spanning Tree dual uplink failover
Pharmaceutical production line IEC 62443-4-2 certified switch deployed to satisfy OT security compliance audit requirements
Legacy network upgrade Replaces unmanaged switch; existing 100 Mbit/s field devices retained on RJ45 ports; management features added without re-cabling
Water treatment or power distribution Redundant PSU and Spanning Tree failover supporting unattended continuous-operation facility

Key Specifications: What Engineers Need to Make a Purchase Decision

Specification Detail
Model Number 6GK5206-2BS00-2AC2
Product Name SCALANCE XC206-2SFP manageable Layer 2 IE switch
RJ45 Copper Ports 6x 10/100 Mbit/s
SFP Uplink Slots 2x 100/1000 Mbit/s
Console Port 1x (serial/USB, for management and diagnostics)
Supported Data Rates 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s
Management Level Layer 2 managed (VLAN 802.1Q, Spanning Tree Protocol)
Security Certification IEC 62443-4-2
Protection Rating IP20 (sealed cabinet or enclosure required)
Power Supply 24 VDC single; redundant PSU module option available

Full technical specifications are available on the product page at LeadTime.ca.

SCALANCE XC206-2SFP vs. Larger SCALANCE Variants: Which One Do You Actually Need?

Model RJ45 Ports SFP Ports Management Best For
6GK5206-2BS00-2AC2 (XC206-2SFP) 6x 10/100 Mbit/s 2x 100/1000 Mbit/s Layer 2 Managed Single production cell, 6 or fewer local devices, fiber uplink required
XC308-2 8x RJ45 2x SFP Layer 2 Managed Slightly larger cells or departments needing 7-8 local copper connections
XC312-2 12x RJ45 2x SFP Layer 2 Managed High device density areas, aggregation of multiple sub-networks
SCALANCE X005 / X006 5-6x RJ45 None Unmanaged Simple flat networks, no redundancy or segmentation needed, cost-sensitive
SCALANCE X300 / X500 series Varies Varies Layer 3 / Edge routing Firewall, routing, advanced security features beyond Layer 2

If your architecture requires 6 copper device connections plus fiber SFP uplinks with Layer 2 VLAN and Spanning Tree management, the 6GK5206-2BS00-2AC2 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment of the Siemens 6GK5206-2BS00-2AC2

The SCALANCE XC206-2SFP delivers well in the role it is built for: a compact, IEC 62443-4-2 certified, Layer 2 managed switch for production cell-level industrial Ethernet networks. The combination of 6 copper RJ45 ports supporting legacy 10/100 Mbit/s devices alongside 2 SFP slots at 100/1000 Mbit/s is genuinely useful for engineers managing mixed-generation infrastructure — you can connect older field devices and run a high-speed fiber uplink to the backbone without changing your existing cabling on the device side. Managed switches with Spanning Tree redundancy reduce unplanned network downtime by an average of 35 to 50 percent compared to unmanaged switches in multi-device industrial networks, and the dual SFP uplink configuration here enables exactly that architecture. The IEC 62443-4-2 certification is a genuine differentiator when procurement requires documented OT security compliance — this certification eliminates weeks of third-party audit overhead that uncertified switches require.

The limitations are honest and worth stating. The 6 RJ45 port ceiling is a real constraint — if your production cell today has 5 devices but is likely to expand to 9 or 10 within the project lifecycle, moving to the XC308-2 or XC312-2 now avoids a switch replacement later. The IP20 protection rating means this device requires a properly sealed control cabinet; deploying it outside of an enclosure in a dusty, humid, or splash-zone environment will cause problems. And if your network architecture needs routing, firewall rules, or Layer 3 segmentation, this is a Layer 2 switch — the X300 or X500 series is the appropriate tier. For straightforward managed switching within those constraints, however, this model is well-matched to its target environment and carries Siemens' SCALANCE reliability track record behind it.

From a procurement standpoint, the 6GK5206-2BS00-2AC2 is an established catalog part with typical stock-to-order lead times in the range of in-stock to 1 to 2 weeks depending on distributor and market conditions. Siemens SCALANCE industrial switches typically operate 8 to 12 years in production environments, and spare parts including SFP modules remain available for a minimum of 10 years post-manufacture — a meaningful factor when specifying for long-lifecycle production lines. Volume pricing is available for multi-unit orders. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Physical Installation Overview

  • Mount the switch on a DIN rail inside a sealed industrial cabinet consistent with IP20 requirements; verify port accessibility before final rail position
  • Connect 24 VDC power to supply terminals observing correct polarity; verify wire gauge is appropriate for the current draw before energizing
  • Connect RJ45 device ports using Cat 5e or Cat 6 Ethernet cable; the switch auto-negotiates speed at 10/100 Mbit/s per port
  • Install SFP modules (SM or MM fiber type per your verified network plan) into SFP slots before connecting fiber runs; confirm fiber type matches the SFP module and remote switch port
  • Connect a console cable (serial or USB adapter) to the management console port for initial configuration access; verify diagnostic LED shows no fault indication before moving to software setup

Engineers requiring complete wiring diagrams, terminal assignments, and step-by-step commissioning procedures should refer to the Siemens SCALANCE XC206 series installation and operating manual available through official Siemens documentation channels.

What Engineers Get Wrong When Ordering This Part

Before placing a purchase order for the Siemens 6GK5206-2BS00-2AC2, work through this checklist verbatim — these are the most common specification mismatches that result in returns, project delays, or field failures:

  1. Confirm you need MANAGED (Layer 2) capabilities, not unmanaged basic switching
  2. Count actual RJ45 ports needed; this model provides exactly 6 copper ports
  3. Verify SFP fiber type (SM/MM) required if using the 2 SFP slots for optics
  4. Check power supply redundancy requirement; standard models support single 24 VDC; confirm if redundant PSU module is needed
  5. Ensure console port access to management interface is acceptable (serial/USB connection for initial setup)
  6. Confirm installation environment allows IP20 protection level (sealed cabinet or outdoor enclosure required)
  7. Validate that IEC 62443-4-2 is the required security standard (not IEC 62443-3-3 or higher)

If any item on this checklist raises a question about fit, contact the LeadTime.ca team before ordering — we can confirm compatibility and help identify the correct SCALANCE variant for your application.

Frequently Asked Questions

Can the 6GK5206-2BS00-2AC2 support both fiber and copper SFP modules simultaneously?

The switch provides 2 SFP slots rated at 100/1000 Mbit/s each, and the SFP module type — fiber (single-mode or multi-mode) or copper — is determined by the SFP transceiver you insert. The two slots are independent, so you can install different SFP module types in each slot based on your uplink requirements. Verify SFP module compatibility with Siemens documentation before ordering transceivers.

Does this switch support PROFINET, or is it only standard Ethernet?

The 6GK5206-2BS00-2AC2 is a Layer 2 managed industrial Ethernet switch, meaning it carries PROFINET traffic like any standard industrial Ethernet frame — it does not need to be PROFINET-protocol-aware to pass PROFINET data between a PLC and its I/O. VLAN configuration allows you to isolate PROFINET real-time traffic from non-critical traffic on the same switch, which is the common deployment for mixed PROFINET and office network environments.

What does IEC 62443-4-2 certification mean in practice for procurement?

IEC 62443-4-2 is the component-level security standard under the IEC 62443 industrial automation and control systems security framework. A certified device like the SCALANCE XC206-2SFP has been evaluated against defined security requirements for industrial network components, which allows procurement and compliance teams to reference documented certification rather than conducting independent verification. This certification eliminates 4 to 8 weeks of third-party security audit delays during manufacturing facility compliance validation.

What happens if the primary SFP uplink fails? Does the switch automatically switch to the secondary path?

Yes — with Spanning Tree Protocol enabled and two SFP uplinks configured appropriately, the switch will automatically activate the secondary uplink path on primary path failure. Correct STP root bridge priority settings are critical to achieving predictable failover behavior; verify these settings during commissioning and test failover by manually disconnecting the primary SFP cable before going live.

Is the 6GK5206-2BS00-2AC2 suitable for outdoor or wash-down installation?

No. The switch carries an IP20 protection rating, which means it requires a sealed industrial cabinet or enclosed control panel for installation. It is not suitable for direct exposure to dust, moisture, spray, or outdoor conditions without an appropriate external enclosure. For environments requiring higher ingress protection, a different SCALANCE variant with a higher IP rating would be the correct selection.

How long is the product lifecycle and are replacement parts available?

Siemens SCALANCE industrial switches typically operate 8 to 12 years in production environments. Spare parts including power supplies and SFP modules remain available for a minimum of 10 years post-manufacture. For long-lifecycle production lines, this availability commitment is a relevant specification when justifying the purchase over lower-cost alternatives with shorter support windows.

Why Order the Siemens 6GK5206-2BS00-2AC2 from LeadTime.ca

  • LeadTime.ca ships worldwide — no restriction on geography; submit a quote request from anywhere
  • Specializes in industrial automation components including managed switches, PLCs, and I/O modules from established manufacturers
  • Volume pricing available for multi-unit orders; contact the team directly for project quantities
  • Fast response on lead time confirmation before you commit to a build schedule
  • Hard-to-find and current-production parts sourced; single point of contact for mixed-part industrial automation orders

At-a-Glance Summary: Siemens 6GK5206-2BS00-2AC2 SCALANCE XC206-2SFP

  • Official product name: SCALANCE XC206-2SFP manageable Layer 2 IE switch, catalog number 6GK5206-2BS00-2AC2
  • 6 copper RJ45 ports at 10/100 Mbit/s plus 2 SFP slots at 100/1000 Mbit/s plus 1 console management port
  • Supports 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s simultaneously — handles mixed-speed legacy and modern device connections
  • Layer 2 managed: VLAN 802.1Q segmentation and Spanning Tree Protocol redundancy both supported
  • IEC 62443-4-2 certified — eliminates 4 to 8 weeks of third-party OT security audit delays in regulated facilities
  • 24 VDC single supply standard; redundant PSU module option available
  • IP20 protection rating — sealed industrial cabinet or enclosure required
  • Managed switches with Spanning Tree reduce unplanned network downtime by 35 to 50 percent versus unmanaged in multi-device industrial networks
  • Siemens SCALANCE switches typical service life: 8 to 12 years; spare parts available minimum 10 years post-manufacture
  • Typical lead time: in-stock to 1 to 2 weeks depending on distributor and market conditions
  • Direct upgrade path to XC308-2 (8 ports) or XC312-2 (12 ports) when higher copper port density is required
