Siemens 6GK1901-1BB10-2AE0 — FastConnect RJ45 Plug Buying Guide
Siemens 6GK1901-1BB10-2AE0 Industrial Ethernet FastConnect RJ45 Plug 180 2x2: Specifications, Compatibility, and Selection Guide
When a connector fails mid-production or a panel build demands a fast, reliable RJ45 termination without a crimping tool on site, the Siemens 6GK1901-1BB10-2AE0 is the part controls engineers and systems integrators reach for. This Industrial Ethernet FastConnect RJ45 Plug 180 2x2 supports 10/100 Mbit/s transfer rates, PoE and PoE+ capability, and a 180-degree cable outlet orientation, all housed in a metal enclosure rated from -40 to +85°C. If you are in an active procurement cycle and have already confirmed this is the right connector for your cable type and panel geometry, check current pricing and availability at LeadTime.ca — ships worldwide.
Who Should Buy the 6GK1901-1BB10-2AE0 — and Who Shouldn't
This connector is the correct choice when all of the following conditions apply to your application:
- You are terminating IE FC TP 2x2 cables with 0.33 mm² (AWG22 equivalent) conductors using Siemens FastConnect tool-assisted assembly
- Your panel layout requires a 180-degree cable outlet orientation — cable exits in line with the connector body, not perpendicular
- Your transfer rate requirement is 10 Mbit/s or 100 Mbit/s; this model does not support Gigabit (1000 Mbit/s)
- Your operating environment reaches temperatures as low as -40°C or as high as +85°C, or involves G3 pollution-class contamination per ANSI/ISA-71.04
- You need PoE or PoE+ capability to power distributed sensors or I/O devices over a single cable run
- Your project or facility requires UL and cULus certification and RoHS compliance
If your panel geometry requires a straight cable exit, select the 6GK1901-1BB10-2AA0 (0-degree outlet) instead. If you need Gigabit Ethernet or a 4x2 cable configuration, a different FastConnect variant is required.
On this page:
- What the 6GK1901-1BB10-2AE0 Actually Does in an Industrial Network
- Where This Connector Sits in a Typical Industrial Ethernet System
- Industries and Applications That Depend on This Connector
- Key Specifications Engineers Need Before Ordering
- 6GK1901-1BB10-2AE0 vs. 6GK1901-1BB10-2AA0 and Common Alternatives
- Expert Verdict: Is This Connector Worth the Premium Over Standard RJ45?
- Installation and Assembly Overview
- Wrong-Part Prevention: What to Confirm Before You Order
- Frequently Asked Questions
- Why Order From LeadTime.ca
- At-a-Glance Summary
What the 6GK1901-1BB10-2AE0 Actually Does in an Industrial Network

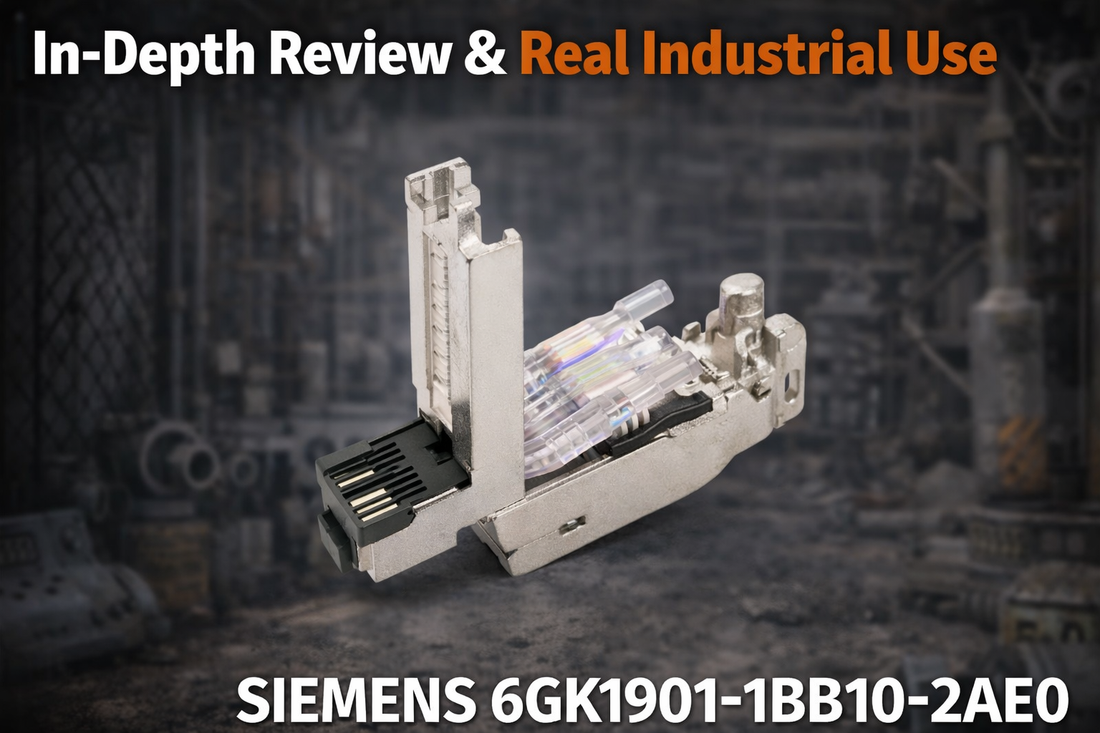

The Siemens 6GK1901-1BB10-2AE0 is a field-terminable RJ45 plug connector from the SIMATIC NET Industrial Ethernet FastConnect family. Its job is straightforward: it terminates IE FC TP 2x2 twisted-pair cable at the RJ45 connection point for any industrial Ethernet device — switch, controller, distributed I/O node, or powered sensor — without requiring a crimping tool or soldering equipment in the field.
What separates this part from a standard RJ45 connector is the FastConnect cut-and-clamp mechanism. Field assembly requires approximately 2 to 3 minutes per connector compared to 10 to 15 minutes for traditional crimping including tool setup, stripping, crimping, and inspection. For a facility replacing 20 or more connectors annually, that difference translates to an estimated 40 to 50 percent reduction in connector labor cost. The 180-degree cable outlet is the other critical feature: the cable exits in line with the connector body rather than at a right angle, which is the geometry that rear-panel and DIN-rail installations often demand to avoid sharp cable bends and save depth clearance.
The metal enclosure provides electromagnetic shielding and physical durability against oil splash, coolant mist, vibration, and temperature cycling that plastic-bodied connectors cannot sustain in continuous production environments. At a G3 pollution rating per ANSI/ISA-71.04, this connector is tested for heavy contamination conditions — not just light industrial use. The silicon-free design matters for facilities running sensitive electronics or paint lines where silicone contamination causes adhesion failures.
Where This Connector Sits in a Typical Industrial Ethernet System
The 6GK1901-1BB10-2AE0 lives at the cable termination point between the IE FC TP 2x2 trunk cable and whatever active network device is at that node — it is the physical handshake that completes every Ethernet segment in your plant network.
- SIMATIC PLC or industrial PC in the control cabinet — upstream controller on the Ethernet segment
- Industrial managed switch — distributes Ethernet to field devices; connector terminates the drop cable at the switch port
- IE FC TP 2x2 cable run — the 0.33 mm² AWG22 trunk this connector is designed to terminate
- 6GK1901-1BB10-2AE0 connector — field-assembled at both ends of the cable segment
- Distributed I/O node, powered sensor, or Ethernet-capable drive — downstream device receiving data and, where applicable, PoE power through the same cable
Industries and Applications That Depend on This Connector
Automotive and discrete manufacturing plants use this connector for machine control cabinet connectivity where panel geometry requires 180-degree cable exits from DIN-rail-mounted switches and I/O modules. The metal enclosure handles the coolant mist and vibration levels typical in machining cells without the seal degradation that affects plastic connectors over time.
Food and beverage and pharmaceutical packaging lines rely on the RoHS compliance and silicon-free design to meet regulated materials requirements, while the -40 to +85°C operating range covers everything from cold-chain storage zones to hot-fill equipment enclosures in a single connector specification.
Systems integrators building multiple test rigs or OEM panel builders assembling production runs of cabinets standardize on the FastConnect assembly process to cut commissioning time. The 50-unit pack size aligns with production-run quantities rather than one-off replacement scenarios.
Maintenance teams in continuous-process facilities — chemical, water treatment, renewable energy — keep this connector in spare parts stock specifically because a failed RJ45 can be replaced in under 5 minutes without pulling a cable back through conduit or waiting for a crimping tool to arrive from the instrument shop.
| Application | Typical Deployment |
|---|---|
| Machine retrofit | Replacing failed RJ45s on SIMATIC NET equipment; FastConnect re-termination in under 3 minutes |
| Industrial control cabinet build | Rear-panel cable exits on DIN-rail switches; 180-degree outlet optimizes depth clearance |
| PoE sensor network deployment | Factory floor distributed I/O; single cable delivers data and 24V-equivalent power to low-power sensors |
| OEM panel production | Systems integrator assembling 50+ connectors per build; FastConnect reduces per-connector labor vs. crimping |
| Maintenance spare stock | Facility keeps 10–20 units on shelf for immediate field replacement during line stoppages |
| Cold-climate outdoor cabinet | Renewable energy or water treatment sites reaching -40°C; rated operating range matches ambient |
Key Specifications Engineers Need Before Ordering
| Specification | Value |
|---|---|
| Transfer Rate | 10 Mbit/s, 100 Mbit/s |
| Cable Outlet Angle | 180 degrees |
| PoE / PoE+ Support | Yes / Yes |
| Operating Temperature | -40 to +85°C |
| Enclosure Material | Metal |
| IP Rating | IP20 |
| Conductor Cross-Section | 0.33 mm² (AWG22 equivalent) |
| Number of Reuses | 10 |
| Dimensions (W × H × D) | 13.7 mm × 16 mm × 55 mm |
| Certifications | UL, cULus, RoHS, G3 (ANSI/ISA-71.04) |
Full technical specifications are available on the product page at LeadTime.ca.
6GK1901-1BB10-2AE0 vs. 6GK1901-1BB10-2AA0 and Common Alternatives
| Feature | 6GK1901-1BB10-2AE0 | 6GK1901-1BB10-2AA0 | Traditional Crimped RJ45 | M12 X-Coded |
|---|---|---|---|---|
| Cable Outlet | 180° right-angle | 0° straight | Variable | Sealed connector |
| Assembly Method | FastConnect (tool-assisted) | FastConnect (tool-assisted) | Crimping tool required | Threaded coupling |
| PoE Capable | Yes | Yes | Yes | Yes (varies by model) |
| Operating Temperature | -40 to +85°C | -40 to +85°C | -20 to +60°C (typical) | -40 to +85°C |
| Metal Enclosure | Yes | Yes | Plastic (standard) | Yes |
| Reusable Cycles | 10 | 10 | 1 (destructive) | 20+ |
| UL / cULus Certified | Yes | Yes | Yes (basic) | Yes (industrial) |
| Cost Profile | Mid-range | Mid-range | Low | Premium |
| Best For | Panel retrofit, tight rear-exit spaces | Straight-run cabinets | Budget installations | Sealed or outdoor harsh environments |
If your panel layout routes cables straight out from the connector face rather than back along the panel wall, the 6GK1901-1BB10-2AA0 is the correct choice — verify outlet orientation and check current availability at LeadTime.ca.
Expert Verdict: Is This Connector Worth the Premium Over Standard RJ45?
For any application that involves IE FC TP 2x2 cable, 180-degree rear-panel cable routing, and an environment that goes below -20°C or above +60°C, the 6GK1901-1BB10-2AE0 is not a premium option — it is the minimum viable connector. A standard commercial RJ45 rated to -20 to +60°C will fail prematurely in an outdoor cabinet in a cold climate or in a machine enclosure running sustained heat, and the plastic body offers no meaningful protection against vibration, coolant splash, or electromagnetic interference on a busy factory floor. The FastConnect assembly method also addresses a real operational pain point: a technician replacing a failed connector during a line stoppage needs to be back online in minutes, not waiting for a crimping tool or specialist.
The honest limitations are equally clear. This connector supports 10/100 Mbit/s only — if your architecture has moved to Gigabit Ethernet, this is not the right part and ordering it will cause a frustrating non-obvious failure to negotiate link speed. The 2x2 conductor configuration is also a hard constraint: if your cable inventory is 4-pair IE FC TP, physical assembly will not work correctly. The 10-cycle reuse rating means this is not an indefinitely reusable connector, and facilities that do not track assembly cycles will eventually experience intermittent faults that are difficult to diagnose. Plan for replacement stock rather than treating individual units as permanent assets. If you need a sealed connector for submersion or high-pressure washdown, the M12 X-coded alternative is the better tool for that job. If this matches your system requirements, view current stock and pricing at LeadTime.ca.
From a procurement standpoint, the 50-unit pack size is sized for OEM production runs and maintenance stocking programs rather than one-off repairs — budget and plan accordingly. Under normal market conditions, established supply channels support typical lead times of one to four weeks from major stock locations, though building safety stock buffers is advisable for continuous-process facilities where connector availability directly affects uptime. LeadTime.ca maintains global shipping and can assist with volume pricing for larger stocking orders.
For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.
Installation and Assembly Overview
- Prepare IE FC TP 2x2 cable by stripping the outer sheath to expose the twisted pairs; conductor cross-section must be 0.33 mm² (AWG22 equivalent) — do not attempt assembly with 4-pair or AWG24 cable
- Insert the cable into the FastConnect plug body and activate the cut-and-clamp mechanism using the included tool; no crimping equipment or solder is required — consult the assembly manual supplied with the product for exact pressing procedure and force guidance
- Verify clamp engagement by gently pulling the cable after assembly; the cable should not slide, and no visible gap should exist between the cable jacket and the plug body
- Confirm the metal enclosure makes electrical contact with the cable shield, and verify the strain relief is fully seated before connecting to any network device
- Before applying PoE power, confirm PSE polarity and verify the endpoint device power draw does not exceed the PSE budget; test continuity across all 4 conductors with a multimeter before power-on
Wrong-Part Prevention: What to Confirm Before You Order
Before placing any order for the 6GK1901-1BB10-2AE0, work through this checklist to avoid the most common and costly purchasing errors engineers encounter with this connector family:
- VERIFY cable type matches: IE FC TP (twisted pair) 2x2 conductor count; 2x2 means two pairs, each 0.33mm² AWG22 equivalent
- CONFIRM 180-degree cable outlet matches panel layout; 0-degree variants exist for opposite orientation
- CHECK transfer rate requirement: this model supports 10/100 Mbit/s only; if Gigabit (1000 Mbit/s) needed, select different connector
- VALIDATE PoE polarity: confirm polarity and power budget match device PSE (Power Sourcing Equipment) specifications
- ENSURE operating temperature range: confirm -40 to +85°C window matches facility ambient and machine enclosure conditions
- CONFIRM quantity packaging: ships 50 units per pack; verify bulk purchase aligns with project scope
If any item on this checklist raises a question before you order, contact the LeadTime.ca team to confirm the correct part before your purchase order is placed.
Frequently Asked Questions
Does the 6GK1901-1BB10-2AE0 support Gigabit Ethernet?
No. This connector is rated for 10 Mbit/s and 100 Mbit/s transfer rates only. If your application requires 1000 Mbit/s Gigabit Ethernet, you will need a different connector variant. Attempting to use this part in a Gigabit segment will result in a failure to negotiate full link speed.
What is the difference between the 6GK1901-1BB10-2AE0 and the 6GK1901-1BB10-2AA0?
The sole difference is cable outlet orientation. The 6GK1901-1BB10-2AE0 features a 180-degree outlet — the cable exits in line with the connector body — while the 6GK1901-1BB10-2AA0 has a 0-degree straight outlet. Both models use the same FastConnect assembly, support the same temperature range of -40 to +85°C, and are rated for 10 reuse cycles. Select based on your panel geometry and cable routing path.
Can this connector be used with standard Cat5 cable from general inventory?
No. The 6GK1901-1BB10-2AE0 is designed specifically for IE FC TP 2x2 cable with 0.33 mm² (AWG22 equivalent) conductors. Standard Cat5 cable typically uses AWG24 (0.20 mm²) conductors in a 4-pair configuration, which is physically incompatible with the 2x2 FastConnect clamp mechanism. Using the wrong cable will produce unreliable connections or assembly failure.
How many times can I reuse the 6GK1901-1BB10-2AE0 before it must be replaced?
The connector is rated for 10 assembly and disassembly cycles. After 10 cycles, the cut-and-clamp contacts may lose holding force, leading to intermittent connections that are difficult to diagnose in a deployed system. Track assembly cycles during testing and prototyping phases, and always use a fresh connector for final production deployment.
Is this connector suitable for outdoor installations in cold climates?
Yes, within its rated conditions. The operating temperature range of -40 to +85°C covers extreme cold-climate outdoor cabinet applications, and the G3 pollution rating per ANSI/ISA-71.04 indicates suitability for heavy contamination environments. However, the IP20 protection rating means the connector body is not sealed against water ingress — in wet or washdown environments, a sealed M12 X-coded connector should be evaluated instead.
Does the 6GK1901-1BB10-2AE0 require a special tool for assembly?
The FastConnect cut-and-clamp mechanism is tool-assisted, but it does not require a crimping tool. The assembly process uses an included tool or press to activate the clamp. No soldering equipment is needed. Full assembly procedure details are provided in the assembly manual supplied with the product — field technicians should consult that documentation for exact pressing force and procedure steps specific to the product revision they receive.
Why Order From LeadTime.ca
- LeadTime.ca ships the Siemens 6GK1901-1BB10-2AE0 worldwide — no regional restrictions on sourcing
- Volume pricing available for bulk orders; the 50-unit pack size suits OEM and maintenance stocking programs — contact us before placing large orders
- Sourcing support for hard-to-find SIMATIC NET and Industrial Ethernet FastConnect parts across the full Siemens connector catalog
- Fast response from a team that understands industrial automation procurement timelines and urgent replacement scenarios
- View current stock and pricing at LeadTime.ca
- Contact LeadTime.ca for a quote or lead time confirmation
At-a-Glance Summary
- Model: Siemens 6GK1901-1BB10-2AE0 — Industrial Ethernet FastConnect RJ45 Plug 180 2x2
- Transfer rates: 10 Mbit/s and 100 Mbit/s; does not support Gigabit (1000 Mbit/s)
- Cable outlet: 180-degree orientation; 0-degree variant is 6GK1901-1BB10-2AA0
- Compatible cable: IE FC TP 2x2, conductor cross-section 0.33 mm² (AWG22 equivalent)
- Operating temperature: -40 to +85°C — covers cold-climate outdoor cabinets and hot machine enclosures
- Enclosure: Metal with IP20 rating and G3 pollution class per ANSI/ISA-71.04
- PoE and PoE+ capable — single cable delivers data and power to low-power field devices
- Assembly: FastConnect cut-and-clamp, approximately 2–3 minutes per connector, no crimping tool required
- Reuse cycles: 10 maximum — track and replace at limit to avoid intermittent faults
- Dimensions: 13.7 mm × 16 mm × 55 mm; weight: 35 grams
- Certifications: UL, cULus, RoHS compliant, silicon-free
- Packaging: 50 units per pack — plan order quantity against project scope before purchasing
- Carbon footprint: 0.277 kg CO2 eq per unit, documented in Environmental Product Declaration
