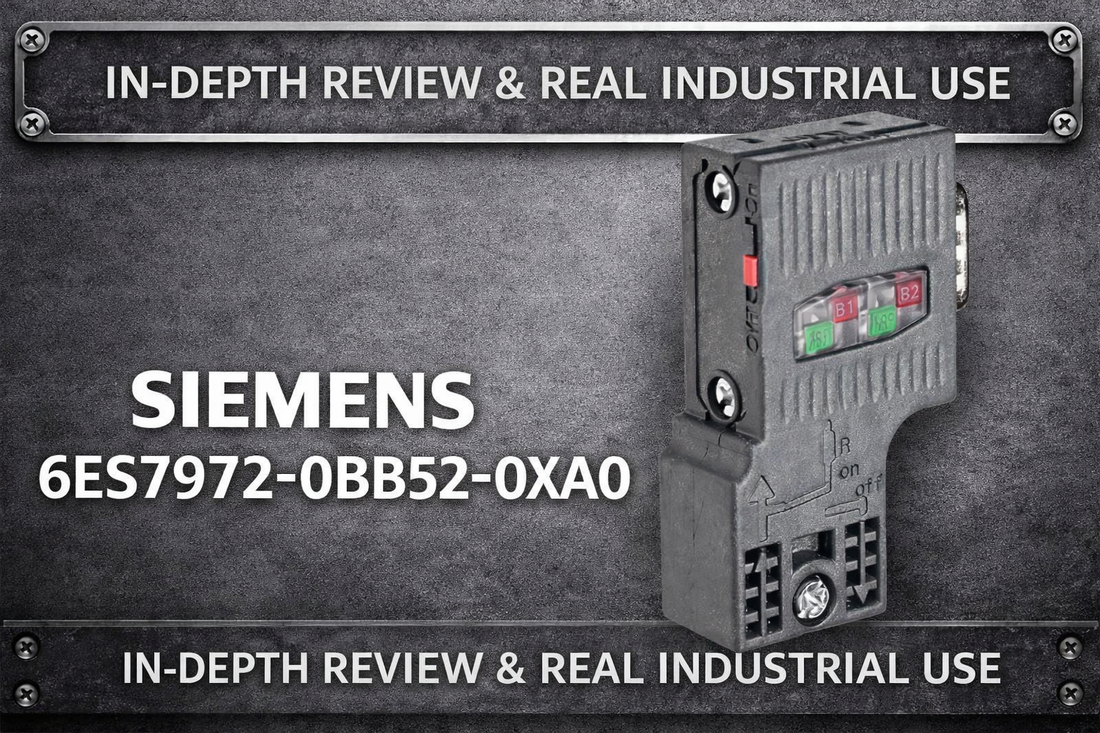

Siemens 6ES7972-0BB52-0XA0 PROFIBUS DP connector with 90-degree outlet and PG socket for SIMATIC industrial automation systems

Siemens 6ES7972-0BB52-0XA0 PROFIBUS Connector: Specs, Selection Guide, and Alternatives

Controls engineers specifying a PROFIBUS fieldbus segment already know the pain point: one wrong connector variant — no PG socket, wrong outlet angle, incompatible termination method — and the entire commissioning workflow has to be redesigned. The Siemens 6ES7972-0BB52-0XA0 is a SIMATIC DP Connection plug for PROFIBUS with a 90-degree cable outlet, FastConnect insulation displacement termination, and a built-in PG receptacle that allows live diagnostics and parallel programming without interrupting bus communication. At 15.8 mm wide and rated for 0°C to 60°C, it is a compact, field-proven component for high-density PROFIBUS networks operating at up to 12 Mbps.

If you have already confirmed this is the correct part for your system, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7972-0BB52-0XA0 — and Who Shouldn't

This connector is the right choice for engineers and procurement specialists building or maintaining PROFIBUS DP networks where both space efficiency and live diagnostic access are hard requirements. It is specifically correct when:

  • Your fieldbus protocol is PROFIBUS DP operating at up to 12 Mbps — not Profinet, DeviceNet, EtherCAT, or AS-Interface
  • Your panel layout requires a 90-degree cable outlet to route the PROFIBUS cable perpendicular to the connector face without excessive bend stress
  • Your maintenance or commissioning workflow depends on a PG receptacle for parallel programming and diagnostics during live production
  • FastConnect insulation displacement termination is compatible with your team's installation tooling and training — no wire stripping required
  • Your installation environment stays within 0°C to 60°C ambient — standard indoor control cabinet conditions
  • Your procurement volume aligns with the standard 100-unit packing quantity, or you can plan buffer inventory accordingly

If you do not need the PG socket and want to reduce per-unit cost, the correct alternative is 6ES7972-0BA52-0XA0. If you are starting a new design and want the best long-term supply assurance, evaluate the updated 6ES7972-0BB52-0XB0 revision instead.

On this page:

What the 6ES7972-0BB52-0XA0 Actually Does in a PROFIBUS System

The Siemens 6ES7972-0BB52-0XA0 is the physical connection point between a PROFIBUS DP fieldbus cable and a SIMATIC automation device — whether that is a PLC CPU, a distributed I/O head unit, a drive, or a third-party PROFIBUS node. Its job is to establish and maintain reliable 12 Mbps serial communication across the bus segment while keeping the connector footprint small enough for dense panel layouts.

What separates this model from a basic PROFIBUS plug is the combination of three features that directly affect installation quality and ongoing maintenance cost. First, FastConnect insulation displacement technology means the cable does not need to be stripped — the conductor is pushed directly into the IDC contacts under spring pressure, eliminating the variable torque and exposed wire length issues associated with screw terminal connectors. Second, the 90-degree cable outlet routes the PROFIBUS cable perpendicular to the connector face, which is critical in panels where vertical cable management is constrained. Third, the integrated PG receptacle provides a parallel access port so a programming device or diagnostic tool can be connected to the live bus without disconnecting any existing nodes — a workflow that, when absent, increases commissioning duration by 15 to 30 percent when live diagnostics become necessary mid-project.

The housing is plastic, weighs approximately 10 grams, and the rated ambient operating temperature is 0°C to 60°C, which covers virtually all indoor control cabinet installations. Standard packing is 100 units per order — a detail that matters for procurement planning on pilot-scale versus production-scale projects.

Where This Connector Sits in a Typical SIMATIC Control Architecture

The 6ES7972-0BB52-0XA0 is a bus-layer component — it sits at the physical interface between the PROFIBUS cable infrastructure and each networked device in the segment, linking the controller level to the field device level through a daisy-chain topology.

  • SIMATIC PLC or CPU — the master node that manages the PROFIBUS DP segment and polls all slave devices
  • PROFIBUS cable trunk — shielded twisted pair running the full segment length, connecting each device node in daisy-chain sequence
  • 6ES7972-0BB52-0XA0 connector — installed at each device port, terminating the incoming and outgoing cable runs and providing the 90-degree routed connection to the device
  • Distributed I/O modules, drives, sensors, or field devices — the PROFIBUS slave nodes receiving and returning process data via the connector
  • PG / diagnostic device — connected to the PG receptacle on the connector for commissioning, troubleshooting, or firmware updates during live bus operation

Industries and Applications Where This Connector Is Specified

In discrete manufacturing — particularly automotive production lines and electronics assembly — the 6ES7972-0BB52-0XA0 appears wherever a PROFIBUS segment connects remote I/O couplers to a central SIMATIC PLC. The 90-degree outlet is frequently specified by machine builders who need to keep cable bundles routed vertically inside machine control enclosures where horizontal cable runs would foul moving components.

Process manufacturing environments in chemicals, pharmaceuticals, and food processing use this connector in multi-node PROFIBUS segments where the PG socket provides a non-intrusive diagnostic port. Maintenance engineers can connect a programming device to audit bus health or update device parameters on a live segment during a narrow production window — without taking the segment offline and without disconnecting any existing nodes.

Material handling systems, packaging machinery, and building automation control networks are secondary applications where PROFIBUS DP remains the installed fieldbus standard and where connector reliability is a long-cycle maintenance concern. The FastConnect IDC termination method is valued in these environments because it reduces the likelihood of intermittent connections caused by undertorqued screw terminals — a failure mode that is disproportionately common on connectors installed in high-vibration or high-cycle environments.

Retrofit projects converting older hardwired I/O architectures to PROFIBUS fieldbus also commonly specify this connector, particularly where control panels are being densified. The 15.8 mm width allows tight spacing between connectors on a shared backplate without violating minimum clearance requirements.

Application Typical Deployment
Automotive production line integration Daisy-chain PROFIBUS segment connecting robot controllers, drives, and remote I/O in a manufacturing cell
Process control — pharmaceutical or chemical Multi-node PROFIBUS segment with PG socket used for live parameter updates and bus diagnostics
Packaging and material handling machinery Machine-mounted PROFIBUS network with 90-degree connectors to manage vertical cable routing in compact enclosures
Panel retrofit — fieldbus upgrade project Replacement of hardwired I/O with PROFIBUS DP architecture; compact connector width enables high-density backplate layout
Building automation and HVAC control Distributed PROFIBUS segments connecting HVAC controllers and sensor nodes with periodic diagnostic access via PG socket
Water and wastewater utility automation Remote I/O coupler connection to central SIMATIC PLC across a PROFIBUS DP segment in pump station control panels

Specifications Engineers Need Before Ordering

Specification Value
Protocol Support PROFIBUS DP up to 12 Mbps
Connector / Termination Technology Insulation Displacement (FastConnect)
Cable Outlet Angle 90 degrees
PG Receptacle Yes — included
Operating Temperature 0°C to 60°C
Width 15.8 mm
Height 59 mm
Depth 35.6 mm
Housing Material Plastic
Standard Packing Quantity 100 units per order

Full technical specifications are available on the product page at LeadTime.ca.

6ES7972-0BB52-0XA0 vs. 0BA52-0XA0 vs. 0BB52-0XB0: Which One Do You Actually Need?

Three variants cover the majority of PROFIBUS 90-degree connector requirements in SIMATIC systems. The difference between them is narrow but consequential for procurement and long-term design decisions.

Feature 6ES7972-0BB52-0XA0 (This Model) 6ES7972-0BA52-0XA0 6ES7972-0BB52-0XB0
90° Cable Outlet Yes Yes Yes
PG Socket Yes No Yes
Protocol Support PROFIBUS DP 12 Mbps PROFIBUS DP 12 Mbps PROFIBUS DP 12 Mbps
FastConnect Termination Yes Yes Yes
Dimensions 15.8 x 59 x 35.6 mm 15.8 x 59 x 35.6 mm 15.8 x 59 x 35.6 mm
Primary Use Case Programming access + production Production only New designs — updated revision
Relative Cost Baseline Lower (no PG socket) Baseline — improved supply continuity

If your project specification calls for live diagnostics or commissioning-phase programming access, the 6ES7972-0BB52-0XA0 is the correct choice. If your architecture uses PROFIBUS DP 12 Mbps and you need the same connector for a new long-term design, evaluate the 0XB0 revision for improved supply assurance — check current availability for both at LeadTime.ca.

Expert Verdict: Honest Assessment for Procurement and Integration Teams

The Siemens 6ES7972-0BB52-0XA0 earns its place in a PROFIBUS DP bill of materials specifically when two requirements coincide: 90-degree cable routing in a space-constrained panel, and the operational need to access the bus with a programming device without interrupting production. FastConnect IDC termination has a measurable practical advantage here — at scale across multi-module PROFIBUS networks, IDC reduces connector assembly time by 50 to 70 percent compared to manual crimp termination, and it eliminates the variable contact quality introduced by inconsistent screw terminal torque. The 15.8 mm width is genuinely useful in high-density panel layouts, and the approximately 10-gram weight does not add meaningful load to DIN rail assemblies. For system integrators standardizing on SIMATIC DP architectures, this is a reliable, well-characterized component that has been in production long enough to have predictable behavior across a wide range of installation scenarios.

The honest limits are worth stating. The 0°C to 60°C rated temperature range excludes outdoor installations, unheated enclosures in cold climates, or panels near heat sources. The plastic housing does not carry the ruggedness of metal-bodied alternatives if physical abuse is a risk. More practically: the PG socket creates a stub on the PROFIBUS segment, and if the PG cable is left connected during normal production rather than disconnected after diagnostics, it introduces signal reflections that can cause CRC errors or node dropouts — particularly at higher bus speeds. This is a procedural risk, not a design flaw, but it is worth documenting in commissioning handover notes. Finally, the 100-unit standard packing quantity is standard for volume panel builds but creates procurement friction for low-volume pilot projects or single-node replacements. Factor this into your order planning.

From a sourcing perspective, the 6ES7972-0BB52-0XA0 is a mature product with stable availability through authorized distributors. LeadTime.ca carries SIMATIC DP components and ships worldwide, which is relevant for international project teams or OEMs building systems that will be deployed across multiple regions. Volume pricing is available for 100-unit and larger orders. If your project schedule is tight, confirm lead time before committing to a build start date — view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following points summarize the key requirements for installing the 6ES7972-0BB52-0XA0. For full wiring diagrams and detailed commissioning procedures, refer to Siemens SIMATIC DP documentation.

  • FastConnect IDC termination requires no wire stripping — the PROFIBUS cable is inserted directly into the IDC slot to full seating depth; incomplete insertion depth is the primary source of intermittent contact faults, so verify and document insertion on first deployment
  • Mount using standard M3 hardware on a DIN rail or panel backplate; maintain at least 30 mm of clearance above the connector for cable insertion tool access; do not overtighten M3 screws into the plastic housing
  • The 90-degree outlet routes the cable perpendicular to the connector face — verify cable bend radius at the outlet does not exceed cable manufacturer specifications after final dress and tie-wrap
  • Bus termination resistors must be present at both physical ends of the PROFIBUS segment; intermediate nodes including this connector do not carry termination resistors — verify correct termination placement before powering up the segment
  • The PG receptacle should be disconnected from the bus during normal production operation; a connected but idle PG cable introduces a stub that can cause signal reflections at 12 Mbps; connect only for active diagnostic or programming sessions

Compatible System Components and Expansion

The 6ES7972-0BB52-0XA0 is part of the broader Siemens SIMATIC DP PROFIBUS ecosystem. Compatible and related system components that appear in the same procurement context include:

  • Siemens SIMATIC S7-300 and S7-400 CPUs with PROFIBUS DP master interfaces — primary controllers that the connector links to field devices
  • Siemens ET 200 distributed I/O families (ET 200S, ET 200SP, ET 200M) — remote I/O nodes that use PROFIBUS DP for communication back to the CPU
  • Siemens SIMATIC S7-1500 with CM 1542-5 PROFIBUS communications module — for installations where PROFIBUS DP is extended from a newer generation SIMATIC controller
  • 6ES7972-0BA52-0XA0 — the no-PG-socket variant for production-only PROFIBUS nodes in the same segment
  • 6ES7972-0BB52-0XB0 — the updated revision for new designs requiring long-term supply continuity alongside this model in mixed-batch procurement

What Engineers Get Wrong When Ordering This Connector

Before finalizing your order for the Siemens 6ES7972-0BB52-0XA0, work through each of the following checks. These six points reflect the most common specification and procurement errors on PROFIBUS connector orders:

  1. Confirm PROFIBUS protocol requirement (not DeviceNet, AS-Interface, or EtherCAT) before ordering
  2. Verify 90-degree outlet is needed (straight cable outlet versions exist; do not confuse)
  3. Check that FastConnect IDC termination method is compatible with your cable prep tools and training
  4. Confirm PG socket is required for your maintenance/diagnostics workflow (impacts cost and spec)
  5. Ensure operating temperature range 0-60°C covers your installation environment (outdoor or heated enclosures may exceed limits)
  6. Verify packing quantity (standard 100-unit packing may not match low-volume pilot projects)

If any of these checks raises a question about whether the 6ES7972-0BB52-0XA0 is the exact right part, contact the LeadTime.ca team before ordering — we can confirm the correct variant for your application.

Frequently Asked Questions

Can the PG socket on the 6ES7972-0BB52-0XA0 remain connected to the PROFIBUS bus during normal production?

Technically it can remain physically connected, but the recommended practice is to disconnect the PG cable after completing diagnostics or programming sessions. A connected but idle PG cable introduces a stub into the PROFIBUS segment that can cause signal reflections and CRC errors, especially at higher bus speeds up to 12 Mbps. Label the socket clearly and include disconnection as a step in your commissioning handover documentation.

What is the difference between the 6ES7972-0BB52-0XA0 and 6ES7972-0BA52-0XA0, and how do I choose?

The sole functional difference is the PG receptacle: the 0BB52-0XA0 includes the PG socket for parallel programming and diagnostic access; the 0BA52-0XA0 does not. Both connectors share the same 90-degree outlet, FastConnect IDC termination, PROFIBUS DP 12 Mbps support, and identical 15.8 x 59 x 35.6 mm dimensions. Choose the 0BB52-0XA0 when your maintenance or commissioning workflow requires live bus access; choose the 0BA52-0XA0 when it does not and cost reduction is a priority.

Does FastConnect IDC termination require any special tooling or cable preparation before installation?

No wire stripping is required — the FastConnect method uses insulation displacement contacts that pierce the cable insulation on insertion. However, the cable must be inserted to the correct seating depth, and staff should be trained on the correct insertion direction and depth before first deployment. Incomplete insertion is the primary cause of intermittent contact faults with IDC connectors. No specialized crimping tools are needed, which is part of the installation time advantage over screw terminal alternatives.

Is the 6ES7972-0BB52-0XA0 suitable for outdoor enclosures or environments above 60°C?

No. The rated ambient operating temperature is 0°C to 60°C, and the housing material is plastic. Installations in outdoor enclosures exposed to low ambient temperatures, direct sunlight heating, or proximity to heat sources exceeding 60°C require additional thermal management or a different connector specification. If your environment exceeds these limits, consult Siemens documentation for higher-rated alternatives or specify an appropriate enclosure to maintain the required ambient condition around the connector.

Why does the standard packing quantity matter for procurement, and can I order fewer than 100 units?

The 6ES7972-0BB52-0XA0 is packed in a standard quantity of 100 units per order. For production-scale panel builds this is efficient, but for pilot projects, single-node replacements, or small retrofit jobs, it can create overstock. Contact LeadTime.ca directly to discuss options for your specific volume requirement — available inventory and minimum order configurations can vary by distributor and order timing.

How does PROFIBUS DP network stability relate to the connector selection, specifically regarding bus termination?

Bus termination resistors must be present only at both physical ends of the PROFIBUS DP segment — not at intermediate nodes. The 6ES7972-0BB52-0XA0 is used as an intermediate or end-node connector; verify that only the two physical end connectors in the segment carry active termination. Incorrect termination placement is a common source of communication errors in PROFIBUS networks and is separate from connector selection, but it is worth confirming during commissioning using the PG socket diagnostics capability this connector provides.

Why Source the 6ES7972-0BB52-0XA0 Through LeadTime.ca

  • LeadTime.ca ships Siemens SIMATIC DP components worldwide — no geographic restriction on orders
  • Volume pricing available for 100-unit and larger PROFIBUS connector orders; contact for quote on project-scale procurement
  • Hard-to-find or time-sensitive SIMATIC parts sourced through an established distributor network with direct access to authorized supply channels
  • Fast response on lead time confirmation — critical when connector availability affects a project build schedule
  • Single-source procurement option for mixed SIMATIC DP connector variant orders (0BB52-0XA0 and 0BA52-0XA0 in the same order)

At-a-Glance Summary

  • Product: Siemens 6ES7972-0BB52-0XA0 — SIMATIC DP Connection plug for PROFIBUS with 90-degree outlet, FastConnect IDC termination, and integrated PG receptacle
  • Protocol: PROFIBUS DP up to 12 Mbps
  • Termination: FastConnect insulation displacement — no wire stripping required; reduces assembly time 50–70% versus manual crimp methods at scale
  • Dimensions: 15.8 mm (W) x 59 mm (H) x 35.6 mm (D); weight approximately 10 grams
  • Operating temperature: 0°C to 60°C; plastic housing; indoor control cabinet rated
  • PG socket: Yes — enables parallel programming and diagnostics on a live PROFIBUS bus without interrupting communication
  • Standard packing: 100 units per order — plan procurement volume accordingly for pilot versus production projects
  • Key alternatives: 6ES7972-0BA52-0XA0 (no PG socket, lower cost) and 6ES7972-0BB52-0XB0 (updated revision, improved long-term supply)
  • Available worldwide through LeadTime.ca — check pricing and stock now
