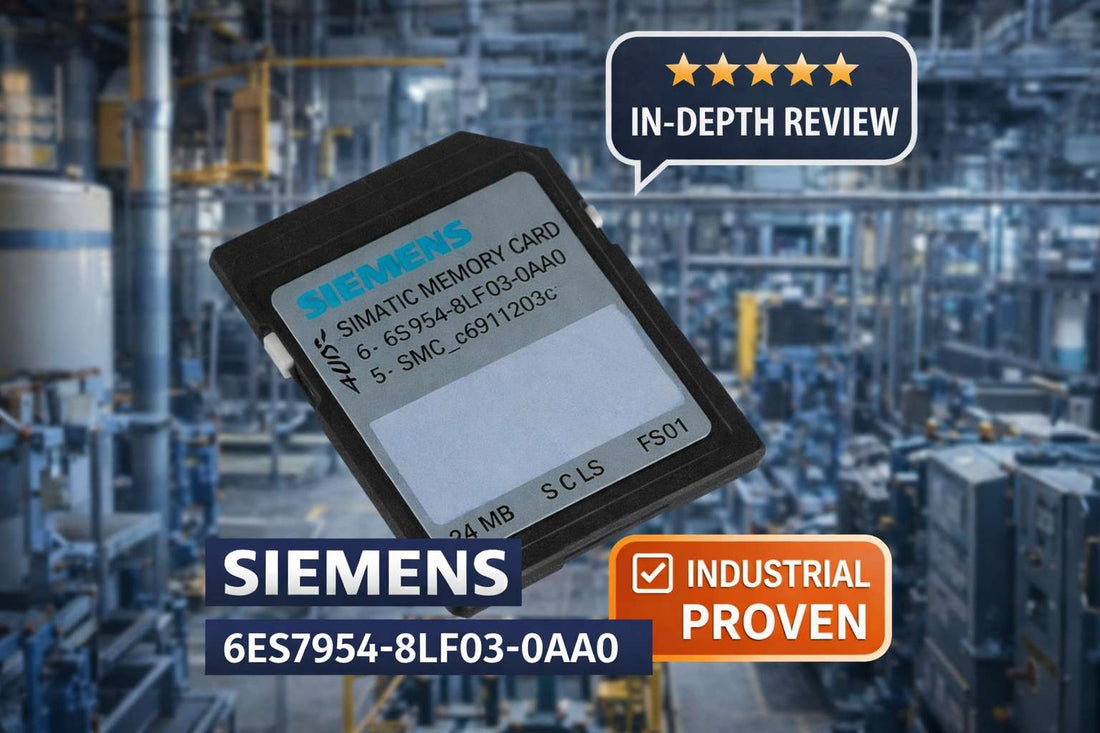

Siemens 6ES7954-8LF03-0AA0 24 MB Flash-EPROM memory card for SIMATIC S7-1x00 CPU modules

Siemens 6ES7954-8LF03-0AA0 SIMATIC S7 Memory Card for S7-1x00 CPU / SINAMICS, 3.3V Flash, 24 MB — Specifications, Alternatives and Sourcing Guide

If you are searching for the Siemens 6ES7954-8LF03-0AA0 by model number, you are almost certainly in one of two situations: a memory card has failed in a running S7-1x00 system and you need a verified replacement fast, or you are auditing spare parts inventory before the next maintenance window. Either way, the critical facts are these — this is a 24 MB Flash-EPROM memory card operating at 3.3V DC, designed exclusively for SIMATIC S7-1x00 CPU modules and SINAMICS drive systems using those same control modules, with a proprietary 24mm x 32mm x 2.1mm form factor that does not interchange with S7-1200, S7-1500, or any other S7 family. A phase-out announcement was issued on 04/24/2024, which directly affects sourcing strategy and lead time planning.

If you have already confirmed this is the right part for your system, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Order the 6ES7954-8LF03-0AA0 — and Who Should Not

This memory card is the correct procurement choice when all of the following conditions apply to your application:

  • Your CPU is confirmed within the SIMATIC S7-1x00 series — verified from the PLC nameplate, not from memory
  • Your mainboard has the proprietary 24mm x 32mm Flash memory card slot — not an SD slot, not a USB port
  • Your CPU mainboard supplies 3.3V DC to the memory card slot
  • Your application program plus all datasets fits within 24 MB of storage capacity
  • Your maintenance schedule can absorb a 4–8 week lead time, which is realistic for a spare part with phase-out status
  • You require a minimum of 500,000 write/erase cycle endurance and up to 10 years data retention for lightly written cards

If your system is an S7-1200 or S7-1500 platform, stop here — those CPUs use a completely different storage architecture and this card will not fit or function. If you need more than 24 MB, the 2 GB variant 6ES7954-8LP03-0AA0 is the correct upgrade path. If cost savings are the priority and 12 MB is sufficient, the 6ES7954-8LE03-0AA0 is the lower-capacity alternative.

On this page:

What the 6ES7954-8LF03-0AA0 Actually Does in Your System

The Siemens 6ES7954-8LF03-0AA0 is a Flash-EPROM spare part memory card that plugs directly into the memory card slot on a compatible SIMATIC S7-1x00 CPU or SINAMICS control module. Its role is straightforward: it provides 24 MB of external Flash storage when the CPU's internal memory is either insufficient for the application program or when the system design calls for external storage of firmware images, data logs, or large dataset blocks.

Flash-EPROM technology means the card is non-volatile — stored data persists through power cycles — and it is reconfigurable, so programs can be downloaded and updated over the card's service life. The rated endurance is a minimum of 500,000 write/erase cycles. Data retention is rated at 10 years for cards used below 50,000 write cycles, dropping to 1 year for cards that have exceeded 450,000 cycles. These retention figures are engineering constraints, not marketing estimates, and they have real implications for preventive maintenance scheduling in high-write applications such as continuous data logging.

The card weighs approximately 3 grams and measures 24mm wide by 32mm high by 2.1mm deep — a proprietary Siemens form factor that physically prevents installation in incompatible slots. It operates on 3.3V DC supplied by the CPU mainboard. Maritime certifications from NK (Nippon Kaiji Kyokai) and CCS (China Classification Society) mean the card is approved for deployment in marine and offshore environments where standard industrial components may not be cleared.

Where This Card Sits in a Typical S7-1x00 Architecture

The 6ES7954-8LF03-0AA0 sits at the CPU level of the control hierarchy, inserted directly into the memory card slot on the S7-1x00 CPU module, extending its addressable storage for program and data management.

  • Engineering workstation running STEP 7 programming software connects to the CPU via Profibus or Ethernet
  • SIMATIC S7-1x00 CPU module receives and executes the control program; memory card slot is located on the CPU faceplate or mainboard
  • 6ES7954-8LF03-0AA0 card inserts into the CPU memory card slot and serves as the designated external storage target for program download, firmware images, or data logging output
  • For SINAMICS drive applications, the same card installs into the S7-1x00 control module integrated with the drive system
  • Field devices — I/O modules, sensors, actuators — communicate through the CPU; the memory card is transparent to the field device layer but supports the CPU's ability to manage larger programs controlling those devices

Which Industries and Applications Use This Memory Card

Discrete manufacturing plants — automotive assembly, packaging machinery, and general-purpose production lines — represent the largest installed base for SIMATIC S7-1x00 systems. In these environments, the 6ES7954-8LF03-0AA0 is most commonly procured as an emergency spare following card failure, or as a preventive replacement during planned maintenance shutdowns for systems that are 5 or more years into their operational life.

Batch process industries including pharmaceutical manufacturing, food and beverage blending, and chemical processing frequently use external memory cards for logging batch records, recipe datasets, and audit trail data that exceeds internal CPU storage. The 24 MB capacity is sufficient for mid-complexity recipe libraries in these environments without requiring a platform upgrade.

Utilities and water treatment infrastructure, mining operations, and rail trackside control systems also run legacy S7-1x00 deployments where replacing the entire PLC platform is not economically justified. For these operators, sourcing a verified OEM spare part is preferable to triggering a full system redesign over a component failure.

Marine and offshore installations specifically benefit from the NK and CCS maritime certifications — very few industrial memory components carry both approvals, which is why this part remains relevant in vessel automation and offshore platform control systems even as its phase-out date passes.

Application Typical Deployment
Emergency spare — production line failure S7-1x00 CPU memory card fails mid-shift; urgent replacement ordered to restore operation
Batch process data logging Recipe and audit trail data exceeds internal CPU memory; external 24 MB card added
Preventive maintenance stock Maintenance manager validates part number against BOM; orders ahead of planned 5-year service interval
Marine and offshore control systems NK/CCS-certified card installed in vessel or platform automation system
Mining and infrastructure monitoring Legacy S7-1x00 system in underground monitoring role; card replaced without platform redesign
SINAMICS drive firmware storage Drive system stores firmware image on external card via S7-1x00 control module

Specifications That Drive the Purchase Decision

Specification Value
Memory Type Flash-EPROM (non-volatile, reconfigurable)
Storage Capacity 24 MB
Supply Voltage 3.3V DC
Write/Erase Cycles (minimum) 500,000 cycles
Data Retention (below 50,000 cycles) 10 years
Data Retention (above 450,000 cycles) 1 year
Dimensions (W x H x D) 24 mm x 32 mm x 2.1 mm
Weight Approximately 3 grams
Product Status Spare part; phase-out announced 04/24/2024
Maritime Certifications NK (Nippon Kaiji Kyokai), CCS (China Classification Society)

Full technical specifications are available on the product page at LeadTime.ca.

6ES7954-8LF03-0AA0 vs. 8LE03 vs. 8LP03 — Which Variant Do You Actually Need?

Model Number Capacity Supply Voltage Target Use Case Availability Status
6ES7954-8LE03-0AA0 12 MB 3.3V Cost-sensitive applications with light storage requirements Spare part (limited availability)
6ES7954-8LF03-0AA0 24 MB 3.3V Mid-range storage for legacy S7-1x00 systems Spare part (phase-out announced 04/2024)
6ES7954-8LP03-0AA0 2 GB 3.3V High-capacity data logging and modern successor deployments Spare part (modern successor — current)

The 24 MB model sits between two well-defined use cases. If your program and dataset footprint is confirmed at or below 24 MB and you are maintaining an existing S7-1x00 deployment, the 6ES7954-8LF03-0AA0 remains the direct OEM-matched replacement. If your application stores large data logs, multiple firmware revisions, or you are making a forward-looking spare parts decision, the 2 GB variant is the more defensible long-term choice. The 12 MB variant makes sense only where storage requirements have been explicitly validated as below that threshold and cost is the primary driver. All three variants share the same 3.3V supply requirement and the same proprietary 24mm x 32mm form factor — check current availability and pricing at LeadTime.ca to confirm which variants are in stock before committing to an order.

Expert Verdict: Honest Assessment for Maintenance and Procurement Teams

The Siemens 6ES7954-8LF03-0AA0 does one thing well: it gives you a manufacturer-certified, OEM-sourced memory card that slots directly into an existing S7-1x00 system without any compatibility guesswork. For a plant running legacy SIMATIC S7-1x00 equipment with 24 MB program storage requirements, this is the correct part number — not a close match, not a workaround, the exact part. The 500,000-cycle endurance rating and the dual NK/CCS maritime certifications are genuine differentiators that justify OEM pricing over commodity alternatives. For discrete manufacturing, batch processing, and marine applications already committed to the S7-1x00 platform, this card remains a legitimate and supportable choice.

The honest limits are these: the phase-out announcement of 04/24/2024 means this model is no longer in active distribution — procurement goes through Siemens Repair and Replacement channels, and lead times of 4–8 weeks are realistic, not pessimistic. Buyers who discover a failed card on a Friday afternoon will not have a replacement by Monday. If your operation cannot absorb that kind of downtime exposure, the correct response is to stock a spare now, not after the next failure. For any system where storage requirements are growing, where multi-year platform continuity is uncertain, or where a full platform refresh is already under budget discussion, the 2 GB variant 6ES7954-8LP03-0AA0 is a better long-term investment. The 6ES7954-8LF03-0AA0 is not the part for future-proofing — it is the part for maintaining what you have.

From a procurement standpoint, sourcing this card outside authorized channels introduces real risk. Counterfeit and substandard memory components are a documented problem in the industrial spare parts market, and a failed counterfeit card in a production PLC costs far more than the price difference. LeadTime.ca sources through authorized supply chains and ships worldwide, which matters when your plant is not in a major distribution hub. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing, lead time confirmation before committing to a maintenance budget, or to discuss stocking arrangements for multiple S7-1x00 systems across your plant, contact the LeadTime.ca team directly — we ship worldwide.

Installation Overview: What to Verify Before You Insert the Card

  • Always power down the CPU module completely before handling the memory card — the card slot is not designed for hot-swap insertion, and static discharge during live installation can damage the slot connector permanently
  • Confirm the memory card slot on your CPU is the correct 24mm x 32mm proprietary format — not an SD card slot, not a USB interface — and that it is free of debris and not already populated with an existing card
  • Orient the card with the contact fingers facing the mainboard and align with the slot guides before inserting — the connector is keyed, but forcing a misaligned card can bend connector pins
  • After powering the CPU back on, allow up to 60 seconds for the card to initialize before accessing it through STEP 7 — the CPU will indicate card recognition through its LED state change pattern
  • Before downloading any program to the card, verify in STEP 7 that the detected card capacity reads as 24 MB and that your total program size including all data blocks does not exceed that capacity

Wrong-Part Prevention Checklist — Read Before You Order

Before placing an order for the 6ES7954-8LF03-0AA0, confirm every item on this checklist. Each point represents a real procurement mistake that has resulted in delayed maintenance, damaged hardware, or stranded inventory in S7-1x00 deployments.

  1. Verify CPU model is within S7-1x00 series; confirm by checking PLC nameplate
  2. Confirm PLC mainboard accepts 24x32mm Flash memory cards (not SD cards, not USB)
  3. Check system voltage requirement: PLC must supply 3.3V to memory card slot
  4. Confirm application program size plus datasets does not exceed 24 MB capacity
  5. Verify memory card slot is functional and not already populated with a card
  6. Check if CPU supports program upload to memory card (some legacy variants do not)
  7. Ensure procurement is from authorized Siemens channel (spare part supply chain) to avoid counterfeits
  8. Confirm product is for S7-1x00 CPU, NOT for S7-1200, S7-1500, or other S7 families

If any of these checks raises a question you cannot answer from available documentation, contact a technical team before ordering — the LeadTime.ca team can help confirm compatibility before you commit.

Frequently Asked Questions

Is the 6ES7954-8LF03-0AA0 still available to purchase, or has the phase-out made it impossible to source?

The phase-out announcement from 04/24/2024 means the card is no longer in active standard distribution, but it remains available as a spare part through the Siemens Repair and Replacement channel and through authorized distributors with remaining inventory. Realistic lead times are 4–8 weeks. If you need this part, the time to order is now rather than after the next failure event.

Can the 6ES7954-8LF03-0AA0 be used in an S7-1200 or S7-1500 CPU?

No. The S7-1200 and S7-1500 platforms use different internal storage architectures — the S7-1500 uses integrated eMMC storage with no external memory card slot. The 24mm x 32mm proprietary form factor of the 6ES7954-8LF03-0AA0 is specific to the S7-1x00 CPU family and SINAMICS systems using those control modules. Physical installation is not possible on incompatible platforms.

What is the practical difference between the 24 MB and 2 GB variants for a typical manufacturing application?

For most mid-scale PLC applications running a single control program with moderate data logging, 24 MB is sufficient. The 2 GB variant 6ES7954-8LP03-0AA0 becomes relevant when storing large recipe libraries, extended batch records, multiple firmware images, or when planning for data volume growth over a 5–10 year horizon. Both variants share the same 3.3V supply requirement and the same physical form factor, so upgrading from the 24 MB to the 2 GB model does not require hardware changes to the CPU.

How do I know when my 6ES7954-8LF03-0AA0 is approaching end of service life?

The card has a minimum rated endurance of 500,000 write/erase cycles. Data retention drops to 1 year once the card has exceeded 450,000 cycles, compared to 10 years for cards below 50,000 cycles. Write cycle counts can be reviewed through the CPU diagnostics interface in STEP 7. For high-write applications such as continuous data logging, monitoring write cycle accumulation and scheduling preventive replacement before the 450,000-cycle threshold is the correct maintenance approach.

What certifications does the 6ES7954-8LF03-0AA0 carry for marine and offshore use?

The card carries NK (Nippon Kaiji Kyokai) and CCS (China Classification Society) maritime certifications, making it one of the few industrial PLC memory components approved for use in vessel automation and offshore platform control systems. If your application requires documented maritime compliance, confirm these certifications are listed on the product documentation supplied with the card at time of purchase.

What happens if the 6ES7954-8LF03-0AA0 becomes completely unavailable and I still have S7-1x00 systems running?

The 2 GB variant 6ES7954-8LP03-0AA0 is the functionally compatible modern successor and is currently available. If platform-level migration becomes necessary, SIMATIC S7-1200 and S7-1500 CPUs use integrated storage with no external memory card requirement, but that path involves full CPU replacement rather than a direct card swap. The most defensible near-term strategy is to order and stock spare cards now while authorized supply chain inventory exists.

Why Source the 6ES7954-8LF03-0AA0 Through LeadTime.ca

  • Ships worldwide — whether your facility is in North America, Europe, Asia-Pacific, or another region, LeadTime.ca can fulfill and ship to your location
  • Authorized supply chain sourcing — spare parts are procured through verified channels, reducing counterfeit risk for a part where phase-out status increases gray market exposure
  • Volume pricing available — for procurement teams stocking multiple units ahead of the phase-out window, contact the team for quantity pricing before the order is placed
  • Fast response for urgent inquiries — if a production system is down and you need lead time confirmation before committing budget, the team can respond with current availability information quickly

At-a-Glance Summary

  • Part number: Siemens 6ES7954-8LF03-0AA0 — 24 MB Flash-EPROM memory card for SIMATIC S7-1x00 CPU and SINAMICS systems
  • Supply voltage: 3.3V DC — CPU mainboard must supply this voltage to the memory card slot
  • Physical form factor: 24mm x 32mm x 2.1mm, approximately 3 grams — proprietary Siemens connector, not interchangeable with SD or USB
  • Endurance: Minimum 500,000 write/erase cycles; data retention 10 years below 50,000 cycles, 1 year above 450,000 cycles
  • Product status: Spare part — phase-out announced 04/24/2024; procurement lead time 4–8 weeks through authorized channels
  • Maritime certifications: NK and CCS approved for marine and offshore applications
  • Direct variants: 12 MB (6ES7954-8LE03-0AA0) and 2 GB (6ES7954-8LP03-0AA0) — same voltage and form factor, different capacities
  • Not compatible with: S7-1200, S7-1500, or any non-S7-1x00 CPU families
  • Original delivery release: 10/13/2017
