Siemens 6ES7954-8LE03-0AA0 — 12MB Memory Card Replacement Guide

By Abdullah Zahid
12 min read

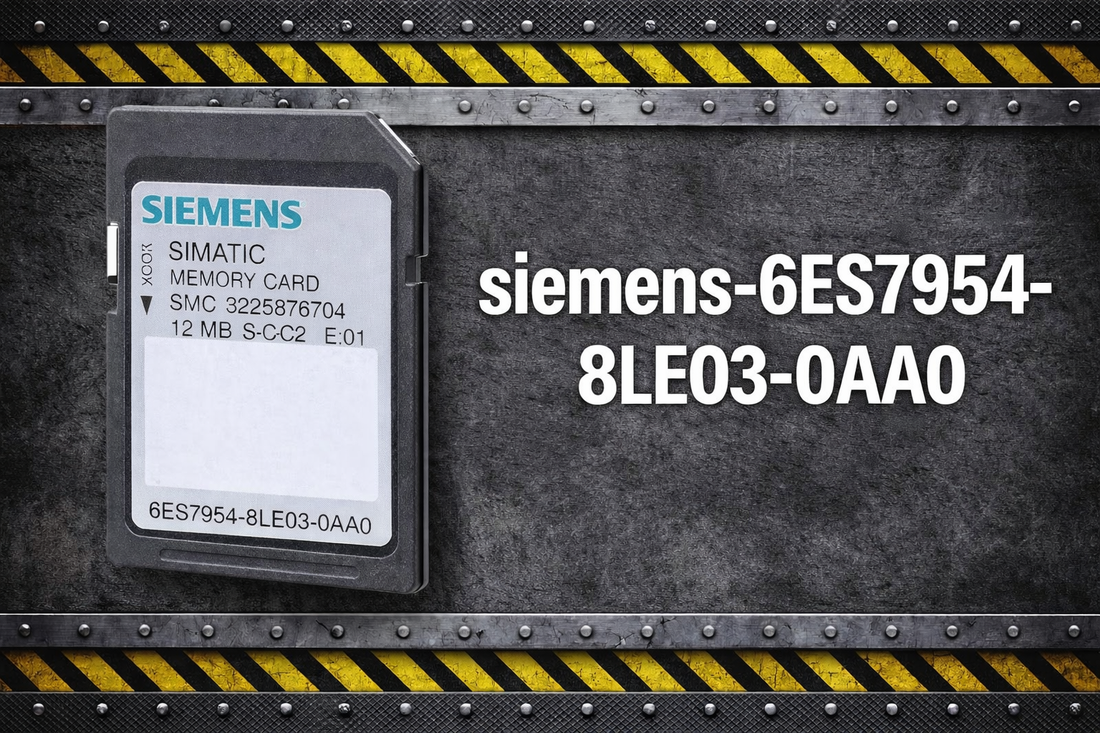

Siemens 6ES7954-8LE03-0AA0 SIMATIC S7 12MB Flash-EPROM memory card for S7-1200 and S7-1100 CPU

Siemens 6ES7954-8LE03-0AA0 SIMATIC S7 Memory Card, 12 MB — Specifications, Replacement Strategy, and Availability Guide

If you are sourcing a replacement memory card for a SIMATIC S7-1200 or S7-1100 installation, you are likely already aware that time is working against you. The Siemens 6ES7954-8LE03-0AA0 — a 12 MB Flash-EPROM micro memory cartridge operating at 3.3V — was discontinued on October 1, 2024, and global distributor stock is actively depleting. This guide gives you the compatibility verification, specification data, and procurement strategy you need to make the right call: source remaining stock of the 6ES7954-8LE03-0AA0, or transition to the verified drop-in replacement, the 6ES7954-8LE04-0AA0.

If you have already confirmed this is the right part for your system, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Order the 6ES7954-8LE03-0AA0 — and Who Should Order Something Else

This card is the correct choice for engineers and procurement teams maintaining existing SIMATIC S7-1100 or S7-1200 deployments where OEM-specified parts are required and 12 MB capacity is sufficient for the installed control program.

  • Your CPU is a SIMATIC S7-1100 or S7-1200 — all variants (not S7-300, S7-400, or S7-1500)
  • Your system requires a 3.3V Flash-EPROM card — not a 5V module or any other chemistry
  • The physical card slot accepts a 24 mm x 32 mm x 2.1 mm micro memory cartridge
  • Your control program fits within 12 MB of usable storage capacity
  • Write cycle demand is within the 500,000 minimum cycle rating of the installed or replacement card
  • Your engineering environment runs TIA Portal or STEP 7 Classic — both are confirmed compatible

If your system has migrated to the S7-1500 platform, requires more than 12 MB of program storage, or you cannot source this discontinued part before your maintenance window, the 6ES7954-8LE04-0AA0 is the identical form factor replacement with 16 MB capacity and current availability — see the variant comparison table below.

On this page:

What the 6ES7954-8LE03-0AA0 Actually Does in a SIMATIC System

The Siemens 6ES7954-8LE03-0AA0 is classified officially as a SIMATIC S7 Memory Card, 12 MB (spare part). In practical terms, it is the removable storage medium that holds the user-created control logic, recipe data, and operational parameters for a SIMATIC S7-1100 or S7-1200 CPU. Without a functional memory card, the CPU cannot execute stored programs across power cycles — making this a direct production-critical component, not an optional accessory.

The card uses Flash-EPROM technology at 3.3V DC, with a minimum write/delete cycle rating of 500,000 cycles and a data retention window of 10 years under normal operating conditions — specifically when write cycles remain below 50,000. That retention window drops to 1 year if the card has accumulated more than 450,000 write-delete cycles, which is a critical fact for maintenance teams managing aging spares. The 12 MB capacity covers small to mid-sized control programs typical of discrete manufacturing and process control installations running on the S7-1200 platform.

Beyond persistent program storage, the card functions as a physical transfer medium. Engineers use it to move tested logic between development, test, and production systems without a live network connection — a workflow that remains common in facilities with strict change management controls or air-gapped production networks. The card also provides the fastest path to disaster recovery after CPU memory corruption or logic loss, provided a current backup exists on the card.

Where This Card Sits in a Typical S7-1200 System Architecture

The 6ES7954-8LE03-0AA0 sits directly inside the memory card slot of the SIMATIC S7-1100 or S7-1200 CPU module, acting as the persistent storage layer between the CPU's internal logic execution engine and any downstream field devices or HMI systems.

  • Engineering workstation running TIA Portal or STEP 7 Classic — develops and compiles control logic offline
  • Memory card loaded with compiled program — physically transferred or written via online connection
  • SIMATIC S7-1200 CPU — reads program from the 6ES7954-8LE03-0AA0 card on power-up and executes the stored logic
  • Signal modules and distributed I/O — receive control outputs and send process inputs to the executing CPU program
  • Field devices (drives, valves, sensors) — operate under the logic stored on the memory card via CPU execution

Industries and Use Cases That Rely on This Card

Discrete manufacturing environments — particularly automotive assembly, food and beverage packaging, and pharmaceutical production — represent the highest concentration of installed SIMATIC S7-1200 platforms still running this memory card format. In these settings, the card enables consistent program deployment across multiple identical machine cells, and supports rapid changeover by loading recipe data from a pre-configured card rather than through live engineering connections.

Process control installations in water treatment and building automation also depend on this card for program archival before scheduled maintenance windows. The ability to store a verified backup of running logic on a 3-gram, 24 mm x 32 mm physical card makes it a practical component in any preventive maintenance kit for S7-1200-equipped systems.

The NK (Nippon Kaiji Kyokai) and CCS (China Classification Society) certifications on this card confirm its suitability for marine and offshore applications — a detail that matters for plant engineers specifying spares for shipboard control systems, offshore platform HVAC, or maritime automation equipment where environmental exposure and regulatory approval both apply.

OEM machine builders and system integrators maintaining legacy SIMATIC S7-1100 and S7-1200 platforms in field installations use this card as a standard service spare — stocked alongside CPU modules and signal cards for emergency dispatch to customer sites.

Application Typical Deployment
Automotive assembly Program transfer between S7-1200 controllers on identical machine cells; rapid line changeover
Food and beverage packaging Recipe storage and batch parameter management on S7-1200 CPU; card-based changeover
Pharmaceutical production Validated program archival before maintenance; disaster recovery after logic loss
Water treatment / process control Backup storage of control logic before firmware updates or scheduled outages
Marine and offshore systems NK/CCS-certified deployments in shipboard automation and offshore HVAC control
OEM field service Spare parts inventory for legacy S7-1100/1200 machines deployed at customer facilities

Key Specifications for Purchase Decision

Specification Value
Memory Type Flash-EPROM (3.3V)
Memory Capacity 12 MB
Operating Voltage 3.3V DC
Write/Delete Cycles (minimum) 500,000
Data Retention (below 50,000 cycles) 10 years minimum
Data Retention (above 450,000 cycles) 1 year minimum
Dimensions (W x H x D) 24 mm x 32 mm x 2.1 mm
Weight 3 grams
Compatible CPU Series SIMATIC S7-1100, S7-1200
Product Status Discontinued October 1, 2024; succeeded by 6ES7954-8LE04-0AA0

Full technical specifications are available on the product page at LeadTime.ca.

6ES7954-8LE03-0AA0 vs. 6ES7954-8LE04-0AA0: Which One Do You Actually Need?

Feature 6ES7954-8LE03-0AA0 6ES7954-8LE04-0AA0
Memory Capacity 12 MB 16 MB
Memory Type Flash-EPROM 3.3V Flash-EPROM 3.3V
Write Cycles (minimum) 500,000 500,000
Form Factor (W x H x D) 24 x 32 x 2.1 mm 24 x 32 x 2.1 mm (identical)
Voltage 3.3V 3.3V
Compatibility: S7-1100 Yes Yes
Compatibility: S7-1200 Yes Yes
Physical Installation Drop-in Drop-in
Data Retention 10 years (conditional on cycle count) 10 years (conditional on cycle count)
Product Status (Feb 2026) Discontinued October 2024 Current / Available
Typical Lead Time 4–8 weeks (stock dependent) 2–4 weeks (typical)

For new orders where the 6ES7954-8LE03-0AA0 is unavailable, the 6ES7954-8LE04-0AA0 is a verified drop-in replacement with identical form factor and protocol — check current stock and pricing for both variants at LeadTime.ca.

CPU and Platform Compatibility — What Works and What Doesn't

CPU / Platform Compatibility Notes
SIMATIC S7-1100 Full All variants; form factor identical
SIMATIC S7-1200 Full All variants; form factor identical
S7-1200 CPU 1214C (compact) Full Verify slot access before ordering
SIMATIC S7-1500 Not Compatible Different memory architecture required
SIMATIC S7-300 Not Compatible Requires different cartridge format
SIMATIC S7-400 Not Compatible Legacy cartridge type incompatible
SINAMICS G110M Partial Verify firmware revision support
SINAMICS G120 Partial Check SINAMICS manual for memory card configuration
TIA Portal v17+ Full Backward compatible with earlier versions
STEP 7 Classic Full Legacy support confirmed

The most common compatibility mistake engineers encounter is attempting to use the 6ES7954-8LE03-0AA0 in an S7-1500 system. The S7-1500 uses a fundamentally different memory architecture and will not recognize this card. Similarly, S7-300 and S7-400 systems require different cartridge form factors entirely — the 24 mm x 32 mm x 2.1 mm micro card will not physically seat correctly in older DIN-format CPU modules. Confirm your CPU faceplate model number before ordering.

For SINAMICS G110M and G120 frequency converter applications, compatibility is partial and firmware-revision dependent. Always verify the specific SINAMICS manual for the installed drive variant before specifying this memory card as a storage solution for drive parameter backup.

Expert Verdict: Discontinued Part, Live System — What Should You Do?

The 6ES7954-8LE03-0AA0 is a proven, industrially certified memory card with a long deployment record across automotive, food and beverage, pharmaceutical, and maritime applications. Its 500,000 minimum write-delete cycle rating and 10-year data retention window under normal cycle loads represent a genuine industrial-grade specification — not a marketing claim. For engineers maintaining legacy SIMATIC S7-1100 and S7-1200 installations, this card has been a reliable and well-understood component of the standard maintenance toolkit. The backward compatibility with both TIA Portal and STEP 7 Classic engineering environments is a genuine operational advantage for organizations that have not upgraded their software platforms.

The honest assessment for procurement teams: sourcing the original 6ES7954-8LE03-0AA0 in 2026 is a timing-sensitive exercise. The product was discontinued on October 1, 2024, and remaining distributor stock is depleting. If your application requires the exact OEM part number for documentation or warranty compliance, move quickly. If your application is flexible on part number but requires immediate availability, the 6ES7954-8LE04-0AA0 is the direct successor — identical 24 mm x 32 mm x 2.1 mm form factor, same 3.3V Flash-EPROM chemistry, same 500,000 write cycle minimum, and a larger 16 MB capacity that accommodates growing program sizes without any hardware modification. The only scenario where the 6ES7954-8LE04-0AA0 is not appropriate is a strict OEM documentation requirement for the original catalog number — and even then, the engineering case for the replacement is strong.

Lead times for the discontinued 6ES7954-8LE03-0AA0 are running 4–8 weeks from available stock, with availability uncertain. For mission-critical spare parts applications — particularly in food and beverage or pharmaceutical environments with validated production systems — we recommend ordering 2 to 3 units when stock is confirmed available, not ordering one at a time as failures occur. If this matches your procurement situation, view current stock and pricing at LeadTime.ca before the inventory window closes.

For volume pricing, confirmation of the 6ES7954-8LE04-0AA0 as an approved substitution for your specific CPU, or to verify lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

Installation and Wiring Overview

  • Power down the SIMATIC S7-1100 or S7-1200 CPU and confirm zero voltage at the terminal block before inserting or removing the memory card — hot-swapping risks data corruption and static discharge damage
  • The 6ES7954-8LE03-0AA0 uses a micro card slot on the CPU faceplate; match the alignment notch on the card to the corresponding slot guide and press gently until fully seated — no force should be required
  • After restoring power, verify CPU LED status matches the expected pattern for your CPU variant before proceeding to any TIA Portal or STEP 7 diagnostic checks
  • Handle the card using anti-static precautions in environments below 40% relative humidity; store in the anti-static packaging when not installed
  • Confirm in TIA Portal or STEP 7 diagnostics that the CPU recognizes the card at 12 MB capacity before initiating any program load or backup operation

What Engineers Get Wrong When Ordering This Part — Wrong-Part Prevention Checklist

Before placing your order, verify each of the following points against your installed hardware. These are the most common sources of incorrect orders for the 6ES7954-8LE03-0AA0 and its replacement variants.

  1. Verify CPU model: S7-1100 or S7-1200 only (S7-300/400 use different cartridges; S7-1500 incompatible)
  2. Check voltage specification: 3.3V Flash-EPROM (not 5V or other chemistry)
  3. Confirm card slot physical match: 24x32x2.1mm micro form factor (not full-size DIN modules)
  4. Test data retention requirement: 10-year minimum is typical; confirm application does not require longer archival
  5. Assess write-cycle history: if module already near 500,000 cycles, replacement urgent
  6. Check current discontinuation status: verify replacement 6ES7954-8LE04-0AA0 is compatible before ordering

If any of these checks raise a compatibility question before your order, contact the LeadTime.ca team — we can confirm part compatibility and check live inventory before you commit.

Frequently Asked Questions

Can I use the 6ES7954-8LE04-0AA0 as a direct replacement for the 6ES7954-8LE03-0AA0 without modifying my program?

Yes. The 6ES7954-8LE04-0AA0 shares the identical 24 mm x 32 mm x 2.1 mm form factor, the same 3.3V Flash-EPROM protocol, and full compatibility with SIMATIC S7-1100 and S7-1200 CPUs. The only difference is the increase from 12 MB to 16 MB of usable storage capacity. Your existing control program and data will transfer without modification. Siemens documentation confirms this as the authorized successor model following the October 1, 2024 discontinuation of the 6ES7954-8LE03-0AA0.

How do I know if my installed 6ES7954-8LE03-0AA0 is approaching end of life?

The card carries a minimum rating of 500,000 write-delete cycles. Data retention degrades from a 10-year window to a 1-year window once the card exceeds 450,000 cycles. If your SIMATIC S7-1200 performs frequent automated backups or recipe writes, cycle accumulation can be significant over years of operation. TIA Portal diagnostics can surface memory card status information; consult your CPU documentation for the specific diagnostic path. If in doubt, replace the card proactively rather than waiting for a failure in a production environment.

What happens if I install the 6ES7954-8LE03-0AA0 in an S7-1500 CPU by mistake?

The S7-1500 uses a fundamentally different memory architecture and will not recognize the 6ES7954-8LE03-0AA0. The card will not cause CPU damage in most cases, but it will not be detected as a valid storage device. S7-1500 systems require memory modules specifically designed for that platform. Verify your CPU model number from the faceplate label before ordering any SIMATIC memory card.

Is the 6ES7954-8LE03-0AA0 still available to order, and what is the current lead time?

The 6ES7954-8LE03-0AA0 was discontinued on October 1, 2024. Remaining stock exists in global distribution networks, but inventory is actively depleting. Lead times for available stock are typically 4–8 weeks, with no guarantee of continued availability beyond current stock levels. For confirmed availability and current pricing, check the product page at LeadTime.ca.

Does the 6ES7954-8LE03-0AA0 work with STEP 7 Classic, or only with TIA Portal?

Both engineering environments are fully supported. The 6ES7954-8LE03-0AA0 is confirmed compatible with TIA Portal (v14 and later, including v17+) and with STEP 7 Classic. This backward compatibility means organizations that have not yet migrated to TIA Portal can continue using this card with their existing software licensing and project structures without forced upgrades.

What is the difference between the 6ES7954-8LE03-0AA0 and the 6ES7954-8LC03-0AA0?

These two catalog numbers differ in memory capacity. The 6ES7954-8LE03-0AA0 provides 12 MB of storage, while the 6ES7954-8LC03-0AA0 provides 4 MB. Both use the same 3.3V Flash-EPROM technology and micro card form factor. Ordering the wrong variant by confusing the "LE" and "LC" characters in the model number is one of the most common procurement errors for this product family — always verify the full model number character-by-character before placing an order.

Why Order From LeadTime.ca

  • LeadTime.ca ships industrial automation components worldwide — no regional restrictions on orders
  • Specializes in sourcing hard-to-find and discontinued parts including legacy SIMATIC S7 components
  • Live inventory visibility and direct quote response for volume or urgent orders
  • Volume pricing available for OEM spare parts stocking programs — contact the team for contract terms
  • Both the 6ES7954-8LE03-0AA0 and its replacement 6ES7954-8LE04-0AA0 can be sourced through a single order

At-a-Glance Summary

  • Official product name: SIMATIC S7 Memory Card, 12 MB (spare part); catalog number 6ES7954-8LE03-0AA0
  • Memory type: Flash-EPROM, 3.3V DC; capacity 12 MB
  • Physical dimensions: 24 mm wide x 32 mm high x 2.1 mm deep; weight 3 grams
  • Write/delete cycle rating: 500,000 minimum cycles
  • Data retention: 10 years minimum (below 50,000 cycles); 1 year minimum (above 450,000 cycles)
  • Compatible CPU platforms: SIMATIC S7-1100 and S7-1200 only — S7-300, S7-400, and S7-1500 are not compatible
  • Software compatibility: TIA Portal v14 and later; STEP 7 Classic — both fully supported
  • Certifications: NK (Nippon Kaiji Kyokai) and CCS (China Classification Society) for maritime applications
  • Product status: Discontinued October 1, 2024; authorized replacement is 6ES7954-8LE04-0AA0 (16 MB, identical form factor)
  • Typical lead time for remaining stock: 4–8 weeks; replacement 6ES7954-8LE04-0AA0 available in 2–4 weeks typical
