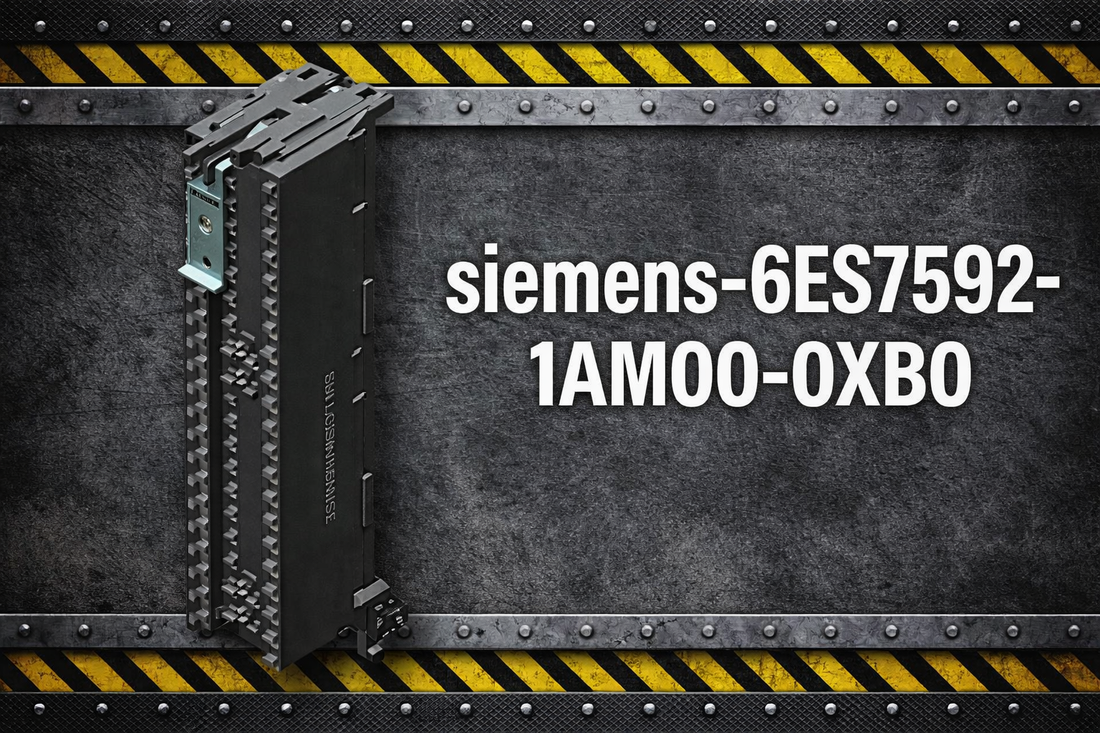

Siemens 6ES7592-1AM00-0XB0 40-pole screw terminal front connector for SIMATIC S7-1500 I/O module panel installation

Siemens 6ES7592-1AM00-0XB0 SIMATIC S7-1500 Front Connector Screw-Type Connection System: Specifications, Selection Guide, and Procurement

Control engineers and panel builders searching for the Siemens 6ES7592-1AM00-0XB0 are typically at the final stage of component selection — they have committed to the SIMATIC S7-1500 platform and now need the correct 40-pole front connector to complete the I/O wiring interface. This screw-type terminal assembly connects field wiring directly to SIMATIC S7-1500 I/O modules on 35 mm wide module slots, includes 4 integrated potential bridges for voltage and ground distribution, and carries FM and CCC-Ex certifications for hazardous location installations. Getting this part right the first time avoids costly rework, panel delays, and compliance failures in classified zones.

If you have already confirmed this is the correct part for your S7-1500 module, check current pricing and availability for the 6ES7592-1AM00-0XB0 at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7592-1AM00-0XB0 — and Who Shouldn't

This connector is the right choice when your project meets all of the following criteria:

  • The target SIMATIC S7-1500 I/O module is exactly 35 mm wide — not a 20 mm compact or 70 mm wide variant
  • The module requires a 40-pole front connector matching its specific I/O point count
  • Screw terminal connection method is explicitly specified or preferred for your panel environment
  • Field wiring conductor sizes fall within the 0.25 to 1.5 mm² range (AWG 24–16)
  • Integrated potential bridges for common voltage and ground distribution are part of the panel design
  • FM and/or CCC-Ex certification is required for hazardous atmosphere or classified zone compliance

If your application calls for faster push-and-lock termination, panel space constraints demand a shorter connector depth, or your I/O module uses a different pole count such as 8, 16, or 20 poles, this connector is not the correct selection — the spring-loaded variant 6ES7592-1AM00-0XB1 or an alternative pole configuration will better fit your requirements.

On this page:

What the 6ES7592-1AM00-0XB0 Actually Does in an S7-1500 System

The Siemens 6ES7592-1AM00-0XB0 is not a PLC module, a communication card, or a power supply. It is the physical interface component that receives field wiring and terminates it directly onto the SIMATIC S7-1500 I/O module face. Without this connector — or an equivalent variant — field cables cannot connect to the S7-1500 I/O card at all. The connector plugs onto the front of a 35 mm wide SIMATIC S7-1500 module and provides 40 individual screw terminals, each accepting one field conductor in the 0.25 to 1.5 mm² range.

What separates this part from a generic terminal block is the integration of 4 potential bridges directly within the connector housing. These bridges allow a single voltage or ground source to be distributed to multiple I/O terminals without running individual wires from the power rail to every point. On a typical 16-point digital input card, this means a single 24 VDC supply wire and one ground wire can feed all input commons through the bridge — reducing wiring count, cabinet clutter, and installation time simultaneously.

The screw terminal design accepts conductors terminated with or without DIN 46228 ferrules, supports both solid and stranded wire, and requires a standard 3 to 3.5 mm conical screwdriver tightened to 0.4 to 0.7 N·m. The connector body weighs 123 grams and measures 29.8 mm wide by 130.5 mm high by 46 mm deep, fitting flush against the module face when fully engaged on the DIN 35 mm mounting rail.

Typical System Architecture: Where This Connector Sits in the Signal Chain

The 6ES7592-1AM00-0XB0 sits at the physical boundary between the field wiring layer and the SIMATIC S7-1500 I/O module, functioning as the termination point that bridges plant-floor signals into the PLC's digital or analog I/O cards.

  • SIMATIC S7-1500 CPU communicates over the backplane to one or more I/O modules mounted on the same or extended DIN rail
  • Each 35 mm wide I/O module accepts one 6ES7592-1AM00-0XB0 front connector on its field-wiring face
  • Field devices — sensors, proximity switches, actuators, transmitters — route their signal cables through the panel gland plate to the connector
  • The 4 integrated potential bridges on the connector distribute 24 VDC supply and ground to all input or output commons without external terminal strips
  • The fully wired connector snaps onto the module face and is retained mechanically, allowing the module to be swapped without re-terminating field wiring

Which Industries and Applications Use This Connector Most

Discrete manufacturing environments — automotive assembly, food and beverage packaging, and material handling — are the most common deployment contexts for this connector. Panel builders working on standardized OEM cabinet designs frequently specify the 6ES7592-1AM00-0XB0 across multiple production units because the screw terminal format suits high-volume assembly workflows and minimizes per-unit tooling requirements.

Process industries including oil and gas, chemical processing, and water treatment use this connector specifically because of its FM and CCC-Ex certifications. Installations in Division 1 or Zone 1 explosive gas atmospheres require documented hazardous location approval on every component in the field wiring path — and this connector carries both FM and CCC-Ex approvals, making it one of the few front connector options that satisfies classified area requirements without a separate enclosure or isolation barrier.

Brownfield retrofit projects — replacing aging PLC platforms in existing control cabinets — benefit from the integrated potential bridges, which reduce the need to reconfigure existing terminal strip layouts when migrating field wiring to the S7-1500 system. New I/O expansion on existing S7-1500 installations also represents a frequent procurement scenario, where matching the original connector standard across all modules maintains consistency in wiring documentation and maintenance procedures.

Application Typical Deployment
Brownfield PLC Retrofit Replacing legacy I/O terminal blocks; existing field cables re-terminated to 6ES7592-1AM00-0XB0 on new S7-1500 modules
OEM Panel Building Standardized connector specified across all 35 mm I/O modules in multi-unit production cabinet designs
Hazardous Area Automation Division 1 / Zone 1 installations in oil and gas, chemical, or mining facilities requiring FM and CCC-Ex compliance
Modular Facility I/O Expansion Adding I/O capacity to existing S7-1500 rack; connector matched to existing installation standard
Field Commissioning and Startup Technicians terminating and verifying signal wiring against I/O design documentation during system startup

Key Specifications for Purchase Decision

Specification Value
Connection Method Screw Terminals
Number of Poles 40
Module Width Compatibility 35 mm
Cable Cross-Section Range 0.25–1.5 mm² (AWG 24–16)
Wire Stripping Length 10–11 mm
Tightening Torque 0.4–0.7 N·m
Potential Bridges Included 4 units
Dimensions (W x H x D) 29.8 mm x 130.5 mm x 46 mm
Weight 123 grams
Certifications FM, CCC-Ex, Manufacturer Declaration (EU)

Full technical specifications are available on the product page at LeadTime.ca.

6ES7592-1AM00-0XB0 vs. 6ES7592-1AM00-0XB1: Screw vs. Spring-Loaded Comparison

Feature 6ES7592-1AM00-0XB0 (Screw) 6ES7592-1AM00-0XB1 (Spring-Loaded)
Assembly Speed Slower; manual screw termination required Faster; push-and-lock design
Field Maintenance Technician re-terminates on site with standard screwdriver Requires specialized extraction tool
Tool Requirement Conical screwdriver 3–3.5 mm tip Specialized extraction tool
Cost Lower initial cost Higher initial cost (5–15% premium)
Vibration Resistance Excellent; screw lock maintains grip Good; spring contact may relax over time
Environmental Tolerance Resistant to dust and moisture Slightly less robust in dirty environments
Hazardous Area Suitability FM and CCC-Ex approved Equivalent approvals; consult spec sheet
Typical Use Cases OEM panels, modular designs, hazardous areas Field service, retrofit cabinets, frequent wiring changes

If your architecture requires screw terminal reliability in a classified or vibration-heavy environment, the 6ES7592-1AM00-0XB0 is the correct choice — check current availability and pricing at LeadTime.ca.

Expert Verdict: Honest Assessment for Engineers and Procurement Teams

The Siemens 6ES7592-1AM00-0XB0 is a well-specified, purpose-matched front connector for the SIMATIC S7-1500 system. Its 40-pole screw terminal configuration covers the majority of full-size 35 mm wide S7-1500 I/O modules, and the inclusion of 4 potential bridges is a genuine engineering advantage — it reduces the external terminal strip count in the panel, simplifies voltage distribution wiring, and keeps the BOM tighter. The FM and CCC-Ex certifications are the deciding factor for any project touching classified zones: if your installation is in a Division 1, Division 2, Zone 1, or Zone 2 area, this connector's documented approvals remove a significant compliance burden that alternative or third-party connectors cannot easily replicate.

The honest limitation is speed. Panel builders and integrators running high-volume production or field service programs where connectors are frequently changed will find the screw terminal format slower than the spring-loaded 6ES7592-1AM00-0XB1. The screw design also demands proper torque discipline — undertightening causes intermittent signal faults, and overtightening compresses ferrules and damages conductor strands. Neither failure mode is catastrophic, but both are avoidable with correct procedure, and both create maintenance calls if ignored. For OEM standardized panels and hazardous area work, the screw terminal design is the correct and more reliable choice. For rapid-change field environments, the spring-loaded variant is worth the cost premium.

From a procurement standpoint, this is a standard active product in the SIMATIC S7-1500 accessory family — not an end-of-life or specialty item. Lead times of 4 to 12 weeks are realistic depending on order volume and destination; projects with defined installation dates should confirm stock status before finalizing the project timeline rather than assuming immediate availability. If you are ordering 10 or more units, volume pricing may be available. View current stock status and pricing for the 6ES7592-1AM00-0XB0 at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following points cover the key requirements and verification steps for installation. Engineers requiring full step-by-step procedures should refer to the Siemens SIMATIC S7-1500 front connector installation documentation.

  • Strip field conductors to exactly 10–11 mm; use DIN 46228 Form E plastic-sleeved ferrules for stranded wire in vibration-prone environments, and DIN 46228 Form A for standard installations — ferrule lengths of 10 mm or 12 mm apply depending on conductor gauge
  • Tighten each screw terminal to 0.4–0.7 N·m using a 3 to 3.5 mm conical screwdriver; applying a torque wrench set to 0.5 N·m is recommended for consistent results across all 40 poles
  • Verify all 4 potential bridges are fully seated in the connector housing before any field wiring begins — bridges should not move when lightly wiggled; if loose, remove and re-insert until tabs engage
  • Route all conductors sharing a common voltage or ground reference through the bridge terminals rather than running individual wires from the power rail to each I/O terminal, then confirm continuity from bridge source to each load terminal with a multimeter
  • After all 40 terminals are complete, apply the included cable ties for strain relief — hand-tight only, as excessive tension can crush ferrules and cause intermittent connections

Compatible Modules and System Expansion Context

The 6ES7592-1AM00-0XB0 is part of the broader SIMATIC S7-1500 front connector family. When specifying connectors for a multi-module system, verify the exact pole count and module width for each I/O card individually — not all S7-1500 modules use the same connector variant.

  • 6ES7592-1AM00-0XB1 — Spring-loaded 40-pole variant for the same 35 mm wide S7-1500 modules; preferred for frequent field changes and rapid assembly environments
  • 6ES7592-1BM00-0XB0 — Alternative connector configuration for compact S7-1500 module widths; do not substitute for 35 mm wide modules
  • DIN 46228 ferrule kits (Form A and Form E) — Recommended consumables for stranded conductor termination; 10 mm and 12 mm lengths per conductor gauge range
  • Cable tie refill packs — Supplemental strain relief consumables for extended panel assembly campaigns

Wrong-Part Prevention Checklist Before You Order

Before submitting a purchase order or RFQ for the 6ES7592-1AM00-0XB0, confirm every item on this checklist against your design documentation:

  1. Verify the target S7-1500 module width is exactly 35 mm (not 20 mm compact or 70 mm wide variants)
  2. Confirm 40-pole requirement matches the specific I/O module input/output count
  3. Check that screw terminal design is explicitly required (not spring-loaded variants)
  4. Ensure field wiring conductor sizes fall within 0.25–1.5 mm² range (DIN 46228 compliant)
  5. Verify module mounting rail supports standard DIN 35 mm mounting
  6. Confirm FM and CCC-Ex certifications are mandatory for the application (explosion-proof areas)

If any item on this list cannot be confirmed, do not proceed with this part number. Contact the LeadTime.ca team with your module part number and we will help verify the correct connector variant before you order.

Frequently Asked Questions

Can the 6ES7592-1AM00-0XB0 be used on any SIMATIC S7-1500 module?

No — this connector is specifically rated for 35 mm wide SIMATIC S7-1500 modules with a 40-pole I/O configuration. Compact 20 mm wide modules and 70 mm wide modules require different connector variants. Always verify the exact module width and pole count against your module's datasheet before ordering this connector.

What is the correct tightening torque for the screw terminals, and what happens if it is wrong?

The specified tightening torque is 0.4 to 0.7 N·m using a 3 to 3.5 mm conical screwdriver. Undertightening allows conductors to work loose under vibration, causing intermittent signal faults. Overtightening compresses or fractures ferrules and can damage conductor strands, leading to increased contact resistance and eventual open-circuit failures. A torque screwdriver set to 0.5 N·m — the center of the specified range — is the recommended approach for consistent results across all 40 terminals.

What wire sizes and conductor types does this connector support?

The 6ES7592-1AM00-0XB0 accepts both solid (massive) and stranded flexible conductors in the 0.25 to 1.5 mm² range, equivalent to AWG 24 through AWG 16. Solid conductors can be inserted directly without ferrules. Stranded conductors are accepted with or without DIN 46228 ferrules, but Form E plastic-sleeved ferrules in 10 mm or 12 mm lengths are recommended for stranded wire in vibration-prone installations. Wire stripping length must be exactly 10 to 11 mm for proper terminal engagement.

Is the 6ES7592-1AM00-0XB0 approved for use in hazardous locations?

Yes. This connector carries FM certification for Division 1 and Division 2 hazardous locations in explosive gas atmospheres, and CCC-Ex certification for international explosive atmosphere zones. It also meets EU hazardous area directive requirements under Manufacturer Declaration status. If your installation is in a classified area, verify that the specific division, zone, and gas group classifications align with the connector's documented approvals before installation.

What is the difference between the 6ES7592-1AM00-0XB0 and the 6ES7592-1AM00-0XB1?

The primary difference is the connection method. The 6ES7592-1AM00-0XB0 uses screw terminals requiring a conical screwdriver and 0.4 to 0.7 N·m torque for each conductor. The 6ES7592-1AM00-0XB1 uses a spring-loaded push-and-lock design that is faster to assemble and requires a specialized extraction tool for conductor removal. The screw terminal variant typically costs less and offers superior vibration resistance; the spring-loaded variant is preferred in high-turnover maintenance environments. Both are designed for the same 35 mm wide 40-pole S7-1500 module form factor.

What are the 4 potential bridges included with this connector used for?

The 4 potential bridges are pre-installed shorting bars within the connector housing that create common voltage or ground distribution nodes. Instead of running individual power or ground wires from an external terminal strip to each I/O terminal that needs a supply reference, a single source conductor is terminated at the bridge, which then distributes that voltage or ground potential to all connected terminals. This reduces the total wiring count in the panel, eliminates the need for separate potential distribution terminal strips, and simplifies both initial wiring and ongoing maintenance.

Why Order the 6ES7592-1AM00-0XB0 From LeadTime.ca

  • LeadTime.ca ships Siemens SIMATIC S7-1500 components worldwide — no regional restrictions on orders
  • Stock status and pricing for the 6ES7592-1AM00-0XB0 are visible directly on the product page, reducing the need to chase quotes through multiple channels
  • Volume orders of 10 or more units may qualify for pricing adjustments — contact the team before submitting a large purchase order
  • The LeadTime.ca team can confirm connector-to-module compatibility before you order, reducing wrong-part risk on multi-module projects

At-a-Glance Summary

  • Catalog number: 6ES7592-1AM00-0XB0 — 40-pole screw-type front connector for SIMATIC S7-1500
  • Fits 35 mm wide S7-1500 I/O modules only — not compatible with 20 mm compact or 70 mm wide variants
  • Accepts 0.25–1.5 mm² conductors (AWG 24–16), solid or stranded, with or without DIN 46228 ferrules
  • Wire stripping length: exactly 10–11 mm; tightening torque: 0.4–0.7 N·m with 3–3.5 mm conical screwdriver
  • 4 potential bridges included — distribute voltage and ground to I/O terminals without external terminal strips
  • Dimensions: 29.8 mm W x 130.5 mm H x 46 mm D; weight: 123 grams
  • Certifications: FM (Division 1/2 explosive atmospheres), CCC-Ex (international hazardous zones), EU Manufacturer Declaration
  • Spring-loaded alternative: 6ES7592-1AM00-0XB1 — same module fit, faster assembly, higher cost
  • Lead times: 4–12 weeks depending on region and volume; confirm stock before project commitment
