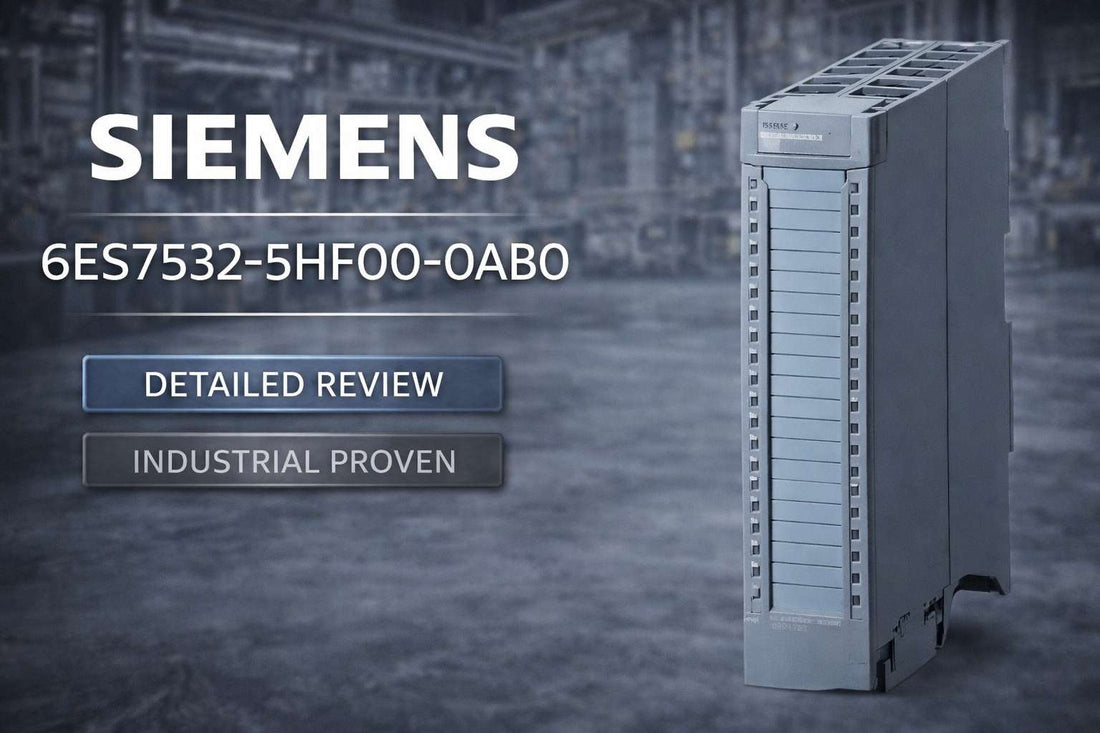

Siemens 6ES7532-5HF00-0AB0 SIMATIC S7-1500 AQ 8xU/I HS analog output module for process control applications

Siemens 6ES7532-5HF00-0AB0 — SIMATIC S7-1500 Analog Output Module AQ 8xU/I HS: Specifications, Pricing and Selection Guide

Controls engineers specifying analog output capacity for a SIMATIC S7-1500 system land on the Siemens 6ES7532-5HF00-0AB0 when they need exactly eight channels, selectable voltage and current ranges, 16-bit resolution, and SIL 2 safety certification in a single 35mm-wide module. This is a bottom-of-funnel decision — the question is rarely whether this product category is right, but whether this specific variant fits the channel count, signal type, load impedance, and ambient conditions of your build. This guide gives you the technical and procurement clarity to confirm that in one read.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7532-5HF00-0AB0 — and Who Shouldn't

This module is the correct choice for engineers building or expanding a SIMATIC S7-1500 system that requires precisely eight analog output channels with configurable voltage or current ranges and integrated diagnostics.

  • Your controller is SIMATIC S7-1500 and you have a free backplane slot available
  • You need 8 analog output channels — not 4 and not 16
  • Your application requires selectable output ranges: voltage (0–10V, 1–5V, or –10 to +10V) or current (0–20mA, 4–20mA, or –20 to +20mA)
  • You require 16-bit resolution with 0.3% operational accuracy over the full operating temperature range
  • Your process demands a 125 µs minimum cycle time for responsive control loops
  • Integrated wire-break, short-circuit, and supply voltage diagnostics are needed without external monitoring hardware

If you need only 4 channels, the AQ 4xU/I HS (6ES7532-5HE00-0AB0) reduces cost and backplane footprint. If you are controlling 16 or more actuators or need to plan for expansion, move to the AQ 16xU/I HS. If your outputs require galvanic isolation between individual channels rather than group-level separation, evaluate isolated-channel variants before ordering.

On this page:

What the 6ES7532-5HF00-0AB0 Actually Does in a Running System

The Siemens 6ES7532-5HF00-0AB0 — officially designated the SIMATIC S7-1500 Analog Output Module AQ 8xU/I HS — takes digital output values from the S7-1500 CPU and converts them into precise analog voltage or current signals that field devices can act on. Each of the eight channels can be individually addressed in STEP 7 TIA Portal, but the output type (voltage or current) is selected at the group level across all eight channels simultaneously. The practical implication: if your system requires some channels as voltage and others as current, you will need two modules or a deliberate segregation strategy during design.

At 16-bit resolution and a 0.3% operational accuracy over its full –30 to +60°C horizontal operating range, this module is appropriate for precision process loops — not just coarse switching. The 125 µs minimum cycle time for all eight channels running simultaneously places it firmly in the responsive control tier. Proportional valve positioning, PID setpoint delivery, and motor speed ramp commands are all within its envelope. Isochronous mode extends this further to time-synchronized multi-axis applications, with a minimum execution time of 100 µs and a minimum bus cycle of 250 µs when configured in TIA Portal.

The module draws a maximum of 320mA from a 24V DC supply (permissible range 19.2–28.8V), occupies a 35mm × 147mm × 129mm footprint, and carries a firmware revision of V2.1.0 — updateable in the field without hardware replacement.

Where This Module Sits in a Typical S7-1500 Architecture

The 6ES7532-5HF00-0AB0 sits on the output side of the S7-1500 backplane, receiving resolved process values from the CPU and converting them to field-level analog signals that drive actuators and process controllers downstream.

  • SIMATIC S7-1500 CPU (e.g., CPU 1516) processes control logic and resolves output values each scan cycle
  • The 6ES7532-5HF00-0AB0 plugs directly into a free backplane slot and receives output data over the internal bus — no external communication gateway required
  • From each channel terminal, shielded cable runs (up to 200m) carry the analog signal to field devices
  • Field devices — proportional valves, variable frequency drives, temperature controllers, or analog instrumentation — receive the 0–10V, 4–20mA, or other configured signal as a setpoint or command input
  • Diagnostic feedback (wire-break on current outputs, short-circuit on voltage outputs) returns to the CPU via the backplane bus and surfaces in STEP 7 diagnostic buffers or HMI alarms

Industries and Applications That Rely on This Module

In hydraulic and pneumatic systems, the 6ES7532-5HF00-0AB0 drives proportional solenoid valves via 4–20mA current outputs, giving precise control over flow rate and pressure without mechanical actuators. The current loop's inherent noise immunity and its 500Ω maximum resistive load tolerance make it the preferred signal type for these installations, especially when cable runs exceed 50m.

Process industries — food and beverage, pharmaceutical, chemical — use this module to deliver analog setpoint signals to PID loops controlling temperature, pressure, and flow. The 0.2% basic error limit at 25°C reference temperature gives control engineers confidence that the commanded setpoint is what the field device receives, which matters when batching tolerances are tight.

HVAC and building automation systems benefit from the 0–10V voltage output range for fan motor speed control via VFDs. The module's SIL 2 rating (IEC 62061) and PL d (ISO 13849-1) certification means it can also be deployed in machinery safety applications where an undetected output failure would present a safety risk — broadening its role beyond basic process automation.

Water treatment and utility applications leverage the module's extended cable reach — 200m with shielded cable — and its –30 to +60°C horizontal operating range to serve remote actuator stations or outdoor panel installations without signal conditioning hardware.

Application Typical Deployment
Hydraulic proportional valve control 4–20mA current output to proportional solenoid, cable runs up to 200m shielded
PID process loop setpoint delivery 0–10V or 4–20mA to temperature or pressure controller in food/pharma plant
VFD motor speed control 0–10V analog ramp to variable frequency drive for fan or pump speed adjustment
Multi-axis motion synchronization Isochronous mode, minimum TCO 100 µs, coordinated analog feedback to servo or motion axes
Sensor and loop commissioning Calibration signal source for loop verification before live process startup
Machinery safety analog output SIL 2 / PL d rated deployment in safety-critical proportional control with substitute value fallback

Purchase-Decision Specifications at a Glance

Parameter Value
Number of analog outputs 8 channels
Resolution 16-bit
Operational accuracy (–30 to +60°C) ±0.3% of output range
Voltage output ranges 0–10V, 1–5V, –10 to +10V (selectable per group of 8)
Current output ranges 0–20mA, 4–20mA, –20 to +20mA (selectable per group of 8)
Minimum cycle time (all 8 channels) 125 µs
Supply voltage 24V DC (19.2–28.8V permissible)
Max current consumption 320mA at 19.2V DC
Operating temperature (horizontal) –30 to +60°C
Safety certification SIL 2 (IEC 62061), PL d (ISO 13849-1), Cat. 3 (ISO 13849-1)

Full technical specifications are available on the product page at LeadTime.ca.

6ES7532-5HF00-0AB0 vs. 4-Channel and 16-Channel Variants — Which One Do You Actually Need?

Feature AQ 4xU/I HS (6ES7532-5HE00-0AB0) AQ 8xU/I HS (6ES7532-5HF00-0AB0) AQ 16xU/I HS
Channels 4 8 16
Module width 20mm 35mm 70mm (approx.)
Backplane slots 1 1 2
Cost per channel Highest Medium Lowest
Typical use Small systems, budget-constrained builds Mid-size standard automation Large plants, future scalability
Supply demand Lower Medium Higher

If your system design lands at exactly eight analog outputs — or eight with a defined set of actuators and no immediate expansion plans — the 6ES7532-5HF00-0AB0 is the correct selection. Check current availability at LeadTime.ca before committing to your BOM.

Expert Verdict: Honest Assessment for Engineers Making a Final Selection

The Siemens 6ES7532-5HF00-0AB0 earns its place as the standard 8-channel analog output choice for mid-complexity S7-1500 builds because it resolves most system design requirements in a single module: 16-bit resolution, selectable voltage and current ranges, 125 µs cycle time, and SIL 2 certification — without the cost or backplane demand of the 16-channel variant. Its 0.3% operational accuracy over the full –30 to +60°C horizontal range is strong for a non-isolated module. The 200m shielded cable capability is a genuine field advantage for plants where actuators are not co-located with the control cabinet. The firmware-updateable V2.1.0 base and integrated diagnostic structure (wire-break on current, short-circuit on voltage, supply monitoring, substitute values) reduce external monitoring hardware and lower the long-term cost of ownership.

Where it has real limits: the group-level output type selection (all 8 channels must be voltage or all must be current) forces designers with mixed output requirements to either use two modules or redesign their I/O allocation. This is not a flaw in the module — it is a constraint to know before ordering. The accuracy specification also doubles below 0°C, meaning the ±0.3% figure becomes ±0.6% in genuinely cold environments — worth flagging for outdoor cold-climate installations or cold-room process applications. Engineers requiring individual channel isolation should evaluate whether this module's group-level potential separation meets their galvanic isolation requirements before specifying it.

On the procurement side, expect 4–8 week lead times from North American stock channels, with typical street pricing between CAD $600 and $900 depending on volume tier and distributor. Siemens list prices are higher; distributor discounts in the 15–30% range are typical for qualified buyers. LeadTime.ca sources this module globally, which is relevant when North American stock positions are constrained. If you are building a multi-rack system and purchasing several modules at once, bundling with other S7-1500 I/O on a single order often improves availability and pricing. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview for the 6ES7532-5HF00-0AB0

  • Use shielded twisted-pair cable for all runs exceeding 50m — shielded maximum is 200m; unshielded maximum is 50m. Connect the shield to the module ground (M terminal) at the module end only to avoid ground loops.
  • Voltage outputs use a two-wire connection direct to the actuator. Keep voltage output capacitive load below 100nF to avoid settling time extension.
  • Current outputs support resistive loads up to 500Ω and inductive loads up to 1mH without an external snubber. Maximum no-load voltage on current outputs is 20V.
  • Verify 24V DC supply stability across the full 19.2–28.8V permissible range. Total module current draw is up to 320mA at 19.2V — size the supply rail and protection accordingly.
  • Mount horizontally for the full –30 to +60°C operating range. Vertical mounting restricts the upper ambient limit to +40°C — confirm panel orientation during enclosure design.

Diagnostics, Safety Certification, and Fallback Behavior

The 6ES7532-5HF00-0AB0 includes a full complement of integrated diagnostic functions that reduce dependence on external monitoring hardware. Wire-break detection is active on current outputs — if a current loop is broken, the module generates a diagnostic alarm that surfaces in the STEP 7 diagnostic buffer and can trigger an HMI alert. Short-circuit detection is active on voltage outputs, with a maximum short-circuit current of 45mA before protection activates. Supply voltage is monitored continuously via an internal watchdog; loss or degradation below 19.2V generates a fault state.

Overflow and underflow monitoring catches output values that fall outside the configured range, and substitute value support allows the module to hold a pre-configured fallback signal on any channel where a fault is detected. This substitute value behavior must be explicitly programmed in the STEP 7 project — it is not automatic. The intent is graceful degradation: a proportional valve driven to a safe default position rather than an uncontrolled state during a fault event.

Safety certification covers SIL 2 per IEC 62061, Performance Level d per ISO 13849-1, and Category 3 per ISO 13849-1. Isolation is verified to 707V DC (type test) with potential separation between channels and between channels and load voltage. This certification profile makes the module eligible for machinery safety applications where basic I/O modules would not qualify — a meaningful differentiator in applications requiring documented functional safety.

What Engineers Get Wrong When Ordering This Part

The following checklist covers the most common specification and ordering errors associated with the 6ES7532-5HF00-0AB0. Verify each point against your project documentation before placing an order.

  1. Confirm CPU is SIMATIC S7-1500 (not S7-1200, S7-1500F, or older S7-300 series)
  2. Verify required output range: need voltage AND current mixed, or one type exclusively?
  3. Check channel count needed: is 8 adequate, or do you need 4, 16, or 32-channel versions?
  4. Confirm supply voltage: module requires 24V DC (19.2–28.8V permissible range)
  5. Verify load impedance: voltage outputs short-circuit protected (max 45mA); current outputs can drive up to 500Ω resistive or 1mH inductive without external load resistor
  6. Check diagnostic capability needs: this module includes supply voltage monitoring, wire-break detection for current outputs, and short-circuit detection for voltage outputs
  7. Confirm ambient temperature: horizontal operation –30 to +60°C; vertical operation –30 to +40°C
  8. Verify cable shielding requirement: unshielded max 50m, shielded max 200m for reliable signal integrity

If any of these checks raise a question, contact the LeadTime.ca team before ordering — we can help confirm the right module for your exact system configuration.

Frequently Asked Questions

Can I use some channels as voltage outputs and others as current outputs on the same 6ES7532-5HF00-0AB0?

No. The output type — voltage or current — is selected at the group level, meaning all 8 channels on this module must be configured as the same output type. If your system requires both voltage and current outputs, you will need to use two separate modules or redesign your I/O allocation to segregate signal types by module.

Does the operational accuracy change at low temperatures?

Yes. The published operational error limit of ±0.3% applies across the full –30 to +60°C horizontal operating range, but accuracy figures are doubled below 0°C. In practice this means ±0.6% operational accuracy in sub-zero ambient conditions. For cold-room or outdoor winter installations, this doubling should be factored into your process loop tolerances.

Is the 6ES7532-5HF00-0AB0 compatible with an S7-1200 or S7-300 CPU?

No. This module is designed exclusively for the SIMATIC S7-1500 backplane. It is not compatible with S7-1200, S7-300, or S7-1500F architectures. Attempting to install it in a non-S7-1500 rack will result in a hardware configuration error and the module will not function.

What happens to the analog outputs if the CPU faults or communication is lost?

The module supports substitute value output on a per-channel basis. When a fault is detected — supply loss, communication interruption, or diagnostic alarm — the module can drive each channel to a pre-configured substitute value rather than going to zero or an indeterminate state. This behavior must be explicitly configured in the STEP 7 TIA Portal project; it is not enabled by default.

What is the maximum cable run I can use without shielding?

Unshielded cable is supported up to a maximum of 50m. Beyond 50m, signal degradation and noise pickup — particularly near motor drive cables or high-voltage power conductors — become a practical risk. Shielded cable extends the maximum run to 200m. For runs longer than 100m, verify cable gauge and consider routing away from power wiring.

Is the 6ES7532-5HF00-0AB0 SIL 2 certified for use in functional safety applications?

Yes. The module carries SIL 2 certification per IEC 62061, Performance Level d per ISO 13849-1, and Category 3 per ISO 13849-1. Isolation is type-tested to 707V DC. This makes it eligible for safety-critical analog output applications, provided the overall safety function is correctly designed and validated within the system architecture.

Price, Lead Time, and How to Order From Anywhere in the World

  • LeadTime.ca ships the Siemens 6ES7532-5HF00-0AB0 worldwide — no geographic restriction on sourcing
  • Typical lead time from North American stock is 4–8 weeks; global sourcing can reduce this when regional stock is constrained
  • Volume pricing is available for multi-module or full-rack orders — contact us directly to discuss
  • Hard-to-find or allocation-constrained S7-1500 modules are a sourcing specialty — if standard channels are quoting long lead times, LeadTime.ca can often locate stock faster
  • Verify the exact part number 6ES7532-5HF00-0AB0 before ordering — similar-looking numbers such as 6ES7532-5HE00-0AB0 are the 4-channel variant, not a drop-in equivalent

At-a-Glance Summary

  • Official designation: SIMATIC S7-1500 Analog Output Module AQ 8xU/I HS
  • 8 analog output channels, 16-bit resolution, ±0.3% operational accuracy over –30 to +60°C (horizontal)
  • Selectable voltage ranges: 0–10V, 1–5V, –10 to +10V; current ranges: 0–20mA, 4–20mA, –20 to +20mA — all 8 channels must share the same output type
  • Minimum cycle time: 125 µs for all 8 channels simultaneously; isochronous mode minimum TCO 100 µs
  • Supply: 24V DC (19.2–28.8V permissible), max 320mA at 19.2V
  • Cable: shielded up to 200m, unshielded up to 50m
  • Current output resistive load: max 500Ω; voltage output short-circuit current: max 45mA
  • SIL 2 (IEC 62061), PL d (ISO 13849-1), Cat. 3 (ISO 13849-1), isolation type-tested to 707V DC
  • Firmware V2.1.0, field-updateable; dimensions 35mm × 147mm × 129mm
