Siemens 6ES7522-1BL01-0AB0 — S7-1500 DQ 32-Channel DO Guide

By Abdullah Zahid
13 min read

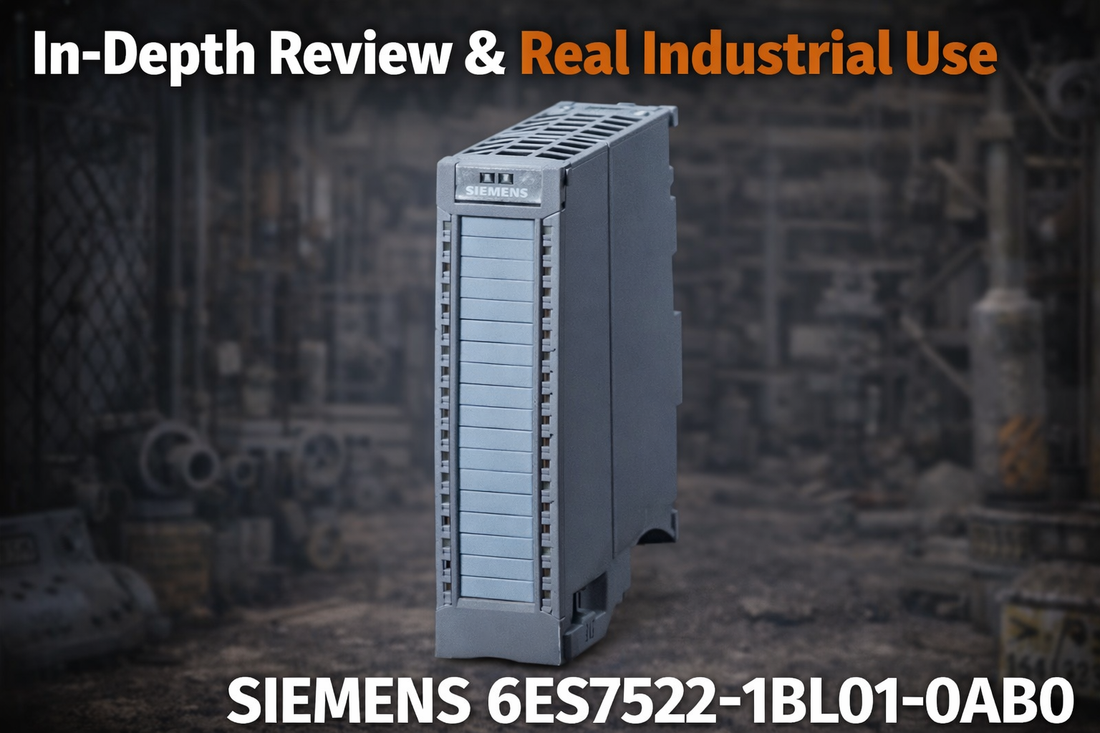

Siemens 6ES7522-1BL01-0AB0 SIMATIC S7-1500 32-channel 24V DC digital output module for solenoid and contactor control

Siemens 6ES7522-1BL01-0AB0 — SIMATIC S7-1500 Digital Output Module DQ 32x24V DC/0.5A HF: Specifications, Wiring and Selection Guide

Controls engineers specifying digital output capacity for a SIMATIC S7-1500 system frequently arrive at this exact SKU: the Siemens 6ES7522-1BL01-0AB0, a 32-channel transistor output module delivering 24 V DC at 0.5 A per channel with integrated single-channel diagnostics, isochronous operation down to 70 µs, and SIL2 / Category 3 PL d safety shutdown capability. Whether you are building a new panel or expanding an existing S7-1500 rack, this review covers the technical details, wiring considerations, variant comparisons, and ordering realities you need to make a confident procurement decision.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7522-1BL01-0AB0 — and Who Shouldn't

This module is the correct choice for engineers who need a high-density, diagnostics-rich discrete output tier in a centralized S7-1500 architecture. It is specifically right for you if all of the following apply:

  • Your PLC platform is SIMATIC S7-1500 with an available backplane slot — this module does not mount to S7-1200, S7-300, S7-400, or ET 200M systems
  • Your field devices operate at exactly 24 V DC and each load draws no more than 0.5 A per channel and no more than 4 A across any group of 8 channels
  • You require individual channel-level diagnostics to isolate faults quickly in dense solenoid or contactor wiring
  • Your application requires isochronous operation with a minimum execution time of 70 µs — motion control, synchronized multi-axis firing, or precision-timed process events
  • Your safety architecture needs SIL2 / Category 3 PL d rated shutdown of load groups per EN IEC 62061:2021 and EN ISO 13849-1:2015

If you need fewer than 32 channels, the 6ES7522-1BH01-0AB0 16-channel variant avoids unnecessary hardware cost. If your loads require analog or PWM control rather than on-off switching, you need an analog output (AQ) module. If your supply is anything other than 24 V DC, a different voltage class module is required.

On this page:

What the 6ES7522-1BL01-0AB0 Actually Does in a Running System

The Siemens 6ES7522-1BL01-0AB0 is classified under the SIMATIC S7-1500 product family as a digital output module — its official descriptor is SIMATIC S7-1500 Digital Output Module DQ 32x24V DC/0.5A HF. In plain system terms, it translates PLC logic states into 24 V DC switching signals that energize or de-energize field devices: solenoid valves, motor contactors, indicator lamps, relay coils, and safety interlock circuits.

The module provides 32 transistor-type, current-sourcing outputs organized in four groups of 8 channels. Each group carries an independent power management limit of 4 A, which means the engineer must budget total current across all channels within that group — not just per individual channel. The transistor design means outputs are solid-state, fast-switching, and protected against short-circuits through electronic clocking with a 1 A response threshold, eliminating the mechanical wear of relay-based alternatives.

What sets this variant apart from simpler DQ modules in the S7-1500 family is the HF (high-frequency) designation. The module supports isochronous mode operation with a minimum execution time of 70 µs, making it compatible with time-synchronized motion control applications where output transitions must align precisely with controller scan cycles. This is not a feature most standard-density output modules offer at this channel count.

The integrated diagnostics go beyond simple group-level status. Single-channel diagnostics allow TIA Portal to identify exactly which of the 32 outputs has experienced a short-circuit, wire-break, or supply voltage fault — without the engineer manually probing the cabinet. The module also includes an operating cycle counter for predictive maintenance planning, and it supports I&M data (I&M0 to I&M3) for device identification and audit trails.

Where This Module Sits in a Typical S7-1500 System

The 6ES7522-1BL01-0AB0 mounts directly to the S7-1500 backplane and communicates with the CPU isochronously — it sits between the controller logic layer and the physical field device layer in the signal chain.

  • S7-1500 CPU (e.g., CPU 1515 or CPU 1516) handles PLC program execution and issues output commands to the backplane
  • S7-1500 backplane carries both power and high-speed data bus connections to all mounted I/O modules including this DQ module
  • 6ES7522-1BL01-0AB0 receives output bit states from the CPU and switches its 32 transistor channels accordingly
  • 24 V DC power supply (sized to 4 A per group) connects directly to the module via the front connector to power the output stage
  • Field devices — solenoid valve coils, contactor coils, indicator lamp assemblies, relay coils — connect to individual output terminals on the front connector and return to the common 0 V reference

Industries and Applications That Drive Demand for This Module

Automotive assembly is one of the highest-volume use cases. Pneumatic cylinder actuators used for part clamping, locating pins, and transfer mechanisms typically run on solenoid valve banks energized at 24 V DC. A single 6ES7522-1BL01-0AB0 can drive 32 such valves — and the isochronous mode ensures timing-critical valve firing aligns precisely with the robot or fixture cycle.

Food and beverage packaging lines rely on this module for sequenced conveyor motor contactor control, pneumatic gate valve switching, and indicator lamp status towers. The SIL2 / Category 3 PL d rating supports emergency stop relay shutdown circuits that must comply with EN ISO 13849-1:2015 safety standards — a hard requirement for CE-marked machinery in many markets.

Machine tool builders use this module for coolant spray valve sequencing, spindle enable gating, and chip conveyor control. The single-channel diagnostics capability is especially valued in high-uptime environments: when a solenoid coil fails and shorts, maintenance technicians see the exact channel number in the TIA Portal diagnostic buffer rather than spending hours tracing a wiring harness.

Water treatment and HVAC control panels use this module for pump starter enable signals, motorized damper actuator control, and alarm relay driving. The operating temperature range of -30°C to +60°C (horizontal mount) covers the thermal envelope of most outdoor-rated electrical enclosures in industrial service.

Application Typical Deployment
Pneumatic assembly machine 32 solenoid valve bank for cylinder clamping and part transfer, isochronous firing
Conveyor and motor control panel Motor contactor enable signals, soft-start gating, sequential start-up logic
Safety interlock system Emergency stop relay de-energization, safety gate valve shutdown — SIL2 / PL d rated
Operator interface panel Light tower (red-amber-green) driving, audible alarm relay, fault indicator lamp combinations
Process synchronization Welding gun fire, UV cure lamp trigger, adhesive dispense gate — 70 µs isochronous timing
Water treatment / HVAC Pump starter gating, motorized damper control, alarm relay output

Specifications Engineers Use to Validate This Part

Parameter Value Notes
Number of Channels 32 Organized in groups of 8; 4 groups total
Output Type Transistor, current-sourcing Type 0.5 per IEC 61131
Rated Supply Voltage 24 V DC Permissible range: 19.2 – 28.8 V DC
Output Current (per channel) 0.5 A maximum Suitable for small solenoid coils and relay coils
Output Current (per group) 4 A maximum Shared across all 8 channels in the group
Isochronous Execution Time (TCO) 70 µs minimum Required for motion control and synchronized operations
Operating Temperature (Horizontal) -30°C to +60°C Vertical mount reduces maximum to -30°C to +40°C
Safety Rating SIL2 / Category 3 PL d EN IEC 62061:2021 and EN ISO 13849-1:2015
Short-Circuit Protection Electronic clocking, 1 A threshold Per-channel; reverse polarity protection at 7 A per group
Dimensions (W × H × D) 35 mm × 147 mm × 129 mm Compact S7-1500 form factor; 35 mm cabinet slot width

Full technical specifications are available on the product page at LeadTime.ca.

6ES7522-1BL01-0AB0 vs. 6ES7522-1BH01-0AB0 and Alternatives

Model Channels Output Voltage Key Differences When to Choose
6ES7522-1BL01-0AB0 32 24 V DC, 0.5 A HF designation, isochronous capable, SIL2 / PL d rated Motion control, synchronized multi-axis systems, SIL2 safety applications needing 32 outputs
6ES7522-1BH01-0AB0 16 24 V DC, 0.5 A Standard (non-HF), single-channel diagnostics included Simpler applications with fewer outputs; lower hardware cost when 32 channels are not needed
ET 200MP DQ 32×24V / 0.5A 32 24 V DC, 0.5 A Distributed I/O architecture, not centralized backplane mounting Decentralized control cabinet layouts with longer cable runs to field devices
Analog Output Module (AQ) — S7-1500 Varies Variable voltage or current Provides proportional output levels, not on-off switching Applications requiring variable valve positioning, VFD speed reference, or 4–20 mA process signals

If your architecture is confirmed S7-1500 and requires 32 isochronous 24 V DC discrete outputs with SIL2 capability, the 6ES7522-1BL01-0AB0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Where This Module Excels and Where It Has Limits

The 6ES7522-1BL01-0AB0 earns its place in demanding applications through the combination of features that are rarely bundled at this channel density: 32 transistor outputs with individual channel diagnostics, a genuine safety rating at SIL2 / Category 3 PL d, and isochronous operation with 70 µs execution time. For controls engineers specifying an S7-1500 system that must both maximize output density and maintain diagnostic transparency at the channel level, this module removes the need to choose between those goals. The integrated operating cycle counter is a practical addition for maintenance teams managing high-cycle solenoid loads — quantifying actuator wear from the controller is far more efficient than manual inspection schedules.

The honest limits: the 4 A per group current budget demands careful load distribution during design. Engineers who assume each of the 32 outputs independently supports 4 A will overload groups and trigger protective shutdowns — the per-channel limit is 0.5 A and the per-group shared limit is 4 A across all 8 channels in that group. Additionally, the front connector is not included in the module price and must be sourced and ordered separately. In periods of supply constraint, connector lead times have been known to match or exceed module delivery windows — ordering both simultaneously is not optional, it is a sourcing discipline. Finally, this module is not a fit for applications requiring any form of variable output: analog process signals, PWM speed references, or proportional valve control all require a different module type entirely.

From a procurement standpoint, the 6ES7522-1BL01-0AB0 is an active product with no published end-of-life notification, which reduces obsolescence risk in long-lifecycle machine builds. Typical delivery through stocking distributors is 2 – 5 business days. For volume projects or build-of-materials consolidation across a rack, bundling the module with the appropriate front connector in a single order avoids the common sourcing gap that delays panel wiring. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • The module requires a dedicated 24 V DC supply within the permissible range of 19.2 – 28.8 V DC; size the supply for 4 A per group and budget a common 0 V return path that avoids ground loops across multiple supply rails
  • All 32 outputs share a single front connector (ordered separately as screw terminal or push-in type); confirm connector type matches your wiring infrastructure before ordering, as the two types are not interchangeable
  • Connect inductive loads — solenoid coils, relay coils, motor contactors — with external suppression diodes or varistors across the load to protect the transistor output stage from voltage spikes on de-energization
  • Route 24 V DC control wiring in separate cable trays or conduit from high-voltage AC power conductors to maintain EMI immunity consistent with the module's industrial isolation rating of 707 V DC (type test)
  • Before applying load power, perform a no-load output test by toggling each channel in STEP 7 TIA Portal and verifying individual channel status LEDs respond correctly — this confirms connector seating and addressing before field devices are connected

Compatible Front Connectors and System Expansion

The 6ES7522-1BL01-0AB0 requires a separately ordered front connector. Selection depends on wiring method preference and panel build standards. Both connector types interface all 32 output channels plus supply and reference terminals through a single connector body.

  • Screw terminal front connector — suitable for standard panel wiring with ferrule-terminated conductors; preferred in maintenance-heavy environments where technicians are familiar with screw terminal practice
  • Push-in front connector — tool-free wire insertion for faster panel assembly; preferred in high-volume OEM builds where wiring cycle time is a cost factor
  • S7-1500 backplane modules (additional DI, DQ, AI, AQ, or technology modules) — expand the centralized rack to cover additional I/O types within the same CPU's backplane
  • ET 200MP distributed I/O heads — extend the S7-1500 system to remote cabinets over PROFINET without adding CPU hardware

Wrong-Part Prevention Checklist Before You Order

Before finalizing your purchase order for the 6ES7522-1BL01-0AB0, verify every item on this checklist to avoid costly returns, integration delays, or module incompatibility:

  1. Confirm your PLC platform is SIMATIC S7-1500 (not S7-1200, S7-300, S7-400, or ET 200M systems)
  2. Verify your load voltage is exactly 24 V DC (not 24 V AC, 115 V, or 230 V)
  3. Check that per-channel output current requirement does not exceed 0.5 A per channel and per-group current does not exceed 4 A
  4. Ensure front connector type (screw terminals or push-in) is ordered separately and matches your wiring infrastructure
  5. Confirm operating temperature range (-30°C to +60°C horizontal) matches your installation environment
  6. Verify that isochronous operation and 70 µs execution time are compatible with your motion control or synchronization requirements
  7. Check that single-channel diagnostics meets your diagnostic depth (if channel-level diagnostics are not needed, lower-cost variants may exist)

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — our technical team can help confirm the right part number for your application.

Frequently Asked Questions

Can the 6ES7522-1BL01-0AB0 be used in an S7-1200 or S7-300 system?

No. The 6ES7522-1BL01-0AB0 is designed exclusively for the SIMATIC S7-1500 backplane architecture. It is not compatible with S7-1200, S7-300, S7-400, or ET 200M hardware. Attempting to use it in another platform will result in mechanical incompatibility and communications failure. If you are working with a different Siemens PLC family, a different I/O module series is required.

What happens if a single output channel shorts — does it take down the entire module?

No. The electronic short-circuit protection with a 1 A response threshold acts at the individual channel level. A shorted output triggers the channel error LED (red) on that specific channel and clocks the output electronically, while the remaining 31 channels continue operating. A diagnostic alarm is generated in TIA Portal identifying the affected channel, so troubleshooting is immediate rather than requiring manual fault tracing across the full wiring harness.

Is the front connector included with the module when ordering the 6ES7522-1BL01-0AB0?

No, the front connector is a separate line item that must be ordered independently. You must choose between the screw terminal version and the push-in version based on your panel wiring method. Because connector availability can occasionally match or exceed module lead times, sourcing both parts simultaneously on the same purchase order is strongly recommended to avoid integration delays.

What TIA Portal version is required to configure this module?

The module integrates into STEP 7 TIA Portal for all configuration tasks including isochronous mode activation, diagnostic alarm setup, substitute value assignment, and I&M data management. Firmware version V1.1.0 or later supports the current feature set. Refer to the Siemens product manual and your TIA Portal project version compatibility matrix to confirm the correct software revision for your installation.

How does the 4 A per group limit affect system design for dense solenoid applications?

Each group of 8 channels shares a 4 A current budget — not 4 A per channel. If you have 8 solenoid valves drawing 0.5 A each all simultaneously energized in one group, the total group current reaches exactly 4 A, which is the maximum. Any parasitic draw, inrush, or double-triggering event that pushes the group above 4 A will disable all 8 channels in that group. Load distribution planning across groups during the design phase is essential, particularly in applications where multiple channels within a group may be energized simultaneously.

Does the SIL2 / PL d rating mean the module is a certified safety device on its own?

The SIL2 / Category 3 PL d rating applies specifically to the safety shutdown function — controlled de-energization of load groups under defined fault conditions per EN IEC 62061:2021 and EN ISO 13849-1:2015. The module supports these safety functions as part of a validated safety system, but it is not a standalone certified safety device. A complete safety architecture — including engineering review, safety logic programming in TIA Portal Safety, and system-level validation — is required to achieve a compliant safety-rated installation.

Why Order from LeadTime.ca

  • LeadTime.ca ships the 6ES7522-1BL01-0AB0 worldwide — no geographic restrictions on order placement or delivery
  • Both the module and the separately required front connector can be sourced through LeadTime.ca on a single order, eliminating the common sourcing gap that delays panel builds
  • Volume pricing is available for OEM and system integrator orders — contact the team with your BOM for a consolidated quote
  • The LeadTime.ca team specializes in sourcing hard-to-find or time-critical industrial automation components, including active and legacy Siemens SIMATIC S7-1500 I/O modules
  • View current stock and pricing at LeadTime.ca or contact us directly for lead time confirmation before project commitment

At-a-Glance Summary

  • 32 transistor outputs, current-sourcing, organized in 4 groups of 8 channels — each group limited to 4 A total
  • 24 V DC supply, permissible range 19.2 – 28.8 V DC, with reverse polarity protection rated at 7 A per group
  • 0.5 A maximum per channel — sized for solenoid valve coils, relay coils, and indicator lamps without external amplification in most applications
  • Isochronous execution time of 70 µs minimum enables time-synchronized motion control and precision-timed process events
  • SIL2 / Category 3 PL d rated for safety shutdown functions per EN IEC 62061:2021 and EN ISO 13849-1:2015
  • Single-channel diagnostics identifies individual failed outputs by channel number in TIA Portal — reducing fault-finding time in dense wiring configurations
  • Dimensions: 35 mm W × 147 mm H × 129 mm D — fits standard S7-1500 backplane slot
  • Operating temperature: -30°C to +60°C horizontal; -30°C to +40°C vertical — covers most industrial enclosure environments
  • Power consumption: 1.1 W from the backplane bus plus 3.5 W typical power loss
  • Front connector not included — must be ordered separately in screw terminal or push-in configuration; order simultaneously with module to protect delivery schedule
  • Active product status with no published end-of-life date — suitable for long-lifecycle machine platform specifications
