Siemens 6ES7521-1BL10-0AA0 — 32-Channel DI Module Buyer's Guide

By Abdullah Zahid
13 min read

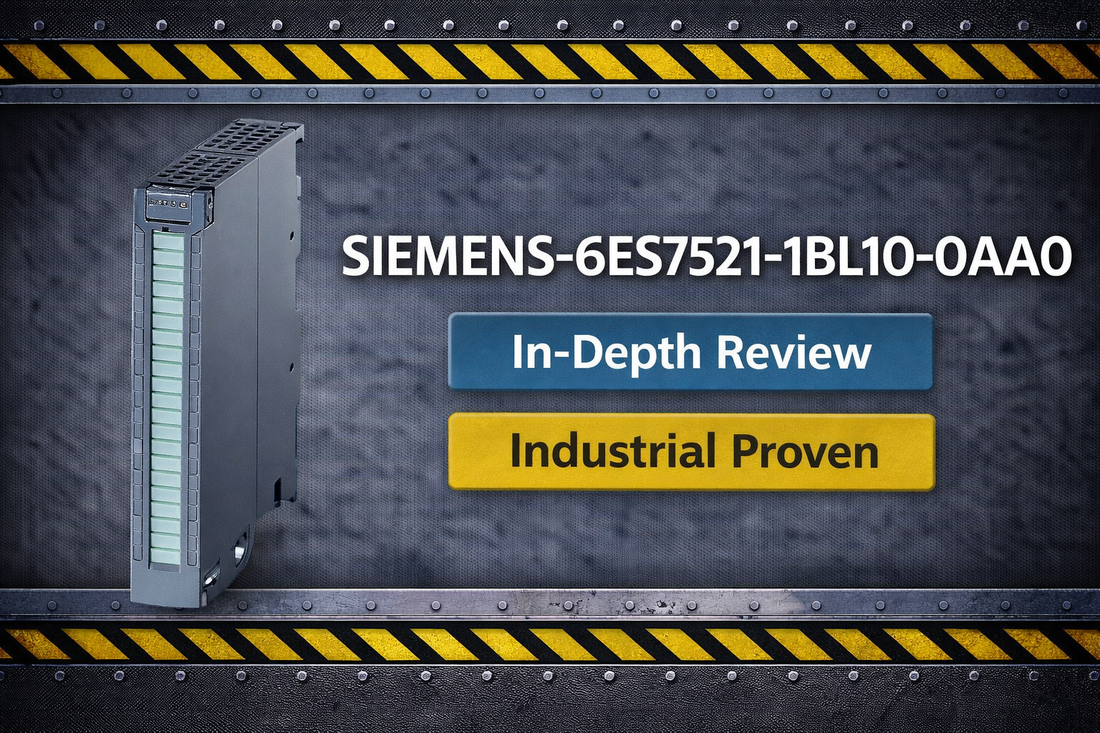

Siemens 6ES7521-1BL10-0AA0 Digital Input Module DI 32x24VDC BA for SIMATIC S7-1500 ET 200MP station

Siemens 6ES7521-1BL10-0AA0 Digital Input Module DI 32x24VDC BA — Specifications, Alternatives, and Buyer's Guide

When a controls engineer is evaluating the Siemens 6ES7521-1BL10-0AA0, the decision usually comes down to one of three questions: Does 32 channels at 24 VDC cover the sensor count, does the 3.2 ms input delay fit the machine cycle, and is the ET 200MP architecture already committed? This module — officially the Digital input module DI 32x24VDC BA — is a single-slot expansion for SIMATIC S7-1500 and ET 200MP stations that converts discrete 24 VDC signals from proximity switches, limit switches, and pushbuttons into CPU-readable data, with electrical isolation organized in groups of 16 channels. If you have confirmed the part number and architecture, pricing and availability are the next step.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7521-1BL10-0AA0 — and Who Shouldn't

This module is the correct choice when all of the following are true for your project:

  • You need exactly 32 digital input channels in a single module slot — not 16, not mixed I/O
  • All input signals are 24 VDC within the 20.4 V to 28.8 V tolerance band — not 110 VAC, 230 VAC, or 48 VDC
  • Your controller is SIMATIC S7-1500 and your I/O station is ET 200MP — not S7-300, S7-400, or any earlier generation
  • Your engineering environment is STEP 7 TIA Portal V13 or later — older TIA Portal versions are not supported
  • An input delay of 3.2 ms typical is acceptable for your application cycle — this module is not rated for safety-critical functions
  • Electrical isolation in groups of 16 channels meets your sensor topology — per-channel isolation is not available on this module

If you only need 16 inputs, the 6ES7521-1BH10-0AA0 (DI 16x24VDC BA) is the hardware-compatible alternative at lower cost. If any input signals are AC voltage or analog in nature, a different module family is required entirely.

On this page:

What the 6ES7521-1BL10-0AA0 Actually Does in a Running System

The Siemens 6ES7521-1BL10-0AA0 is a 32-channel digital input module for the SIMATIC S7-1500 family. Its role is straightforward: it sits between the physical world of sensors and switches and the CPU logic that acts on their states. When a proximity sensor detects a part, a limit switch trips, or a pushbutton is pressed, the module reads that 24 VDC signal and maps the binary state into the S7-1500 CPU's input image, where ladder logic or structured text can evaluate it. The module supports 2-wire, 3-wire, and 4-wire proximity sensors as well as mechanical switches, making it a single module that covers the full range of discrete sensor types found on a typical machine.

Electrical isolation is implemented in two groups of 16 channels each. This means noise or a ground fault on one group of sensors cannot propagate across to the other 16 channels — a practical advantage in electrically noisy environments such as lines with VFDs or servo drives running nearby. The input delay is 3.2 ms at rated voltage, with a worst-case figure of 30.6 ms at the minimum supply voltage of 20.4 V. This latency is consistent across all 32 channels and is documented as acceptable for standard machine control logic, though it disqualifies the module from use in validated safety functions. For safety-rated emergency stop and interlock chains, Siemens F-series modules with their own validated response times are required.

The module occupies a 25 mm wide slot in an ET 200MP baseplate and is configured entirely through STEP 7 TIA Portal V13 or later. Address mapping is automatic — TIA Portal handles the I/O image assignment — and the module supports I&M commissioning data blocks from I&M0 to I&M3, which simplifies documentation and asset tracking in larger installations. Firmware version V1.0.0 is factory-installed and is updateable through the Siemens support portal.

Where This Module Sits in a Typical S7-1500 System Architecture

The 6ES7521-1BL10-0AA0 occupies the I/O expansion layer of an S7-1500 system, sitting between the CPU and the field sensor layer. Understanding its position helps clarify both wiring responsibilities and data flow.

  • S7-1500 CPU (e.g., CPU 1516pro-2 PN or similar) sits at the top of the station and executes the control program using input image data
  • ET 200MP I/O station provides the physical backplane slots into which this module is inserted — typically slots 2 through 8 on a standard station
  • The 6ES7521-1BL10-0AA0 plugs into one slot, receives a 40-pin push-in front connector carrying field wiring from sensors and switches
  • Channels 0 through 15 form isolation group A; channels 16 through 31 form isolation group B — each group has its own electrical reference common
  • Field devices — proximity sensors, limit switches, pushbuttons, pressure switches — connect directly to the push-in terminals and provide 24 VDC signals read at 3.2 ms input delay

Which Machines and Industries Use the DI 32x24VDC BA

Machine tool automation is one of the most common deployments. A machining center typically generates 20 to 35 discrete status signals — spindle confirmation, coolant level, tool magazine position, axis limit switches, door interlocks — and a single 6ES7521-1BL10-0AA0 consolidates all of them into one module slot rather than two 16-channel modules or four 8-channel modules.

Conveyor and sortation systems benefit from the isolation group structure. A multi-lane packaging line with sensors on both sides of a conveyor can wire the left-side sensors to group A (channels 0 to 15) and right-side sensors to group B (channels 16 to 31), keeping separate sensor commons and preventing cross-lane noise coupling without requiring external isolation relays.

Pharmaceutical and food and beverage production environments use this module for condition monitoring arrays — pressure switches, temperature alarm contacts, flow sensor binary outputs, and material presence sensors — where the input count per machine can exceed 20 discrete signals without any analog or safety-rated requirement.

In semiconductor assembly and electronics manufacturing, the module handles binary sensor arrays for pick-and-place fixtures, vision system trigger outputs, and vacuum confirmation sensors, all running at 24 VDC with the 3.2 ms response time well within servo coordination tolerances for non-safety loops.

Application Typical Deployment
Machine tool automation 32 spindle, coolant, limit, and door interlock signals consolidated into one ET 200MP slot
Multi-lane conveyor sortation 16 left-side + 16 right-side sensors split across isolation groups A and B
Pharmaceutical process monitoring Pressure switch, flow sensor, and temperature alarm contact arrays — 24 VDC binary only
Automotive production line Part presence, fixture confirmation, and clamp status inputs from proximity sensor array
Water treatment facility Valve position feedback, level switch, and pump run confirmation signals at single station
Electronics / semiconductor assembly Vacuum confirmation, vision trigger output, and pick-and-place position feedback at 24 VDC

Specifications Engineers Check Before Ordering

Parameter Specification
Number of Input Channels 32
Rated Supply Voltage 24 VDC
Supply Voltage Valid Range 20.4 V to 28.8 V DC
Input Type (IEC 61131) Type 3 — 2-wire, 3-wire, and 4-wire proximity sensors and switches
Input Delay (Typical at Rated Voltage) 3.2 ms
Input Delay (Worst Case at 20.4 V) 30.6 ms
Electrical Isolation Groups of 16 channels (two independent groups; not per-channel)
Dimensions (W x H x D) 25 mm x 147 mm x 129 mm
Operating Temperature (Horizontal Mount) 0 °C to 60 °C
Engineering Tool Required STEP 7 TIA Portal V13 or later (mandatory)

Full technical specifications are available on the product page at LeadTime.ca.

6ES7521-1BL10-0AA0 vs 6ES7521-1BH10-0AA0 — 32-Channel vs 16-Channel Compared

Feature 6ES7521-1BL10-0AA0 (DI 32x24VDC BA) 6ES7521-1BH10-0AA0 (DI 16x24VDC BA)
Input Channels 32 16
Rated Supply Voltage 24 VDC 24 VDC
Electrical Isolation Groups of 16 (two groups) Single isolation group
Module Width 25 mm 25 mm
Hardware Compatibility S7-1500 / ET 200MP S7-1500 / ET 200MP
Front Connector 40-pin push-in (included) 40-pin push-in (included)
STEP 7 TIA Portal Requirement V13 or later V13 or later
Best For Applications with 17–32 discrete inputs per station slot Applications with 16 or fewer discrete inputs per station slot

If your sensor count falls at or below 16 inputs per station slot, the 6ES7521-1BH10-0AA0 saves cost without sacrificing hardware compatibility. If your count is 17 or above, the 6ES7521-1BL10-0AA0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict — Is This the Right Module for Your Build?

The 6ES7521-1BL10-0AA0 earns its position as the standard 32-channel digital input module for S7-1500 systems because it solves a real engineering problem cleanly: high channel density in a single 25 mm slot, grouped isolation that addresses noise without external hardware, and full native integration with TIA Portal. For machine builders and systems integrators running S7-1500 on ET 200MP architecture with a standard 24 VDC sensor field, this module removes the need to stack two 16-channel units or manage multiple address blocks. The I&M0-to-I&M3 commissioning data support is a practical advantage on larger projects where asset documentation and module identification matter at startup.

The honest limits are worth stating. The 3.2 ms input delay typical — rising to 30.6 ms at the minimum supply voltage of 20.4 V — means this module is not appropriate for validated safety functions or high-speed safety interlocks. Those applications require SIMATIC F-series modules with certified response times. The isolation structure is in groups of 16, not per-channel; if your application requires individual channel isolation (common in some medical or high-interference environments), a different module architecture is needed. And the module is strictly 24 VDC — any AC voltage input requirement takes this part off the table entirely.

From a procurement standpoint, this is a standard stocking item for major industrial distributors with typical lead times in the 2-to-4-week range from authorized sources. Volume pricing is available for production runs exceeding 10 units, and the associated accessories — front connectors, labeling strips, and universal front door — should be ordered at the same time to avoid a separate procurement cycle. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The installation process for the 6ES7521-1BL10-0AA0 follows standard ET 200MP procedures. Before starting, refer to the ET 200MP system manual for full grounding, shielding, and slot-assignment guidelines. Key points to verify before and during installation:

  • The module inserts into an available ET 200MP baseplate slot — power off the 24 VDC supply to the station before inserting or removing any module
  • Field wiring connects through the included 40-pin push-in front connector — each terminal accepts direct wire insertion without a tool; use labeling strips to identify channels I0.0 through the full 32-channel range
  • Separate the sensor commons for group A (channels 0 to 15) and group B (channels 16 to 31) in your wiring harness — mixing commons between groups defeats the isolation benefit and can introduce ground loop noise
  • Verify the external 24 VDC supply is regulated and stable within the 20.4 V to 28.8 V tolerance band — a brownout below 20.4 V will increase input delay to the 30.6 ms worst-case figure and may cause diagnostic faults
  • After insertion and wiring, use STEP 7 TIA Portal online diagnostics to confirm all 32 channels report correct states before downloading the production program — the module auto-detects as DI 32x24VDC BA in TIA Portal V13 or later without manual address assignment

Compatible Accessories and Front Connectors

The following accessories are relevant to a complete 6ES7521-1BL10-0AA0 installation. Accessories are typically ordered separately from the module itself and should be included in your initial procurement to avoid delays.

  • 40-pin push-in front connector — included with the module; verify this is not already used from a previous installation if reusing hardware
  • Labeling strips — included with the module; used to identify individual channel terminals at the front connector
  • U connector — included; used for bridging potential within the ET 200MP station
  • Universal front door — included; provides mechanical protection for the front connector and wired terminals
  • Cable tie — included for strain relief on the field wiring harness at the front connector

What Engineers Get Wrong When Ordering This Part

The following checklist covers the most common specification and ordering errors for the 6ES7521-1BL10-0AA0. Verify each point before raising a purchase order:

  1. Verify controller is S7-1500, not S7-300, S7-400, or older generation
  2. Confirm system architecture is ET 200MP or S7-1500 baseplate mount, not DIN rail only
  3. Check that all input signals are 24 VDC (never 110 VAC, 230 VAC, or 48 VDC)
  4. Ensure you have STEP 7 TIA Portal V13 or later for engineering
  5. Confirm your wiring harness uses compatible 40-pin push-in front connector
  6. Verify isolation requirement in groups of 16 meets your sensor topology (not per-channel isolation available)
  7. Check supply voltage stable within 20.4-28.8 V tolerance; if not, add external regulated supply

If any of these points raises a conflict with your system design, contact the LeadTime.ca team before ordering — we can help confirm the correct module for your architecture.

Frequently Asked Questions

Is the 3.2 ms input delay on the 6ES7521-1BL10-0AA0 fast enough for my application?

For standard machine control logic — conveyor sequencing, part detection, interlock permissives, and status monitoring — the 3.2 ms typical delay at rated 24 VDC is within the acceptable range for most S7-1500 scan cycle designs. However, at minimum supply voltage of 20.4 V, the worst-case delay rises to 30.6 ms, which can cause issues in high-speed coordination loops. For safety-critical or high-speed shutdown functions, this module is not rated; validated SIMATIC F-series safety modules are required for those applications.

What is the practical difference between isolation in groups of 16 versus per-channel isolation?

With group isolation, the 32 channels are split into two sets of 16, each with its own electrical reference. A ground fault or high-noise sensor in group A cannot couple into group B — but within each group, all 16 channels share the same reference. Per-channel isolation would provide independent electrical separation for every single channel, which this module does not offer. For most industrial applications — where sensors in each physical zone are grounded consistently — group isolation is sufficient and practical to wire.

Can I use the 6ES7521-1BL10-0AA0 to replace a module in an S7-300 or S7-400 system?

No. The 6ES7521-1BL10-0AA0 is physically and architecturally incompatible with S7-300 and S7-400 backplanes. It requires an ET 200MP I/O station and an S7-1500 CPU. Replacing a module in an older generation system would require a full hardware migration to S7-1500 and ET 200MP, along with a re-engineering effort in STEP 7 TIA Portal V13 or later.

How do I avoid confusing the 6ES7521-1BL10-0AA0 with the 6ES7521-1BH10-0AA0?

The key difference is the channel count: the 1BL10 suffix identifies the 32-channel DI 32x24VDC BA, while the 1BH10 suffix identifies the 16-channel DI 16x24VDC BA. Both modules are hardware compatible within the same ET 200MP station, but they cannot substitute for each other if your wiring plan accounts for more than 16 inputs on a single module. Always confirm the full catalog number — 6ES7521-1BL10-0AA0 — character by character against your project documentation or official Siemens datasheet before ordering.

What STEP 7 TIA Portal version is required, and what happens if I have an older version?

STEP 7 TIA Portal V13 is the minimum version required to engineer and configure the 6ES7521-1BL10-0AA0. If your engineering environment is running an older TIA Portal version, the module will not be recognized in the hardware catalog, and you will not be able to complete the I/O configuration or address assignment. Upgrading TIA Portal is required before deployment — Siemens online help within TIA Portal covers the configuration workflow for this module.

What typical lead time should I plan for when sourcing the 6ES7521-1BL10-0AA0?

Under normal market conditions, authorized distributors typically quote 2 to 4 weeks for this module. For project timelines that cannot absorb that lead time, contacting distributors early and confirming stock before committing a design freeze is the practical approach. Volume requirements exceeding 10 units may qualify for bulk pricing and can affect lead time depending on available stock — confirm with your distributor at the time of inquiry.

Why Order from LeadTime.ca

  • LeadTime.ca ships the Siemens 6ES7521-1BL10-0AA0 worldwide — no regional restrictions on sourcing or delivery
  • Hard-to-locate automation parts and specific catalog numbers are a sourcing specialty — if a part is not immediately visible, the team can locate it
  • Volume pricing is available for production builds exceeding standard single-unit orders — contact directly for project-level quotes
  • Lead time confirmation before purchase commitment is available — useful for project scheduling and procurement planning
  • Response time is fast for both technical questions and commercial queries from controls engineers and procurement teams

At-a-Glance Summary

  • 32 digital input channels in a single 25 mm wide ET 200MP slot — replaces two 16-channel modules
  • Rated supply voltage: 24 VDC; valid operating range 20.4 V to 28.8 V DC
  • Input delay: 3.2 ms typical at rated voltage; 30.6 ms worst case at 20.4 V
  • Electrical isolation in two independent groups of 16 channels — not per-channel isolation
  • Supports 2-wire, 3-wire, and 4-wire proximity sensors plus mechanical switches (IEC 61131 Type 3)
  • Compatible exclusively with SIMATIC S7-1500 and ET 200MP — not S7-300, S7-400, or earlier hardware
  • Requires STEP 7 TIA Portal V13 or later; address mapping is automatic
  • Firmware V1.0.0 factory-installed; updateable via Siemens support portal
  • Dimensions: 25 mm x 147 mm x 129 mm; weight approximately 260 grams
  • Operating temperature: 0 °C to 60 °C horizontal mount; 0 °C to 40 °C vertical mount
  • 16-channel alternative: 6ES7521-1BH10-0AA0 (hardware-compatible, lower cost for smaller sensor arrays)
  • Not rated for safety-critical functions — use SIMATIC F-series modules for validated safety interlocks
