Siemens 6ES7521-1BL00-0AB0 — 32-Channel DI Module Buying Guide

By Abdullah Zahid
12 min read

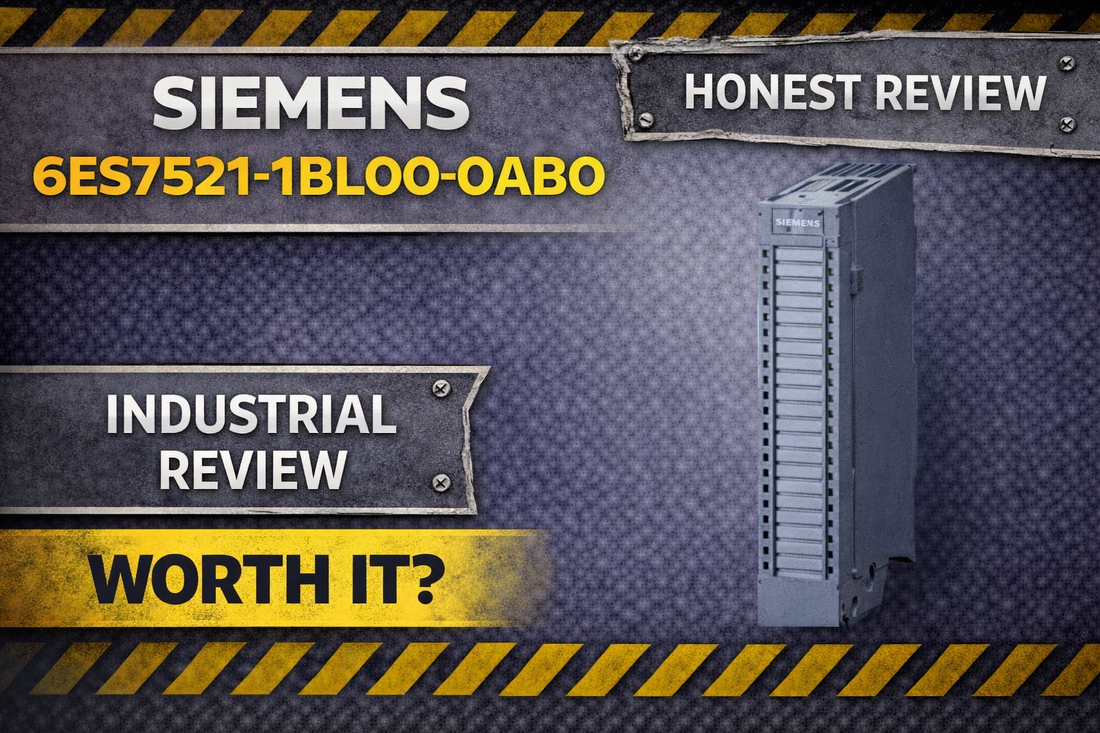

Siemens 6ES7521-1BL00-0AB0 DI 32x24VDC HF digital input module for SIMATIC S7-1500 PLC system

Siemens 6ES7521-1BL00-0AB0 DI 32x24VDC HF Digital Input Module: Specs, Installation, and Alternatives

Controls engineers specifying discrete input capacity for a SIMATIC S7-1500 system eventually land on the same question: do you consolidate 32 field-level signals into one slot, or split across smaller modules? The Siemens 6ES7521-1BL00-0AB0 — officially the DI 32x24VDC HF — answers that question with a single 35 mm wide backplane module that accepts 32 channels of 24V DC input, supports configurable input delay from 0.05 to 20 ms, and includes integrated diagnostics for voltage monitoring and wire-break detection. Two of those channels can double as high-speed counter inputs at up to 6 kHz (with FS04 hardware and firmware V2.2.1 or later), which eliminates the need for a separate counter module in throughput-tracking applications.

If you have already confirmed this is the right part, check current pricing and availability for the Siemens 6ES7521-1BL00-0AB0 at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7521-1BL00-0AB0 — and Who Shouldn't

This module is the right choice when all of the following apply to your project:

  • Your PLC is a SIMATIC S7-1500 or your distributed station is an ET 200MP system
  • You need exactly 32 input channels and your field devices output 24V DC within the 19.2–28.8V DC acceptable range
  • Your engineering environment runs STEP 7 TIA Portal V13 SP1 or later — earlier versions do not support this module's configuration
  • You require integrated diagnostic functions including continuous voltage monitoring and wire-break detection below 350 µA
  • You want the option to use 2 channels as high-speed counter inputs at up to 6 kHz without adding a dedicated counter module (requires FS04 hardware, FW V2.2.1+)

If you only need 16 inputs, the DI 16x24VDC HF is the more cost-effective choice and preserves a backplane slot. If your field signals are 120V AC or 230V AC, you need the corresponding AC-rated DI variant — the 6ES7521-1BL00-0AB0 will not register those signals reliably.

On this page:

What the Siemens 6ES7521-1BL00-0AB0 Actually Does in a Running System

The 6ES7521-1BL00-0AB0 is a discrete digital input module that sits in the SIMATIC S7-1500 backplane and converts 24V DC field-level signals — from proximity switches, push buttons, limit switches, pressure switches, and photo eyes — into digital logic the CPU can read, process, and act upon. It occupies a single standard I/O slot and contributes 32 channels in one housing that is 35 mm wide, 147 mm tall, and 129 mm deep, weighing approximately 260 g.

Where this module earns its place over a simpler 16-channel option is in the combination of channel density and on-board intelligence. The integrated diagnostics continuously monitor supply voltage and detect wire breaks when input current drops below 350 µA — a threshold low enough to catch a broken sensor lead before it causes a silent fault. LED indicators at both module and individual channel level give technicians an immediate visual of where a fault is without connecting a laptop. Two of the 32 channels are configurable as 32-bit high-speed counter inputs running at up to 6 kHz, which is sufficient for real-time parts counting on mid-speed conveyors and assembly lines without dedicating a separate counting module and slot to that function.

The module's input characteristic conforms to IEC 61131-3 Type 3, P-reading (source mode). Signal state "0" is recognized between -30 and +5V DC; signal state "1" requires +11 to +30V DC with a typical input current of 2.5 mA. Channels are isolated in two groups of 16 — channels 0 through 15 and channels 16 through 31 — tested at 707V DC, providing the potential separation that safety-conscious architectures require between sensor groups on different circuits.

Typical S7-1500 System Architecture With This Module

The 6ES7521-1BL00-0AB0 sits at the field interface layer — between the sensor network and the CPU — translating physical signal states into backplane data the processor reads every scan cycle. In a distributed ET 200MP deployment, the same module mounts remotely and communicates back to the CPU via PROFINET.

  • 24V DC field devices (proximity switches, limit switches, push buttons) wire to the front connector of the 6ES7521-1BL00-0AB0
  • The module occupies one standard I/O slot in the S7-1500 backplane or ET 200MP remote station
  • The backplane bus carries digital input data to the S7-1500 CPU for processing in the PLC scan cycle
  • TIA Portal V13 SP1 or later manages module configuration, firmware, and diagnostic alarm routing
  • In distributed architectures, the ET 200MP station connects to the main S7-1500 CPU via PROFINET, allowing the same DI 32x24VDC HF module to serve remote field panels

Where Engineers Deploy the DI 32x24VDC HF

Automated assembly lines with dense sensor populations are the most common deployment. A single 6ES7521-1BL00-0AB0 can consolidate 32 proximity sensors or photo eyes monitoring part presence at stations along a production line, reducing the number of backplane slots consumed compared to using multiple 16-channel modules and cutting wiring termination time significantly.

Safety and interlock input consolidation is another recurring use case. Multiple emergency stop buttons, safety gate interlocks, and light curtain outputs can all wire to a single module. The potential separation between channel groups 0–15 and 16–31 — isolation tested at 707V DC — supports the electrical segregation required when mixing signal sources from different zones.

High-speed production tracking applications benefit from the module's two counter inputs. At up to 6 kHz (with FS04 hardware and FW V2.2.1 or later), these inputs provide real-time throughput data for parts tracking, machine speed feedback, or cycle counting on mid-speed conveyors without the cost of a dedicated counter module occupying an additional slot.

Distributed I/O architectures using ET 200MP remote stations use this module to reduce the main control cabinet footprint. The same DI 32x24VDC HF that mounts locally on an S7-1500 backplane installs identically on an ET 200MP satellite connected to the network over PROFINET, with all diagnostic data visible in TIA Portal from the central engineering station.

Application Typical Deployment
Automated assembly line sensor monitoring 32 proximity sensors or photo eyes wired to single module; diagnostics identify failed sensors immediately
Emergency stop and safety interlock consolidation Multiple E-stop buttons, safety gates, light curtains; potential separation between channel groups supports zone isolation
High-speed parts counting on conveyor 2 counter inputs at up to 6 kHz track throughput in real time; eliminates need for separate counter module
Production status reporting to MES 32 machine status signals from across the line consolidated into one module; diagnostic alarms surface faults to operators
Distributed I/O in multi-axis robot or CNC cell ET 200MP remote station with 6ES7521-1BL00-0AB0 connected to S7-1500 CPU via PROFINET; reduces main cabinet wiring

Key Electrical and Physical Specifications

Parameter Value Notes
Supply Voltage (Rated) 24V DC Acceptable range 19.2–28.8V DC
Number of Input Channels 32 Channels 0–31; 2 configurable as counter inputs
Signal "1" Input Voltage +11 to +30V DC IEC 61131-3 Type 3, P-reading
Signal "0" Input Voltage -30 to +5V DC —
Input Current (Typical, Signal "1") 2.5 mA —
Input Delay (Configurable) 0.05–20 ms Applies to normal and interrupt inputs
Counter Frequency (Max) 6 kHz Requires FS04 hardware, FW V2.2.1 or later
Current Consumption (Max) 40 mA total 20 mA per group (two groups of 16 channels)
Potential Separation Groups of 16 channels 707V DC isolation test between channels and backplane
Dimensions (W × H × D) 35 × 147 × 129 mm Weight approximately 260 g

Full technical specifications are available on the product page at LeadTime.ca.

6ES7521-1BL00-0AB0 vs. Other S7-1500 Digital Input Variants

Module Channels Input Voltage Counter Inputs Best Fit
6ES7521-1BL00-0AB0 (DI 32x24VDC HF) 32 24V DC 2 (up to 6 kHz) Mid-to-large 24V DC input count; diagnostics required; optional high-speed counting
DI 16x24VDC HF 16 24V DC 2 (up to 6 kHz) Smaller applications; 32 channels is excess capacity; same diagnostic capability
DI 32x120VAC 32 120V AC None Field devices supply 120V AC signals instead of 24V DC
DI 32x230VAC 32 230V AC None Field devices supply 230V AC signals; European or industrial AC sensor networks
AI 4x13bit 4 analog Analog (variable) N/A Application requires analog sensor readings rather than discrete on/off signals

If your S7-1500 architecture involves exactly 32 24V DC discrete inputs and you want integrated diagnostics plus optional counter capability, the 6ES7521-1BL00-0AB0 is the correct choice — check current availability and pricing at LeadTime.ca.

Expert Verdict: Honest Assessment for the Evaluation Engineer

The 6ES7521-1BL00-0AB0 is a well-positioned module for any controls engineer building or expanding a SIMATIC S7-1500 system with a meaningful number of 24V DC discrete field inputs. The combination of 32 channels in a single 35 mm slot, configurable input delay down to 0.05 ms, integrated voltage and wire-break diagnostics, and the ability to repurpose two channels as 6 kHz counters makes this a genuinely versatile choice that reduces both slot count and the bill of materials for applications with moderate-to-high sensor density. The diagnostic LED structure — covering module status, power, channel active state, and individual channel faults — gives maintenance technicians a real troubleshooting starting point without requiring a laptop at the panel door.

The honest limits: this module does not include short-circuit protection — an external protection device is required if your application has that risk. The 6 kHz counter capability is only available on FS04 hardware running FW V2.2.1 or later; if you receive FS01 or FS03 hardware, you will not have that feature without a firmware update path verification. Counter direction is up only — applications requiring bidirectional counting need a different module. And if your project truly only needs 16 inputs, the DI 16x24VDC HF saves both cost and a backplane slot while delivering identical diagnostic capability.

From a procurement standpoint, the 6ES7521-1BL00-0AB0 is a standard catalog item with the UPC 887621139063 and broad distributor availability globally. Lead times can extend during supply chain disruption cycles or during hardware generation transitions, so confirming stock 4–6 weeks before your project installation date is a reasonable practice. LeadTime.ca stocks and sources Siemens S7-1500 I/O modules with volume pricing available for multi-module builds. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • The front connector — screw terminal or push-in type, ordered separately — accepts shielded field wiring runs up to 1,000 m; verify all 24V DC field sources fall within the 19.2–28.8V DC acceptable range before termination
  • Channels are arranged in two groups of 16 with potential separation; wire sensors from different electrical zones to separate groups to maintain the 707V DC isolation between groups
  • Module installs into a standard S7-1500 I/O backplane slot — power off the PLC before insertion, verify the target slot is not reserved for CPU, system memory, or communication modules
  • After physical installation, configure the module in TIA Portal V13 SP1 or later: set input delay (0.05–20 ms based on sensor response time), assign counter channels if needed, and verify the hardware functional status (FS) in the Properties panel matches the installed unit
  • At first power-on, verify RUN and PWR LEDs are green and no ERROR or channel diagnostic LEDs are red before beginning functional testing of field inputs

Compatible Accessories and Front Connector Options

The 6ES7521-1BL00-0AB0 requires a separately ordered front connector for field wiring termination. Both screw terminal and push-in connector variants are available from Siemens and compatible distributors. Confirm the connector type with your supplier before ordering to avoid a mismatch at installation.

  • Front connector with screw terminals — standard termination for fixed-wiring industrial panels
  • Front connector with push-in terminals — faster termination for high-channel-count wiring tasks
  • Shield connection elements — required if shielding field cables to the module per the S7-1500/ET 200MP system manual grounding guidelines
  • ET 200MP interface module — required when deploying the 6ES7521-1BL00-0AB0 as a remote distributed I/O station connected via PROFINET rather than directly on the S7-1500 backplane

Wrong-Part Prevention Checklist Before You Order

Before placing an order for the 6ES7521-1BL00-0AB0, run through every item on this checklist — missing any one of these is the most common cause of returned modules and delayed commissioning:

  1. Verify PLC is SIMATIC S7-1500 or ET 200MP system (module does not fit other Siemens platforms like S7-200, S7-300, S7-400)
  2. Confirm all input sources supply 24V DC (not 120V AC, 230V AC, or 48V DC)
  3. Check that STEP 7 TIA Portal version is V13 SP1 or later; earlier versions lack configuration support
  4. Ensure backplane slot is rated for I/O modules and not reserved for CPU, system memory, or communication modules
  5. Verify hardware functional status is FS04 or later if using advanced features like high-speed counting (6 kHz)
  6. Confirm you do not need external protection device (module has reverse polarity protection but no circuit breaker)

If any item on this list is unresolved, contact the LeadTime.ca team before ordering — we can help verify compatibility and confirm the right catalog number for your system.

Frequently Asked Questions

Does the 6ES7521-1BL00-0AB0 work with older SIMATIC S7-300 or S7-400 hardware?

No. The 6ES7521-1BL00-0AB0 is compatible only with SIMATIC S7-1500 and ET 200MP systems. The backplane connector and bus architecture are physically and electrically different from S7-300 and S7-400 racks. Attempting to install this module in an older platform will not work mechanically or electrically.

Can all 32 channels be used as high-speed counter inputs?

No. The DI 32x24VDC HF supports a maximum of 2 counter inputs, configurable from channels 0 and 1. The remaining 30 channels function as general-purpose discrete inputs. Counter operation at up to 6 kHz requires FS04 hardware and firmware V2.2.1 or later — verify your module's hardware functional status before relying on this feature.

What TIA Portal version is required to configure the 6ES7521-1BL00-0AB0?

STEP 7 TIA Portal V13 SP1 or later is the minimum supported version. Earlier TIA Portal versions do not include the module configuration support for this product. Firmware updates and I&M data management for the module are also performed through TIA Portal.

Is there short-circuit protection built into the module?

The 6ES7521-1BL00-0AB0 includes reverse polarity protection but does not include integrated short-circuit protection. If your application has a risk of short circuits on input wiring, an external protection device is required. Wire-break detection is provided — the module senses open-circuit faults when input current falls below 350 µA.

What happens if my installed module is FS01 and I need the 6 kHz counter feature?

The 6 kHz counter capability requires FS04 hardware with firmware V2.2.1 or later. FS01 hardware supports firmware in the V1.0.0 to V2.1.x range and does not support the full counter frequency. If this feature is essential to your application, confirm the hardware functional status of the module at the time of ordering with your distributor.

Can this module be used in a distributed ET 200MP station over PROFINET?

Yes. The 6ES7521-1BL00-0AB0 installs identically in an ET 200MP remote I/O station as it does in a local S7-1500 backplane. The ET 200MP interface module connects the station to the S7-1500 CPU via PROFINET, and all diagnostic data from the DI 32x24VDC HF is visible in TIA Portal from the central engineering station.

Why Order the 6ES7521-1BL00-0AB0 From LeadTime.ca

  • LeadTime.ca ships the Siemens 6ES7521-1BL00-0AB0 worldwide — no regional restriction on orders
  • Volume pricing is available for multi-module builds and system integrators ordering in quantity
  • Hard-to-find hardware functional status variants and current firmware generation modules can be sourced and confirmed before shipment
  • The LeadTime.ca team can verify compatibility, confirm lead time, and advise on front connector options before you commit to an order
  • Fast response on quote requests for procurement specialists working against project timelines

At-a-Glance Summary

  • 32 discrete 24V DC input channels in a single 35 mm wide backplane slot — compatible with SIMATIC S7-1500 and ET 200MP only
  • Acceptable supply voltage range: 19.2–28.8V DC; signal "1" threshold: +11 to +30V DC
  • Input delay configurable from 0.05 to 20 ms for normal and interrupt inputs
  • Two channels configurable as 32-bit high-speed counter inputs at up to 6 kHz — requires FS04 hardware and FW V2.2.1 or later
  • Channels isolated in groups of 16 (0–15 and 16–31); isolation tested at 707V DC between channels and backplane
  • Integrated wire-break detection (open circuit below 350 µA), voltage monitoring, and configurable diagnostic alarms
  • Maximum cable length with shielded wiring: 1,000 m
  • Requires STEP 7 TIA Portal V13 SP1 or later for configuration, firmware management, and I&M data
  • Front connector (screw or push-in) ordered separately; dimensions 35 × 147 × 129 mm, weight approximately 260 g
  • RoHS compliant; operating ambient -30°C to +60°C horizontal (FS05); storage -40°C to +85°C
