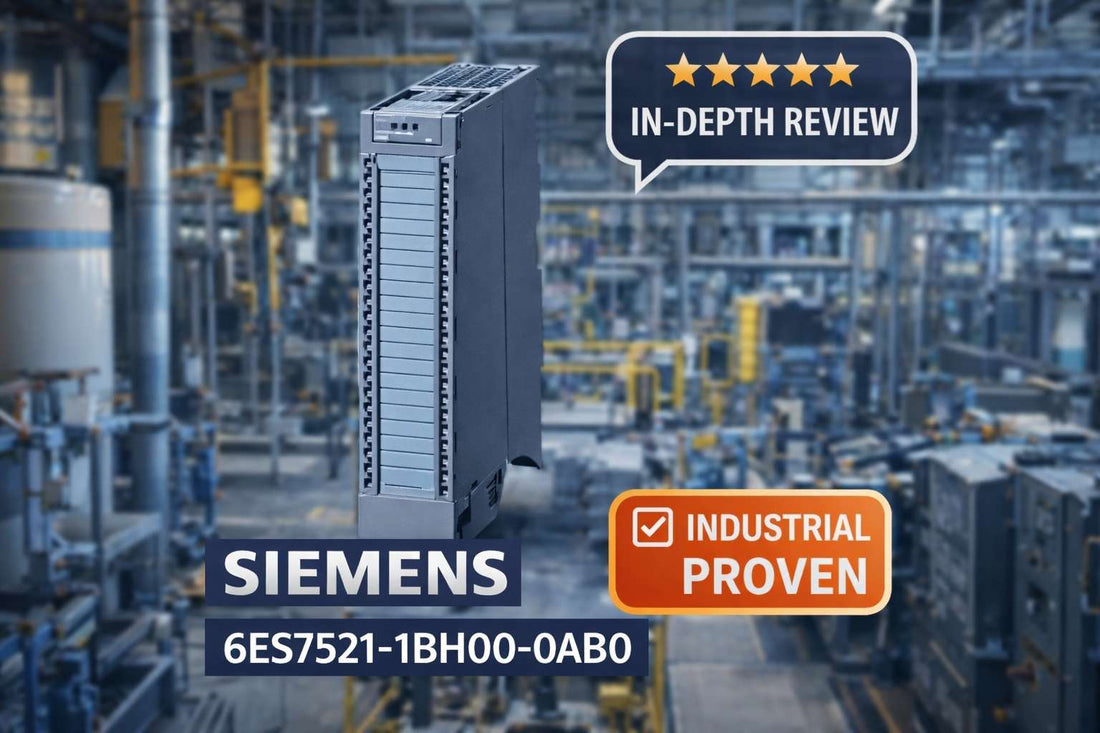

Siemens 6ES7521-1BH00-0AB0 DI 16x24VDC HF digital input module for SIMATIC S7-1500 and ET 200MP

Siemens 6ES7521-1BH00-0AB0 DI 16x24VDC HF Digital Input Module: Specifications, Installation, and Selection Guide

Controls engineers specifying a digital input module for a SIMATIC S7-1500 or ET 200MP system have usually already narrowed the field before they land on this page — the question is whether the Siemens 6ES7521-1BH00-0AB0 is exactly the right module or one variant off. This is a 16-channel, 24VDC digital input module with parameterizable input filtering from 0.05 ms to 20 ms, two dedicated counter inputs capable of reading pulses up to 6 kHz, and full isochronous mode support for time-synchronized motion control applications. It mounts on a 35 mm DIN rail, weighs 240 g, and is configured exclusively through STEP 7 TIA Portal V13 SP1 or later.

If you have already confirmed this is the correct part, check current pricing and availability for the 6ES7521-1BH00-0AB0 at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7521-1BH00-0AB0 — and Who Shouldn't

This module is the correct choice for engineers working within an established SIMATIC S7-1500 or ET 200MP architecture who need exactly 16 discrete 24VDC input channels. It is particularly well matched to applications where two of those channels will function as pulse counters, or where isochronous deterministic timing is required across a synchronized multi-axis system.

  • Your system is SIMATIC S7-1500 or ET 200MP — not S7-300, S7-400, or any other platform
  • You need exactly 16 input channels at 24VDC (permissible range 19.2V to 28.8V DC)
  • Input delay flexibility matters — your application requires filtering between 0.05 ms and 20 ms
  • One or two channels will read pulses from encoders or flow meters at frequencies up to 6 kHz
  • Your TIA Portal installation is V13 SP1 or later
  • DIN rail mounting on 35 mm rail is confirmed in your cabinet layout

If your inputs must meet a safety integrity requirement (PL E or SIL 3), this is not the correct module — specify the 6ES7526-1BH00-0AB0 (F-DI 16x24VDC PROFIsafe) instead. If you only need 8 channels, the 6ES7521-1AH00-0AB0 saves cost and DIN space.

On this page:

What the 6ES7521-1BH00-0AB0 Actually Does in a Running System

The Siemens 6ES7521-1BH00-0AB0 is a digital input module in the SIMATIC S7-1500 and ET 200MP I/O family. Its job is straightforward: it reads 16 discrete 24VDC field signals — from proximity switches, pushbuttons, limit switches, motor run contacts, flow switches, or solenoid feedback — and delivers their status to PLC logic over the backplane bus. Nothing happens in the PLC program related to those 16 field devices unless this module (or one like it) bridges that physical world into the controller's memory map.

What separates the 6ES7521-1BH00-0AB0 from a basic digital input module is the combination of three capabilities packed into a single 35 mm slot. First, input delay is not fixed — engineers can parameterize the filter time per channel from 0.05 ms up to 20 ms, allowing tight debounce on mechanical switches without affecting faster electronic sensor inputs on adjacent channels. Second, channels 1 and 16 are configurable as 32-bit up-counters reading pulse trains up to 6 kHz, eliminating the need for a separate counting module on conveyor lines, packaging machines, or flow meter installations. Third, isochronous mode support — with a minimum filter time of 80 µs and a minimum bus cycle time of 250 µs — makes this module usable in synchronized multi-axis motion control systems where deterministic input sampling is a hard requirement.

Diagnostics are built in at the module and channel level. Wire-break detection activates at a threshold below 350 µA, and supply voltage monitoring reports through the PWR LED and TIA Portal diagnostics buffer. The module runs on firmware V2.2.0 (updateable), and it carries reverse polarity protection on all inputs — no external protection fuse is required on the signal side.

Typical System Architecture for the 6ES7521-1BH00-0AB0

The 6ES7521-1BH00-0AB0 sits between field-level sensors and switches on one side, and the SIMATIC S7-1500 CPU or ET 200MP interface module on the other, passing discrete status signals into the PLC's process image over the backplane bus.

  • 24VDC field devices (proximity switches, limit switches, pushbuttons, motor run contacts) wire directly to the module's front connector terminals
  • The module mounts on a 35 mm DIN rail in the S7-1500 local rack or in an ET 200MP remote I/O station connected via PROFINET or PROFIBUS
  • Channel data is transferred to the S7-1500 CPU via the backplane bus each scan cycle (or synchronously in isochronous mode at 250 µs bus cycle minimum)
  • TIA Portal V13 SP1 or later maps the 16 input bits to %I addresses in the PLC memory, where ladder, FBD, or SCL logic reads them
  • Diagnostics and counter values are accessible in the TIA Portal diagnostics view and through the module's front-face LED indicators (RUN green, PWR green, channel green/red, module error red)

Where This Module Gets Specified: Industries and Use Cases

In automotive manufacturing, the 6ES7521-1BH00-0AB0 is a standard line-item in press control panels and assembly line stations, where 16 channels covering station-enable switches, part-presence sensors, and safety gate feedback all arrive at one module. The two counter inputs are sometimes used to track press stroke counts or conveyor index pulses without adding a dedicated counter module to the rack.

Packaging line engineers specify this module for machines where channels 1 and 16 read package count pulses from a photoelectric sensor and reject gate confirmation signals, while the remaining 14 channels handle machine state feedback — film reel low, seal jaw closed, infeed jam detected, and similar discrete inputs. The 0.05 ms filter option keeps response time tight on high-cycle-rate inputs without false triggering.

In food and beverage processing, distributed ET 200MP nodes with the 6ES7521-1BH00-0AB0 are used at remote substations to collect motor run/stop status, valve position confirmation, and level switch signals from pump stations 50 or more meters from the main control panel — feeding status back to the S7-1500 CPU over PROFINET.

Injection molding machine builders use this module to aggregate all auxiliary equipment status inputs — pump run, heater ready, hopper level, cooling water flow — onto one module in the main panel, taking advantage of the parameterizable filtering to handle the varied response times of different sensor types in a single configuration.

Application Typical Deployment
Conveyor line control 16 pushbuttons, limit switches, and e-stop inputs on one module; counter inputs for line index pulses
Packaging machinery Counter inputs on channels 1 and 16 for package count and reject gate feedback; remaining channels for machine state signals
Multi-station assembly 16 station-enable and status feedback signals consolidated on one 35 mm slot in the main S7-1500 rack
Injection molding auxiliary I/O All auxiliary equipment status inputs (pump, heater, hopper, cooling) fed into one module with mixed filter delay settings
Distributed ET 200MP substation 16 pump motor run/stop status signals read at a remote substation and transmitted to main CPU over PROFINET
Synchronized motion control Isochronous mode enabled for deterministic input sampling across multi-axis electronic cam or coordinated motion systems

Purchase-Decision Specs: What the Datasheet Numbers Mean in Practice

Parameter Specification
Input Channels 16, 24VDC rated
Permissible Input Voltage Range 19.2V to 28.8V DC
Reverse Polarity Protection Yes (built-in, all channels)
Parameterizable Input Delay 0.05, 0.1, 0.4, 1.6, 3.2, 12.8, 20 ms
Counter Inputs 2 (channels 1 and 16 configurable), 32-bit, up to 6 kHz
Isochronous Mode Yes — min. filter time (TCI) 80 µs, min. bus cycle (TDP) 250 µs
Wire-Break Detection Yes (threshold below 350 µA)
Power Consumption (backplane) 1.1 W
Dimensions (W x H x D) 35 mm x 147 mm x 129 mm, 240 g
Compatible Platform / Software SIMATIC S7-1500 / ET 200MP; STEP 7 TIA Portal V13 SP1 or later; Firmware V2.2.0

Full technical specifications are available on the product page at LeadTime.ca.

6ES7521-1BH00-0AB0 vs. 6ES7521-1AH00-0AB0 vs. 6ES7526-1BH00-0AB0: Which One Do You Need?

Module Channels Type Counter Isochronous Safety Rated Relative Cost
6ES7521-1AH00-0AB0 8 Digital No Yes No Lower (~70%)
6ES7521-1BH00-0AB0 16 Digital Yes (2 ch) Yes No Baseline (100%)
6ES7526-1BH00-0AB0 16 Digital Yes (2 ch) Yes Yes (PL E / SIL 3) Higher (~150%)
6ES7532-5HF00-0AB0 8 Analog 12-bit No Yes No Mid-High (~120%)

The decision between these four comes down to three hard criteria: channel count, safety certification requirement, and signal type. If your inputs are discrete 24VDC signals and your machine safety assessment does not require PL E or SIL 3 certification, the 6ES7521-1BH00-0AB0 is the correct module. If you need 8 channels and have no pulse-counting requirement, the 6ES7521-1AH00-0AB0 saves money and one-third of the DIN width. If any input channel controls a safety function, the 6ES7526-1BH00-0AB0 is not optional — it is the only compliant path. The 6ES7532-5HF00-0AB0 is a different product category entirely and cannot substitute for discrete digital inputs. If your architecture requires 16 discrete 24VDC inputs with counter capability, the 6ES7521-1BH00-0AB0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Engineers and Procurement Teams

The 6ES7521-1BH00-0AB0 earns its position as a standard line item in SIMATIC S7-1500 and ET 200MP builds because it solves a common configuration problem efficiently: facilities that need 16 input channels with a pair of integrated counters get them in a single 35 mm slot without a separate counting module occupying additional backplane space. The parameterizable input delay — seven discrete settings from 0.05 ms to 20 ms — is genuinely useful in mixed-sensor applications where electronic proximity switches and mechanical pushbuttons share the same module. Isochronous mode at 80 µs minimum filter time and 250 µs bus cycle makes this module usable in precision motion applications where basic digital I/O modules are not deterministic enough. The built-in wire-break detection below 350 µA and per-channel LED status indicators make diagnostics straightforward during commissioning and faultfinding.

There are real constraints worth naming before specifying this module. Short-circuit detection is not included — the diagnostics cover wire-break and supply voltage, but not output short-circuit on the input side, which matters in some wiring practices. The module does not ship with front connectors; screw terminal or push-in connectors must be ordered as a separate line item, and omitting them from the purchase order is a common cause of installation delays. Counter inputs are up-counting only, 32-bit, and capped at 6 kHz — if your encoder or pulse source runs faster than 6 kHz, this module is not the right counting solution regardless of how it performs on the digital input side. And the 6ES7526-1BH00-0AB0 PROFIsafe variant is the only acceptable substitute if a safety assessment flags any of these 16 inputs as safety-critical. If this matches your confirmed system requirements, view current stock and pricing for the 6ES7521-1BH00-0AB0 at LeadTime.ca.

On the procurement side, this is a standard catalog module with predictable availability through authorized distribution channels. It is not a long-lead specialty item under normal conditions, though global supply chain conditions and project-volume spikes can affect timing. LeadTime.ca sources this module for customers worldwide and can advise on current lead time, volume pricing, and whether bundling with front connectors or other rack components makes sense for your order.

For volume pricing, lead time confirmation, or to discuss bundling front connectors and other S7-1500 components into a single order, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation: What to Know Before You Mount It

  • The module mounts on a 35 mm DIN rail and must be fully seated into the S7-1500 backplane or ET 200MP mounting rail before powering up — verify mechanical latch engagement and that the backplane bus connector is fully engaged
  • Front connectors are not included and must be ordered separately; choose between screw terminal or push-in connector types depending on your wiring practice and cable cross-section
  • All 16 input channels operate within a single potential group — confirm 24VDC supply polarity before applying power; the module includes reverse polarity protection, but verifying polarity visually before energizing is good practice
  • For cable runs longer than 10 m, shielded cable is recommended to reduce EMI interference on signal lines — keep 24V supply runs physically separated from signal return conductors where possible
  • For counter inputs on channels 1 and 16, verify that the pulse source does not exceed 6 kHz and review filter time settings in TIA Portal — an input delay that is too long will miss edges and cause undercounting

Compatible Front Connectors and System Expansion

The 6ES7521-1BH00-0AB0 ships with label strips, a U connector, and a module door, but requires a separately ordered front connector before field wiring can be terminated. The following connector types are compatible with this module within the SIMATIC S7-1500 and ET 200MP system:

  • Screw terminal front connectors — traditional screw-clamp termination for standard wire cross-sections used in industrial panel wiring
  • Push-in front connectors — tool-free push-in termination for faster wiring cycles in high-volume panel builds
  • Potential jumpers and cable ties — supplied with the module for PE and potential bridging within the rack

When building out an ET 200MP distributed station, this module coexists with analog input modules, digital output modules, and the ET 200MP interface module in the same rack. When used in an S7-1500 local rack, it occupies one slot alongside CPU, power supply, and other I/O modules. Consult the SIMATIC S7-1500 or ET 200MP system manual for slot assignment rules and maximum module counts per station.

Wrong-Part Prevention Checklist Before You Order

Run through every item on this checklist before submitting a purchase order for the 6ES7521-1BH00-0AB0 — each one represents a real mistake that delays installations or results in an unusable module:

  1. Verify voltage is 24VDC (not 120VAC or 24VAC)—module will not function or survive on AC supply
  2. Confirm PLC platform is SIMATIC S7-1500 or ET 200MP distributed—not compatible with S7-300/400 or other brands
  3. Check that 16 channels are required (not fewer)—over-provisioning adds cost; under-provisioning requires second module
  4. Ensure mounting is DIN rail 35 mm (module width is fixed 35 mm)—does not fit panel enclosures directly
  5. Confirm STEP 7 TIA Portal version is V13 SP1 or later—older versions not supported
  6. Order front connectors separately—module ships with label strips, U connector, and door but requires screw terminal or push-in connectors to be purchased

If any item on this checklist cannot be confirmed, contact the LeadTime.ca team before ordering — our team can help verify compatibility and identify the correct part number for your system.

Frequently Asked Questions

Can I use the 6ES7521-1BH00-0AB0 on 120VAC or 24VAC input signals?

No. The module is designed exclusively for 24VDC signals within a permissible range of 19.2V to 28.8V DC. Applying AC voltage will damage the input circuits. Always verify your power supply output voltage and type before connecting field devices to the module.

What is the difference between isochronous mode and standard mode on this module?

In standard mode, inputs are sampled each PLC scan cycle with no guaranteed timing relationship between modules. Isochronous mode forces all inputs to be sampled at the same deterministic interval — the minimum filter time is 80 µs and the minimum bus cycle is 250 µs — which is a hard requirement for multi-axis motion control systems using electronic cam or coordinated motion. For conventional discrete I/O applications, standard mode is sufficient.

Do I need the 6ES7526-1BH00-0AB0 PROFIsafe version instead of the 6ES7521-1BH00-0AB0?

Only if your machine safety assessment requires inputs to meet Performance Level D or E (ISO 13849-1) or Safety Integrity Level 2 or 3 (IEC 61508). The 6ES7526-1BH00-0AB0 is rated to PL E / SIL 3 and is required when those inputs control safety functions. Most standard production machine digital inputs do not require PROFIsafe — verify against your specific safety assessment before specifying either module.

Why are the counter inputs limited to up-counting only, and what happens if my pulse frequency exceeds 6 kHz?

The 6ES7521-1BH00-0AB0 counter inputs on channels 1 and 16 support 32-bit up-counting only at a maximum frequency of 6 kHz. If your encoder or pulse source generates signals above 6 kHz, this module's counter inputs cannot reliably capture them — you will need a dedicated high-speed counter module or hardware counting capability in the PLC CPU. Do not connect sources exceeding 6 kHz to these inputs.

Can I configure different input delay times for individual channels on the same module?

Yes. The parameterizable input delay (0.05, 0.1, 0.4, 1.6, 3.2, 12.8, or 20 ms) is set in STEP 7 TIA Portal per channel or per channel group, depending on the firmware version and configuration options available. This allows mixed-sensor installations where fast electronic sensors and slower mechanical switches share the same module without compromising either response time or debounce performance.

What happens if I forget to order front connectors?

The module cannot be wired without front connectors — no field wiring can be terminated to the module. The 6ES7521-1BH00-0AB0 ships with label strips, a U connector, and a module door, but screw terminal or push-in front connectors must be ordered as a separate line item from the Siemens catalog. This is one of the most common causes of installation delays on new S7-1500 and ET 200MP builds.

Why Engineers and Procurement Teams Order From LeadTime.ca

  • LeadTime.ca ships the 6ES7521-1BH00-0AB0 and compatible components worldwide — no regional restriction on orders
  • Hard-to-source or short-lead-time parts, including front connectors and rack accessories that are frequently missing from initial purchase orders, can be sourced and bundled in a single order
  • Volume pricing is available — contact the team directly for project quantities or repeat orders
  • The team can verify compatibility, confirm current stock levels, and advise on lead time before you commit a project schedule

At-a-Glance Summary

  • 16 independent digital input channels at 24VDC, permissible range 19.2V to 28.8V DC, with built-in reverse polarity protection
  • Parameterizable input delay in 7 steps from 0.05 ms to 20 ms — configurable per channel in STEP 7 TIA Portal V13 SP1 or later
  • Two integrated 32-bit up-counters on channels 1 and 16, reading pulse frequencies up to 6 kHz
  • Isochronous mode supported with 80 µs minimum filter time (TCI) and 250 µs minimum bus cycle (TDP) for deterministic multi-axis applications
  • Wire-break detection active below 350 µA threshold; per-channel LED status plus module-level diagnostics LED
  • 35 mm DIN rail mounting, 147 mm height, 129 mm depth, 240 g weight — fits standard S7-1500 and ET 200MP racks
  • Power consumption from backplane: 1.1 W; typical power loss: 2.6 W
  • Firmware V2.2.0, updateable via TIA Portal; compatible platforms are SIMATIC S7-1500 and ET 200MP only
  • Front connectors (screw terminal or push-in type) are not included — must be ordered separately
  • Safety-rated alternative: 6ES7526-1BH00-0AB0 (F-DI 16x24VDC PROFIsafe, PL E / SIL 3) — required when inputs control safety functions
