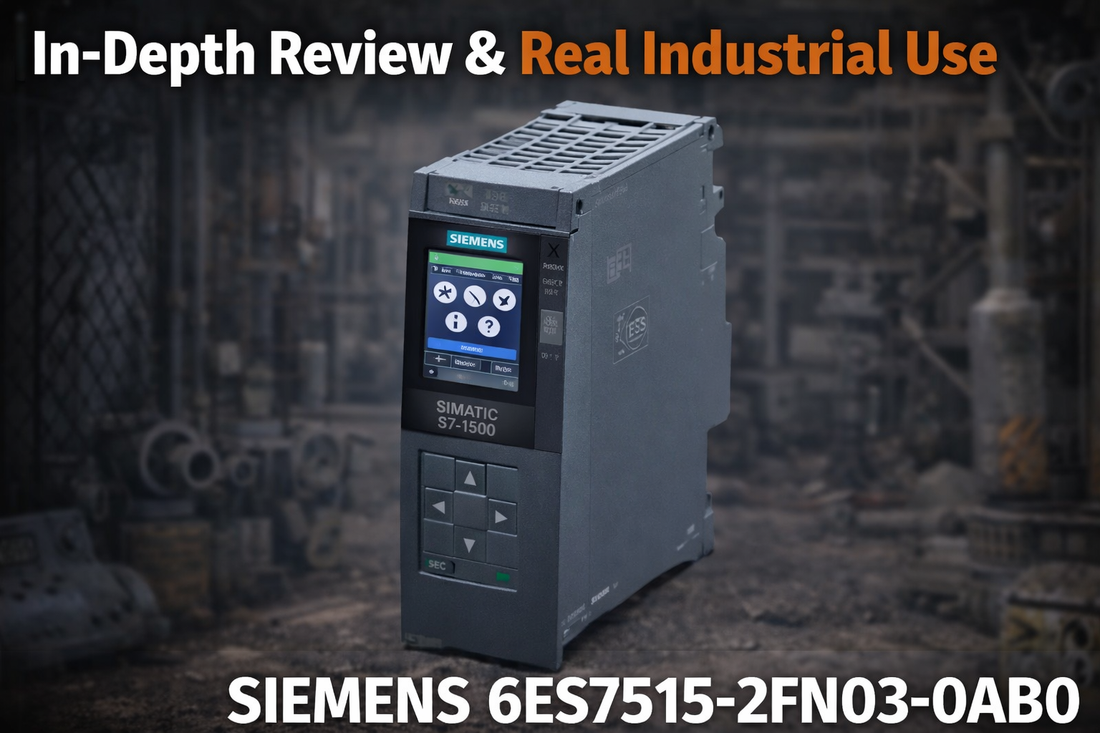

Siemens 6ES7515-2FN03-0AB0 CPU 1515F-2 PN fail-safe SIMATIC S7-1500F PLC module for safety-critical industrial automation

Siemens 6ES7515-2FN03-0AB0 CPU 1515F-2 PN: Fail-Safe PLC Specifications, Pricing and Selection Guide

Controls engineers specifying a fail-safe CPU for SIMATIC S7-1500F platforms are typically at the final confirmation stage — safety requirements are documented, the PROFINET architecture is mapped, and the question is whether the 6ES7515-2FN03-0AB0 is the right SKU or whether a smaller or non-fail-safe variant makes more sense. This article answers that question directly, using verified specifications: 1.5 MB program work memory, 4.5 MB data memory, 6 ns bit performance, dual PROFINET IRT plus RT interfaces, and SIL 3 / PLe safety certification — all in a 70 mm × 147 mm × 129 mm DIN-rail module weighing 456 g.

If you have already confirmed this is the right part, check current pricing and availability for the 6ES7515-2FN03-0AB0 at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7515-2FN03-0AB0 — and Who Shouldn't

This CPU is the right choice for automation systems where safety certification is a hard requirement and program complexity demands the top-tier memory configuration in the S7-1500F family. Buy the 6ES7515-2FN03-0AB0 if your application meets all of the following criteria:

  • Fail-safe logic is mandatory — SIL 3 per IEC 61508 or PLe per ISO 13849-1 is required by regulation, customer specification, or hazard analysis
  • Program memory demand is above what the 750 KB variant supports — applications with complex batch sequencing, multi-zone safety logic, or extensive motion programming benefit from the full 1.5 MB program work memory
  • Dual PROFINET is required — the system uses PROFINET IRT for isochronous motion or synchronized processes, and a separate PROFINET RT network for standard I/O or HMI communication
  • Isochronous mode is in scope — servo axis synchronization or position-dependent interlocks relying on the 375 µs distributed cycle time require the IRT interface on this CPU
  • Hardware clock integrity matters — applications requiring time-stamped process logs or batch records across power interruptions need the 6-week clock backup at 40°C

If safety certification is not required, the standard non-fail-safe CPU 1515-2 PN (catalog number 6ES7515-2AN03-0AB0) delivers comparable processing performance at lower cost. If SIL 3 is needed but the program footprint is small, the 750 KB variant in the S7-1500F family is worth evaluating before committing to this SKU.

On this page:

What the CPU 1515F-2 PN Actually Does in a Running System

The SIMATIC S7-1500F, CPU 1515F-2 PN is the central computing engine of a fail-safe automation cell. It executes both standard and fail-safe logic blocks in a single CPU — safety programs run in certified F-runtime environments alongside conventional automation code, eliminating the need for separate external safety relay controllers in many architectures. The CPU manages all system diagnostics, communicates with distributed I/O and field devices over PROFINET, and maintains a hardware clock with 6-week power-fail backup to preserve time-stamped data integrity across outages.

With 6 ns bit performance and 2,400 available motion control resources, the 6ES7515-2FN03-0AB0 handles applications that combine high-speed logic execution with coordinated multi-axis motion. Each speed-controlled axis consumes 40 motion resources, giving a practical ceiling of approximately 60 axes per CPU depending on cycle time configuration. The CPU is not a standalone system — it requires a 24 VDC external power supply, a SIMATIC Memory Card (sold separately), compatible S7-1500 I/O modules, and a TIA Portal V16 or later engineering environment.

The successor to the discontinued 6ES7515-2FM00-0AB0, this CPU carries forward the S7-1500F platform architecture with firmware update capability and current support status confirmed as of February 2026. Firmware version V4.1 is available with V4.0 also supported.

Typical System Architecture for the 6ES7515-2FN03-0AB0

The 6ES7515-2FN03-0AB0 sits at the top of the control tier, acting as the safety-certified logic executor and network master for all downstream devices and I/O subsystems.

  • Engineering workstation running TIA Portal V16 or later connects via standard Ethernet to configure, download, and monitor the CPU
  • The CPU's first PROFINET interface (IRT with 2-port switch) connects to servo drives, motion controllers, and synchronized safety I/O devices requiring isochronous cycles as fast as 375 µs
  • The 2-port switch on the IRT interface supports ring topology — devices loop back to the CPU, enabling automatic recovery on a single cable break without additional ring coupler hardware
  • The CPU's second PROFINET interface (RT) connects to standard I/O modules, HMI panels, and non-isochronous field devices on a separate network segment
  • S7-1500F fail-safe I/O modules mounted on the same DIN rail communicate via the internal backplane bus and execute the safety-certified I/O functions governed by the CPU's F-runtime

Industries and Applications Where This CPU Is the Standard Choice

Food and beverage processing lines that require machine guarding interlocks, emergency stop circuits, and conveyor safety zones represent one of the most common deployments for the 6ES7515-2FN03-0AB0. The SIL 3 / PLe certification satisfies both regulatory requirements and customer-mandated safety standards without requiring separate safety controllers alongside the main PLC.

Pharmaceutical batch manufacturing applications benefit from the combination of fail-safe logic and the hardware clock with 6-week backup. Batch records and process logs remain time-stamped and intact across power interruptions — a requirement in FDA-regulated manufacturing environments.

Packaging machinery — particularly horizontal form-fill-seal lines and case palletizers — uses the CPU's 2,400 motion control resources and 375 µs isochronous capability for coordinated multi-axis motion with position-dependent safety interlocks. The PROFINET IRT ring topology keeps all servo axes synchronized even when one network segment experiences a cable fault.

Chemical batch plants and process safety systems specify the SIL 3 certification for emergency shutdown logic and process zone isolation. The dual PROFINET architecture separates safety-critical I/O communication from standard HMI and historian traffic, reducing interference risk.

Application Typical Deployment
Food and beverage conveyor lines Fail-safe interlocks, E-stop circuits, machine guard monitoring via S7-1500F I/O
Pharmaceutical batch processing Batch sequencing with fail-safe zone handoff; time-stamped logs using 6-week hardware clock backup
Packaging machinery (FFS, palletizers) Multi-axis motion control with isochronous PROFINET IRT and position-dependent safety interlocks
Chemical process safety systems Emergency shutdown logic to SIL 3; dual PROFINET separating safety and standard I/O networks
Automotive OEM and tier-1 assembly Robotic gantry control with fail-safe collision detection and synchronized conveyor tracking
Water treatment and utilities Process zone isolation with fail-safe CPU managing distributed remote I/O over PROFINET ring

Specifications Engineers Use to Make the Purchase Decision

Specification Value
Catalog Number 6ES7515-2FN03-0AB0
Official Product Name SIMATIC S7-1500F, CPU 1515F-2 PN
Program Work Memory 1.5 MB
Data Memory 4.5 MB
Bit Performance 6 ns
Safety Certification SIL 3 (IEC 61508) / PLe (ISO 13849-1)
PROFINET Interfaces IRT with 2-port switch (isochronous, 375 µs min cycle) + RT
Motion Control Resources 2,400 total; 40 per speed-controlled axis
Supply Voltage 24 VDC (19.2–28.8 VDC range), 0.65 A rated / 1.03 A max
Operating Temperature -30 to 60°C (horizontal mounting)

Full technical specifications are available on the product page at LeadTime.ca.

6ES7515-2FN03-0AB0 vs. Smaller and Non-Fail-Safe Variants: Which One Do You Need?

Model Program Memory Data Memory Fail-Safe (SIL 3) Bit Performance Best Fit
6ES7515-2FN03-0AB0 1.5 MB 4.5 MB Yes 6 ns Large fail-safe applications with motion and dual PROFINET
6ES7515-2FM02-0AB0 750 KB 3 MB Yes 6 ns Smaller fail-safe applications with limited logic and data
6ES7515-2AN03-0AB0 1 MB 4.5 MB No 6 ns High-performance standard applications where SIL 3 is not required
6ES7515-2AM02-0AB0 500 KB 3 MB No 30 ns Entry-level standard applications; cost-sensitive, lower performance

If your system architecture requires SIL 3 certification and 1.5 MB program capacity with dual PROFINET IRT and RT, the 6ES7515-2FN03-0AB0 is the correct choice — check current availability and pricing at LeadTime.ca.

Expert Verdict: Where This CPU Earns Its Price and Where It Doesn't

The 6ES7515-2FN03-0AB0 earns its position at the top of the S7-1500F memory tier by delivering three things simultaneously: SIL 3 / PLe certified fail-safe execution, isochronous PROFINET IRT with ring-capable 2-port switch, and 2,400 motion control resources — all within a single CPU module. For food, pharma, chemical, and automotive applications where safety certification is non-negotiable and program complexity is high, this CPU removes the need for external safety relay panels and simplifies the overall cabinet architecture. The 6 ns bit performance and hardware clock with 6-week backup add genuine value for time-critical process logging and coordinated motion, not just on paper.

Where it falls short is straightforward: it costs more than it needs to when SIL 3 is not actually mandated. Engineers who specify this CPU for standard automation applications to get the performance headroom are paying a real premium — the 6ES7515-2AN03-0AB0 delivers 6 ns performance and 4.5 MB data memory without the safety certification cost. Similarly, if program logic is compact and data demands are below 3 MB, the 750 KB S7-1500F variant covers the safety requirement at a lower price point. The isochronous 375 µs cycle is also only useful if the application actually requires synchronized motion or position-dependent interlocks — systems running standard asynchronous I/O see no benefit from IRT and should question whether the dual-interface configuration is necessary.

On the procurement side, market pricing for new factory-sealed units runs in the USD $3,700–$4,100 range depending on distributor, volume, and region. Standard stock through authorized distributors typically ships in 1–3 weeks; demand spikes push that to 4–8 weeks, and direct special orders from the manufacturer can reach 6–12 weeks. For projects with a fixed commissioning date tied to safety certification schedules, placing the order 8–10 weeks ahead is the conservative call. If this matches your system requirements, view current stock and pricing for the 6ES7515-2FN03-0AB0 at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Mount on a standard 35 mm DIN rail in horizontal or vertical orientation; note that operating temperature limits apply differently by mounting orientation, and the integrated display shuts off above 50°C
  • Connect a 24 VDC supply within the 19.2–28.8 VDC permissible range to the CPU's screw terminals; the CPU draws 0.65 A rated and up to 1.03 A maximum — size the external supply and circuit protection accordingly, as the CPU has no built-in circuit breaker
  • Insert the SIMATIC Memory Card (microSD format, purchased separately) before first power-on; the CPU will not operate without an external memory card
  • Connect PROFINET IRT cabling to the first interface's 2-port switch for isochronous or ring-topology devices; connect PROFINET RT to the second interface for standard I/O, HMI, or historian devices
  • Verify reverse polarity protection is active on the 24 VDC supply connection, confirm LED indicator behavior on first power-on (RUN/STOP, ERROR, MAINT, STOP ACTIVE, LINK TX/RX), and establish TIA Portal connectivity before downloading the project

Compatible Modules and System Expansion

The 6ES7515-2FN03-0AB0 operates as the central controller within the SIMATIC S7-1500F ecosystem. The following module types integrate directly with this CPU through the backplane bus or PROFINET network:

  • SIMATIC S7-1500F fail-safe I/O modules — digital and analog safety modules that execute certified fail-safe I/O functions governed by the CPU's F-runtime environment
  • SIMATIC Memory Card (microSD, 8–256 GB range) — required external storage for program and data retention; not included with the CPU and must be ordered separately
  • S7-1500 standard I/O modules — non-fail-safe digital and analog modules for conventional automation I/O, mounted on the same rail and communicating via the internal backplane bus
  • PROFINET field devices and distributed I/O — remote I/O stations, servo drives, and safety field devices connected via the CPU's IRT or RT PROFINET interfaces
  • TIA Portal V16 or later — required engineering software for project configuration, safety program development, firmware updates, and cycle time analysis

Wrong-Part Prevention Checklist Before You Order

Before submitting a purchase order for the 6ES7515-2FN03-0AB0, verify each of the following against your project documentation:

  1. Confirm "F" designation in model name (6ES7515-2FN03-0AB0, not 6ES7515-2AN03-0AB0): F = fail-safe, A/N = standard
  2. Verify 1.5 MB program memory requirement (not 750 KB or 500 KB variants)
  3. Check that application requires SIL 3 / PLe certification (if not, standard CPU is lower cost)
  4. Confirm dual PROFINET IRT + RT needed (some systems only need RT, allowing different CPU)
  5. Verify 4.5 MB data memory is sufficient (not 3 MB variant)
  6. Check SIMATIC Memory Card is in procurement (CPU requires external memory card; not included)
  7. Confirm 24 VDC external power supply will be used (0.65 A typical, 1.03 A max; no integrated supply)
  8. Verify isochronous mode not critical to your application (if 375 µs cycle too long, consider different CPU or re-engineer timing)

If any of these checks raise a question before ordering, contact the LeadTime.ca team to confirm the correct part number for your application before committing to procurement.

Frequently Asked Questions

Is the 6ES7515-2FN03-0AB0 a direct replacement for the discontinued 6ES7515-2FM00-0AB0?

The 6ES7515-2FN03-0AB0 is the successor to the 6ES7515-2FM00-0AB0 within the SIMATIC S7-1500F family. As with any CPU replacement, you should verify firmware compatibility with your existing TIA Portal project version and confirm that any hardware functional status differences between the old and new CPU are accounted for in your safety validation documentation before putting the replacement into service.

Does the CPU 1515F-2 PN include a SIMATIC Memory Card?

No. The SIMATIC Memory Card is not included with the 6ES7515-2FN03-0AB0 and must be purchased separately. The CPU will not operate without an external memory card installed. Confirm the memory card is included in your bill of materials before placing the order.

What is the practical maximum number of motion axes on this CPU?

The 6ES7515-2FN03-0AB0 provides 2,400 motion control resources. Each speed-controlled axis consumes 40 resources, giving a theoretical maximum of approximately 60 axes. In practice, the actual ceiling is often lower because adding motion axes increases CPU cycle time — reaching or approaching the 375 µs isochronous deadline becomes a constraint before the resource count is exhausted. Prototype and validate motion loading in TIA Portal before finalizing axis count.

What happens to the hardware clock during a power outage?

The CPU 1515F-2 PN includes a hardware clock with 6-week backup at 40°C. During a power interruption, the clock continues running for up to 6 weeks without external supply, preserving time-stamp integrity for process logs, batch records, and time-dependent control sequences. This is a key differentiator for FDA-regulated and process-safety applications where audit trail continuity is required.

Can the 6ES7515-2FN03-0AB0 be used without isochronous mode enabled?

Yes. The isochronous PROFINET IRT interface and 375 µs cycle capability are available but not mandatory. Systems that do not require synchronized motion or isochronous I/O can use the IRT interface in standard RT mode. However, if isochronous mode is not needed at all, a CPU with only RT interfaces may cover the application at lower cost — confirm this during the selection process.

What firmware version should I specify when ordering or commissioning?

Firmware V4.1 is the current release available for the 6ES7515-2FN03-0AB0, with V4.0 also supported. Verify that your TIA Portal project version is compatible with the firmware version on the CPU you receive. Firmware updates are performed via TIA Portal or through the Siemens industry support portal; only signed firmware updates are accepted due to the Secure Boot feature on this CPU.
