Siemens 6ES7512-1DK01-0AB0 — CPU 1512SP-1 PN Selection Guide

By Abdullah Zahid
13 min read

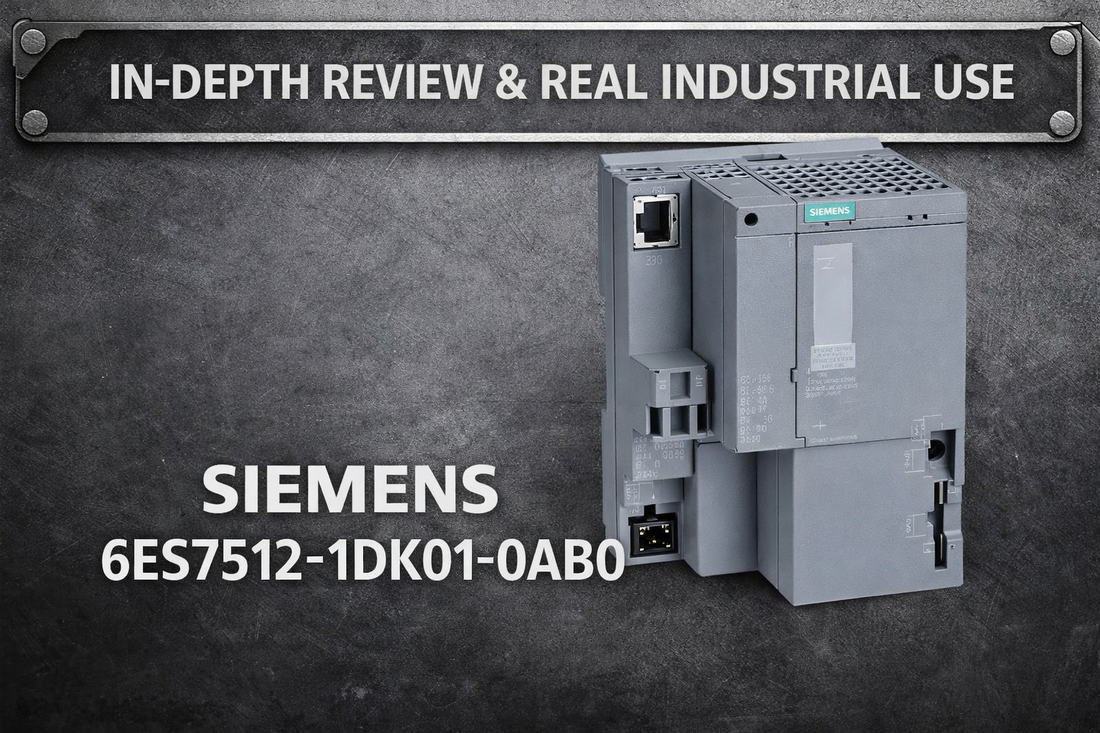

Siemens 6ES7512-1DK01-0AB0 CPU 1512SP-1 PN distributed CPU module for SIMATIC ET 200SP DIN rail automation system

Siemens 6ES7512-1DK01-0AB0 CPU 1512SP-1 PN for SIMATIC ET 200SP — Specs, Setup and Selection Guide

Controls engineers evaluating distributed CPU options for a SIMATIC ET 200SP station are typically weighing one core question: does this module have the memory, real-time performance, and connectivity to run local logic autonomously while staying synchronized with the central automation platform? The Siemens 6ES7512-1DK01-0AB0 — the CPU 1512SP-1 PN for SIMATIC ET 200SP — answers that question with 200 KB of program memory, 1 MB of data memory, a 48 ns bit processing cycle, and a 3-port integrated PROFINET IRT switch in a 100 × 117 × 75 mm form factor that fits directly onto a DIN rail inside a modular ET 200SP station. If you are at the procurement stage and have already confirmed fit, check current pricing and availability before reading further.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Siemens 6ES7512-1DK01-0AB0 — and Who Shouldn't

This module is the right choice for engineers building or expanding modular distributed automation systems where local processing intelligence, PROFINET IRT real-time communication, and compact cabinet footprint are all required simultaneously. Buy this part if your application meets the following criteria:

  • Your network backbone uses PROFINET IRT — not Modbus, EtherCAT, or PROFIBUS
  • Your application's total program logic fits within 200 KB (typical conveyor control, sorting, PID loops, and I/O scanning consume 50–150 KB)
  • Your cabinet supplies regulated 24 V DC with a permissible range of 19.2–28.8 V DC
  • You need up to 3 PROFINET ports — 1 integrated plus 2 via BusAdapter — with support for RJ45, M12, or fiber options
  • Your application requires a minimum adjustable cycle time of 500 µs and up to 50 process alarm OBs for interrupt-driven logic
  • Hot-swap module replacement without stopping adjacent stations is a maintenance or uptime requirement

If your program memory requirement exceeds 200 KB or you need integrated safety functions (SIL2/PLd), this is not the correct variant — the 1512SP F PN at 512 KB program memory and the 1512SP Safety variant are the appropriate upgrades. If you need no on-board CPU at all and are consolidating simple I/O only, a standard ET 200SP analog or digital I/O module is a more cost-effective choice.

On this page:

What the Siemens 6ES7512-1DK01-0AB0 Actually Does in a Running System

The 6ES7512-1DK01-0AB0 is not a gateway or a remote I/O head — it is a fully programmable CPU that executes its own control logic locally at the machine or process level, independent of the central PLC. It runs IEC 61131-3 compliant programs stored in its 200 KB program memory, handles interrupt-driven events via up to 50 process alarm OBs and 20 cyclic interrupt OBs, and synchronizes with upstream controllers or industrial edge devices over PROFINET IRT with bounded latency. The 48 ns bit processing performance allows it to handle high-frequency I/O scan loops and PID control without offloading calculations to the central automation layer.

The integrated 3-port PROFINET switch is one of the functionally significant aspects of this module. Rather than requiring a separate managed switch or gateway card to route PROFINET signals between the CPU, adjacent ET 200SP stations, and the plant backbone, the three ports (1 native, 2 via BusAdapter) allow the CPU itself to act as a switching node in a ring or daisy-chain topology. This reduces panel wiring complexity and the number of active components required per distributed station. PROFINET IRT guarantees synchronization performance that legacy PROFIBUS networks cannot match — multi-station lines using ET 200SP CPUs with IRT achieve sub-1 ms synchronization error across 10 or more stations.

The 1 MB data memory block enables retention of large data structures — machine state histories, production counts, alarm logs — locally, without requiring a dedicated database connection. The hardware clock with a 6-week backup at 40°C ambient supports timestamping of events and alarms even through extended power interruptions. Hot-swap capability allows individual ET 200SP I/O modules to be replaced during operation, a feature machine builders use to reduce unplanned downtime during module-level faults.

Where the CPU 1512SP-1 PN Sits in a Typical ET 200SP System Architecture

The 6ES7512-1DK01-0AB0 sits at the distributed edge of a PROFINET network, acting as the local controller between the plant-level PLC or SCADA system and the physical I/O modules mounted in the same ET 200SP station. It is not the top-level controller — it receives supervisory commands and sends status data upward while executing local logic autonomously.

  • Central PLC or industrial edge device — sends setpoints, mode commands, and supervisory data over PROFINET IRT to the CPU 1512SP-1 PN
  • Siemens 6ES7512-1DK01-0AB0 — executes local program logic, handles interrupts, manages data blocks, and routes PROFINET signals via its integrated 3-port switch
  • ET 200SP I/O modules (digital input, digital output, analog, motor starters) — mounted directly to the right of the CPU on the same backplane bus, scanned at the local cycle rate
  • Field devices (sensors, actuators, drives, valve banks) — wired to ET 200SP I/O module terminals, providing physical process data and receiving control outputs
  • Adjacent ET 200SP stations or network switches — connected via BusAdapter ports 2 or 3, enabling daisy-chain or star PROFINET topologies without external switching hardware

Industries and Applications That Rely on the CPU 1512SP-1 PN

Multi-station conveyor and transfer systems are a primary deployment environment for this module. Each station in the conveyor line runs its own ET 200SP CPU executing local position, speed, and fault logic, while the master PLC coordinates mode changes and production targets via PROFINET IRT. The IRT protocol prevents timing drift between stations that would otherwise cause product jams or transfer errors.

Bottling, filling, and packaging lines in food and beverage production use the 6ES7512-1DK01-0AB0 to distribute control across fill, cap, label, and inspection stations. Local CPU processing means that a communication interruption to the central PLC does not immediately halt production — the distributed CPU can execute defined local safe states independently.

Machine tool cells and CNC integration projects use this module to manage spindle speed, coolant control, and positioning logic at the machine level while bridging legacy PROFIBUS sensors to a modern PROFINET backbone. The module's 200 KB program memory is sufficient for the state machine logic, PID loops, and handshaking sequences typical of single-machine cell controllers.

Pharmaceutical processing, utility automation, and marine or offshore electrical systems also deploy ET 200SP CPU stations where decentralized control and the -25°C to +60°C operating temperature range reduce the environmental control overhead required for standard PLC cabinets in harsh or variable-temperature locations.

Application Typical Deployment
Multi-station conveyor systems One ET 200SP CPU per station; master PLC sends speed/mode via PROFINET IRT
Bottling and packaging lines Distributed CPU per process zone (fill, cap, label); local fault detection and E-stop logic
Machine tool and CNC cells Spindle, coolant, and positioning logic; bridges legacy PROFIBUS sensors to PROFINET backbone
Remote I/O consolidation ET 200SP CPU as edge computing node; aggregates I/O from field devices across production zone
Cold storage and harsh environment control Native -25°C to +60°C rating eliminates need for additional cabinet thermal management
Legacy system migration ET 200SP CPU bridges PROFIBUS field devices to modern PROFINET automation backbone

Purchase-Decision Specifications for the Siemens 6ES7512-1DK01-0AB0

Parameter Value
Program Memory (Work) 200 KB
Data Memory 1 MB
Bit Processing Performance 48 ns
Minimum Cycle Time 500 µs (adjustable)
Supply Voltage (Rated / Permissible Range) 24 V DC / 19.2–28.8 V DC
Current Consumption (Rated / Max) 0.6 A / 0.9 A
Inrush Current (Max) 4.7 A; I²t = 0.14 A²·s
PROFINET Ports 3 total — 1 integrated + 2 via BusAdapter (RJ45, M12, FC, LC fiber)
Operating Temperature -25°C to +60°C (horizontal mounting)
Dimensions (W × H × D) 100 × 117 × 75 mm

Full technical specifications are available on the product page at LeadTime.ca.

CPU 1512SP-1 PN vs. Related Siemens Variants: Which One Do You Actually Need?

Feature 6ES7512-1DK01-0AB0 (This Model) 1512SP F PN (Higher Tier) 1512SP Safety Analog/Digital I/O Module Only
Program Memory 200 KB 512 KB 200 KB N/A (no CPU)
Data Memory 1 MB 2 MB 1 MB N/A
PROFINET IRT Yes Yes Yes Via external module
Integrated Safety No No Yes (SIL2/PLd) N/A
Hot-Swap Yes Yes Yes Yes
Modular Expandable Yes (ET 200SP) Yes Yes Yes (ET 200SP)
Typical Use Standard control logic Large programs + redundancy Safety-critical applications Simple I/O consolidation
Price Tier Standard Premium Premium Budget

If your architecture uses PROFINET IRT with standard (non-safety) control logic up to 200 KB, the Siemens 6ES7512-1DK01-0AB0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Is the 6ES7512-1DK01-0AB0 Worth It at This Price Tier?

The Siemens 6ES7512-1DK01-0AB0 is a well-balanced distributed CPU for engineers who need more than a passive I/O head but do not require the full memory or safety feature set of the premium 1512SP variants. The 48 ns bit performance and 500 µs minimum cycle time are adequate for the majority of discrete manufacturing control tasks — conveyor sequencing, PID-based process control, motor coordination, and alarm management. The integrated 3-port PROFINET switch is a practical advantage: it eliminates the need for a dedicated switching device at each distributed station, directly reducing BOM cost and panel wiring labor. The 1 MB data memory block is sufficient to retain 10,000 or more historical event records locally, a useful buffer for diagnostics on lines where central historian connectivity is intermittent.

The limits are real and worth stating clearly. The 200 KB program memory can become a constraint on applications with complex function block libraries, large recipe management structures, or multi-axis motion routines layered into a single station program. Engineers who have experienced program creep over a project lifecycle — where initial 80 KB programs grow to 180 KB after change requests — should budget for the 1512SP F PN at 512 KB from the outset. The absence of PROFIsafe support is a firm architectural constraint: if your machine requires safety-rated E-stop, light curtain, or two-hand control integration through the CPU, this model will not meet that requirement and the 1512SP Safety variant is the correct selection. There is no firmware workaround for the missing PROFIsafe stack.

From a procurement standpoint, the 6ES7512-1DK01-0AB0 is a standard stock item in distribution and typically carries lead times in the 2–4 week range depending on market conditions, though this varies. One sourcing detail that catches buyers off-guard: the memory card is not included and must be ordered separately. Firmware version V2.9 is the current baseline — if you are receiving older functional status hardware (FS04 or earlier), verify compatibility with your TIA Portal project version before accepting the shipment. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview for the CPU 1512SP-1 PN

  • Power input requires regulated 24 V DC within the 19.2–28.8 V permissible range — verify voltage at the CPU terminal block under load, not just at the power supply output; the 10 ms mains buffering tolerance means brief voltage sags may not cause immediate faults but sustained undervoltage will
  • The module includes reverse polarity protection, but an external circuit breaker or current-limited power supply output is still recommended to protect the CPU terminal block from fault current
  • PROFINET Port 1 (integrated) connects directly to the central PROFINET switch or upstream PLC PROFINET port; copper runs up to 100 m are standard, and longer distances require fiber via LC or FC BusAdapter
  • BusAdapters for Ports 2 and 3 must be selected and ordered at the time of purchase — RJ45 and M12 connectors are not interchangeable after delivery; confirm cable type requirement (M12 is common in European machine installations, RJ45 in North American panels)
  • A memory card must be inserted into the CPU slot before first power-up; the mode selector switch should be set to PROG during initial firmware and program loading, then moved to RUN after a successful download

Compatible BusAdapters and Expansion Modules

The Siemens 6ES7512-1DK01-0AB0 supports a range of BusAdapter types for its two additional PROFINET ports, and expands via the standard ET 200SP backplane bus. The following options are relevant at the time of ordering:

  • BusAdapter RJ45 — standard copper Ethernet connector, most common for North American panel builds and star topology connections to managed switches
  • BusAdapter M12 — D-coded M12 PROFINET connector, standard in European machine tool and food and beverage installations where vibration or ingress protection is a concern
  • BusAdapter FC (Fast Connect) — push-wire copper BusAdapter for installations where tool-free field termination is preferred
  • BusAdapter LC fiber — for runs exceeding 100 m or where electrical isolation between stations is required (foundry, high-EMI environments)
  • ET 200SP I/O modules (digital input, digital output, analog input, analog output, motor starter, technology modules) — mount directly to the right of the CPU on the ET 200SP rail and backplane, scanned at the CPU's local cycle rate

Wrong-Part Prevention Checklist Before You Order

Before placing an order for the Siemens 6ES7512-1DK01-0AB0, work through each of the following checks to confirm this is the correct part for your application:

  1. Confirm PROFINET IRT is the required communication protocol (not Modbus, EtherCAT, or PROFIBUS)
  2. Verify 200 KB program memory is sufficient (check total lines of code + function block size)
  3. Confirm 24 V DC supply available (not 120 V AC or 48 V DC)
  4. Check BusAdapter compatibility (verify RJ45 vs. M12 vs. FC/LC fiber options needed)
  5. Verify firmware version V2.9 meets application needs (review new functions documentation for older systems)
  6. Confirm ET 200SP form factor fits mechanical layout (not replacing a standard DIN rail PLC)
  7. Check if hot-swap requirement exists (if not, lower-cost fixed CPU variants may suffice)

If any of these checks raise a question about fit, contact the LeadTime.ca team before ordering — our team can help confirm the correct part number or identify the right variant for your application.

Frequently Asked Questions

Does the Siemens 6ES7512-1DK01-0AB0 support PROFIsafe for safety-integrated applications?

No. PROFIsafe is not supported on the 6ES7512-1DK01-0AB0 CPU 1512SP-1 PN. If your application requires safety-integrated E-stop, light curtain, or two-hand control logic to be processed by the CPU itself, you must select the 1512SP Safety variant, which supports SIL2/PLd. Adding external safety relays or modules does not enable PROFIsafe communication through the standard CPU.

Is the memory card included with the 6ES7512-1DK01-0AB0, and which card do I need?

The memory card is not included and must be ordered separately. The card must be inserted before first power-up; the CPU will not accept a program download without it. Confirm the correct SIMATIC memory card type for the 1512SP-1 PN in the hardware manual, and ensure it carries firmware version V2.9 or later if sourcing from older stock.

Can I mix RJ45 and M12 BusAdapters on the same CPU?

Yes, different BusAdapter types can be installed on Port 2 and Port 3 of the same CPU — for example, RJ45 on Port 2 for the panel switch connection and M12 on Port 3 for a field-side connection in a wet or vibrating environment. BusAdapter type must be specified at order time since the physical connector is integral to the BusAdapter housing and cannot be changed after delivery.

What happens if the program grows beyond 200 KB during the project lifecycle?

The CPU will reject download of a program that exceeds its 200 KB program memory limit — TIA Portal will report an insufficient memory error before the download begins. If your control logic is growing due to added function blocks, recipe management, or motion sequences, the correct upgrade path is the 1512SP F PN variant at 512 KB program memory and 2 MB data memory. Plan for this at the design stage rather than mid-project to avoid hardware replacement costs.

What is the clock backup time if power is lost to the CPU?

The hardware real-time clock maintains accurate timekeeping for up to 6 weeks at 40°C ambient temperature after power is removed. Clock accuracy under normal operating conditions is ±2–10 seconds per day. Synchronization via PROFINET is supported to correct accumulated drift in installations where precise timestamping of events and alarms is required.

Can the 6ES7512-1DK01-0AB0 replace an older PROFIBUS-based distributed I/O CPU directly?

Not as a direct hardware swap — the 6ES7512-1DK01-0AB0 uses PROFINET IRT and does not have a native PROFIBUS port. However, it is a proven migration path for legacy PROFIBUS systems when used alongside PROFIBUS-to-PROFINET proxy modules or when the field device wiring is re-terminated to PROFINET-compatible I/O modules. Confirm that all field devices can be mapped to ET 200SP I/O modules before committing to this migration approach.

Why Source the 6ES7512-1DK01-0AB0 Through LeadTime.ca

  • LeadTime.ca ships worldwide — no regional restrictions on orders for the Siemens 6ES7512-1DK01-0AB0 or companion ET 200SP modules
  • Hard-to-find firmware versions and functional status hardware tracked at the SKU level — confirm FS05 stock availability before committing to a build schedule
  • Volume pricing available for multi-station system builds — contact the team directly for project-level quotes
  • Fast response on lead time confirmation — critical for procurement teams managing project timelines before cabinet build start
  • View current stock and pricing at LeadTime.ca
  • Contact the LeadTime.ca team for a project quote

At-a-Glance Summary

  • Catalog number: Siemens 6ES7512-1DK01-0AB0 — CPU 1512SP-1 PN for SIMATIC ET 200SP
  • Program memory: 200 KB; data memory: 1 MB; bit processing: 48 ns
  • Minimum adjustable cycle time: 500 µs; interrupt support: 20 time alarm, 20 delay alarm, 20 cyclic, 50 process, 3 DPV1 alarm OBs
  • Supply: 24 V DC rated, permissible range 19.2–28.8 V DC; inrush max 4.7 A
  • PROFINET IRT with 3-port integrated switch (1 native + 2 via BusAdapter); max 128 connections
  • BusAdapter options: RJ45, M12, FC, LC fiber — must be specified at order time
  • PROFIsafe: NOT supported; use 1512SP Safety variant for SIL2/PLd applications
  • Operating temperature: -25°C to +60°C; dimensions: 100 × 117 × 75 mm; weight: approximately 310 g
  • Hardware clock backup: 6 weeks at 40°C; 4 configurable traces up to 512 KB per trace
  • Memory card not included — must be ordered separately; firmware V2.9 is current baseline
  • Hot-swap supported — I/O modules replaceable during operation without stopping adjacent stations
