Siemens 6ES7331-1KF02-0AB0 — S7-300 Analog Input Module Review

By Abdullah Zahid
13 min read

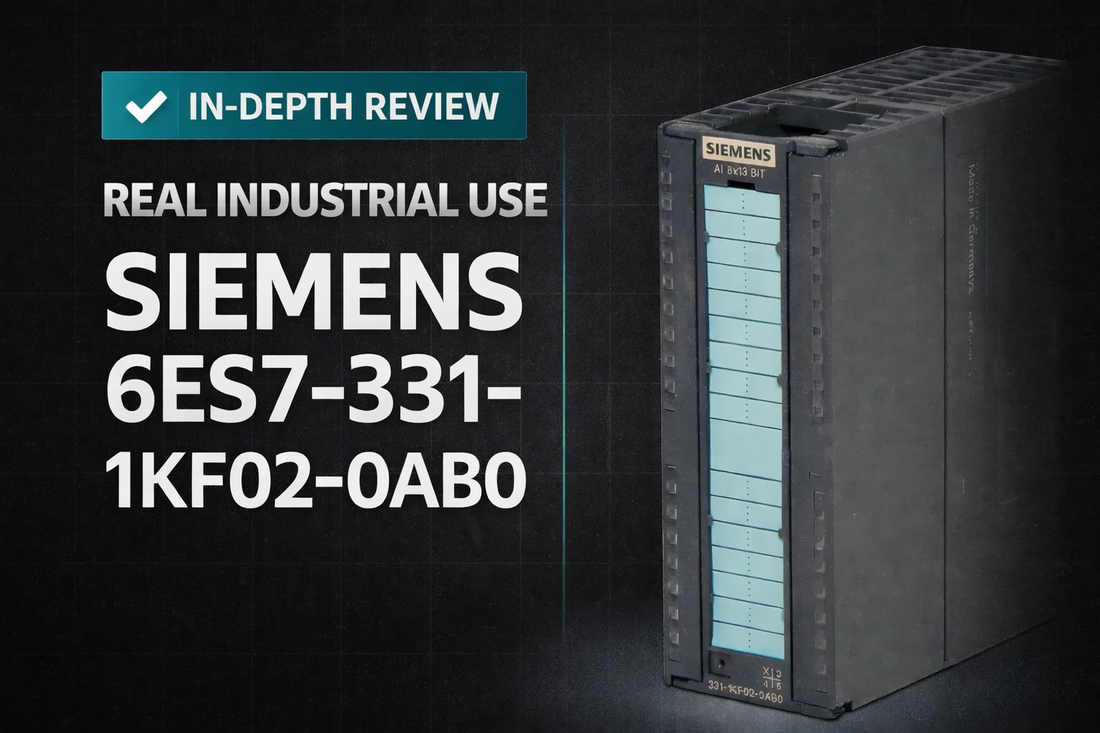

Siemens 6ES7331-1KF02-0AB0 SIMATIC S7-300 isolated 8-channel analog input SM 331 module for industrial process control

Siemens 6ES7331-1KF02-0AB0 SIMATIC S7-300 Analog Input SM 331 — Specifications, Selection Guide and Alternatives

Controls engineers replacing a failed analog input module or expanding an existing S7-300 rack typically arrive at the Siemens 6ES7331-1KF02-0AB0 with a part number already in hand and a production timeline pressing them. This module is the SIMATIC S7-300 Analog Input SM 331 — an isolated, 8-channel analog input module with 13-bit resolution that handles voltage, current, resistance, and thermocouple signals from field instruments and converts them into digital values the S7-300 CPU can process. The galvanic isolation between field circuits and PLC logic is the defining characteristic that separates this variant from lower-cost non-isolated alternatives in the same family.

If you have already confirmed this is the correct part for your S7-300 system, check current pricing and availability for the 6ES7331-1KF02-0AB0 at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7331-1KF02-0AB0 — and Who Should Not

This module is the right choice for engineers working within a SIMATIC S7-300 architecture who need isolated analog signal acquisition across eight independent input channels. It is specifically suited for applications where noise immunity and broad input type coverage matter more than maximum resolution.

  • Your PLC is a SIMATIC S7-300 — not an S7-400, S7-1200, or S7-1500
  • You need exactly 8 analog input channels (not 4, not 16)
  • Your installation environment has electrical noise risks that require galvanic isolation between field wiring and PLC logic circuits
  • Your sensor suite includes any mix of voltage (U), current (I), RTD (Pt100, Pt1000, Ni100, Ni1000, LG-Ni1000, PTC, KTY), or thermocouple (J, K, R, S) inputs
  • 13-bit plus sign resolution is sufficient for your process accuracy requirements
  • A free mounting slot is confirmed in your S7-300 rack or distributed I/O station

If you need resolution above 13-bit, the 6ES7331-7KF02-0AB0 offers selectable 9/12/14-bit resolution with the same isolation and channel count. If budget is the primary constraint and your installation environment is electrically clean, the non-isolated 6ES7331-1KF00-0AB0 may be the correct choice.

On this page:

What the 6ES7331-1KF02-0AB0 Actually Does in a Running System

The 6ES7331-1KF02-0AB0 is classified under the SIMATIC S7-300 product family as an Analog Input Signal Module — designated SM 331 in Siemens nomenclature. Its job is straightforward: it takes raw analog signals from field instruments — pressure transmitters outputting 4-20mA, Pt100 RTD temperature sensors, thermocouple wires, or voltage transducers — and converts those continuously varying electrical values into 13-bit digital integers the S7-300 CPU reads on each scan cycle.

What makes this specific variant notable among S7-300 analog modules is the galvanic isolation built into each of its 8 input channels. That isolation electrically separates the field wiring from the PLC backplane and CPU logic circuits. In practical terms, this means ground loops between sensors at different electrical potentials cannot corrupt the signal, and transient spikes from motor drive switching or contactor operation do not propagate into PLC memory. For any installation where variable frequency drives, high-current contactors, or mixed-voltage cable routing are present — which describes the majority of industrial panel environments — the isolation characteristic alone justifies the cost premium over non-isolated variants.

The module supports voltage inputs (U), current inputs (I), resistance-based temperature sensors (Pt100, Pt1000, Ni100, Ni1000, LG-Ni1000, PTC, KTY), and thermocouple inputs (J, K, R, S types). This breadth of input type support means a single module can serve an entire process loop that mixes 4-20mA flow transmitters, Pt100 temperature sensors, and thermocouple process measurements — reducing rack slot consumption and simplifying the hardware configuration.

Where This Module Sits in a Typical S7-300 System Architecture

The 6ES7331-1KF02-0AB0 occupies a signal module slot in the S7-300 backplane and acts as the conduit between analog field instruments and the CPU's process image input table on every scan cycle.

  • Field instruments (pressure transmitters, RTD probes, thermocouples, voltage transducers) wire directly to the module's 20-pin terminal connector
  • The SM 331 module mounts in the S7-300 rack alongside the CPU and other I/O modules, drawing power from the rack backplane
  • Converted 13-bit digital values are written to input addresses (typically byte-aligned, e.g., IB4 and above) in the S7-300 CPU process image
  • The S7-300 CPU reads those values each scan cycle and passes them to PLC program blocks (FB, FC, or OB) for scaling, alarming, and control logic
  • Scaled engineering values (°C, bar, m³/h) then drive PLC outputs, HMI displays, historian tags, and alarm systems downstream

Industries and Applications Where This Module Is the Standard Choice

In process manufacturing — including food and beverage, pharmaceutical batch production, and chemical processing — the 6ES7331-1KF02-0AB0 appears consistently as the analog acquisition module for pressure, temperature, flow, and level instruments feeding S7-300-based recipe control systems. The galvanic isolation is particularly valued in pharmaceutical environments where grounding practices between field instruments and control cabinets vary across large facilities.

Building and facilities management applications use this module for HVAC analog feedback loops — damper position sensors, duct temperature and humidity transmitters, and differential pressure sensors across air handling units. The support for both current loop (4-20mA) and voltage signals in a single module simplifies the mixed-signal sensor environments common in building management panels.

Machine builders and systems integrators deploying S7-300-based automation cells use the module to bring in load cell data, robot gripper pressure feedback, and displacement sensor signals. The 8-channel count per module keeps rack configurations compact for machines with moderate analog I/O counts.

Spare parts and replacement procurement is one of the highest-volume use cases for this specific catalog number. S7-300 systems installed in the 2000s and 2010s remain operational across global manufacturing sites, and when an analog input module fails, the requirement is a direct like-for-like replacement that fits the existing rack, uses the same STEP 7 hardware configuration, and connects to existing sensor wiring without modification.

Application Typical Deployment
Process temperature monitoring Pt100 RTD inputs from reactors, heat exchangers, and pasteurizers in food or chemical plants
4-20mA transmitter acquisition Pressure, flow, and level transmitters in water treatment or utilities plants feeding S7-300 SCADA systems
HVAC building automation Mixed voltage and current sensor inputs from air handling units in facilities management panels
Machine assembly lines Load cell and displacement sensor inputs in conveyor and quality inspection stations
S7-300 retrofit and expansion Adding analog channels to existing racks during process optimization or sensor density increases
Spare parts stocking Field service depots maintaining replacement inventory for multiple S7-300 sites

Specifications Engineers Use to Make the Purchase Decision

Parameter Specification
Model Number 6ES7331-1KF02-0AB0
Product Family SIMATIC S7-300 Analog Input SM 331
Module Type Analog Input Signal Module, isolated
Input Channels 8 isolated channels in channel groups
Resolution 13 bits + sign
Input Signal Types Voltage (U), Current (I), Resistance (Pt100, Pt1000, Ni100, Ni1000, LG-Ni1000, PTC, KTY)
Thermocouple Support Types J, K, R, S
Galvanic Isolation Yes — field to CPU
Connector 20-pole Siemens standard (female receptacle)
Supply Voltage 24V DC (verify per technical manual)

Full technical specifications are available on the product page at LeadTime.ca.

6ES7331-1KF02-0AB0 vs. Other S7-300 Analog Input Variants — Which One Do You Actually Need

Model Number Channels Resolution Isolation Input Types Typical Use Case
6ES7331-1KF00-0AB0 8 13-bit No U / I / Resistance Budget-conscious installations in low-noise environments
6ES7331-1KF02-0AB0 8 13-bit Yes U / I / Resistance / Thermocouple Standard industrial; noise immunity required; broad input type support
6ES7331-7KF02-0AB0 8 9 / 12 / 14-bit (selectable) Yes U / I / Resistance / Thermocouple Precision measurement applications requiring flexible or higher resolution
6ES7332-5HF00-0AB0 4 in + 2 out 13-bit Yes U / I / Resistance Combined analog I/O in a single module slot
6ES7334-0KE00-0AB0 4 in + 4 out 13-bit Yes U / I / Resistance Bidirectional analog I/O in compact or space-constrained systems

If your S7-300 system requires 8 isolated analog inputs with broad signal type coverage and 13-bit resolution is sufficient, the 6ES7331-1KF02-0AB0 is the correct choice — check current stock and pricing at LeadTime.ca.

Expert Verdict: When to Order This Module and When to Look Elsewhere

The 6ES7331-1KF02-0AB0 earns its place as the default analog input specification for S7-300 systems in industrial environments. The combination of 8 isolated channels, 13-bit plus sign resolution, and support for voltage, current, RTD, and thermocouple inputs in a single module means most process control and machine automation applications can be served without mixing multiple module types. The galvanic isolation is genuine noise protection — not a marketing descriptor — and in environments with variable frequency drives or shared cable trays between signal and power wiring, it is the difference between stable readings and chronic process upsets. The 0.012% accuracy class delivered by the 13-bit conversion is adequate for temperature monitoring, flow acquisition, pressure measurement, and the vast majority of general industrial analog loops.

Where this module has real limits: if your application requires measurement precision beyond what 13-bit delivers — thin-film resistance measurement, precision weighing, or tightly toleranced flow calibration — the 6ES7331-7KF02-0AB0 with its selectable 14-bit mode is the correct specification. Similarly, if your S7-300 has migrated to S7-1500 or S7-1200 hardware, this module does not fit — the backplane connector and form factor are S7-300 specific. And if budget pressure is the overriding constraint in a clean, low-EMI environment, the non-isolated 6ES7331-1KF00-0AB0 delivers the same 13-bit resolution and channel count at lower cost.

From a procurement perspective, the 6ES7331-1KF02-0AB0 is a regularly stocked module with typical distributor lead times of 2 to 8 weeks under normal supply conditions. During supply chain disruptions, lead times have extended beyond 12 weeks for some variants, and it is worth confirming current availability before committing build schedules. Volume orders of 5 or more units typically access tiered pricing — worth confirming when stocking spare parts for multi-site S7-300 fleets. The S7-300 platform is mature; Siemens continues production support, but engineers planning long-term installations should consider holding spare inventory given the platform's lifecycle position. If this module matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing, lead time confirmation, or to discuss spare parts stocking for multiple S7-300 sites, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview for the 6ES7331-1KF02-0AB0

The following points summarize the key requirements and considerations for installing and wiring this module. Engineers performing the full installation should refer to the Siemens SM 331 technical manual for complete procedures, terminal diagrams, and compliance requirements.

  • Use shielded twisted-pair cable for all analog signal runs and ground the shield at the sensor end only — multi-point grounding creates the ground loops the module's galvanic isolation is designed to eliminate
  • The module uses a 20-pole Siemens standard connector; verify the terminal strip is correctly seated and all signal wire terminations are tightened to the correct torque before powering up
  • For 4-20mA current loop devices, confirm loop supply voltage and loop resistance are within the sensor and transmitter specifications — do not exceed the input circuit's rated limits
  • For RTD connections, use 3-wire or 4-wire configurations to compensate for lead resistance error; 2-wire connections are acceptable only for short, low-resistance cable runs where measurement tolerance allows
  • Do not route analog signal cables in the same conduit or cable tray as power wiring, motor drive output cables, or high-frequency switching circuits — physical separation is the first line of noise defense before any software filtering

STEP 7 and TIA Portal Configuration Overview

The following points summarize the configuration steps for integrating the 6ES7331-1KF02-0AB0 into an S7-300 project. Full procedures are documented in the Siemens STEP 7 and TIA Portal hardware configuration manuals.

  • In the hardware configuration window (STEP 7 or TIA Portal with appropriate S7-300 library), add the SM 331 module to the target slot in the S7-300 rack and assign input memory addresses — input bytes are typically assigned starting at IB4 or higher depending on other modules present
  • In the module properties dialog, configure each channel group with the correct signal type (U, I, Pt100, thermocouple), input range, and any alarm threshold values required by the process
  • Set diagnostic parameters and averaging or filtering options if the module variant and firmware support them — this is particularly relevant for thermocouple channels subject to cold junction reference variations
  • Compile the hardware configuration and download to the CPU; use the online diagnostics view to verify all 8 channels are returning valid values before connecting live field signals
  • Apply a known reference signal (calibrated current source, reference voltage, or RTD simulator) to each channel during commissioning to verify scaling, linearization, and offset are within acceptable tolerance

Wrong-Part Prevention Checklist Before You Order the 6ES7331-1KF02-0AB0

Before submitting a purchase order for the 6ES7331-1KF02-0AB0, verify each of the following against your system documentation. This checklist is drawn directly from common ordering errors that result in returns, project delays, and rework costs.

  1. Verify S7-300 system architecture (this is NOT compatible with S7-400, S7-1200, or S7-1500)
  2. Check that 8 channels suffice; do not confuse with 4-channel models (SM 332)
  3. Confirm isolation requirement; non-isolated alternatives exist at lower cost
  4. Verify input signal types (U/I/RTD/thermocouple) match your sensor suite
  5. Check resolution need (13-bit vs 9/12/14-bit variants available)
  6. Confirm mounting slot availability in S7-300 rack or distributed I/O stations
  7. Do not confuse with digital input modules (SM 321) or output modules (SM 332/334)

If any item on this checklist raises a question about the correct catalog number for your application, contact the LeadTime.ca team before ordering — or review the full product details at LeadTime.ca to cross-reference specifications.

Frequently Asked Questions

What is the difference between the 6ES7331-1KF02-0AB0 and the 6ES7331-7KF02-0AB0?

Both modules provide 8 isolated analog input channels for the S7-300 and support voltage, current, RTD, and thermocouple signal types. The key difference is resolution: the 6ES7331-1KF02-0AB0 delivers a fixed 13-bit plus sign resolution, while the 6ES7331-7KF02-0AB0 offers selectable resolution of 9, 12, or 14 bits per channel group. If your application requires measurement precision beyond 13-bit — or if you need the flexibility to trade resolution for conversion speed — the 7KF02 variant is the correct specification. For standard process control with general-purpose sensors, the 1KF02 is sufficient and typically more cost-effective.

Is the 6ES7331-1KF02-0AB0 compatible with TIA Portal, or does it require STEP 7 Classic?

The module is supported in both STEP 7 Classic and TIA Portal environments through the appropriate S7-300 hardware libraries. When using TIA Portal, verify that the correct S7-300 module library version is installed and that the catalog entry for 6ES7331-1KF02-0AB0 is available in your hardware configuration workspace. Siemens periodically updates TIA Portal libraries, so confirming library compatibility before project migration is recommended.

Can this module be used in a distributed I/O station, or is it restricted to centralized S7-300 racks?

The 6ES7331-1KF02-0AB0 is compatible with distributed I/O stations within the S7-300 ecosystem in addition to centralized rack installations. The key constraint is that the distributed I/O station must use the standard S7-300 backplane format and the slot must be available within the station's configuration. Verify the specific distributed I/O hardware against the Siemens compatibility documentation before specifying the module for remote installations.

What causes erratic or out-of-range readings on an otherwise correctly installed 6ES7331-1KF02-0AB0?

The three most common causes are electromagnetic interference from motor drives or contactors routed near signal cables, ground loops created when cable shields are grounded at both ends rather than sensor-end only, and corroded or poorly terminated signal wires at the 20-pin connector. Because the module provides galvanic isolation, persistent noise problems in an isolated installation almost always trace back to wiring practice rather than module hardware. Re-routing signal cables away from high-EMI sources, verifying single-point shield grounding, and checking terminal continuity resolves the majority of cases before module replacement is considered.

What lead times should I expect when ordering the 6ES7331-1KF02-0AB0?

Under normal supply conditions, this module is typically available within 2 to 8 weeks from distributors that stock S7-300 analog modules. During periods of supply chain constraint, lead times have extended beyond 12 weeks for some variants. If your production line is down and timeline is critical, contacting LeadTime.ca directly for current stock status is the fastest path to a confirmed ship date. Volume orders for spare parts stocking should factor in current lead time when setting safety stock levels.

Is the S7-300 platform still supported, and how long will the 6ES7331-1KF02-0AB0 be available?

As of the information available at publication, Siemens continues production support for the SIMATIC S7-300 platform. However, the S7-300 is a mature legacy platform, and Siemens has positioned newer platforms — S7-1200 and S7-1500 — as the forward path for new installations. Engineers managing long-life S7-300 installations are advised to maintain spare parts inventory for critical modules including analog input modules, as eventual discontinuation is expected. Sourcing replacement modules now while availability remains stable is a practical risk mitigation measure.

Why Source the 6ES7331-1KF02-0AB0 from LeadTime.ca

  • LeadTime.ca ships worldwide — no geographic restriction on orders for the 6ES7331-1KF02-0AB0 or any other S7-300 module
  • Specializes in sourcing legacy and hard-to-find industrial automation parts including SIMATIC S7-300 analog I/O modules
  • Volume pricing available for spare parts stocking orders — contact the team for 5-unit, 10-unit, and 25-unit tier pricing
  • Direct response for lead time confirmation before you commit to a build or maintenance schedule
  • Handles both single-unit replacement orders and multi-site procurement programs for distributed S7-300 fleets

At-a-Glance Summary

  • Catalog number: 6ES7331-1KF02-0AB0 — SIMATIC S7-300 Analog Input SM 331, isolated
  • 8 galvanically isolated analog input channels in channel groups
  • 13-bit plus sign resolution — adequate for general industrial process control
  • Supports voltage (U), current (I), Pt100, Pt1000, Ni100, Ni1000, LG-Ni1000, PTC, KTY, and thermocouple types J, K, R, S
  • Galvanic isolation between field wiring and CPU logic — key advantage in high-EMI environments
  • 20-pole Siemens standard connector; standard S7-300 vertical or horizontal rack mount
  • 24V DC supply voltage (verify per technical manual)
  • Compatible with STEP 7 Classic and TIA Portal via S7-300 hardware libraries
  • Not compatible with S7-400, S7-1200, or S7-1500 platforms
  • Higher resolution alternative: 6ES7331-7KF02-0AB0 (selectable 9/12/14-bit)
  • Lower cost non-isolated alternative: 6ES7331-1KF00-0AB0
  • Typical distributor lead time: 2 to 8 weeks under normal supply conditions
