Siemens 6ES7322-1BL00-0AA0 — S7-300 32-Channel DO Module Guide

By Abdullah Zahid
11 min read

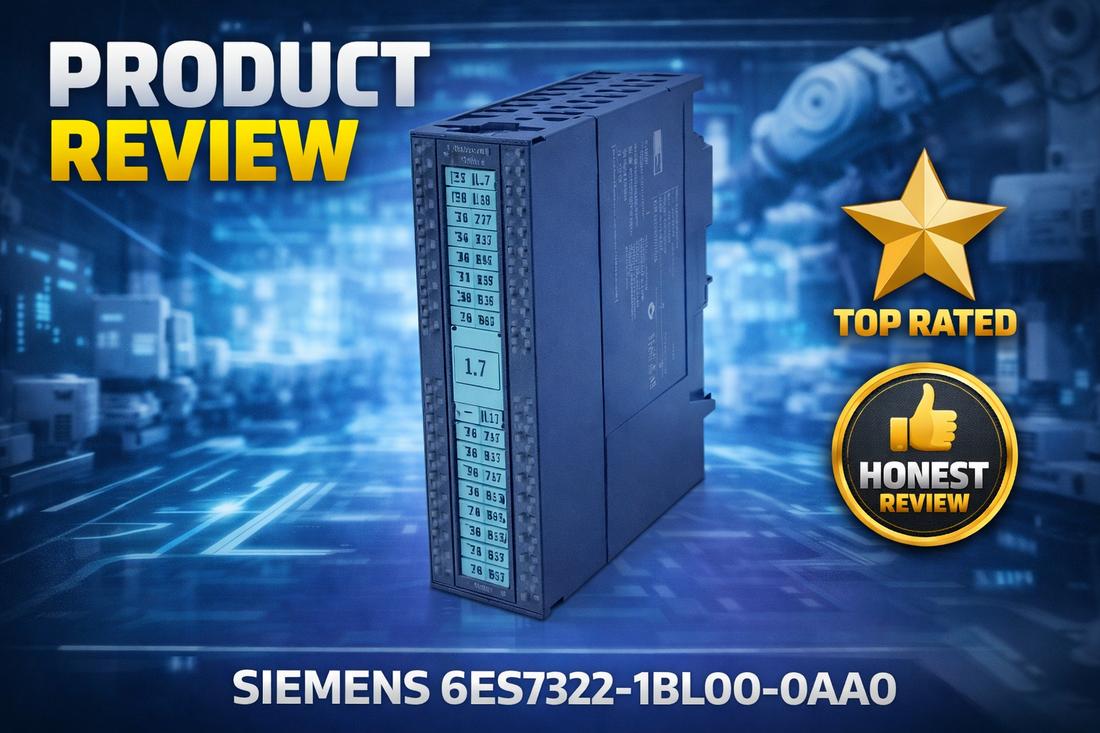

Siemens 6ES7322-1BL00-0AA0 SIMATIC S7-300 SM 322 32-channel 24V DC digital output module for industrial automation

Siemens 6ES7322-1BL00-0AA0 SIMATIC S7-300 Digital Output SM 322, Isolated, 32 DO, 24 V DC, 0.5A, 1x 40-Pole — Specs, Selection Guide and Procurement Review

Controls engineers and procurement specialists searching for the Siemens 6ES7322-1BL00-0AA0 are usually in one of two situations: maintaining a SIMATIC S7-300 system that still has years of production life ahead, or sourcing a direct replacement for a failed module in a facility that cannot afford extended downtime. Either way, the decision comes down to a few hard facts — 32 isolated 24V DC outputs, 0.5A per channel, electronic short-circuit protection per channel, and a 40-pin front connector that drops into any standard S7-300 rack slot without backplane modification. This module has been discontinued by Siemens as of October 1, 2023, which means authorized distributors hold the remaining stock, and lead times on special orders can reach 8 to 12 weeks.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the 6ES7322-1BL00-0AA0 — and Who Shouldn't

This module is the right choice for engineers building or maintaining high-density discrete output systems on the SIMATIC S7-300 platform where 24V DC loads are standard and per-channel current stays at or below 0.5A.

  • You are expanding or repairing an existing SIMATIC S7-300 rack — not an S7-400, S7-1200, or S7-1500 system
  • Your field loads (solenoid valves, indicator lamps, contactor coils, signal lights) run at 24V DC, not AC
  • Individual load current does not exceed 0.5A per channel in sustained operation
  • You need 32 output channels in a single 40mm-wide module slot to minimize rack footprint
  • Optocoupler isolation at 500V DC between channels and to the backplane is required for noise reduction or safety separation
  • Your group-level current stays below 4A per group of 8 channels at ambient temperatures up to 40°C, or below 3A per group at up to 60°C

If you need higher per-channel current, consider the 6ES7322-1BF01-0AA0 (8 DO, 24V DC, 2A per channel). For AC output capability, look at the 6ES7322-1FL00-0AA0 (16 DO, AC 120/230V, 1A) or 6ES7322-1FF01-0AA0 (8 DO, AC 120/230V, 2A). For integrated diagnostic interrupt capability, the 6ES7322-8BF00-0AB0 is the correct choice.

On this page:

What the 6ES7322-1BL00-0AA0 Actually Does in a Running S7-300 System

The 6ES7322-1BL00-0AA0 is a Signal Module (SM 322) in the SIMATIC S7-300 I/O family. Its job is straightforward: it receives logic-level switching commands from the S7-300 CPU over the backplane bus and converts those commands into hardened 24V DC output signals that energize real field devices. Each of the 32 channels independently drives up to 0.5A at 24V DC, covering the current range of solenoid directional control valves, 24V DC contactor coils, panel indicator lamps, alarm buzzers, and signal lights — the workhorses of discrete manufacturing control.

What separates this module from simpler output modules is its isolation architecture. Channels are grouped in sets of 8, each group optocoupler-isolated from the others and from the backplane at 500V DC. This means a fault or voltage transient on one group of outputs does not propagate to adjacent groups or corrupt backplane logic. The electronic short-circuit protection responds per channel at approximately 1A, cutting the output before wiring or load damage occurs. Per-channel status LEDs give technicians immediate visual confirmation of output state without needing a laptop.

One specification that catches engineers off guard: the minimum load current requirement is 5mA per channel. Loads with very high impedance — some LED indicator types — may not meet this threshold, causing unreliable output behavior. Verify load impedance is between 48Ω and 4kΩ before wiring.

Typical System Architecture: Where This Module Sits in the Signal Chain

The 6ES7322-1BL00-0AA0 occupies an I/O slot in the S7-300 rack, sitting between the CPU backplane bus and the field wiring termination point, translating logic into switched DC power for downstream devices.

  • S7-300 CPU (e.g., 6ES7314, 6ES7315 series) writes output data over the backplane bus to the module's assigned address range
  • The module's internal optocoupler stage converts backplane logic signals into gate drive signals for output transistors
  • A separately supplied 24V DC load voltage (L+) powers the output transistor stage — this is not drawn from the backplane; it must be provided by a dedicated external supply
  • Each of the 32 output terminals delivers switched 24V DC to field devices: solenoid valves, contactor coils, indicator lights, or relay inputs
  • Field device return wiring connects to the module's M (common/ground) terminal, completing the current loop back to the 24V DC supply negative

Industries and Applications Where This Module Is the Standard Choice

In discrete manufacturing — transfer lines, assembly stations, and part-handling systems — the 6ES7322-1BL00-0AA0 is a natural fit wherever a single PLC rack needs to control a dense field of 24V solenoids and indicator signals. A single module covers 32 discrete outputs, keeping rack width compact at 40mm while eliminating the need for four separate 8-channel modules.

Food and beverage processing facilities running pneumatic valve arrays on S7-300 CPUs rely on this module for per-group switching of valve banks. The 4A per-group limit comfortably handles eight solenoid valves drawing 0.3 to 0.5A each within a single group, and the electronic short-circuit protection prevents a shorted valve coil from cascading into adjacent valve banks.

Packaging machinery builders — conveyors, labeling systems, case sealers — use this module for output-dense logic where the load profile is predominantly low-current: lamps, small relays, and pneumatic pilot valves. The 0.5A per channel rating covers virtually all standard 24V DC pilot loads without the cost premium of higher-current variants.

Material handling and dock equipment systems using S7-300 controllers for sortation logic, AGV zone control, and conveyor sequencing benefit from the module's proven compatibility across all S7-300 CPU variants, from the compact 6ES7312 series to the larger 6ES7318 multi-rack controllers.

Application Typical Deployment
Pneumatic valve arrays (manufacturing) 32 solenoid directional valves across 4 groups, each group fused independently
Panel indication and alarm systems Mixed lamp, buzzer, and pilot light loads across 32 channels per rack slot
Conveyor sequencing (material handling) Output signals to DC contactors and zone enable relays via S7-300 CPU
Food and beverage process valve control Grouped pneumatic valve switching with per-group current monitoring
Packaging machinery output stage Low-current discrete outputs for labeling, reject gates, and product diverters
Emergency shutdown signal distribution Centralized CPU output to multiple field devices with channel-level short-circuit protection

Key Electrical and Physical Specifications for Purchase Decisions

Parameter Value
Number of Digital Outputs 32 channels
Rated Load Voltage 24V DC (permissible range: 20.4V to 28.8V DC)
Output Current per Channel (rated) 0.5A
Per-Group Current Limit (horizontal, 40°C) 4A (groups of 8 channels)
Per-Group Current Limit (horizontal, 60°C) 3A
Per-Group Current Limit (vertical mounting) 2A
Short-Circuit Protection Electronic, per channel, 1A response threshold
Isolation Voltage 500V DC (channels to backplane, optocoupler-isolated)
Front Connector 40-pin
Module Dimensions (W x H x D) 40mm x 125mm x 120mm, 260g

Full technical specifications are available on the product page at LeadTime.ca.

SM 322 Variant Comparison: Which Digital Output Module Do You Actually Need?

Model Number Channels Output Voltage Current per Channel Diagnostics Best For
6ES7322-1BL00-0AA0 32 DO 24V DC 0.5A No High-density low-current DC loads, legacy S7-300 systems
6ES7322-1BF01-0AA0 8 DO 24V DC 2A No Higher per-channel current: larger solenoids, heavier contactor coils
6ES7322-1FL00-0AA0 16 DO AC 120/230V 1A No AC-powered field devices, relay output replacement
6ES7322-1FF01-0AA0 8 DO AC 120/230V 2A No Higher-current AC loads in 8-channel configuration
6ES7322-8BF00-0AB0 8 DO 24V DC 0.5A Yes (alarm interrupt) Applications requiring CPU fault reporting and diagnostic interrupts

If your architecture uses 24V DC loads at 0.5A per channel and you need maximum output density in a single rack slot, the 6ES7322-1BL00-0AA0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Engineers and Procurement Teams

The 6ES7322-1BL00-0AA0 earns its place in dense S7-300 output racks because it delivers 32 isolated channels in 40mm of rail width — the highest channel density available in the SM 322 family for DC outputs. The optocoupler isolation at 500V DC and per-channel electronic short-circuit protection are genuine protective features, not marketing points. For systems controlling solenoid valve banks, conveyor contactors, and indicator logic where individual load currents stay under 0.5A, this module is a direct, reliable fit with a proven field record in production environments running for a decade or more.

The honest limitations: this module has no integrated diagnostics capability. If a channel fails or a short circuit trips, the only indication is a red group LED on the module face — nothing is reported to the CPU's diagnostic buffer. If your application requires fault-level data in the PLC program or needs to trigger alarms automatically on output failures, you need the 6ES7322-8BF00-0AB0 instead. Additionally, the 0.5A per-channel limit is a hard constraint; systems with even occasional loads exceeding this rating will trigger the 1A electronic protection threshold repeatedly, causing nuisance trips. And critically: this module was discontinued October 1, 2023. Stock exists through authorized distributors worldwide, but quantities are limited and special orders carry 8 to 12 week lead times. If you need more than a handful of units, act early.

For procurement teams, the reality is that discontinued SIMATIC S7-300 modules command a premium — expect pricing to reflect scarcity rather than active-product list price. Ordering in quantities of 5 or more where your application allows will reduce per-unit cost and secure a meaningful spare stock before distributor inventory depletes further. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Power off the entire S7-300 system before inserting or removing the module; align the 40-pin front connector with the target rack slot and seat the module until the front edge is flush with the rack face
  • Connect a dedicated external 24V DC supply to the module's L+ and M terminals — this load voltage is separate from the backplane 5V logic supply and must be sized for the combined per-group output currents; the module draws 160mA quiescent from L+ with no outputs active
  • Install a fused disconnect upstream of the L+ terminal — external fusing is not built into the module; best practice is a 10 to 20A fuse per group on the L+ rail
  • Wire output terminals (numbered 1 through 32) to field device positive terminals; return all load negatives to the module's M (common ground) terminal; use shielded cable up to 1000m or unshielded up to 600m
  • For inductive loads such as solenoid valves and contactor coils, install a reverse-polarity diode (such as a 1N4007) across each load to suppress inductive shutdown voltage transients; without this, the module's internal -53V clamp will absorb transients but sustained use without diodes reduces output transistor service life

Wrong-Part Prevention: Verify Before You Order

Before placing an order for the 6ES7322-1BL00-0AA0, work through this checklist drawn directly from field failure and incorrect-order patterns. Every item on this list corresponds to a real sourcing or installation error that results in a non-functional module or a damaged system.

  1. Confirm SIMATIC S7-300 system compatibility (not S7-400, S7-1200, S7-1500)
  2. Verify 24V DC output requirement (not AC output needed)
  3. Check that 0.5A per channel is sufficient (not 2A or higher required)
  4. Ensure 40-pin connector matches CPU slot type and backplane configuration
  5. Confirm power supply can deliver rated 160mA input current at 24V
  6. Verify installation will not exceed 4A per-group current limit in normal operation

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can help confirm the right part number for your exact rack configuration and load profile.

Frequently Asked Questions

Does the 6ES7322-1BL00-0AA0 work in an S7-400, S7-1200, or S7-1500 system?

No. This module uses the SIMATIC S7-300 backplane connector format and is electrically and mechanically incompatible with S7-400, S7-1200, and S7-1500 racks. It will not function outside the S7-300 platform, and forcing it into a different rack risks physical damage to the connector.

What happens if per-group current exceeds 4A — will the module shut down or just overheat?

The module does not have a built-in group-level overcurrent trip. Sustained operation above 4A per group at 40°C, or above 3A at 60°C, causes thermal buildup in the output stage that can reduce service life and eventually cause premature channel failure. Current limiting must be managed through external fusing and load design, not relied upon from the module itself.

Does this module report faults or diagnostic data back to the S7-300 CPU?

No. The 6ES7322-1BL00-0AA0 provides per-channel LED status indicators and a group error LED for short-circuit conditions on the module face only. No diagnostic messages are sent to the CPU's diagnostic buffer. If your application requires integrated alarm interrupts and CPU-level fault reporting, the correct module is the 6ES7322-8BF00-0AB0.

The module is discontinued — is it still safe to use in a production system?

Yes. Discontinuation means Siemens has ended manufacturing, not that the product is unsafe or unsupported in existing installations. Modules already in service can remain operational indefinitely; the solid-state design has no mechanical wear components. The concern is availability of replacements when a module eventually fails — which is why securing spare inventory now through an authorized distributor is standard maintenance practice for discontinued hardware.

Can I run LED indicator loads on this module given the 5mA minimum load requirement?

It depends on the LED type. Standard panel indicator LEDs typically draw 20 to 50mA at 24V DC, which exceeds the 5mA minimum threshold. Very low-power LEDs or high-impedance indicator circuits may fall below 5mA, causing unreliable output behavior. Verify your specific indicator's current draw before wiring. Load resistance must also remain between 48Ω and 4kΩ per channel.

What is the maximum switching frequency for solenoid valve loads on this module?

For inductive loads classified under IEC 60947-5-1 DC13, the maximum switching frequency is 0.5Hz. This is significantly lower than the 100Hz maximum for resistive loads. Applications requiring rapid cycling of solenoid valves should verify that cycle times are compatible with this limit to avoid overheating the output transistors.

Why Order the 6ES7322-1BL00-0AA0 from LeadTime.ca

  • Global shipping on all orders — no geographic restrictions on where we can source and deliver
  • Specialization in hard-to-find and discontinued SIMATIC S7-300 modules with verified stock status
  • Volume pricing available for multi-unit orders — contact us directly for quantities of 5 or more
  • Fast response on lead time and availability confirmation before you commit a build schedule
  • Both new sealed and evaluated refurbished condition options available depending on application requirements

At-a-Glance Summary

  • 32 isolated digital outputs in a single 40mm-wide S7-300 rack slot — highest DC output channel density in the SM 322 family
  • 24V DC output, 0.5A per channel rated, 0.6A permissible maximum; minimum load 5mA per channel
  • Channels grouped in 4 banks of 8; per-group current limit 4A at 40°C, 3A at 60°C, 2A in vertical mounting
  • Electronic short-circuit protection per channel responds at approximately 1A; no diagnostic interrupt to CPU
  • Optocoupler isolation at 500V DC between all channel groups and the S7-300 backplane
  • Output switching delay: 100µs (0-to-1), 500µs (1-to-0) on resistive loads; maximum 100Hz resistive, 0.5Hz inductive
  • Module quiescent draw: 160mA from 24V L+ load supply, 110mA from 5V backplane bus
  • Physical: 40mm x 125mm x 120mm, 260g, 40-pin front connector, DIN rail compatible
  • Compatible with S7-300 CPUs only (6ES7312, 6ES7314, 6ES7315, 6ES7318 series confirmed)
  • Lifecycle status: Discontinued October 1, 2023; available through authorized distributors in limited stock; special orders 8 to 12 weeks lead time
