Siemens 6ES7321-1BL00-0AA0 — S7-300 Input Module Buying Guide

By Abdullah Zahid
12 min read

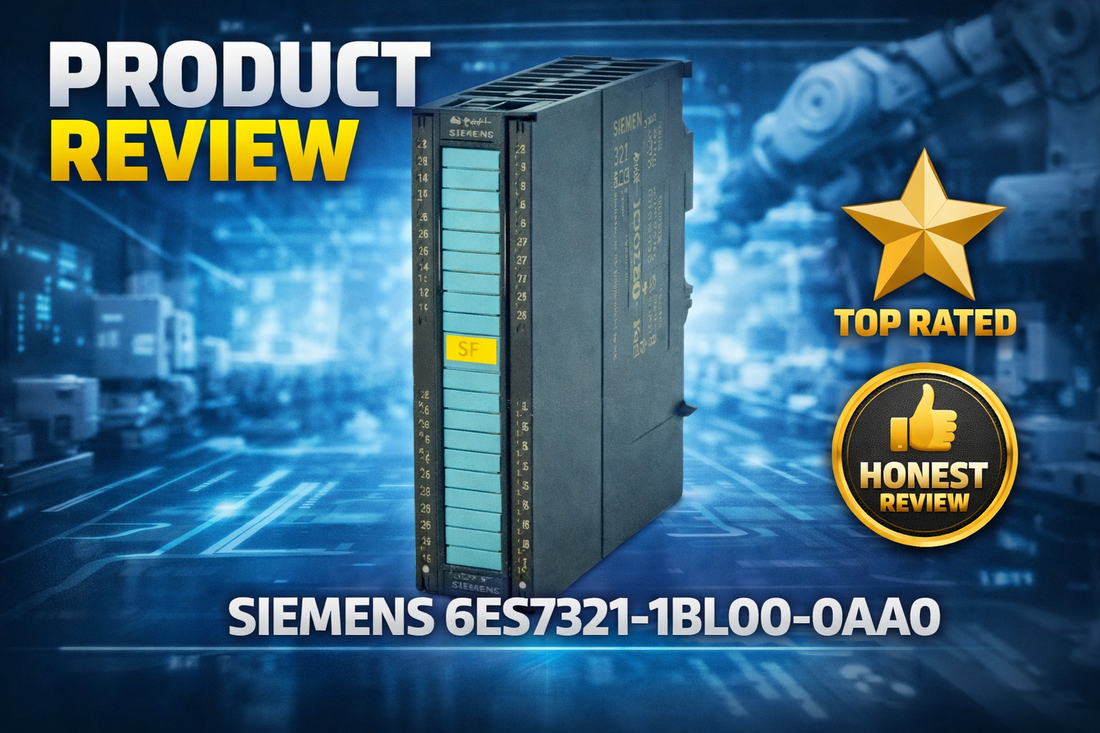

Siemens 6ES7321-1BL00-0AA0 SM 321 32-channel digital input module for SIMATIC S7-300 PLC rack

Siemens 6ES7321-1BL00-0AA0 — SIMATIC S7-300 Digital Input SM 321, Isolated 32 DI, 24 V DC: Specs, Wiring Overview, and Sourcing Guide

If you are replacing a failed input module in an existing S7-300 rack, verifying a BOM for a spare-parts order, or confirming that the 6ES7321-1BL00-0AA0 is the exact part you need before committing to a purchase, this review covers what matters: electrical specs, isolation architecture, wiring constraints, and honest sourcing context for a module that entered phase-out in October 2023. The 6ES7321-1BL00-0AA0 delivers 32 isolated digital input channels at 24 V DC with a 500V DC optocoupler isolation rating, fits the standard S7-300 40mm backplane slot, and carries a proven track record across more than two decades of installed manufacturing systems worldwide.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7321-1BL00-0AA0 — and Who Should Not

This module is the correct choice when all of the following are true for your application:

  • You are working with an existing SIMATIC S7-300 backplane that has an open 40-pin slot available
  • Your sensors, pushbuttons, or limit switches output 24 V DC signals — not AC, not 48 V DC, not higher voltage
  • You need exactly 32 input channels from a single module occupying one rack slot
  • An input response time of 1.2–4.8ms is acceptable for your application (no sub-millisecond requirements)
  • A 500 V DC optocoupler isolation boundary meets your electrical separation requirements
  • Your procurement timeline can absorb a 4–12 week lead time sourced through spare-parts channels

If you need hardware interrupt capability, diagnostic alarms, or response times below 1ms, the 6ES7321-7BH01-0AB0 (16 DI with interrupt) or 6ES7321-1BH10-0AA0 (high-speed 16 DI) is the more appropriate choice. If you are designing a new system rather than maintaining an existing one, evaluate current S7-1200 or S7-1500 platform modules instead — the 6ES7321-1BL00-0AA0 is a legacy spare, not a new-build recommendation.

On this page:

What the 6ES7321-1BL00-0AA0 Actually Does in an S7-300 System

The 6ES7321-1BL00-0AA0 is a 32-channel digital input module — the SM 321 in Siemens terminology — that belongs to the SIMATIC S7-300 I/O module family. Its functional role is straightforward: it sits between the real world and the PLC backplane, accepting 24 V DC binary signals from external devices and converting them into logic-level data the S7-300 CPU can read and act on. Each of the 32 channels passes through an optocoupler, which provides 500 V DC isolation between the field wiring side and the backplane bus. This isolation boundary is not cosmetic — it prevents ground loops, blocks sensor-side fault currents from reaching the CPU, and reduces false triggers caused by electrical noise in high-interference factory environments.

Signal thresholds are fixed at 13–30 V DC for a logic "1" and –30 to +5 V DC for a logic "0", with a built-in 5 V hysteresis gap between those levels. Input delay is fixed at 1.2–4.8ms in both transition directions with no parameterizable adjustment. The module draws 15mA from the 5 V DC backplane bus — it does not require a separate module power supply — but external sensors require their own regulated 24 V DC supply within the 20.4–28.8 V permissible range. Each active input channel illuminates a green LED indicator, giving field technicians immediate visual confirmation of signal state at the module face without needing to go online with STEP 7. The Siemens S7-300 platform has accumulated over 5 million deployed units since 1994, making reliable spare-parts availability for modules like this SM 321 a direct plant-uptime issue.

Typical System Architecture: Where This Module Sits

The 6ES7321-1BL00-0AA0 occupies a single slot in the S7-300 backplane rail and connects to the bus through the standard 40-pin backplane connector. Field signals enter from the left; backplane data exits to the right toward the CPU. Here is how a typical deployment chain looks:

  • External 24 V DC regulated power supply → feeds sensor loop power and the 6ES7321-1BL00-0AA0 input voltage
  • Sensors, limit switches, pushbuttons, or proximity devices → signal wires routed to the 40-pin front connector on the module
  • 6ES7321-1BL00-0AA0 → optocoupler isolation stage → backplane bus at 5 V DC logic level
  • S7-300 CPU → reads input image registers (input bytes IB x through IB x+3 for all 32 channels)
  • STEP 7 user program → processes input states and drives output logic, HMI displays, or communication blocks

Industries and Use Cases Where This Module Earns Its Keep

The 6ES7321-1BL00-0AA0 is most commonly found in discrete manufacturing and process-adjacent environments where a high channel count of 24 V DC binary signals needs to feed a single S7-300 CPU slot. Conveyor and material-handling systems rely on it heavily — a single module can monitor 32 limit switches or proximity sensors along a production line, with each channel's LED giving a technician immediate fault isolation without software access. In food and beverage processing, the module handles photoelectric sensor banks for fill-level detection, gate position confirmation, and safety interlock monitoring. Packaging line builders value the 40mm width because rack space is tight and a single 32-channel module replaces what would otherwise require two 16-channel slots.

Operator control panels connect pushbutton arrays and selector switches through this module on machine tools, assembly cells, and HVAC control panels. Emergency stop and safety-interlock circuits are monitored through the module in non-SIL-rated applications — note that this module carries no ATEX or SIL rating, so safety-rated circuits require validation with additional components. Water treatment plants running legacy S7-300 systems use the SM 321 for discrete valve position feedback, pump run/fail signals, and level switch inputs. A 32-channel isolated input module allows field technicians to identify a failed sensor or group using LED status indicators directly, which industrial maintenance surveys associate with meaningful reductions in troubleshooting time versus non-isolated or non-indicated modules.

Application Typical Deployment
Conveyor and material handling 32 limit switches and proximity sensors monitored per module, LED-aided fault isolation
Packaging line detection Photoelectric and inductive sensor banks feeding product presence and position logic
Operator control panels Pushbuttons, selector switches, and e-stop circuits wired to 40-pin connector
Food and beverage processing Gate status, fill-level switches, and interlock signal monitoring on S7-300 racks
Water treatment and HVAC Valve position feedback, pump run/fail, and discrete level switch inputs on legacy S7-300 systems
Machine tool and assembly cells Cylinder position sensors, safety interlocks, and tooling presence detection

Purchase-Decision Specs at a Glance

Parameter Value
Number of Input Channels 32 (isolated, 24 V DC)
Rated Input Voltage 24 V DC
Signal "1" Threshold 13–30 V DC
Signal "0" Threshold –30 to +5 V DC
Input Current at Signal "1" 7mA typical
Input Delay (both transitions) 1.2–4.8ms (fixed, not parameterizable)
Isolation Voltage 500 V DC (optocoupler tested)
Backplane Bus Current Draw 15mA at 5 V DC
Module Dimensions (W x H x D) 40mm x 125mm x 120mm
Operating Temperature Range –10°C to +60°C (derating above 40°C: max 16 simultaneous inputs)

Full technical specifications are available on the product page at LeadTime.ca.

6ES7321-1BL00-0AA0 vs. Other SM 321 Variants: Which One Do You Actually Need?

Variant Model Number Channels Key Difference Best For
Standard 32 DI (this module) 6ES7321-1BL00-0AA0 32 Base model, 1.2–4.8ms fixed delay, no interrupts General sensors, pushbuttons, conveyors, legacy replacement
High-Speed 16 DI 6ES7321-1BH10-0AA0 16 Response below 0.5ms, hardware interrupt capable Fast pulse counting, encoder input, event-driven logic
16 DI Standard 6ES7321-1BH02-0AA0 16 Half the channel count, same voltage class Space-constrained racks where 16 channels is sufficient
16 DI with Interrupt and Diagnostics 6ES7321-7BH01-0AB0 16 Hardware and diagnostic interrupts, isochronous mode Fast diagnostics, safety-adjacent monitoring, isochronous systems

If your architecture requires hardware interrupts or sub-millisecond response, the 6ES7321-7BH01-0AB0 or 6ES7321-1BH10-0AA0 is the correct choice — check current availability of the 6ES7321-1BL00-0AA0 at LeadTime.ca and contact the team to discuss alternatives if your requirement differs.

Expert Verdict: Honest Assessment for Engineers and Procurement Teams

The 6ES7321-1BL00-0AA0 does what a replacement spare module needs to do: it is a direct drop-in for any existing S7-300 rack slot using a 40-pin connector, requires zero code changes relative to its predecessor, and delivers reliable 24 V DC binary input processing with meaningful 500 V DC isolation on a compact 40mm footprint. The fixed 1.2–4.8ms input delay is entirely appropriate for the vast majority of industrial sensor applications — limit switches, pushbuttons, proximity sensors, and photoelectric detectors all operate well within that window. The 32-channel density in a single slot is a genuine advantage in crowded control panels where rack real estate is limited. The 15mA backplane draw without requiring a separate module power supply simplifies installation significantly.

Where this module has real limits: it generates no hardware interrupts, carries no diagnostic alarm capability, and cannot report channel-level faults autonomously back to the CPU. Software-based diagnostics in the user program are required for anything beyond reading the LED indicators visually. The 1.2–4.8ms delay is fixed — there is no parameterizable adjustment. Applications requiring sub-millisecond response or event-driven interrupt logic must move to the 6ES7321-1BH10-0AA0 or 6ES7321-7BH01-0AB0. Most critically for procurement: the 6ES7321-1BL00-0AA0 was announced for phase-out on October 1, 2023. It is a legacy spare-parts item, not an actively manufactured module, and lead times of 4–12 weeks from authorized spare-parts channels are realistic. Ordering a backup spare alongside the primary replacement unit is sound procurement practice given that sourcing window. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For plants evaluating long-term supply strategy: if your S7-300 system is expected to operate for another decade, the phase-out status of this module class warrants at minimum a parallel evaluation of migration options. For the near-term replacement market — a failed module, a commissioning spare, a production line that must stay running — the 6ES7321-1BL00-0AA0 remains the correct and only direct-fit answer for its slot and channel configuration.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following points cover the key requirements and constraints for installing and wiring the 6ES7321-1BL00-0AA0. For full step-by-step procedures, refer to the official Siemens SM 321 installation manual from support.industry.siemens.com.

  • The module connects via a single 40-pin front connector — no alternative connector type is supported. Channels map to input address bytes (x through x+3) with Pin 1 and Pin 20 as ground/reference pins; consult the Siemens SM 321 pin-map table for exact channel-to-pin assignments.
  • External sensors require a regulated 24 V DC supply within 20.4–28.8 V. The module itself draws 15mA from the 5 V backplane bus and requires no separate module power supply.
  • Maximum cable runs are 1,000 meters for shielded twisted-pair and 600 meters for unshielded cable. For runs beyond 600 meters, shielded cable is required — ground the shield at the sensor end only to avoid ground loops.
  • Two-wire sensors with quiescent current up to 1.5mA are supported. Verify sensor output polarity and voltage (13–30 V DC for signal "1") with a multimeter before terminating at the module connector.
  • Above 40°C ambient temperature, the module supports a maximum of 16 simultaneous active inputs — plan channel loading accordingly in warm enclosures or high-ambient installations.

What Engineers Get Wrong When Ordering This Part

The wrong-part risk is real with the SM 321 family because multiple variants share similar catalog number structures and differ only in channel count, voltage class, or interrupt capability. Before placing an order, verify every item on this checklist:

  1. Verify S7-300 rack is physically present and contains a power supply module
  2. Confirm 24V DC sensor signals, not AC or higher voltage
  3. Check available slot count (32-channel module requires one full slot)
  4. Ensure 40-pin connector is available on module (not alternative connector type)
  5. Verify isolation requirement matches 500V DC rating
  6. Confirm product phase-out date (October 2023) and availability in your supply channel

If any item on this checklist does not match your application, contact the LeadTime.ca team to confirm the correct part number before ordering — the cost of returning a wrong module through a spare-parts channel is significant.

Frequently Asked Questions

Is the 6ES7321-1BL00-0AA0 still in production, and what is the realistic lead time?

The 6ES7321-1BL00-0AA0 was announced for phase-out on October 1, 2023, and is no longer actively manufactured. It is available through spare-parts and legacy distribution channels with typical lead times of 4–12 weeks. For time-sensitive plant maintenance situations, confirm stock availability with LeadTime.ca before committing to a project schedule that depends on this module.

Can I replace my existing SM 321 with this module without changing my STEP 7 program?

Yes — the 6ES7321-1BL00-0AA0 is a direct slot-for-slot replacement for other SM 321 32-channel 24 V DC modules occupying the same backplane slot position. The input address bytes (IB x through IB x+3) remain identical, requiring no code modification, provided the slot position in the rack does not change. Verify the hardware configuration in STEP 7 Hardware Config reflects the correct module at that slot.

What happens to input performance when ambient temperature exceeds 40°C?

Above 40°C ambient temperature, the 6ES7321-1BL00-0AA0 supports a maximum of 16 simultaneously active input channels. Running all 32 channels simultaneously above 40°C up to the module's maximum operating temperature of 60°C is not supported and can cause thermal faults. Plan channel loading and enclosure ventilation accordingly if your installation environment regularly exceeds 40°C.

Does the 6ES7321-1BL00-0AA0 support hardware interrupts or diagnostic alarms?

No. This module does not generate hardware interrupts and has no diagnostic alarm capability. The only built-in indication is a green LED per channel that illuminates when an input signal is present. Software-based diagnostics must be implemented in the STEP 7 user program for any fault detection beyond visual LED inspection. If hardware interrupt or diagnostic interrupt functionality is required, the 6ES7321-7BH01-0AB0 is the appropriate alternative.

What sensor types are compatible, and is 2-wire sensor support confirmed?

The module supports 2-wire sensors with a maximum quiescent current of 1.5mA, which covers most standard inductive proximity sensors and photoelectric sensors in the BERO family and equivalent products. The input meets IEC 61131-2 Type 1 input characteristic requirements. Three-wire NPN and PNP 24 V DC sensors are fully compatible. AC sensors, 48 V DC sensors, or any sensor output outside the –30 to +30 V DC absolute range must not be connected.

How do I identify which channel has failed without going online with STEP 7?

Each of the 32 input channels has a dedicated green LED on the module face that illuminates when the corresponding input is at logic "1" (signal present). A channel that fails to illuminate while the sensor is active indicates either a wiring fault, a sensor output below 13 V DC, a connector seating issue, or a failed optocoupler in that channel. A 32-channel isolated input module with per-channel LED indication allows field technicians to isolate faults visually without software access, which is one of the primary operational advantages of this module class in maintenance scenarios.

Why Order From LeadTime.ca

  • LeadTime.ca specializes in sourcing legacy and hard-to-find industrial automation parts — including phase-out modules like the 6ES7321-1BL00-0AA0 that are no longer in active manufacturer distribution
  • Ships worldwide — no regional restrictions on quoting or fulfillment
  • Volume pricing available for multi-unit orders and spare-parts kits; contact the team directly to discuss
  • Fast response on lead-time confirmation before you commit to a project schedule
  • Both product page and direct contact available:

At-a-Glance Summary

  • 32 isolated digital input channels, 24 V DC, in a single 40mm wide S7-300 backplane slot
  • 500 V DC optocoupler isolation across two groups of 16 channels, each group isolated from the backplane
  • Fixed input delay of 1.2–4.8ms — no parameterizable adjustment, IEC 61131-2 Type 1 compliant
  • Backplane bus draw: 15mA at 5 V DC — no separate module power supply required
  • Maximum cable run: 1,000 meters shielded, 600 meters unshielded
  • Temperature derating: maximum 16 simultaneous inputs above 40°C ambient; full 32 channels to 40°C
  • 2-wire sensor support confirmed: maximum 1.5mA quiescent current
  • No hardware interrupts, no diagnostic alarms — per-channel green LED only
  • Product phase-out announced October 2023; available through spare-parts channels with 4–12 week lead time
  • Direct pin-for-pin and slot-for-slot replacement for same-variant SM 321 modules with no STEP 7 code changes required
