Siemens 6ES7241-1CH32-0XB0 — RS422/485 Module for S7-1200

By Abdullah Zahid
12 min read

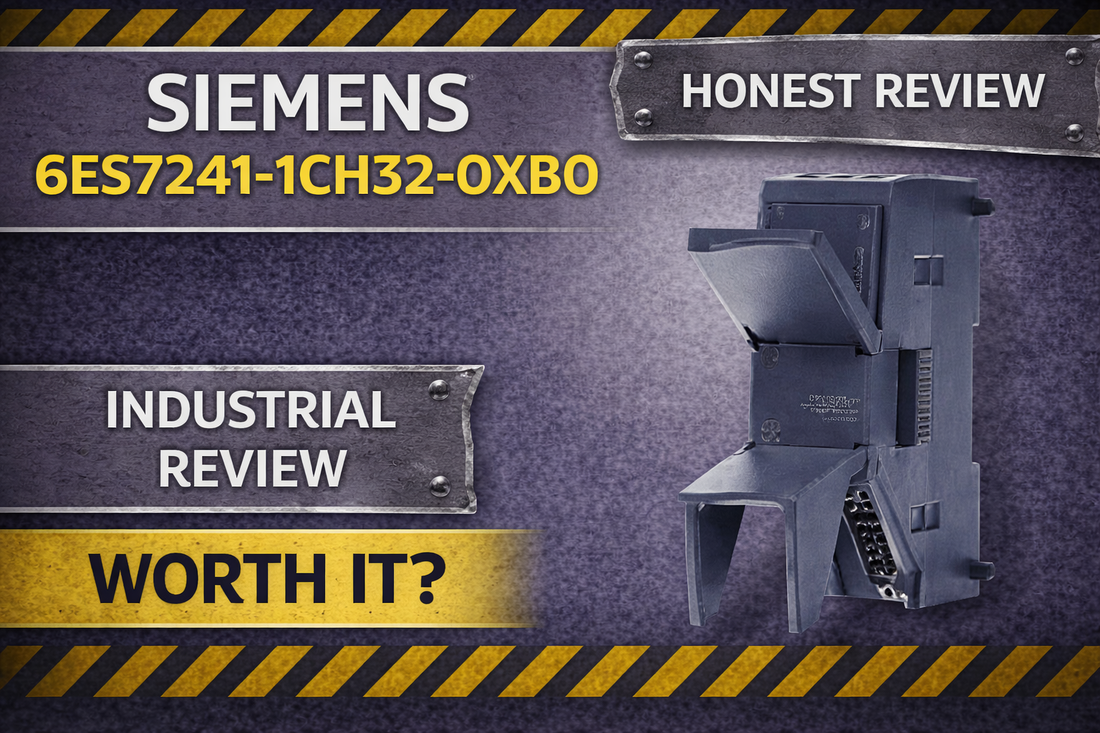

Siemens 6ES7241-1CH32-0XB0 CM 1241 RS422/485 communication module with 9-pole D-sub connector for SIMATIC S7-1200 PLC

Siemens 6ES7241-1CH32-0XB0 SIMATIC S7-1200 Communication Module CM 1241, RS422/485, 9-pole D-sub (socket), Freeport — Specifications and Selection Guide

Controls engineers specifying serial communication for a SIMATIC S7-1200 system typically arrive at the 6ES7241-1CH32-0XB0 after confirming their remote device speaks RS422 or RS485 — and they need a fast answer on fit, availability, and whether this is the right CM 1241 variant before a purchase order goes out. This module adds a 9-pole D-sub RS422/485 interface directly to the S7-1200 CPU, supports two-wire and four-wire topologies, and operates in Freeport mode for protocol-agnostic serial communication with legacy and proprietary devices. The module draws 24 VDC from the PLC power supply and requires one dedicated communication module slot.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7241-1CH32-0XB0 — and Who Shouldn't

This module is the correct choice when all of the following are true for your project:

  • Your PLC base unit is a SIMATIC S7-1200 (not S7-1500, S7-1200F safety variant, or any other series)
  • The target device communicates over RS422 or RS485 — confirmed in the device manual or datasheet
  • At least one free communication module slot is available on your S7-1200 unit
  • Your application requires Freeport (free-format serial) or standard RS422/485 baud rates between 300 and 38400 bps
  • Cable runs can be managed within RS485 distance limits — up to 1200 m at 300 baud, less at higher baud rates
  • External 24 VDC supply is confirmed available with adequate power budget margin

If your application requires Ethernet, PROFINET, or Profibus DP, this is not the right module — look at the CM 1242-5 or CM 1243 instead. If the remote device uses RS232 rather than RS422/485, the correct variant is the 6ES7241-1AH32-0XB0.

On this page:

What the 6ES7241-1CH32-0XB0 Actually Does in a Working System

The Siemens 6ES7241-1CH32-0XB0 is a plug-in communication module belonging to the CM 1241 family, designed exclusively for SIMATIC S7-1200 programmable logic controllers. Its single function is to add an RS422/485 serial interface to an S7-1200 CPU that otherwise has no native serial port for legacy device communication. The module mounts into a dedicated communication slot on the right side of the S7-1200 unit, draws 24 VDC from the PLC power rail, and presents a 9-pole D-sub socket connector to the field.

Where this module earns its place is in retrofit and integration scenarios. RS422/485 is the de-facto standard for industrial serial communication — approximately 60% of legacy industrial sensors and equipment communicate over RS485. Rather than adding an external serial gateway or converter, the 6ES7241-1CH32-0XB0 brings that serial interface directly inside the controller enclosure, eliminating an extra device, extra wiring, and an additional failure point. Freeport mode means the PLC user program handles framing and message construction directly, giving integrators flexibility to talk to instruments with proprietary or non-standard byte structures without a protocol translator in between.

The CM 1241 family has been in continuous production since the early 2010s, which carries practical weight: firmware, TIA Portal integration, technical notes, and replacement units are all available through established channels. For a module that might sit inside a machine for ten years, that production continuity matters.

Where This Module Sits in Your SIMATIC S7-1200 Architecture

The 6ES7241-1CH32-0XB0 occupies the communication layer of the S7-1200 system — it does not replace the CPU or any I/O module, and it does not participate in the process data exchange on the backplane. It acts as a serial port expansion sitting between the S7-1200 CPU and the RS422/485 field bus or device.

  • SIMATIC S7-1200 CPU (1211C, 1212C, 1214C, 1215C, or 1217C) — runs the user program and hosts the module
  • 6ES7241-1CH32-0XB0 seated in the dedicated communication module slot — bridges the PLC backplane to the RS422/485 bus
  • 9-pole D-sub cable running from the module socket to the first field device or junction point
  • RS422/485 two-wire or four-wire bus — connecting up to 32 nodes in a daisy-chain or star topology
  • Remote devices at bus endpoints — flowmeters, pressure transmitters, remote I/O, data loggers, barcode scanners, or other RS485-capable instruments

Typical Applications: Industries and Use Cases That Drive Demand for This Part

Water and wastewater treatment plants are among the most common deployment environments. Flow transmitters, pressure sensors, and level instruments communicating over RS485 Modbus need a serial gateway into the PLC, and the 6ES7241-1CH32-0XB0 provides that link without additional hardware. Multi-node data collection across distributed pump stations or treatment stages — where discrete Ethernet deployment is cost-prohibitive — is a textbook use case for this module.

Food and beverage production lines frequently retain legacy filling equipment, checkweighers, and labeling machines that were built around RS485 communication. Upgrading the line control to SIMATIC S7-1200 while preserving the existing instrument investment is exactly the retrofit scenario the CM 1241 was built for. The Freeport mode handles proprietary byte structures from older OEM equipment that never adopted a standard protocol.

Packaging and logistics systems use this module to receive weight, barcode, or count data from scales, scanners, and verification stations over RS485. In multi-stage sorting systems where each station reports back over a daisy-chained RS485 bus, a single 6ES7241-1CH32-0XB0 can poll all 32 nodes on the bus from one S7-1200 CPU.

In discrete manufacturing and automotive parts supply environments, the module supports retrofit modernization projects where replacing the RS485 field wiring would be expensive and disruptive. The existing cable plant stays in place; only the PLC is upgraded, with the CM 1241 maintaining backward compatibility to the installed sensor base.

Application Typical Deployment
Water and wastewater treatment RS485 Modbus polling of flow, pressure, and level transmitters across distributed pump stations
Food and beverage production Freeport serial communication with legacy OEM filling and labeling equipment during line upgrades
Packaging and logistics Barcode scanner and checkweigher data collection via RS485 daisy-chain on conveyor lines
Retrofit and modernization SIMATIC S7-1200 replacement of older PLCs while retaining existing RS485 field wiring and sensors
Chemical and pharmaceutical processing Real-time serial sensor feedback where Ethernet infrastructure is not yet available
HVAC and building automation Communication with RS485 zone controllers and BMS devices via Freeport serial framing

Specifications Every Engineer Checks Before Ordering

Specification Value
Catalog Number 6ES7241-1CH32-0XB0
Product Family CM 1241 Communications Module
PLC Compatibility SIMATIC S7-1200 only
Protocol Support RS422/485 (2-wire and 4-wire), Freeport mode
Connector Type 9-pole D-sub (socket)
Supply Voltage 24 VDC (from PLC power supply)
Current Draw Approximately 0.15 A (typical)
Supported Baud Rates 300, 600, 1200, 2400, 4800, 9600, 19200, 38400 bps
Max Cable Distance 1200 m at 300 baud; decreases at higher baud rates
Operating Temperature 0 to 50°C

Full technical specifications are available on the product page at LeadTime.ca.

6ES7241-1CH32-0XB0 vs. Other CM 1241 Variants: Which One Do You Actually Need?

The most common ordering error in this product family is confusing the RS422/485 variant with the RS232 variant. The four-character code embedded in the model number is the differentiator: 1CH32 designates RS422/485, while 1AH32 designates RS232. Both present a 9-pole D-sub connector and look nearly identical in catalog listings. Confirm the target device protocol before selecting the part number.

Module Model Protocol Connector Primary Use Case Typical Price Tier
6ES7241-1CH32-0XB0 RS422/485 9-pole D-sub Legacy RS485 field devices, multi-drop serial buses, Freeport Mid-range
6ES7241-1AH32-0XB0 RS232 9-pole D-sub Point-to-point serial devices (printers, terminals, older PLCs) Mid-range (similar)
CM 1242-5 Profibus DP / PROFINET / Modbus RJ45 Ethernet Network-based communication, modern device integration Higher
CM 1243 Ethernet (advanced protocols) RJ45 Advanced Ethernet protocol requirements Higher

If your architecture is built around RS422/485 serial buses and Freeport flexibility, the 6ES7241-1CH32-0XB0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment and Procurement Reality

The 6ES7241-1CH32-0XB0 does one thing and does it reliably: it gives a SIMATIC S7-1200 a clean RS422/485 interface without requiring external hardware. For retrofit projects where RS485 field wiring already exists, this module is nearly always the lowest-cost and lowest-risk path to connecting legacy instruments. Freeport mode is genuinely useful — it removes the constraint of needing a standard protocol on both ends and lets the PLC program handle message framing directly. The SIMATIC S7-1200 has been deployed in over 500,000 installations globally, and the CM 1241 family is well-supported in TIA Portal with documented function blocks, sample programs, and active technical forums.

The honest limitations are worth stating. This module has no path to Ethernet or PROFINET — if your architecture is moving toward network-based communication or you need Modbus TCP rather than Modbus RTU, this is not the right investment. The 1200 m distance at 300 baud is generous for most plant applications, but high-speed data collection over long runs at 38400 bps will cause problems; baud rate selection requires deliberate matching to cable length. The module also occupies one of the limited communication slots on a compact S7-1200, and some CPU variants have only one available. If that slot is already committed, a different integration approach is needed before this module can be added.

From a procurement standpoint, the 6ES7241-1CH32-0XB0 is generally stocked by major industrial distributors with typical lead times of one to three weeks under normal demand conditions. Supply chain disruptions in the SIMATIC module space have extended some lead times to six to eight weeks historically, so confirming current stock before committing to a project schedule is worth the five-minute check. If you are buying multiples for a fleet of machines, volume pricing is available. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation: What to Verify Before You Connect Anything

  • Confirm the communication module slot location on your specific S7-1200 CPU model before seating the module — most compact units have one dedicated slot, and slot position is fixed by firmware, not physical fit alone
  • For RS485 two-wire operation (A/B), a 120-ohm terminating resistor is required at both physical endpoints of the bus — failing to terminate is the most common cause of intermittent communication at longer cable runs
  • RS485 four-wire operation (A/B differential pair plus GND) reduces susceptibility to common-mode noise and is preferred for runs approaching the distance limit or in electrically noisy environments
  • Connect the cable shield to ground at both the module end and the remote device end using a short, direct path — floating shields on RS485 lines in industrial environments are a reliable source of intermittent data corruption
  • Verify 24 VDC supply voltage and confirm the PLC power budget has adequate margin after adding approximately 0.15 A for this module — check the S7-1200 CPU datasheet for total module power capacity

Commissioning the 6ES7241-1CH32-0XB0 in TIA Portal: What the Process Looks Like

  • After physical installation, open the TIA Portal project and navigate to Hardware Configuration — the module should appear automatically in the device tree once the PLC is online
  • Select the CM 1241 module in the device tree and set Protocol to Freeport in the Properties panel, then configure baud rate to match the remote device (9600 bps is the most common starting point for legacy sensors)
  • Set data bits, stop bits, and parity to match the remote device specification — 8N1 (8 data bits, no parity, 1 stop bit) is the most common default, but verify in the device manual
  • Download the hardware configuration to the PLC and confirm the green LED on the module illuminates — a solid green indicates the module is powered and recognized; a flashing or absent LED indicates a configuration or power issue
  • Test communication using SEND and RECEIVE function blocks in the S7-1200 user program before connecting production devices — confirm round-trip message integrity at the target baud rate before going live

What Engineers Get Wrong When Ordering This Part

Before placing a purchase order for the 6ES7241-1CH32-0XB0, run through this checklist. These are the six points where orders go wrong:

  1. Verify the PLC base unit is SIMATIC S7-1200, not S7-1200F (safety), S7-1500, or other series. This module does not fit S7-1500.
  2. Confirm at least one free communication module slot exists on the PLC (most S7-1200 compact units have 1 slot; check datasheet).
  3. Verify the attached device uses RS422 or RS485 serial protocol, not RS232, Ethernet, or Profibus.
  4. Check cable length; RS485 is limited to about 1200 meters at standard baud rates depending on topology.
  5. Ensure the application requires two-way serial communication; if data logging only, a simpler interface may work.
  6. Confirm external 24 VDC power supply is available for the module; verify power budget in the PLC.

If all six checks pass, you have the right part. View current pricing and stock at LeadTime.ca or contact us to confirm lead time before finalizing your order.

Frequently Asked Questions

Can the 6ES7241-1CH32-0XB0 be used with an S7-1500 or S7-300 PLC?

No. The 6ES7241-1CH32-0XB0 is compatible exclusively with SIMATIC S7-1200 CPUs. It does not physically fit or functionally operate with S7-1500, S7-1500F, S7-300, or any other PLC series. Confirm your CPU series before ordering.

What is the difference between the 6ES7241-1CH32-0XB0 and the 6ES7241-1AH32-0XB0?

The 6ES7241-1CH32-0XB0 supports RS422/485 (two-wire and four-wire serial bus), while the 6ES7241-1AH32-0XB0 supports RS232 (point-to-point serial). Both use a 9-pole D-sub connector and operate in Freeport mode, which makes them easy to confuse in catalog listings. The protocol supported by your remote device determines which variant to order.

How many CM 1241 modules can be installed on a single S7-1200 CPU?

The number of available communication module slots depends on the specific S7-1200 CPU model. Most compact S7-1200 units provide one dedicated communication module slot. Verify the slot count and slot assignment in your CPU model's datasheet before specifying multiple CM 1241 modules on a single controller.

What baud rates does Freeport mode support on the 6ES7241-1CH32-0XB0?

The module supports 300, 600, 1200, 2400, 4800, 9600, 19200, and 38400 bps in Freeport mode. The baud rate must match the remote device exactly — a mismatch will result in communication timeouts or corrupted data. For cable runs approaching the 1200 m distance limit, selecting 9600 bps or lower reduces signal integrity risk.

Does the 6ES7241-1CH32-0XB0 require an external termination resistor?

Yes. RS485 bus topology requires a 120-ohm terminating resistor at both physical endpoints of the cable run. Omitting termination is the most common root cause of intermittent communication and data corruption on longer RS485 runs. The terminator connects between the A and B signal lines at the far end of the bus.

What is the typical lead time and where can I check current availability?

Under normal demand conditions, the 6ES7241-1CH32-0XB0 typically ships within one to three weeks from industrial distributors. During periods of supply chain disruption, lead times have extended to six to eight weeks for SIMATIC modules. Check real-time stock status at LeadTime.ca or contact the team directly for current lead time confirmation before project scheduling.

Why Order From LeadTime.ca

  • Ships worldwide — no regional restrictions on sourcing SIMATIC modules
  • Real-time stock visibility on the product page for current availability checks
  • Volume pricing available for multi-unit orders — contact directly for project-level quotes
  • Responsive team familiar with SIMATIC module variants — useful when confirming 1CH32 vs. 1AH32 before committing to an order
  • Hard-to-find parts and extended lead time sourcing support when standard distributor stock is depleted

At-a-Glance Summary

  • Catalog number: 6ES7241-1CH32-0XB0 — CM 1241 RS422/485 Communication Module for SIMATIC S7-1200 only
  • Connector: 9-pole D-sub socket — fixed format, no alternative connector available on this SKU
  • Protocol: RS422/485 two-wire and four-wire; Freeport (free-format serial) operating mode
  • Baud rates: 300 to 38400 bps — must match the remote device setting exactly
  • Max cable distance: 1200 m at 300 baud; distance decreases as baud rate increases
  • Power: 24 VDC from PLC power supply, approximately 0.15 A typical current draw
  • Operating temperature: 0 to 50°C; storage temperature: -25 to 70°C
  • Module slot: requires one dedicated communication module slot on S7-1200 CPU
  • Key differentiator from 6ES7241-1AH32-0XB0: RS422/485 vs. RS232 — verify remote device protocol before ordering
  • Certifications: CE, RoHS, UL
  • CM 1241 family in continuous production since the early 2010s — proven industrial deployment history
