Siemens 6ES7241-1CH30-1XB0 — CB 1241 RS485 Board Buying Guide

By Abdullah Zahid
13 min read

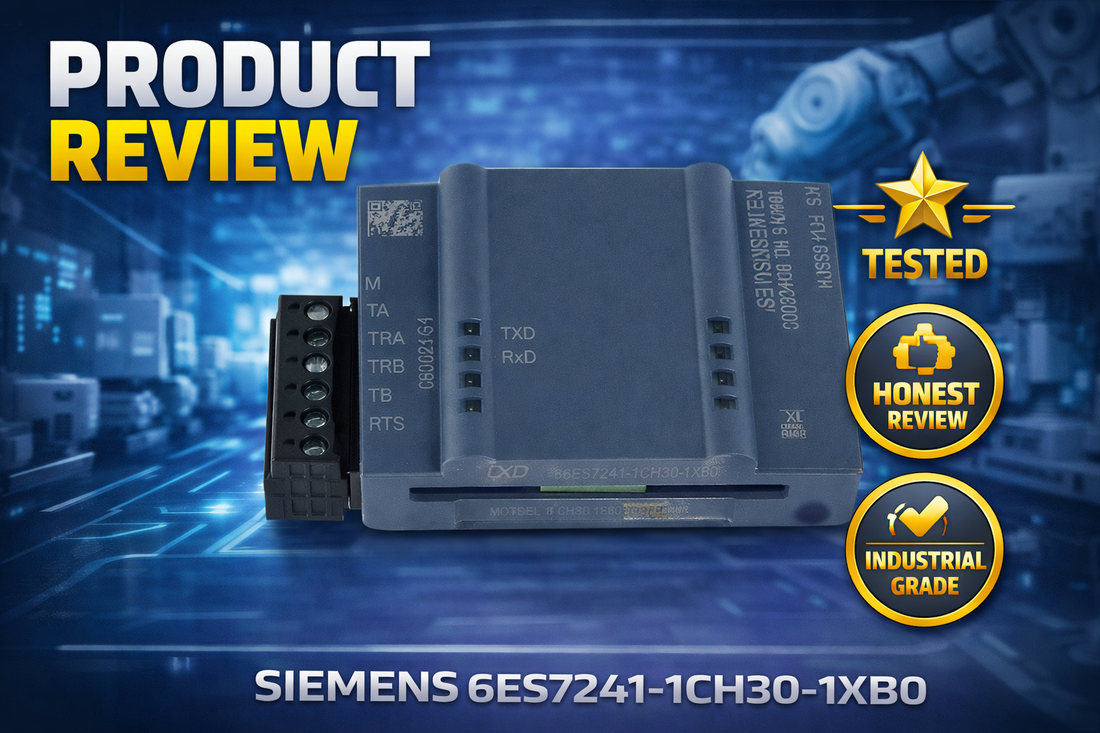

Siemens 6ES7241-1CH30-1XB0 CB 1241 RS485 communication board for SIMATIC S7-1200 industrial PLC systems

Siemens 6ES7241-1CH30-1XB0 — SIMATIC S7-1200 Communication Board CB 1241 RS485 Review, Specs, and Buying Guide

Controls engineers searching for the Siemens 6ES7241-1CH30-1XB0 are typically at the same decision point: an existing SIMATIC S7-1200 system needs to communicate with legacy RS485 devices — scales, transmitters, remote terminal units — and the base PLC does not have a dedicated production serial port. The CB 1241 solves this cleanly by plugging directly into the S7-1200 backplane, drawing 50 mA at 5V DC from the PLC itself, and adding a terminal-block RS485 port that supports Freeport, Modbus RTU, and ASCII protocols. At a compact 38 x 62 x 21 mm and rated from -20 to 60 degrees Celsius, it is sized and rated for the industrial control cabinet environments where S7-1200 systems typically live.

If you have already confirmed this is the correct part for your system, check current pricing and availability for the 6ES7241-1CH30-1XB0 at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7241-1CH30-1XB0 — and Who Should Not

The CB 1241 is the right choice when all of the following conditions are true for your project:

  • Your base controller is a SIMATIC S7-1200 — the CB 1241 mounts to the S7-1200 backplane connector only and is not compatible with S7-1500, S7-300, or S7-400
  • You have an available communication board slot on the S7-1200 backplane — verify before ordering
  • RS485 serial communication is the required interface — for Modbus RTU master or device mode, ASCII, or Freeport custom protocols
  • Cable runs will not exceed 1000 meters — the specified maximum for this board
  • Your installation environment is dry and indoors — the CB 1241 carries an IP20 rating and is not suitable for wet or washdown locations
  • Your programming environment is STEP 7 Basic V13.1 or later — earlier versions may not recognize the board

If your application requires Ethernet or PROFINET communication, or if you need higher data throughput than RS485 supports, the CB 1241 is not the right fit — consider a communication board with an RJ45 Ethernet interface instead. Contact LeadTime.ca if you need help confirming which variant matches your architecture.

On this page:

What the 6ES7241-1CH30-1XB0 Actually Does in an S7-1200 System

The SIMATIC S7-1200 Communication Board CB 1241 is a serial interface expansion module that adds a dedicated RS485 production port to an S7-1200 PLC without replacing the controller or consuming an I/O module slot. It connects via the backplane, draws 50 mA typical at 5V DC from the PLC — no external power supply required — and exposes a three-position terminal block for RS485 Data+, Data-, and optional shield connection.

The distinction between this port and the S7-1200 base unit's onboard serial interface matters in production environments: the CB 1241 provides a dedicated communication port that operates independently of the programming interface, meaning engineers can continue online monitoring and diagnostics in STEP 7 simultaneously while the board is actively running Modbus RTU polling or Freeport messaging to field devices. This is a practical advantage in commissioned systems where serial device communication must run continuously.

The board supports four protocol modes: Freeport (custom user-defined framing), ASCII (character-based, using a library function), Modbus RTU master (CB 1241 initiates queries to remote devices), and Modbus RTU device/slave (CB 1241 responds to an external master). Modbus addressing covers the range 1 through 49,999 per the standard Siemens implementation. A diagnostic LED on the board toggles during active communication transfers, giving a quick visual confirmation of link activity without needing to open the STEP 7 diagnostics screen.

Where the CB 1241 Sits in a Typical S7-1200 Control System

The 6ES7241-1CH30-1XB0 occupies the communication board slot on the S7-1200 backplane — one step below the CPU in the signal chain and directly upstream of the RS485 field network and connected devices.

  • SIMATIC S7-1200 CPU — runs control logic and manages all backplane-connected modules including the CB 1241
  • CB 1241 communication board — seated in the S7-1200 communication board slot; handles all serial RS485 protocol traffic independently of the CPU's programming port
  • Shielded twisted-pair RS485 cable — runs from the CB 1241 terminal block to the first field device; maximum 1000 meters per Siemens specification
  • RS485 field devices — Modbus RTU slaves, legacy sensors, transmitters, weight scales, RTUs, or custom Freeport-addressed equipment connected on the bus
  • STEP 7 Basic V13.1 or later — engineering software used for commissioning, protocol configuration, and diagnostics

Industries and Applications Where the CB 1241 Gets Specified

The most common specification trigger for the 6ES7241-1CH30-1XB0 is a retrofit project: an S7-1200 system that was originally installed without serial communication capability now needs to connect to legacy RS485 field devices that cannot be replaced. A typical example is a food and beverage production line where twelve distributed pressure or flow transmitters communicate over a single RS485 trunk. Adding the CB 1241 avoids rewiring the entire sensor network or upgrading to analog input cards, keeping project cost and downtime low.

In water treatment and municipal utilities, the board is regularly used to connect an S7-1200 to RTU-based remote terminal units that communicate over RS485 — a protocol that remains standard in that sector regardless of how modern the SCADA layer has become. The board's -20 to 60 degrees Celsius operating range and marine approval rating extend its applicability to outdoor panel installations and offshore environments where temperature swings are significant.

OEM machine builders specifying HVAC cabinets or packaging systems use the CB 1241 to integrate third-party building management sensors or weigh scales that only support Modbus RTU. Freeport mode covers the cases where a vendor's device uses a proprietary serial frame format — engineers write the frame construction directly in STEP 7 application code, giving full control without needing a middleware converter.

Application Typical Deployment
Food and beverage processing S7-1200 polling 12 distributed transmitters via RS485 Modbus RTU device mode on single trunk line
Municipal water treatment CB 1241 connecting S7-1200 controller to legacy RTU-based remote terminal units via RS485
Packaging machinery OEM Third-party weight scale integrated to production line S7-1200 using Modbus RTU master mode
HVAC and building automation Building management sensors connected to custom S7-1200 cabinet via Freeport or Modbus RTU
Maintenance diagnostics Handheld serial diagnostics device connected to active S7-1200 via CB 1241 for real-time data
Marine and offshore control CB 1241 in marine-rated panel communicating with RS485 instrumentation; marine approval confirmed

Purchase-Decision Specs: What Engineers Need to Confirm Before Ordering

Specification Value
Dimensions (W x H x D) 38 mm x 62 mm x 21 mm
Weight 40 grams
Input current from backplane 50 mA typical at 5V DC
Power loss 1.5 watts typical
Interface type RS485 serial, terminal block (screw type) — no RJ45
Supported protocols Freeport, ASCII (library function), Modbus RTU master, Modbus RTU device/slave
Maximum cable length 1000 meters
Operating temperature -20 to 60 degrees Celsius (horizontal or vertical installation)
Degree of protection IP20 (indoor use; not rated for wet or washdown environments)
Certifications CE, CSA, UL, cULus, FM, RCM, KC, Marine

Full technical specifications are available on the product page at LeadTime.ca.

CB 1241 vs CB 1242 vs Third-Party Adapters: Which One Do You Actually Need?

Feature CB 1241 RS485 (6ES7241-1CH30-1XB0) CB 1242 Ethernet Third-Party USB-to-Serial Adapter
Communication type RS485 serial Ethernet RJ45 USB-to-serial
Maximum cable range 1000 m 100 m (standard Ethernet) Depends on cable/converter
Data speed Moderate (configurable baud rate) High (10–100 Mbps) Moderate
Relative cost Lower Higher Lowest
S7-1200 backplane integration Native — no external power Native — no external power External — requires separate power and drivers
Industrial certifications CE, CSA, UL, cULus, FM, RCM, KC, Marine Multiple (varies by variant) Variable by vendor
Suitable for permanent installation Yes Yes Not recommended
Best use case Retrofit and legacy RS485 systems New installations, fast data transfer Lab work and temporary troubleshooting only

If your architecture requires RS485 connectivity to legacy field devices and your cable runs stay within 1000 meters, the 6ES7241-1CH30-1XB0 is the correct choice — check current stock and pricing at LeadTime.ca.

Expert Verdict: Honest Assessment and Procurement Reality

The 6ES7241-1CH30-1XB0 does one thing and does it well: it gives an existing S7-1200 system a clean, backplane-integrated RS485 serial port without adding external hardware, external power supplies, or software driver complexity. The Freeport mode is genuinely useful — not just a spec-sheet checkbox — for engineers dealing with proprietary device protocols that no standard driver covers. The multi-region certification package including CSA, UL, cULus, FM, and marine approval means this board can be specified into a wide range of industrial environments without sourcing a different SKU for different regulatory jurisdictions. The IP20 rating is the honest constraint: this is an indoor-rated module and should not be exposed to moisture, condensation, or washdown conditions without appropriate enclosure protection.

Where the CB 1241 is not the right answer: if the application requires Ethernet speed or PROFINET participation in a modern industrial network, this board will not serve those needs. Likewise, if a project is specifying multiple serial ports per PLC, a cost-per-port analysis may favor a different architecture. For those scenarios, a communication board with an Ethernet interface or an external serial gateway device should be evaluated instead. That is not a flaw in the CB 1241 — it is a scoping decision, and the board is correctly positioned as a retrofit and legacy-integration tool.

On the procurement side, lead times for this SKU vary by distributor and market conditions — typical fulfillment ranges from 2 to 6 weeks through distribution channels, with Siemens direct ordering subject to announced fulfillment dates. Volume orders of 5 or more units typically attract pricing consideration. If you are committing this board to a project schedule, confirm stock availability before locking in an installation date. If this matches your system requirements, view current stock and pricing for the 6ES7241-1CH30-1XB0 at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following points cover the key requirements and configurations for installing the 6ES7241-1CH30-1XB0. For full step-by-step procedures, refer to the Siemens SIMATIC S7-1200 hardware installation manual and the CB 1241 product documentation.

  • The CB 1241 mounts into the communication board slot on the right side of the S7-1200 base unit — the PLC must be powered off before insertion; insert at a 45-degree angle and press until both mechanical clips engage
  • RS485 wiring uses a three-position terminal block (screw type): Data+ (A line), Data- (B line), and optional shield/drain connection — there is no RJ45 connector on this board
  • Use shielded twisted-pair cable; for runs exceeding 500 meters or installations in electrically noisy environments, install a 120-ohm terminating resistor between Data+ and Data- at the remote end only — not at both ends and not at the PLC end
  • Route RS485 cable away from high-current power lines and motor feeder cables to minimize EMI coupling into the data lines; connect the cable shield at both ends for maximum noise immunity
  • After installation, confirm the diagnostic LED on the CB 1241 responds during active communication — the LED should toggle during transfers and remain dark at idle during normal operation

Commissioning Checklist Overview

Before placing the system into production, verify the following. Full commissioning procedures are documented in Siemens STEP 7 help and the CB 1241 application notes on the Siemens SiePortal support portal.

  • Confirm STEP 7 Basic V13.1 or later is installed — older versions may not recognize the CB 1241 in the hardware configuration
  • Verify the STEP 7 project recognizes the CB 1241 as installed in the hardware tree after powering on the S7-1200
  • Configure the communication parameters in the STEP 7 function block — baud rate, Modbus slave address (1 through 49,999), data bits, parity, and stop bits must match the remote device settings exactly
  • Test communication using the configured protocol (Modbus RTU, Freeport, or ASCII) against a known remote device before connecting the full field network
  • Check STEP 7 diagnostics for communication errors on the CB 1241 port if the connection does not establish; verify baud rate match and cable polarity as the first two diagnostic steps

What Engineers Get Wrong When Ordering This Part

Before placing your order, run through each item on this checklist. Ordering the wrong communication board for an S7-1200 system is a common and avoidable delay — these checks take two minutes and prevent a two-week return cycle.

  1. Verify the PLC base unit is SIMATIC S7-1200 (CB 1241 will not fit S7-1500 or S7-300/400)
  2. Confirm available communication board slot on the backplane (some S7-1200 configurations have limited slots)
  3. Check that existing program logic and memory will support the communication board driver
  4. Ensure terminal block screw-connection wiring is acceptable (no RJ45 connector available)
  5. Verify that Freeport or required protocol (Modbus RTU master/device, ASCII) is needed; do not assume
  6. Check enclosure IP rating compatibility if board will be exposed to moisture or vibration environments

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can help confirm compatibility against your S7-1200 configuration and project requirements.

Frequently Asked Questions

Can the 6ES7241-1CH30-1XB0 communicate with non-Siemens Modbus RTU devices?

Yes. The CB 1241 supports Modbus RTU master mode, which allows the S7-1200 to initiate queries to any standard Modbus RTU slave device regardless of brand. It also supports Modbus RTU device/slave mode, where the CB 1241 responds to an external Modbus master. The Modbus address range supported is 1 through 49,999 per the standard Siemens implementation. Baud rate and data format (parity, stop bits) are configured in STEP 7 and must match the remote device settings.

What is Freeport mode and when is it actually necessary?

Freeport mode allows the engineer to define a completely custom serial communication frame in STEP 7 application code — the CB 1241 sends and receives exactly what the program specifies, with no protocol overhead from a standard driver. It is necessary when the remote device uses a proprietary serial protocol that does not conform to Modbus RTU or ASCII standards. Freeport requires more engineering effort than using a standard library function block, but it covers virtually any RS485 device regardless of the protocol the manufacturer implemented.

Is the CB 1241 compatible with STEP 7 Professional, or only STEP 7 Basic?

The 6ES7241-1CH30-1XB0 is compatible with both STEP 7 Basic V13.1 and later and STEP 7 Professional V15 and later. STEP 7 Professional V15 and later provides access to extended diagnostics capabilities for the board. Engineers using STEP 7 versions below V13.1 will need to upgrade their software before the CB 1241 will be recognized in the hardware configuration.

How long can the RS485 cable run be with the CB 1241?

The specified maximum cable length for the 6ES7241-1CH30-1XB0 is 1000 meters. For runs exceeding 500 meters, or in electrically noisy environments, Siemens documentation recommends installing a 120-ohm terminating resistor between Data+ and Data- at the remote end of the cable only. Using shielded twisted-pair cable and routing away from power conductors are the primary practices for maintaining signal integrity across long runs.

Does the CB 1241 require an external power supply?

No. The CB 1241 draws 50 mA typical at 5V DC directly from the S7-1200 backplane. No external power supply is required. When evaluating whether your S7-1200 configuration can support the board, verify that the backplane power budget accommodates the additional 50 mA draw and 1.5 watts typical power loss from the CB 1241.

Can the CB 1241 be used in marine or offshore panel installations?

Yes. The 6ES7241-1CH30-1XB0 carries marine approval as part of its certification package, which also includes CE, CSA, UL, cULus, FM, RCM, and KC. The operating temperature range of -20 to 60 degrees Celsius supports the temperature swings common in outdoor and marine enclosures. However, the IP20 protection rating means the board itself is not sealed against moisture — it must be housed in an enclosure with appropriate IP or NEMA rating for the installation environment.

Why Order the 6ES7241-1CH30-1XB0 from LeadTime.ca

  • LeadTime.ca ships the 6ES7241-1CH30-1XB0 worldwide — no regional restrictions on order destination
  • Stock and lead time visibility is available directly on the product page — confirm availability before committing to a project install date
  • Volume pricing is available for orders of multiple units — contact the team with your quantity and project timeline
  • Hard-to-source or constrained SKUs can be escalated through LeadTime.ca's distributor network when standard stock is limited
  • The LeadTime.ca team can assist with compatibility confirmation if you are uncertain whether the CB 1241 is the correct board for your specific S7-1200 configuration

At-a-Glance Summary

  • Model: 6ES7241-1CH30-1XB0 — SIMATIC S7-1200 Communication Board CB 1241, RS485, terminal block, supports Freeport
  • Compatible base controllers: SIMATIC S7-1200 AC and DC standard configurations; S7-1200 C conditional — verify available slots
  • Not compatible with: S7-1500, S7-300, S7-400, S7-500
  • Protocols supported: Freeport, ASCII (library function), Modbus RTU master, Modbus RTU device/slave; Modbus address range 1 through 49,999
  • Maximum RS485 cable length: 1000 meters; 120-ohm termination required at remote end for runs over 500 meters
  • Power: 50 mA typical at 5V DC from S7-1200 backplane — no external power supply required
  • Dimensions: 38 x 62 x 21 mm; weight 40 grams
  • Operating temperature: -20 to 60 degrees Celsius; storage -40 to 70 degrees Celsius
  • Protection rating: IP20 — indoor use only; not rated for wet or washdown environments
  • Certifications: CE, CSA, UL, cULus, FM, RCM, KC, Marine
  • Minimum software version: STEP 7 Basic V13.1; extended diagnostics with STEP 7 Professional V15 and later
  • Typical lead time through distribution: 2 to 6 weeks — confirm stock at LeadTime.ca before committing to project schedule
