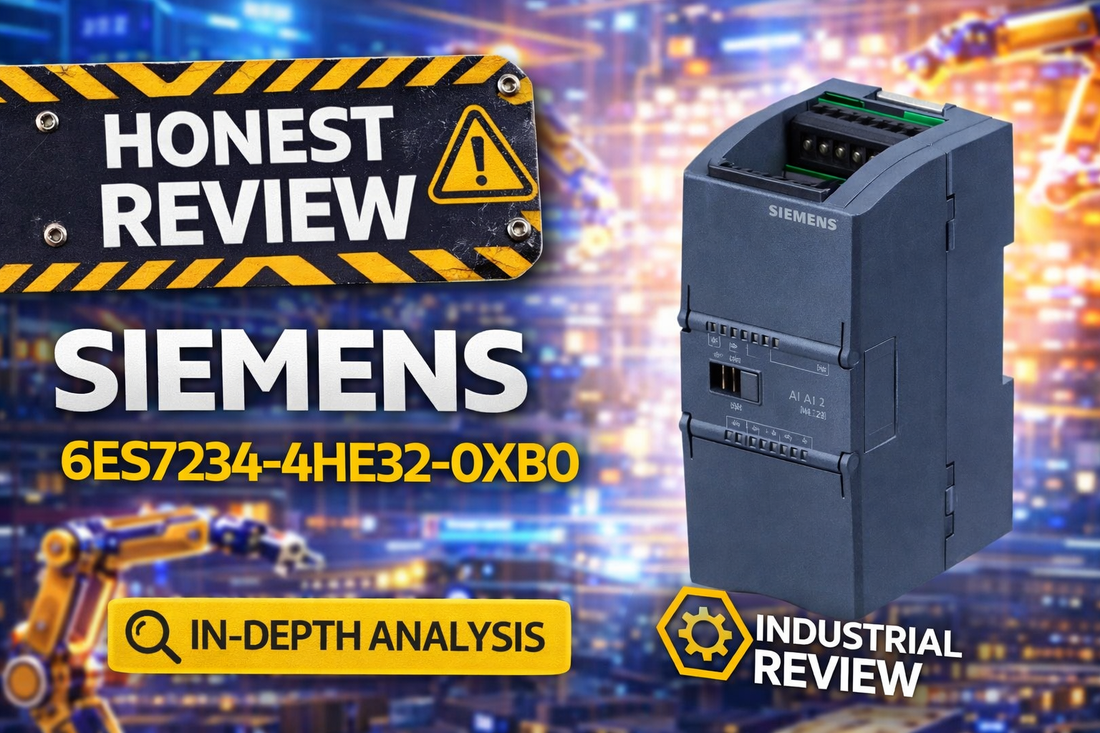

Siemens 6ES7234-4HE32-0XB0 SM 1234 analog I/O module for SIMATIC S7-1200 proportional valve control applications

Siemens 6ES7234-4HE32-0XB0 Analog I/O Module SM 1234, 4 AI / 2 AO, +/-10V, 14-bit or 0(4)-20mA, 13-bit: Specs, Selection Guide and Alternatives

Controls engineers selecting an analog expansion module for an S7-1200 platform have a specific problem: they need a single module that handles both sensor inputs and proportional output commands without adding a second slot to the cabinet. The Siemens 6ES7234-4HE32-0XB0 — the current standard SKU of the SIMATIC S7-1200 SM 1234 — addresses exactly that scenario with 4 analog inputs at 14-bit voltage resolution and 2 analog outputs, all within a 45mm-wide DIN rail footprint. With a maximum all-channel cycle time of 625 microseconds and built-in wire-break and short-circuit diagnostics, this module is a proven fit for proportional valve control, level sensing, and energy monitoring applications on any S7-1200 CPU variant.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7234-4HE32-0XB0 — and Who Shouldn't

This module is the correct choice for engineers working on SIMATIC S7-1200 systems that require a balanced mix of analog inputs and analog outputs in a single compact slot. It is a strong fit when all of the following criteria apply to your project:

  • Your PLC is a SIMATIC S7-1200 CPU — any model from 1211C through 1217C — and you have at least one free 20-pin signal connector slot available
  • Your field sensors output ±10V, ±5V, ±2.5V, 0-20mA, or 4-20mA signals directly compatible with the module's selectable input modes
  • Your application requires exactly 4 analog input channels and 2 independent analog output channels — proportional valve commands, actuator positioning, or similar
  • Your control loop can tolerate a maximum all-channel scan time of 625 microseconds, which comfortably covers most proportional control applications
  • Your installation environment falls within -20°C to +60°C operating temperature (horizontal mounting) and you need integrated diagnostics including wire-break and short-circuit detection

If you need more than 4 analog inputs or 2 analog outputs, a multi-module configuration or higher-channel SM 1234 variant is the correct path. If your application requires Pt100 or Pt1000 RTD inputs, the SM 1231 RTD module is the appropriate choice — the 6ES7234-4HE32-0XB0 supports voltage and current signals only and cannot accept resistance thermometer inputs directly.

On this page:

What the 6ES7234-4HE32-0XB0 Actually Does in a Running System

The Siemens 6ES7234-4HE32-0XB0 is a DIN rail-mounted signal conditioning module that sits between analog field instruments and the SIMATIC S7-1200 CPU. Its job is to convert real-world voltage and current signals — from pressure transmitters, flow meters, position sensors, and load cells — into digital values the PLC can process, and to convert PLC output commands back into analog signals that drive proportional valves, actuators, and variable-speed outputs.

The module provides 4 differential analog input channels, each selectable for voltage mode (±10V, ±5V, or ±2.5V) or current mode (0-20mA or 4-20mA), and 2 independent analog output channels configurable for ±10V or 0-20mA/4-20mA. Input resolution is 14-bit in voltage mode and 13-bit in current mode. Output resolution is 14-bit for voltage and 13-bit for current. The maximum cycle time for all channels is 625 microseconds, which is fast enough to close proportional control loops on most machine automation applications without external signal processing hardware.

The module includes integrated diagnostics: supply voltage monitoring, wire-break detection on inputs (open-circuit alarm), and short-circuit protection on outputs. Diagnostic status LEDs indicate channel health, and diagnostic messages are forwarded to the S7-1200 CPU for logging and condition-based maintenance workflows. The input voltage channels present a minimum input impedance of 9 MOhm, which prevents the module from loading sensitive sensor circuits — a relevant characteristic when connecting low-drive-strength analog sensors common in precision measurement applications.

Typical S7-1200 System Architecture with the SM 1234

The 6ES7234-4HE32-0XB0 mounts directly to the right of the S7-1200 CPU on the DIN rail, occupying one 20-pin signal connector slot in the compact system expansion chain. It sits between the CPU and any additional signal modules in the data path, receiving process values from field instruments and passing scaled analog data to the PLC program through the S7-1200 system bus.

  • Field sensors and transmitters (pressure, flow, level, position — outputting ±10V or 4-20mA) connect to the module's 4 differential analog input terminals
  • The 6ES7234-4HE32-0XB0 conditions incoming signals and passes digitized values to the S7-1200 CPU via the integrated signal connector at 625 microsecond maximum scan rate
  • The S7-1200 CPU (any model from 1211C to 1217C) runs the control program in TIA Portal, processing analog inputs and generating output setpoints
  • The module's 2 analog output channels deliver ±10V or 4-20mA commands to proportional valves, actuators, or variable-frequency drives downstream
  • A regulated 24V DC auxiliary power supply — minimum 5A rated for the full S7-1200 system — provides the 2W typical operating power the module draws from the 24V rail

Where Engineers Deploy This Module: Industries and Use Cases

In machine tool automation and packaging machinery, the 6ES7234-4HE32-0XB0 handles proportional valve control scenarios where 4 pressure or flow sensors feed the analog inputs and the 2 analog outputs drive proportional directional valve commands. The balanced 4-input/2-output configuration maps directly to these multi-sensor, single-actuator-pair layouts without requiring a second module.

In food and beverage and HVAC applications, the module reads 4-20mA outputs from external transmitters connected to RTD probes or temperature sensors, then drives heating element or damper actuator commands through the analog outputs. Engineers using RTD sensors directly must convert the RTD signal to 4-20mA via a head-mounted transmitter before connecting to this module — or use the SM 1231 RTD instead.

Water and wastewater treatment plants deploy this module in multi-zone leveling and flow balancing systems, where load cells or differential pressure transmitters on 4 input channels allow the PLC to calculate zone-by-zone adjustments and issue proportional pneumatic valve commands on the output channels. Energy monitoring applications use the module to capture 4-20mA outputs from power meters, with the second analog output triggering load-shedding relay commands proportionally based on demand calculations in the CPU program.

Application Typical Deployment
Proportional valve control 4 pressure/flow sensors on AI channels; proportional directional valve command on AO channel
Oven or chamber temperature regulation RTD converted to 4-20mA via transmitter; module reads input, drives heating element PWM output
Multi-zone machine leveling 4 load cells on input channels; module sums inputs to drive pneumatic leveling valve proportionally
Quality inspection station Analog optical sensor output (-10 to +10V) processed in PLC; output controls reject actuator solenoid
Energy monitoring and load shedding Power meter 4-20mA output captured on AI; PLC triggers load-shedding relay via second analog output
Plastics extrusion and chemical blending Multiple process transmitters on AI channels; output drives proportional dosing valve or extruder speed reference

Purchase-Decision Specifications and Input/Output Performance

Parameter Specification
Analog Input Channels 4 differential (voltage or current, selectable per channel)
Analog Output Channels 2 independent (voltage or current, selectable per channel)
Input Voltage Range ±10V, ±5V, ±2.5V
Input Current Range 0-20mA, 4-20mA
Input Resolution 14-bit (voltage), 13-bit (current)
Output Voltage/Current Range ±10V / 0-20mA, 4-20mA
Output Resolution 14-bit (voltage), 13-bit (current)
Max All-Channel Cycle Time 625 microseconds
Supply Voltage 24V DC (rated), 20.4–28.8V DC operating range
Operating Temperature (Horizontal) -20°C to +60°C

Full technical specifications are available on the product page at LeadTime.ca.

6ES7234-4HE32-0XB0 vs. Alternatives: Which Module Do You Actually Need?

Module AI Channels AO Channels Key Difference Best For When NOT to Choose
6ES7234-4HE32-0XB0 4 (voltage/current) 2 (voltage/current) Current standard SKU New builds requiring balanced 4 AI / 2 AO Legacy systems referencing -0XB0 documentation only
6ES7234-4HE30-0XB0 4 (voltage/current) 2 (voltage/current) Previous generation; functionally identical Projects with existing legacy documentation specifying this SKU Standardizing on newest release for new projects
SM 1231 RTD 8 (RTD/thermocouple) 0 Temperature probe input only; no analog outputs Oven and chamber temperature control with Pt100/Pt1000 probes Proportional valve or actuator output control required
SM 1222 / SM 1226 DI/DO 16 (digital only) 0 Binary on/off signals only; smaller footprint; lower cost Solenoid valve, motor starter, proximity switch applications Analog proportional control required

If your architecture uses ±10V or 4-20mA analog signals and requires both input acquisition and output command capability on a single S7-1200 slot, the 6ES7234-4HE32-0XB0 is the correct current-generation choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Controls Engineers

The Siemens 6ES7234-4HE32-0XB0 earns its place as the default analog expansion module for S7-1200 platforms precisely because the 4-input/2-output configuration matches the majority of machine automation scenarios without requiring engineers to configure a second module or manage separate I/O addressing for inputs and outputs. The 625 microsecond cycle time is fast enough for proportional valve loops and analog feedback control in typical industrial applications. The 9 MOhm minimum input impedance on voltage channels is a practical advantage when connecting sensors with low drive capability, and the integrated wire-break and short-circuit diagnostics translate directly into faster fault diagnosis on the production floor — rather than chasing intermittent signal issues with a multimeter.

The module has real limits worth acknowledging. It does not support RTD or thermocouple inputs — if your application involves direct temperature probe connections, the SM 1231 RTD is the correct module and this one is the wrong purchase. The ±0.2% temperature error over the operating range means applications requiring sub-0.1% accuracy across wide ambient temperature swings will need to account for that drift or use an external signal conditioning stage. The 45mm width is compact, but engineers building very tight cabinets should verify DIN rail clearance for signal cable entry before committing to panel layout. None of these are deal-breakers for the target application set — they are constraints to verify at design time rather than discover at commissioning.

From a procurement standpoint, this is a current production item with broad global stocking depth across industrial distribution channels. Lead times of 2-4 weeks are typical from major authorized distributors under normal supply conditions. Volume pricing at 5 or more units is available — meaningful for OEM machine builders standardizing this module across a product line. If you are planning a project spanning more than 2 years, ordering 10-15% spare stock at time of build is a reasonable hedge against future availability shifts. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Connect to the S7-1200 CPU via the standard 20-pin signal connector; verify the connector slot is free before mounting — the module occupies one connector position on the CPU rail
  • For 4-20mA current inputs, connect the current transmitter in series with the input terminals; the module presents a 280 Ohm loop impedance at those terminals
  • For ±10V voltage inputs, connect the signal source across the differential input pair; the 9 MOhm input impedance prevents loading on low-drive sensors
  • Tie field cable shields and ground references to a single point at cabinet entry to prevent ground loop offsets from corrupting analog readings — do not create multiple ground paths across the signal chain
  • Route analog signal cables away from high-voltage and high-current conductors; use shielded cable for voltage mode inputs in electrically noisy environments

Commissioning Overview: Getting the Module Online

  • Verify the 24V DC auxiliary supply provides a minimum 5A capacity for the full S7-1200 system including this module's 2W typical draw before powering up
  • Confirm that input and output range selections in TIA Portal (voltage vs. current, specific range) match the field sensor and actuator specifications documented for the project
  • After powering the system, check the module status LED — a steady green indicates healthy operation; a flashing or red LED indicates a diagnostic fault requiring investigation before proceeding
  • Perform a manual signal sweep: adjust each field sensor across its operating range while monitoring the scaled PLC variable in TIA Portal to confirm correct engineering unit conversion
  • Test each analog output by writing a known value from the PLC test environment and verifying the field device responds proportionally — confirm the output signal at the device terminal with a calibrated meter

Wrong-Part Prevention Checklist Before You Order

Verify each item below before placing your order to avoid receiving the wrong module or encountering compatibility issues at installation:

  1. Verify PLC model is S7-1200 CPU (1211C, 1212C, 1214C, 1215C, 1217C) - this module does NOT work with S7-1500 or S7-300/400 without adapter
  2. Confirm S7-1200 firmware supports analog modules (standard in all S7-1200 revisions; no firmware update needed)
  3. Check available signal connector slots on CPU (module occupies one 20-pin connector; verify two connectors minimum exist)
  4. Verify 24V DC power supply capacity (module draws typical 2W; auxiliary 24V rail must provide min 5A for system)
  5. Confirm input voltage range: if sensors output ±10V, select voltage mode; if 4-20mA transmitters, select current mode (do not mix in same module without external conversion)
  6. Validate DIN rail mounting clearance (45mm width fits standard 35mm rail; verify no adjacent modules block signal cable entry)
  7. Confirm operating temperature range -20 to +60C (horizontal) or -20 to +50C (vertical) matches installation environment

If any item on this checklist raises a concern about fit, contact the LeadTime.ca team to confirm the right module for your application before ordering — or review the full product details at LeadTime.ca.

Frequently Asked Questions

Can the 6ES7234-4HE32-0XB0 be used with an S7-1500 or S7-300 CPU?

No. This module is designed exclusively for the SIMATIC S7-1200 platform and connects via the S7-1200's integrated 20-pin signal connector. It is not compatible with S7-1500 or S7-300/400 CPUs without a hardware adapter — which does not exist for this form factor. For S7-300 applications, the IM 341 analog module family is the appropriate alternative; for S7-1500, use the TM analog module range.

What is the difference between the 6ES7234-4HE32-0XB0 and the 6ES7234-4HE30-0XB0?

The 6ES7234-4HE30-0XB0 is the previous hardware generation of the same SM 1234 module. Both versions share identical electrical specifications — 4 analog inputs, 2 analog outputs, ±10V/4-20mA, 14-bit/13-bit resolution, 625 microsecond cycle time. The 6ES7234-4HE32-0XB0 is the current production SKU and is the correct choice for new builds. Only specify the -0XB0 variant if existing project documentation explicitly requires it.

Can I mix voltage mode and current mode on different input channels of the same module?

Yes — each of the 4 analog input channels is independently configurable in TIA Portal for either voltage mode (±10V, ±5V, ±2.5V) or current mode (0-20mA, 4-20mA). You can connect a 4-20mA pressure transmitter on channel 1 and a ±10V position sensor on channel 2 within the same module. What you cannot do is connect a raw RTD or thermocouple directly — those require the SM 1231 RTD module.

What causes a wire-break diagnostic alarm and how do I clear it?

A wire-break alarm — indicated by a flashing input LED and a diagnostic message to the CPU — occurs when the module detects an open circuit on an analog input channel. The most common causes are a disconnected or broken sensor cable, a corroded terminal connection, or a failed transmitter. To resolve it, trace the analog input cable from the module terminal to the field sensor, verify sensor power is present, and check for corroded or loose terminals. Applying a known-good sensor to the same channel and confirming the alarm clears isolates whether the fault is in the sensor, the cable, or the module terminal.

Does this module require any special TIA Portal version or license to configure?

The 6ES7234-4HE32-0XB0 is configured entirely within the standard TIA Portal hardware catalog under SIMATIC S7-1200 Signal Modules — no additional license or special software package is required beyond the base TIA Portal installation that supports S7-1200 programming. All S7-1200 firmware revisions support this module without update.

What is the accuracy impact of operating this module at elevated temperatures near the +60°C limit?

The module's basic input accuracy at 25°C is ±0.1% of the input range. Over the full operating temperature range up to 55°C, the temperature-induced error rises to ±0.2% of input range for inputs and ±0.6% for outputs. For most proportional valve control and process monitoring applications, ±0.2% is acceptable. For high-precision measurement applications where sub-0.1% accuracy must be maintained across ambient temperature swings, additional signal conditioning or a temperature-compensated measurement module should be evaluated.

Why Source from LeadTime.ca

  • LeadTime.ca ships the Siemens 6ES7234-4HE32-0XB0 worldwide — no regional restrictions on quoting or order fulfillment
  • Direct access to current stock status and lead time confirmation before you commit to a project timeline
  • Volume pricing available at 5 or more units — contact the team for project-quantity quotes
  • Sourcing support for hard-to-find or short-lead-time automation parts across the SIMATIC S7-1200 family
  • Technical team available to verify compatibility and cross-reference alternatives when the exact SKU is uncertain

At-a-Glance Summary

  • Module: Siemens 6ES7234-4HE32-0XB0 — SIMATIC S7-1200 SM 1234, current production SKU
  • 4 differential analog input channels: ±10V / ±5V / ±2.5V voltage or 0-20mA / 4-20mA current, selectable per channel
  • 2 independent analog output channels: ±10V or 0-20mA / 4-20mA, selectable per channel
  • Input resolution 14-bit (voltage) and 13-bit (current); output resolution 14-bit (voltage) and 13-bit (current)
  • Maximum all-channel cycle time: 625 microseconds
  • Input impedance: minimum 9 MOhm (voltage mode), 280 Ohm (current mode)
  • Basic input accuracy: ±0.1% at 25°C; temperature error to ±0.2% over full operating range
  • Operating temperature: -20°C to +60°C horizontal; -20°C to +50°C vertical mounting
  • Physical dimensions: 45mm wide × 100mm high × 75mm deep; weight approximately 220 grams
  • Supply voltage: 24V DC rated (20.4–28.8V DC range); 2W typical power consumption
  • Compatible with SIMATIC S7-1200 CPUs 1211C, 1212C, 1214C, 1215C, 1217C only — not S7-1500 or S7-300/400
  • Integrated diagnostics: wire-break detection on inputs, short-circuit protection on outputs, supply voltage monitoring
  • Galvanic separation between I/O channels and power supply; common mode voltage limit 12V on inputs
