Siemens 6ES7231-4HD32-0XB0 — SM 1231 Analog Input Specs & Buying Guide

By Abdullah Zahid
11 min read

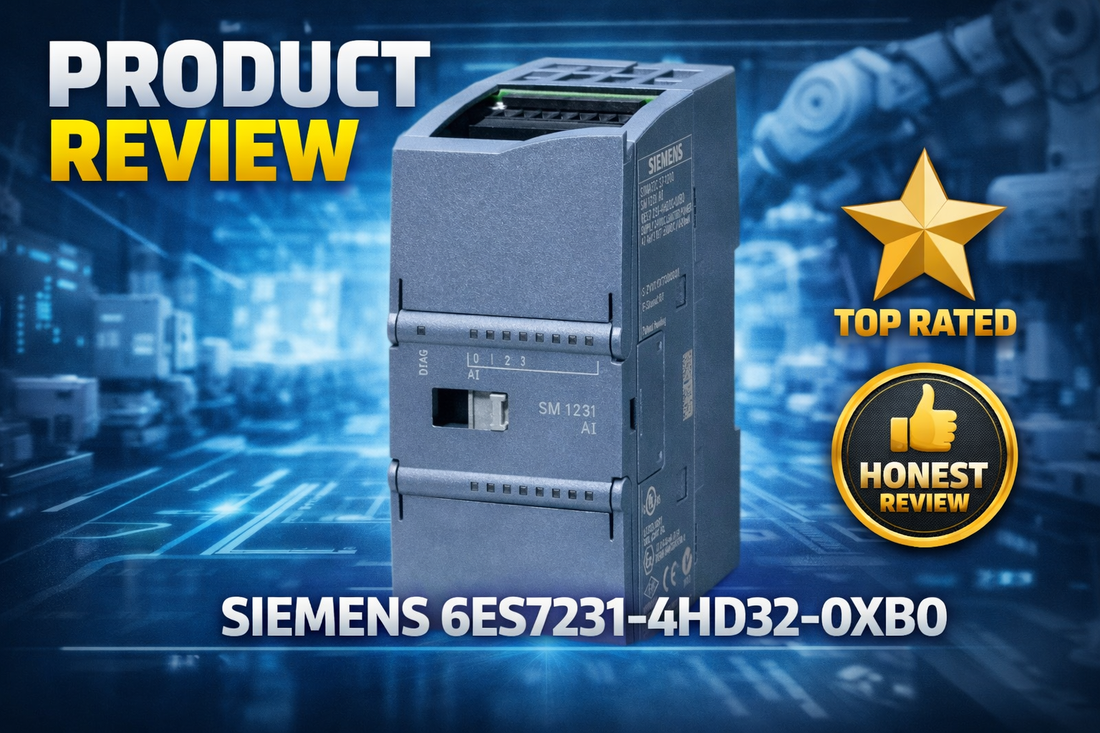

Siemens 6ES7231-4HD32-0XB0 SM 1231 analog input module for SIMATIC S7-1200 PLC industrial automation

Siemens 6ES7231-4HD32-0XB0 SIMATIC S7-1200 Analog Input Module SM 1231, 4 AI Channels, Supports Voltage and Current Inputs

Controls engineers selecting an analog input module for an S7-1200 system typically arrive at this page with their sensor list already written and a project schedule that cannot absorb a wrong-part delay. The Siemens 6ES7231-4HD32-0XB0 is the SM 1231 four-channel analog input module for the SIMATIC S7-1200 family, supporting voltage inputs of ±10V, ±5V, and ±2.5V as well as current inputs of 0-20mA and 4-20mA across all four independent channels. With a basic error limit of ±0.1% of input range at 25°C and a cycle time of 625 µs across all channels, this module handles the signal acquisition requirements of the majority of industrial sensor types without additional converters or gateway hardware.

If you have already confirmed this is the correct part for your system, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7231-4HD32-0XB0 — and Who Shouldn't

This module is the right choice if your application meets the following criteria:

  • You are expanding a SIMATIC S7-1200 CPU that has an available expansion slot for a signal module
  • Your sensors output voltage (±10V, ±5V, or ±2.5V) or current (0-20mA or 4-20mA) — or a mix of both
  • Four analog input channels are sufficient for your measurement requirements
  • Your control panel supplies 24V DC to the module
  • Your measurement precision requirement is at or above the ±0.1% basic error limit at 25°C

If you need eight or more analog input channels, require thermocouple or RTD inputs, or need galvanic isolation between channels, this module is not the correct fit — see the variant comparison section below for specific alternatives within the SM 1231 family.

On this page:

What the 6ES7231-4HD32-0XB0 Actually Does in a Running System

The 6ES7231-4HD32-0XB0 is a plug-in signal module that adds four independent analog input channels to a SIMATIC S7-1200 CPU. Its core function is analog-to-digital conversion: it reads a continuous voltage or current signal from a field sensor or transmitter, converts it to a digital value using a 13-bit ADC (12-bit plus sign), and presents that value to the CPU over the backplane bus for use in control logic, PID loops, alarming, or data logging.

Unlike digital I/O modules that read only on/off states, this module captures the full measurement range of analog sensors — allowing the CPU to distinguish between 4.2mA and 18.7mA from a pressure transmitter, or between 2.3V and 9.6V from a position transducer. The module handles both voltage and current inputs on the same unit, which eliminates the common scenario of ordering two separate module types when a panel contains mixed sensor technologies. Built-in wire-break detection and supply voltage monitoring reduce troubleshooting time when sensor or power faults occur in the field, two capabilities that pay back their cost on the first unplanned downtime event they help prevent.

Where This Module Sits in a Typical S7-1200 Control Architecture

The 6ES7231-4HD32-0XB0 mounts directly to the right of the S7-1200 CPU on the DIN rail, connecting via the backplane expansion bus without additional wiring between the CPU and module. Field sensor signals arrive at the module's front connector terminals and are converted before the CPU reads them in the program scan.

  • 24V DC power supply feeds both the S7-1200 CPU and the SM 1231 module (45mA rated current consumption at the module)
  • S7-1200 CPU communicates with the module across the 5V backplane bus (80mA backplane current draw)
  • Field transmitters and sensors connect to the front connector terminals of the 6ES7231-4HD32-0XB0
  • The CPU reads converted digital values from the module and uses them in STEP 7 TIA Portal control logic, PID function blocks, or HMI data feeds
  • Optional: downstream actuators or output devices are driven by a separate SM 1232 analog output module or digital output module based on the CPU's processed decisions

Industries and Applications Where the SM 1231 Gets Specified

Temperature monitoring loops using 4-20mA analog transmitters are among the most common deployments for this module — ovens, reactors, and storage tanks where a temperature transmitter needs to feed a PID control loop in the S7-1200 CPU.

Pressure and level control applications using ±10V or 0-20mA transducers on pump discharge lines and tank level measurements are a natural fit given the module's multi-range flexibility. A single panel may have a 4-20mA pressure transmitter on one channel and a ±10V level sensor on another, both handled by the same 6ES7231-4HD32-0XB0 without configuration trade-offs.

Flow rate measurement in blending, dispensing, and batching systems relies on 4-20mA flow sensors that feed totalization logic in the CPU — the module's 625 µs cycle time ensures fast enough sample rates for these applications. Energy and power monitoring via 0-10V or 4-20mA outputs from power meters is a growing use case in building automation and facility management systems tied to S7-1200 controllers.

Application Typical Deployment
Temperature monitoring 4-20mA transmitter on oven, reactor, or storage tank feeding PID loop in S7-1200 CPU
Pressure sensing 0-20mA or ±10V transducer on pump discharge or hydraulic circuit
Flow rate measurement 4-20mA flow sensor on blending or dispensing line with totalization logic
Tank level control ±10V or 4-20mA level transmitter feeding setpoint comparison and fill valve control
Energy monitoring 0-10V or 4-20mA analog output from power meter connected to S7-1200 for consumption logging
Analog setpoint input ±10V reference voltage from operator interface or master controller feeding error signal processing

Specifications an Engineer Needs Before Ordering

Parameter Specification
Analog Input Channels 4 independent channels
Voltage Input Ranges ±10V, ±5V, ±2.5V
Current Input Ranges 0-20mA, 4-20mA
Resolution 12-bit plus sign (13-bit ADC)
Basic Error Limit (25°C) ±0.1% of input range
Cycle Time (All Channels) 625 µs
Supply Voltage 24V DC
Rated Current Consumption 45mA
Operating Temperature -20°C to +60°C (horizontal), -20°C to +50°C (vertical)
Dimensions (W×H×D) 45 × 100 × 75 mm, 180 g

Full technical specifications are available on the product page at LeadTime.ca.

SM 1231 Variant Comparison: Choosing the Right Channel Count and Input Type

Module Channels Input Types Supported Key Differentiator
6ES7231-4HD32-0XB0 (SM 1231) 4 AI Voltage (±10V, ±5V, ±2.5V), Current (0-20mA, 4-20mA) Baseline 4-channel voltage/current module for S7-1200
SM 1231 8-channel variant 8 AI Voltage and current (same ranges) Double channel count for higher sensor density applications
SM 1231 thermocouple variant 4 AI Thermocouple types Required when direct thermocouple input is needed; no voltage/current
SM 1231 RTD variant 4 AI Resistance thermometers (RTD) Required for Pt100, Pt1000, or resistance measurement
SM 1232 (Analog Output) 4 AO Voltage and current outputs Output module — not an input module; drives actuators and drives

If your architecture uses 4-20mA or voltage sensors and four channels cover your measurement points, the 6ES7231-4HD32-0XB0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Where This Module Earns Its Place and Where It Doesn't

The 6ES7231-4HD32-0XB0 earns its position as the default analog input choice for S7-1200 systems because it eliminates the most common sourcing friction in mixed-sensor panels: you do not need to stock separate modules for voltage and current sensor types. With ±0.1% basic error limit at 25°C and support for both 4-20mA transmitters and ±10V transducers on the same four-channel unit, it handles the typical analog input requirements of temperature monitoring, pressure measurement, flow totalization, and energy monitoring without additional hardware between the sensor and the CPU. The 13-bit ADC resolution and 625 µs cycle time are appropriate for the vast majority of process control loops and data acquisition tasks that an S7-1200 CPU manages.

The honest limits are these: four channels is a firm ceiling — if your machine has six or more analog inputs, you will need a second module or a different variant. This module does not support thermocouple or RTD direct connection, so any application with direct temperature element wiring needs the appropriate SM 1231 thermocouple or RTD variant instead. There is no galvanic isolation between input channels on this module, which matters in applications where sensor ground loops or high common-mode voltages are a real risk. The permissible input voltage for destruction is rated at 35V and input current limit at 40mA — external protection devices are not integrated, so circuits where transient overvoltage is possible need external fusing or surge suppression before the module terminals.

From a procurement standpoint, this is a well-stocked part in industrial automation distribution channels worldwide given its position in the SIMATIC S7-1200 ecosystem. Volume pricing is available through LeadTime.ca for OEM builds or multi-panel projects. If you are evaluating lead time for a project with a fixed commissioning date, confirming stock before finalizing your BOM is the practical step. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation: What to Verify Before You Connect Anything

  • Confirm sensor output type (voltage or current) and range before connecting — wiring a 4-20mA current source to a channel parameterized for ±10V voltage will produce inaccurate readings, not an obvious fault
  • Use twisted-pair or shielded cable for all analog signal runs; connect cable shield to module ground at the module end only to avoid ground loop formation
  • Route analog signal wiring separately from high-current power wiring in the panel and cable tray to reduce electromagnetic interference on the 45mA-rated signal circuits
  • Verify 24V DC supply voltage is present and stable before applying power — the module rated supply is 24V DC and the backplane draws 80mA at 5V from the CPU bus
  • Check that external protection devices (fuses or surge suppressors) are in place for any circuits where input voltage could exceed 35V or current could exceed 40mA, as these are the module destruction limits

Compatible Modules and S7-1200 System Expansion Options

The 6ES7231-4HD32-0XB0 is part of the SIMATIC S7-1200 signal module ecosystem. The following module types are commonly deployed alongside it in S7-1200 control systems:

  • SM 1232 Analog Output Module — provides analog voltage and current output channels for driving variable-speed drives, control valves, and proportional actuators from the same S7-1200 CPU
  • SM 1231 Thermocouple Variant — direct thermocouple input for temperature measurement applications requiring thermocouple element wiring rather than 4-20mA transmitters
  • SM 1231 RTD Variant — resistance thermometer input for Pt100 and Pt1000 temperature sensors in applications where RTD accuracy is specified
  • SM 1221 Digital Input Module — expands discrete input capacity on the same S7-1200 rail for systems requiring both analog measurement and digital status inputs
  • SM 1222 Digital Output Module — adds discrete output capacity for actuator and relay control alongside analog measurement tasks

Wrong-Part Prevention Checklist Before You Submit the Order

Before placing an order for the 6ES7231-4HD32-0XB0, verify each of the following points against your system design documentation:

  1. Confirm S7-1200 CPU has available expansion slot (not a compact variant without slots)
  2. Verify sensor output type: voltage (±10V, ±5V, ±2.5V) or current (0-20mA, 4-20mA)
  3. Check system supply voltage is 24V DC (module rated supply)
  4. Ensure no thermocouple, RTD, or resistance measurement needed
  5. Confirm 4 channels sufficient for application (not 8 or 16 channel need)
  6. Verify external protection devices available if sensor destruction protection required

If any item on this checklist raises a question about your specific system configuration, contact the LeadTime.ca team before ordering — or review the full product details at LeadTime.ca to cross-reference against your BOM.

Frequently Asked Questions

Can the 6ES7231-4HD32-0XB0 accept thermocouple or RTD inputs directly?

No. The 6ES7231-4HD32-0XB0 supports only voltage (±10V, ±5V, ±2.5V) and current (0-20mA, 4-20mA) inputs. Thermocouple or resistance thermometer direct wiring requires the dedicated SM 1231 thermocouple or RTD variant. If your application uses 4-20mA temperature transmitters that convert the thermocouple signal before the module, those are compatible with this module.

How many 6ES7231-4HD32-0XB0 modules can be added to a single S7-1200 CPU?

The number of expansion modules an S7-1200 CPU can support depends on the specific CPU variant. The brief confirms that the module connects via the S7-1200 expansion slot interface. Consult the S7-1200 system manual for the maximum number of signal modules permitted by your CPU model to confirm whether multiple SM 1231 modules can be stacked for higher analog input counts.

What is the resolution of the analog-to-digital conversion in the 6ES7231-4HD32-0XB0?

The module uses a 13-bit ADC, described as 12-bit plus sign. The basic error limit at 25°C is ±0.1% of the selected input range, rising to a maximum temperature error of ±0.2% total out to 55°C. This performance level is appropriate for most industrial process control and monitoring applications.

Does this module provide galvanic isolation between analog input channels?

The brief does not specify galvanic isolation between channels for this module, and the wrong-part prevention checklist explicitly identifies the need for galvanic isolation between input channels as a reason to choose a different variant. If your application requires channel-to-channel isolation, evaluate alternative modules before ordering this part.

What happens if the input signal exceeds the module's rated limits?

The permissible input voltage for destruction is rated at 35V and the input current limit at 40mA. Exceeding these limits risks permanent module damage. The module does not include integrated protection circuits for overvoltage or overcurrent — external fuses or surge protection devices must be provided by the system designer where these conditions are possible.

What certifications does the 6ES7231-4HD32-0XB0 carry?

The module carries CE, CSA, UL/cULus, FM, and RCM approvals, covering the compliance requirements for industrial automation installations across North America, Europe, and other major markets where these marks are recognized.

Why Engineers Order From LeadTime.ca

  • Ships worldwide — no geographic restriction on orders regardless of project location
  • Specializes in industrial automation parts including SIMATIC S7-1200 modules with stock visibility for time-sensitive projects
  • Volume pricing available for OEM builds, multi-panel projects, and repeat procurement programs
  • Direct contact with a team that can confirm lead times and stock before you commit to a build schedule
  • Hard-to-source parts and allocation support for projects where standard distributor channels show extended lead times

At-a-Glance Summary

  • Model: 6ES7231-4HD32-0XB0 — SM 1231 analog input module for SIMATIC S7-1200
  • 4 independent analog input channels supporting voltage (±10V, ±5V, ±2.5V) and current (0-20mA, 4-20mA)
  • 13-bit ADC (12-bit plus sign) resolution with ±0.1% basic error limit at 25°C
  • 625 µs cycle time across all four channels
  • Rated supply voltage: 24V DC; current consumption: 45mA; backplane current: 80mA at 5V
  • Operating temperature: -20°C to +60°C horizontal, -20°C to +50°C vertical; storage to -40°C / +70°C
  • Dimensions: 45 × 100 × 75 mm; weight: 180 g; IP20 housing
  • Certifications: CE, CSA, UL/cULus, FM, RCM
  • Destruction limits: 35V input voltage, 40mA input current — external protection required where applicable
  • Not suitable for thermocouple, RTD, or applications requiring galvanic isolation between channels
