Siemens 6ES7223-1BL32-0XB0 — S7-1200 I/O Module Buying Guide

By Abdullah Zahid
13 min read

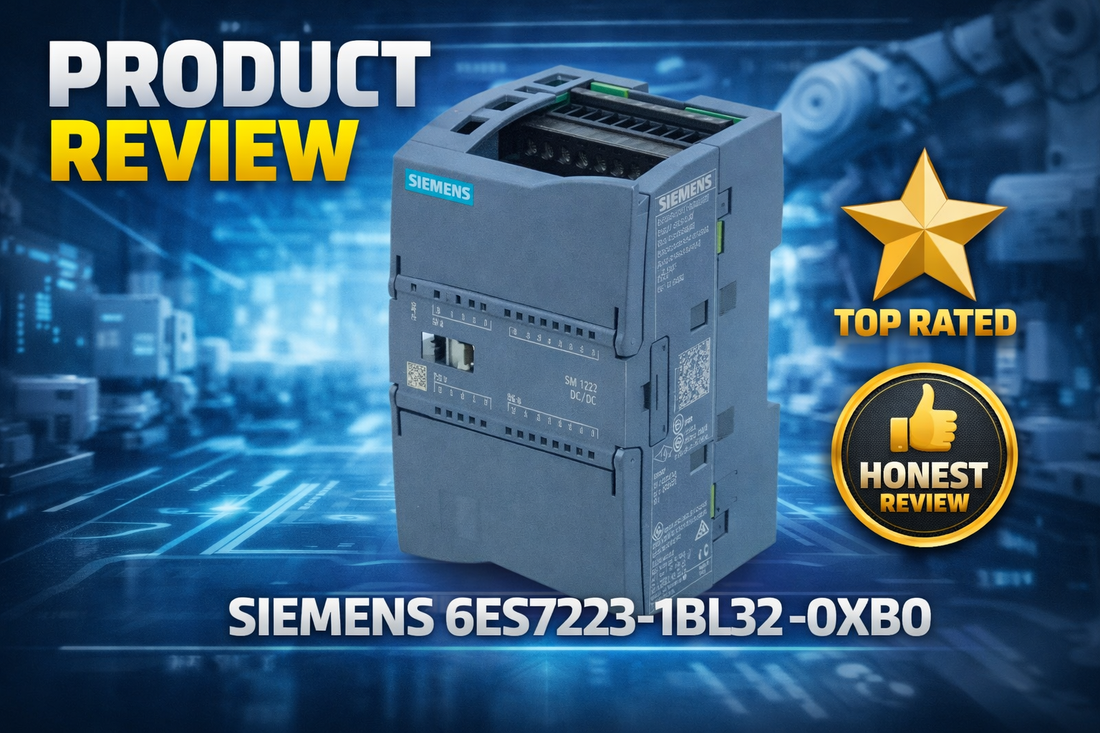

Siemens 6ES7223-1BL32-0XB0 SM 1223 digital I/O module 16 DI 16 DO transistor outputs for S7-1200 PLC

Siemens 6ES7223-1BL32-0XB0 — SIMATIC S7-1200 Digital I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC Sink/Source, 16 DO Transistor 0.5 A: Specifications, Pricing, and Selection Guide

When a controls engineer is finalizing the I/O count for an S7-1200 system and needs exactly 16 digital inputs and 16 transistor outputs in a single snap-on module, the Siemens 6ES7223-1BL32-0XB0 is the part number they land on. This is a bottom-of-funnel decision: the architecture is set, the field devices are 24 V DC, and the question is whether this specific SKU is the correct fit before the purchase order goes out. The 6ES7223-1BL32-0XB0 delivers 16 sink/source inputs at 24 V DC, 16 transistor outputs rated at 0.5 A per channel, selectable input response delays from 0.2 ms to 12.8 ms, and 500 V AC potential separation between outputs and the PLC backplane bus — all in a 70 mm wide module that mounts directly on the S7-1200 CPU or distributed I/O rack.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7223-1BL32-0XB0 — and Who Shouldn't

This module is the right choice when all of the following apply to your application:

  • You are expanding a SIMATIC S7-1200 series controller using the SM 1223 form factor and mounting interface
  • Your field devices operate on 24 V DC and your wiring diagram calls for exactly 16 inputs and 16 outputs
  • Transistor switching at 0.5 A per channel is sufficient — loads are solenoids, relay coils, indicator lights, or small motor starters within that current envelope
  • Your process requires fast output response (50 µs on, 200 µs off with resistive load) or tunable input filtering between 0.2 ms and 12.8 ms
  • All 16 inputs operate on 24 V DC sink or source wiring — not 120 V AC, not 5 V logic, not analog signals
  • Your panel has room for a 70 mm wide, 100 mm tall, 75 mm deep module at IP20 protection class

If your loads exceed 0.5 A per channel, require relay contact isolation, or need to switch AC voltages, the 6ES7223-1PL32-0XB0 relay output variant (2 A per channel) is the correct alternative. If your I/O count is asymmetric, evaluate the SM 1221 or SM 1222 families instead.

On this page:

What the 6ES7223-1BL32-0XB0 Actually Does in an S7-1200 System

The 6ES7223-1BL32-0XB0 is a digital I/O expansion module in the SIMATIC S7-1200 SM 1223 family. Its job is straightforward: it sits between the S7-1200 CPU and the physical field devices, translating 24 V DC signals from sensors and switches into logic states the PLC can act on, and driving 24 V DC loads — solenoids, relay coils, indicator lamps, actuators — based on the controller's output commands.

The 16 inputs are organized in 2-channel groups and accept both sink-wired and source-wired sensors, making it compatible with the majority of 24 V DC field devices in use across discrete manufacturing and process automation. The 16 transistor outputs each carry their own 1-channel potential separation, and the entire output section is isolated from the PLC backplane bus at 500 V AC — a practical barrier against ground faults propagating from the field into the controller. Input response delay is parameterized in TIA Portal across seven settings (0.2, 0.4, 0.8, 1.6, 3.2, 6.4, and 12.8 ms), giving engineers direct control over how aggressively the module filters electrical noise versus how quickly it must respond to fast-changing signals.

What distinguishes this model from the relay variant is the transistor output stage: switching times of 50 µs (off-to-on) and 200 µs (on-to-off) with resistive loads make this module appropriate for applications where output cycling rates would wear out relay contacts in weeks. The tradeoff is output current — 0.5 A per channel is the hard ceiling, with no integrated circuit protection, so external fusing per output group is a non-negotiable installation requirement.

Typical System Architecture for the SM 1223 Module

The 6ES7223-1BL32-0XB0 sits at the field interface layer of the S7-1200 control architecture, receiving field signals and driving field loads under direct CPU instruction through the module's backplane connection.

  • SIMATIC S7-1200 CPU (e.g., CPU 1214C or similar) — program execution and I/O orchestration
  • 24 V DC power supply rail — feeds both module logic and field-side input/output circuits
  • 6ES7223-1BL32-0XB0 SM 1223 module — snapped onto CPU or I/O rail, hosts 16 input channels and 16 output channels
  • Input field devices (proximity sensors, limit switches, push buttons, safety gates) — wired to the 16 input channels, 24 V DC sink or source
  • Output field devices (solenoid valves, relay coils, pilot lights, small motor starters) — switched by the 16 transistor outputs, max 0.5 A per channel, 8 A per 8-channel group

Where Engineers Deploy the 6ES7223-1BL32-0XB0

Discrete manufacturing lines are the most common home for this module. A conveyor system with 16 position sensors feeding the inputs and 16 solenoid diverters or motor contactors on the outputs fits the 16/16 balance exactly — no I/O is wasted, and the transistor outputs handle the solenoid coil loads within the 0.5 A per channel envelope.

Assembly line automation benefits from the sink/source flexibility on the inputs: NPN and PNP proximity sensors can be mixed across the 16 input channels without rewiring the common bus. Binary presence detection, part orientation validation, and safety gate status can all be monitored simultaneously, with the 16 transistor outputs driving reject mechanisms, pneumatic actuators, and stack lights.

Process automation applications — pump sequencing, valve control, multi-zone fan staging — use the fast output response to minimize delay between logic state change and physical actuation. The selectable input delay is particularly useful in these environments: a process running slow-moving actuators can tolerate 12.8 ms filtering to reject VFD-induced noise, while a high-speed indexing table may require 0.2 ms response to catch position pulses accurately.

Test and diagnostic equipment benefits from the multi-channel simultaneous input acquisition capability: all 16 inputs are readable at the same scan cycle, and the 16 outputs can sequence test loads under program control with sub-millisecond switching precision.

Application Typical Deployment
Discrete manufacturing 16 position/presence sensors on inputs; solenoid diverters and motor starters on outputs
Assembly line control Limit switches and safety gate interlocks on inputs; pneumatic actuators and indicator lights on outputs
Process automation Multi-zone sensor feedback on inputs; pump and fan sequencing on transistor outputs
Machine tool integration Spindle position and tool changer feedback on inputs; coolant pump and axis enable on outputs
Test equipment automation Multi-point test sensor acquisition on inputs; test load switching under program sequence on outputs
Food and beverage processing Conveyor zone sensors on inputs; valve coil and reject gate control on transistor outputs

Key Specifications: What You Need to Make the Purchase Decision

Parameter Specification
Digital Inputs 16 channels, 24 V DC, sink/source, grouped by 2
Input Voltage Range 20.4–28.8 V DC
Input Current Max 4 mA per channel at rated 24 V DC
Input Response Delay Selectable: 0.2, 0.4, 0.8, 1.6, 3.2, 6.4, 12.8 ms (via TIA Portal)
Digital Outputs 16 transistor channels, 24 V DC, 1-channel potential separation each
Output Current Rating 0.5 A per channel; 8 A max per 8-channel group at 50 °C horizontal
Output Response Time 50 µs (0→1), 200 µs (1→0) with resistive load
Output Isolation 500 V AC between outputs and PLC backplane bus
Dimensions (W × H × D) 70 mm × 100 mm × 75 mm
Operating Temperature -20 to 60 °C horizontal; -20 to 50 °C vertical

Full technical specifications are available on the product page at LeadTime.ca.

6ES7223-1BL32-0XB0 vs. 6ES7223-1PL32-0XB0 and Other SM 1223 Variants

The SM 1223 family spans several output configurations. The table below covers the variants engineers most frequently compare at the point of order.

Model Output Type Per-Output Rating Best For
6ES7223-1BL32-0XB0 Transistor 0.5 A Fast switching, cost-sensitive designs, standard 24 V DC loads
6ES7223-1PL32-0XB0 Relay 2 A Inductive loads, AC/DC voltage isolation, slower switching acceptable
6ES7223-1BF32-0XB0 Input only N/A Sensor-heavy applications with no output expansion needed
6ES7223-1AG40-0XB0 Transistor 0.5 A Alternate connector or supply configuration within same transistor family

If your load devices draw more than 0.5 A, require relay contact isolation, or need to switch AC voltages, the 6ES7223-1PL32-0XB0 is the correct choice. If your transistor output requirements are confirmed, check current availability of the 6ES7223-1BL32-0XB0 at LeadTime.ca.

Expert Verdict: When This Module Earns Its Place and When It Doesn't

The 6ES7223-1BL32-0XB0 is a well-matched module for any S7-1200 application where the I/O split is balanced at 16/16, field voltages are uniformly 24 V DC, and load currents stay within the 0.5 A per channel transistor limit. The selectable input response delay — seven steps from 0.2 ms to 12.8 ms — is genuinely useful in noisy plant environments and saves the engineer from adding external filtering components. The 500 V AC isolation between outputs and the PLC backplane bus is a practical safety margin for systems installed near variable frequency drives or other high-frequency switching equipment. CE, UL, CSA, cULus, FM, RCM, KC, and Marine approvals confirm this module meets the regulatory requirements for nearly every industrial market worldwide.

Where this module falls short is equally clear. The 0.5 A per channel transistor output is a genuine constraint — a 24 V relay coil drawing 0.8 A will exceed it. There is no integrated circuit protection on the outputs; an unprotected short circuit will damage the module. The module is also not suitable for safety-critical functions such as emergency stop or safety gate monitoring — those applications require a dedicated F-series safety module. If your application has asymmetric I/O demands, a mix of relay and transistor outputs, or needs more than 16 channels per side, you will be better served by a different module in the SM 1221, SM 1222, or SM 1226 families. If your project requires relay isolation or higher output current, go directly to the 6ES7223-1PL32-0XB0.

From a procurement standpoint, the 6ES7223-1BL32-0XB0 is an active product as of February 2026 with a confirmed returnable status through Siemens — useful insurance against specification errors. The EAN 6940408102002 is the reference number for order confirmation and part tracking. Pricing requires a quotation from a distributor; volume pricing is typical for integrators and panel builders ordering multiple modules per project. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following points cover the key requirements for installing and wiring the 6ES7223-1BL32-0XB0. Full wiring diagrams and step-by-step procedures are available in the Siemens S7-1200 System Manual and SM 1223 module documentation.

  • Mount the module horizontally or vertically on the designated S7-1200 CPU I/O slot or distributed I/O coupler; confirm the module snaps fully into the locking tabs before wiring
  • Supply 24 V DC within the 20.4–28.8 V DC range to both the input and output circuit commons; verify total supply capacity covers all 16 input channels (max 4 mA each) plus all connected output loads
  • Wire 24 V DC sink or source input devices to the 16 input channels according to sensor type — both NPN and PNP sensors are supported; use shielded cable in high-noise environments with shield grounded at panel entry only
  • Connect output loads to the 16 transistor output channels with load returns to the 0 V common rail; install an external fuse or circuit breaker per 8-channel output group — no integrated output protection exists on this module
  • Add diode or varistor suppression on inductive output loads (relay coils, solenoid coils) to prevent back-EMF from damaging the transistor output stage

Compatible Modules and System Expansion

The 6ES7223-1BL32-0XB0 operates within the SIMATIC S7-1200 ecosystem. When expanding beyond what this single module provides, the following module types within the same family are directly compatible with S7-1200 CPU configurations:

  • SM 1221 digital input modules — additional input-only expansion for sensor-heavy applications
  • SM 1222 digital output modules — additional output-only expansion for actuator-dense systems
  • SM 1226 F-DI / F-DQ safety modules — dedicated safety-rated I/O for emergency stop and safety gate functions (not provided by the SM 1223)
  • SM 1231 / SM 1232 analog I/O modules — analog signal acquisition and output in the same S7-1200 module rail
  • SM 1223 front connectors — the specific Siemens connector required for wiring the 6ES7223-1BL32-0XB0; not interchangeable with standard DIN or M12 industrial connectors

Wrong-Part Prevention Checklist Before You Order

Before placing an order for the 6ES7223-1BL32-0XB0, verify every point on this checklist — a wrong module ordered in error introduces project delay even when returnable status is confirmed:

  1. Confirm S7-1200 PLC controller model is in use (not S7-1500, S7-300, or other series)
  2. Verify mounting interface accepts SM 1223 (check PLC manual for supported module types)
  3. Check that 16 DI + 16 DO count matches application wiring diagram
  4. Confirm 24 V DC supply available for inputs and outputs (rated 20.4–28.8 V DC acceptable)
  5. Verify output switching capacity: each transistor output max 0.5 A; total 8 A per group (horizontal up to 50 °C)
  6. Check input requirement: DC 24 V signal type (not AC or other voltage)
  7. Confirm installation space: 70 mm width, 100 mm height, 75 mm depth fits panel layout
  8. Verify connector type availability: SM 1223 requires specific front connector (not standard DIN or M12)

If you have completed the checklist and confirmed fit, view the 6ES7223-1BL32-0XB0 product page at LeadTime.ca for current availability and pricing, or contact the team to confirm lead time before committing to your build schedule.

Frequently Asked Questions

Can the 6ES7223-1BL32-0XB0 be used for safety-critical functions like emergency stop monitoring?

No. The 6ES7223-1BL32-0XB0 is a standard digital I/O module with no integrated safety certification. Emergency stop, safety gate, and other safety-critical functions require a dedicated F-series safety module within the S7-1200 family such as an SM 1226. The SM 1223 lacks the diagnostic and redundancy architecture required by machinery safety directives for safety-rated I/O.

What happens if I exceed 0.5 A on a transistor output channel?

The 6ES7223-1BL32-0XB0 has no integrated short-circuit or overcurrent protection on its output channels. Exceeding 0.5 A per channel risks permanent damage to the transistor output stage. An external fuse or circuit breaker sized for worst-case load must be installed per 8-channel output group, with the per-group limit of 8 A at 50 °C horizontal installation also respected.

How do I select the correct input response delay setting for my application?

Input response delay is configured per channel in TIA Portal and can be set to 0.2, 0.4, 0.8, 1.6, 3.2, 6.4, or 12.8 ms. For applications near variable frequency drives or other sources of electrical noise, a higher delay (6.4 ms or 12.8 ms) filters spurious triggering. For high-speed processes where input pulse width is short — indexing tables, high-frequency position sensing — use the lowest delay (0.2 ms) to avoid missing signal transitions.

Is the 6ES7223-1BL32-0XB0 compatible with both NPN and PNP sensors on the same module?

Yes. All 16 input channels support both sink (NPN) and source (PNP) wiring configurations, as the inputs are rated for 24 V DC with sink/source capability. This allows mixed sensor types across the 16 channels without requiring separate input modules or rewiring the common bus.

What is the difference between the 6ES7223-1BL32-0XB0 and the 6ES7223-1PL32-0XB0?

The 6ES7223-1BL32-0XB0 uses transistor outputs rated at 0.5 A per channel, with switching times of 50 µs (on) and 200 µs (off) for resistive loads — suited to fast-switching DC loads. The 6ES7223-1PL32-0XB0 uses relay outputs rated at 2 A per channel, with slower mechanical switching — suited to inductive loads, higher current devices, and applications requiring relay contact isolation or AC load switching. Both share the same 16 DI / 16 DO I/O count and S7-1200 mounting interface.

Does the 6ES7223-1BL32-0XB0 require a separate 24 V DC supply, or is it powered from the CPU?

The module requires a 24 V DC supply in the 20.4–28.8 V DC range for both the input circuit power and the output load circuit. The S7-1200 CPU does not power the field-side I/O circuits; a dedicated 24 V DC panel power supply must be sized to cover the module's 4.5 W typical power draw plus all connected input and output load currents.

Why Order the 6ES7223-1BL32-0XB0 from LeadTime.ca

  • LeadTime.ca ships the 6ES7223-1BL32-0XB0 worldwide — no regional restrictions on quoting or fulfillment
  • Sourcing support for hard-to-locate Siemens SIMATIC S7-1200 modules, including checking availability across supply channels when standard stock is constrained
  • Volume pricing available for integrators, panel builders, and procurement teams ordering multiple modules per project
  • Direct contact with the team to confirm lead time, EAN verification (6940408102002), and bundling options before your purchase order is submitted

At-a-Glance Summary

  • Model: Siemens 6ES7223-1BL32-0XB0 — SM 1223 digital I/O expansion module for SIMATIC S7-1200
  • I/O count: 16 digital inputs (24 V DC, sink/source) and 16 digital transistor outputs in a single module
  • Output rating: 0.5 A per channel maximum; 8 A per 8-channel group at 50 °C horizontal installation
  • Input response delay: seven selectable settings from 0.2 ms to 12.8 ms, configured in TIA Portal
  • Output isolation: 500 V AC between output channels and PLC backplane bus
  • Dimensions: 70 mm wide, 100 mm tall, 75 mm deep; weight 310 g; IP20 enclosure
  • Operating temperature: -20 to 60 °C horizontal; -20 to 50 °C vertical mounting
  • Certifications: CE, UL, CSA, cULus, FM, RCM, KC, Marine
  • Output protection: none integrated — external fuse or circuit breaker required per output group
  • Not suitable for safety functions — use SM 1226 F-series for safety-rated I/O requirements
  • Active product lifecycle as of February 2026; returnable status confirmed; EAN 6940408102002
  • Relay output alternative: 6ES7223-1PL32-0XB0 (2 A per channel, slower switching, AC/DC load capability)
