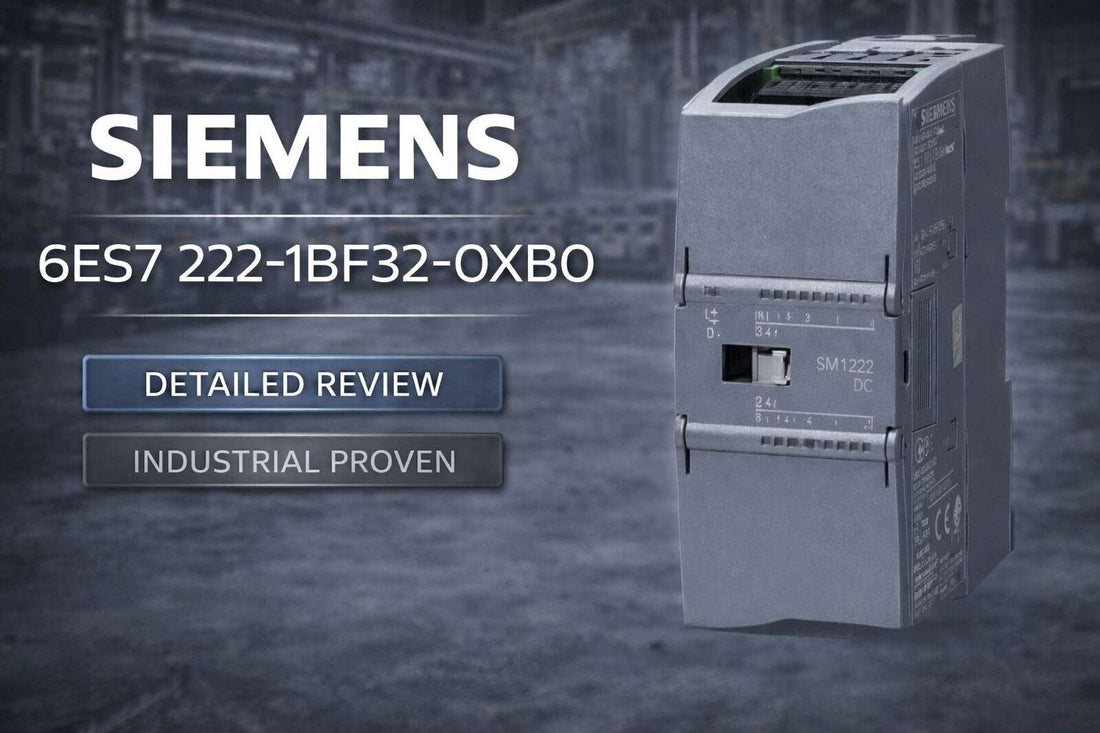

Siemens 6ES7222-1BF32-0XB0 SIMATIC S7-1200 digital output module 8 DO 24V DC transistor for industrial automation cabinet

Siemens 6ES7222-1BF32-0XB0: SIMATIC S7-1200 Digital Output SM 1222, 8 DO, 24V DC, Transistor 0.5A — Full Specifications and Selection Guide

If you are working on a SIMATIC S7-1200 project and need to extend your output capacity with exactly 8 transistor-switched 24V DC channels, the Siemens 6ES7222-1BF32-0XB0 is the specific expansion module designed for that slot. This compact 45mm-wide module delivers 0.5A per-channel switching capacity with individual output addressability, and it carries CE, UL, CSA, FM, and RCM certifications that simplify compliance documentation across global machine builds. With a phase-out date announced for November 1, 2026, procurement timing matters — especially for projects extending into late 2026 or beyond.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7222-1BF32-0XB0 — and Who Shouldn't

This module is the right choice for engineers adding digital output capacity to an existing or new SIMATIC S7-1200 system where all of the following are true:

  • You need exactly 8 digital outputs — not 4, not 16
  • Your load operates on 24V DC logic (not 120V or 230V AC)
  • Transistor output switching is appropriate for your loads (solenoids, contactors, LED indicators, motor starter coils)
  • Per-channel current demand does not exceed 0.5A
  • Your S7-1200 CPU has at least one available expansion slot and sufficient 5V backplane power budget to accommodate 120mA additional draw
  • Cable runs to field devices are within 500m shielded or 150m unshielded

If you need relay-switched outputs for universal AC/DC loads, or if your per-channel current exceeds 0.5A, this module is not the correct choice. Consider the SM 1223 for relay outputs or use this module to trigger a separate contactor or SSR for higher-current loads.

On this page:

What the 6ES7222-1BF32-0XB0 Actually Does in Your System

The Siemens 6ES7222-1BF32-0XB0 is a signal module (SM 1222) within the SIMATIC S7-1200 family, classified as a digital output expansion module. Its role is straightforward: it connects to the S7-1200 CPU backplane and adds 8 individually addressable 24V DC transistor outputs that the CPU can switch through the standard S7-1200 I/O addressing scheme. Each output channel is rated at 0.5A, with a rising-edge response time of max 50 microseconds and a falling-edge response time of max 200 microseconds — fast enough for standard solenoid, contactor, and indicator control in discrete manufacturing applications.

What distinguishes transistor output modules from relay variants is the switching mechanism. Transistor outputs are solid-state, offer faster switching, and are suited exclusively to DC loads at the rated voltage. The 6ES7222-1BF32-0XB0 operates at a nominal 24V DC supply voltage with a permissible range of 20.4V to 28.8V DC. In the off state, residual output current is a maximum of 10µA, and output voltage is clamped to a maximum of 0.1V at a 10k load — making it suitable for applications where leakage current at field devices must be minimized. Inductive loads are handled with a typical shutdown voltage of -48V on the L+ rail, which means external flywheel protection or snubbers are still recommended for high-inductance loads.

The module draws a maximum of 120mA from the 5V backplane supply, consuming typically 1.5W. This backplane power budget is an important check point before ordering — if your CPU's 5V power headroom is already near its limit due to other expansion modules, adding this unit may require a power expansion module or a CPU upgrade.

Where This Module Sits in a Typical S7-1200 Architecture

The 6ES7222-1BF32-0XB0 occupies an expansion slot to the right of the S7-1200 CPU, connecting directly through the backplane interface. It receives 5V backplane power and control signals from the CPU and switches external 24V DC field loads through its front connector terminals.

  • 24V DC power supply feeds the S7-1200 CPU and provides the output voltage rail for this module
  • S7-1200 CPU (6ES7211, 6ES7212, 6ES7213, or 6ES7214 series) communicates with the module via backplane bus and assigns I/O addresses
  • 6ES7222-1BF32-0XB0 sits in an available expansion slot, receiving 5V backplane supply (max 120mA) and digital output commands
  • Front connector terminals on the module route switched 24V DC signals to field devices — solenoids, contactors, indicator lights, motor starter coils
  • External fuse or circuit breaker in series between the 24V supply and each output circuit provides short-circuit protection (not built into the module)

Industries and Applications Where This Module Earns Its Place

In discrete manufacturing and packaging environments, the 6ES7222-1BF32-0XB0 is a standard choice for controlling pneumatic solenoid valves, conveyor drive enable signals, actuator positioning commands, and reject gate triggers. The 0.5A per-channel rating comfortably handles the coil current of most 24V DC solenoid valves used in pneumatic circuits, and the 50-microsecond turn-on response is adequate for standard valve-switching cycle times.

HVAC and building control integrators use this module for fan relay enable/disable, pump motor start commands, valve position signals, and alarm output activation. The module's IP20 protection rating is appropriate for cabinet-mounted installations in temperature-controlled mechanical rooms, and the -20°C to +60°C horizontal operating range covers most equipment room environments.

Water and wastewater treatment applications frequently involve modular control cabinets where S7-1200 CPUs are expanded with multiple stacked I/O modules. The 6ES7222-1BF32-0XB0 handles pump enable, valve switching, alarm signaling, and level-based control commands in these architectures. Food and beverage processing lines use the module for mixing motor control, fill and dispense solenoid activation, conveyor indexing, and product ejection — all applications where 24V DC transistor outputs are the standard interface.

For OEM machine builders standardizing on the SIMATIC platform, this module's combination of compact 45mm width, individual output addressability, and multi-certification approval set (CE, UL, CSA, FM, RCM, Marine) makes it a practical default for machines destined for multiple global markets without requiring separate hardware variants.

Application Typical Deployment
Packaging machinery Solenoid valve control, conveyor start/stop, actuator positioning, reject gate triggering
HVAC and building controls Fan relay enable, valve position signals, pump start/stop, alarm horn activation
Water and wastewater treatment Pump and motor switching, valve control, level and flow alarm outputs
Food and beverage processing Mixing motor commands, fill solenoid activation, conveyor indexing, product ejection
Material handling and logistics Gate and barrier control, zone enable/disable, error state alarm outputs
Retrofit and field replacement Drop-in replacement for failed output modules on operating production lines

Electrical and Physical Specifications Worth Knowing Before You Order

Specification Value
Number of Outputs 8 (individually addressable)
Output Type Transistor, 24V DC
Supply Voltage (nominal / permissible) 24V DC / 20.4V to 28.8V DC
Output Current per Channel 0.5A rated
Aggregate Current per Group (horizontal, up to 50°C) max 4A
Output Delay (0→1 / 1→0) max 50µs / max 200µs
Backplane Supply Current (5V) max 120mA
Module Dimensions (W × H × D) 45mm × 100mm × 75mm
Operating Temperature (horizontal / vertical) -20°C to +60°C / -20°C to +50°C
Certifications CE, UL, cULus, CSA, FM, RCM, Marine

Full technical specifications are available on the product page at LeadTime.ca.

6ES7222-1BF32-0XB0 vs. Related SM 1222 and SM 1223 Variants

Module Output Count Output Type Voltage Best Fit
6ES7222-1BF32-0XB0 8 DO Transistor 24V DC Standard 24V DC discrete output expansion on S7-1200
SM 1223 (4 DO relay) 4 DO Relay AC/DC universal Applications requiring universal voltage switching or AC loads
SM 1224 (analog output) Analog Analog (4–20mA / 0–10V) Analog signal Process control requiring continuous variable output signal

If your architecture uses 24V DC transistor switching and 8 channels is the right count, the 6ES7222-1BF32-0XB0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Is This the Right Output Module for Your Project?

The Siemens 6ES7222-1BF32-0XB0 does exactly what a controls engineer needs from a compact discrete output module: 8 individually addressable 24V DC transistor channels in a 45mm form factor that slots cleanly into any S7-1200 expansion architecture. The 0.5A per-channel rating covers the vast majority of 24V DC solenoid coils, indicator loads, and motor starter coil circuits used in standard industrial automation. The max 50µs turn-on response is not a constraint for any normal solenoid or contactor application. The multi-certification approval set — CE, UL, cULus, CSA, FM, RCM, and Marine — means this single hardware variant satisfies compliance requirements across virtually every industrial market worldwide, which is a genuine engineering advantage for OEM builders shipping machines globally.

The honest limitations are worth stating clearly. There is no built-in short-circuit protection — external fusing or a miniature circuit breaker is mandatory by design, and sizing that protection correctly for 0.5A per channel requires attention during the cabinet design phase. If any of your loads exceed 0.5A, this module cannot handle them directly — you will need a contactor or SSR triggered by the module output. For relay-switched or AC-voltage outputs, the SM 1223 is the correct part. The phase-out announcement for November 1, 2026 also changes the procurement calculus for new designs: engineers planning projects that extend into late 2026 or beyond should either stock ahead or evaluate second-generation S7-1200 replacements now rather than at project completion.

From a procurement standpoint, the 6ES7222-1BF32-0XB0 is an active product with established global distribution. Lead times from authorized stock are typically in the range of days to weeks depending on region and quantity. As the phase-out date approaches through 2026, availability will tighten — particularly for high-volume orders. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • A front connector is required and must be plugged directly into the module face — verify it is included with your order or sourced separately if replacing a failed unit in the field
  • External short-circuit protection is mandatory: install a fast-acting fuse or miniature circuit breaker rated for 0.5A per channel (or 4A aggregate per group for horizontal mounting up to 50°C) in series between the 24V DC supply and the module's output load circuits
  • Use shielded twisted-pair cable for runs exceeding 50m; the maximum rated cable length is 500m shielded and 150m unshielded — exceeding these limits introduces signal degradation and intermittent switching faults
  • Inductive loads such as solenoid coils and relay coils require external transient suppression (a flyback diode or RC snubber across the coil) due to the module's inductive shutdown voltage of typically -48V on the L+ rail
  • Connect cable shields to the control cabinet frame at one point only; verify 24V DC and GND rails are correctly referenced and that the backplane 5V supply has sufficient headroom (120mA additional draw) before powering up

What Engineers Get Wrong When Ordering This Part

Before submitting your purchase order for the 6ES7222-1BF32-0XB0, work through this checklist verbatim — each item represents a real source of wrong-part orders or post-installation surprises:

  1. Confirm this is a 24V DC module, not 120/230V AC output
  2. Verify you need exactly 8 outputs grouped individually (not in pairs)
  3. Check that transistor output type suits your load (not suitable for universal AC/DC relay switching)
  4. Ensure maximum per-channel load is 0.5A or less (inductive shutdown to -48V typical)
  5. Confirm external short-circuit protection is planned (not built into module)
  6. Verify S7-1200 CPU has available expansion slot (not full)
  7. Check that 50m cable length is sufficient for application (max shielded 500m, unshielded 150m)

If any item on this checklist raises a flag, contact the LeadTime.ca team before ordering — we can help confirm the correct variant for your application.

Frequently Asked Questions

Does the 6ES7222-1BF32-0XB0 have built-in short-circuit protection?

No. External fusing or a circuit breaker is required by design. This is standard practice for SIMATIC I/O modules and allows the system designer to size protection appropriately for each load circuit. Fuses should be rated for 0.5A per channel or 4A aggregate per group, depending on your protection architecture.

What is the maximum cable length for reliable output switching?

500m for shielded twisted-pair cable and 150m for unshielded cable. Exceeding these limits causes signal degradation from capacitance and noise coupling. For distances beyond these ratings, signal conditioning or a repeater is required.

Can I use the 6ES7222-1BF32-0XB0 to control 120V AC loads directly?

No. The module is rated for 24V DC only. Applying higher voltages will damage the transistor outputs. For 120V or 230V AC loads, use this module's output to trigger a relay or contactor rated for the required AC voltage.

How many 6ES7222-1BF32-0XB0 modules can I stack on one S7-1200 CPU?

The maximum depends on the available expansion slots and 5V backplane power budget of your specific CPU. Most S7-1200 CPUs support 2 to 4 expansion modules total. Each 6ES7222-1BF32-0XB0 draws max 120mA from the 5V backplane supply — confirm total power headroom in your CPU's product manual before stacking multiple units.

Is this module suitable for SIL-rated safety applications?

No. The 6ES7222-1BF32-0XB0 is a standard I/O module with no SIL (Safety Integrity Level) rating. If your application requires functional safety compliance, use SIMATIC S7-1200F safety-certified modules instead.

What is the procurement situation given the November 2026 phase-out announcement?

The module is an active product as of the publication of this article, with a delivery release dating back to March 15, 2013 and established global distribution. The phase-out is announced for November 1, 2026, meaning availability will tighten through year-end 2026. Engineers planning projects that extend beyond mid-2026 should prioritize stock procurement or evaluate second-generation S7-1200 replacements during the current design phase.

Why Order from LeadTime.ca

At-a-Glance Summary

  • Article number: 6ES7222-1BF32-0XB0 — EAN 6940408101937
  • 8 individually addressable 24V DC transistor outputs, 0.5A per channel
  • Supply voltage range: 20.4V to 28.8V DC; backplane draw: max 120mA at 5V
  • Output switching response: max 50µs (0→1), max 200µs (1→0)
  • Aggregate output current per group: max 4A (horizontal installation, up to 50°C)
  • Module dimensions: 45mm × 100mm × 75mm; weight: approx 180g; IP20 rated
  • Operating temperature: -20°C to +60°C horizontal, -20°C to +50°C vertical
  • Cable limits: 500m shielded, 150m unshielded
  • Certifications: CE, UL, cULus, CSA, FM, RCM, Marine
  • Active product with phase-out announced November 1, 2026 — early procurement recommended for projects extending into late 2026
  • External short-circuit protection mandatory — not integrated into module
  • Compatible with SIMATIC S7-1200 CPU families 6ES7211, 6ES7212, 6ES7213, 6ES7214 with available expansion slot
