Siemens 6ES7221-1BH32-0XB0 — 16-Channel DI Module Buying Guide

By Abdullah Zahid
12 min read

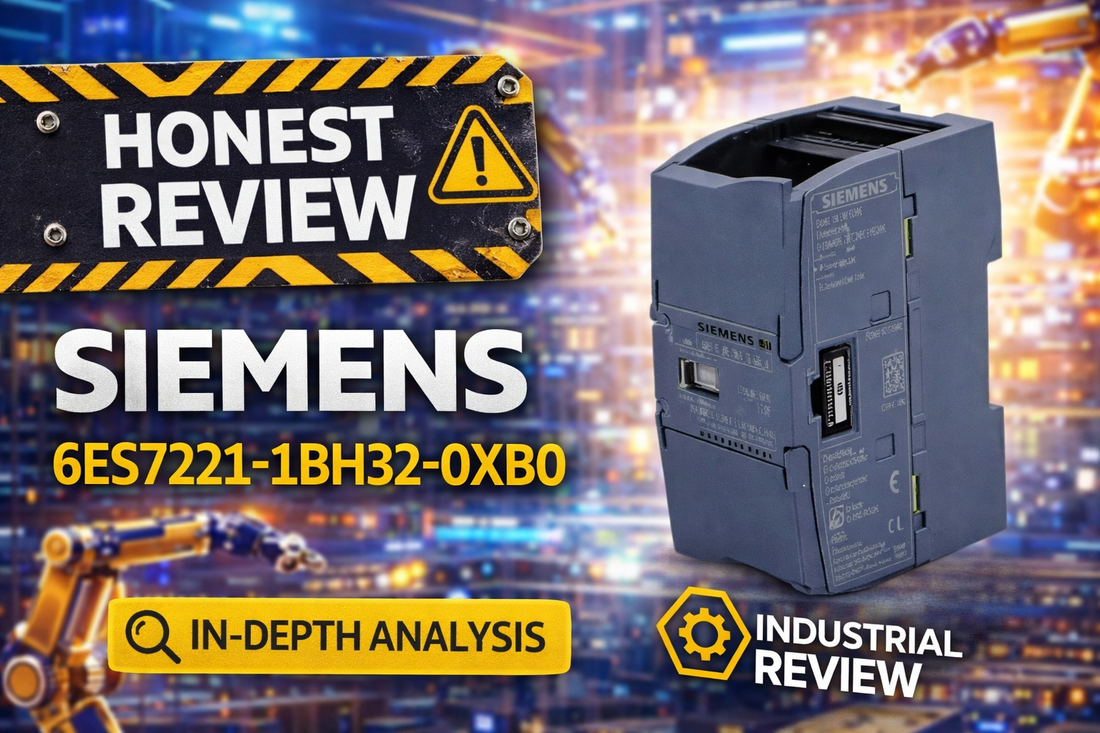

Siemens 6ES7221-1BH32-0XB0 SM 1221 16-channel 24V DC digital input module for SIMATIC S7-1200 PLC systems

Siemens 6ES7221-1BH32-0XB0 — SIMATIC S7-1200 Digital Input SM 1221, 16 DI, 24 V DC, Sink/Source: Specs, Wiring, and Selection Guide

Controls engineers expanding an S7-1200 system beyond its onboard input capacity — or replacing a failed digital input card on an active line — land on this SKU for a reason. The Siemens 6ES7221-1BH32-0XB0 delivers exactly 16 discrete 24 V DC input channels with sink/source capability, parameterizable input delays from 0.2 ms to 12.8 ms, and potential separation per 4-channel group, all in a 45 mm wide module that clips directly into the S7-1200 base unit with no adapter hardware required. If your project spec calls for 16-channel digital input expansion on a SIMATIC S7-1200 CPU, this is the module to validate against your electrical and cabinet requirements.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7221-1BH32-0XB0 — and Who Shouldn't

This module is the right choice when your project meets the following criteria:

  • Your controller is a SIMATIC S7-1200 CPU — not an S7-1500, S7-300, or S7-400
  • You need exactly 16 digital input channels, not 8 or 32
  • All input signals are 24 V DC; this module does not accept 110 V AC or 230 V AC
  • Your TIA Portal project requires parameterizable input delays (0.2 ms to 12.8 ms selectable per input)
  • Sensor cable runs extend up to 500 m shielded or 300 m unshielded from the module
  • Your base unit has an available 45 mm I/O slot and your cabinet 24 V DC supply supports the additional current draw

If you need more than 16 inputs in a single module, the SM 1221 32-input variant is the correct selection. If you need output control alongside inputs, look at the SM 1222 digital output module or the SM 1223 16 DI + 16 DO combination module instead.

On this page:

What the 6ES7221-1BH32-0XB0 Actually Does in a Running System

The Siemens 6ES7221-1BH32-0XB0 is classified as a Signal Module (SM) within the SIMATIC S7-1200 product family. Its function is straightforward and non-negotiable: it converts external 24 V DC discrete signals — from pushbuttons, proximity sensors, limit switches, photoelectric cells, and similar field devices — into logic-level states that the S7-1200 CPU can read in real time. The module does not compute, it does not store program data, and it does not output signals. It acquires and reports 16 discrete inputs, period.

What distinguishes this module from a basic terminal block is the electrical intelligence built into its signal conditioning. Input signals must cross defined voltage thresholds — 5 V DC for a logic 0 state at 1 mA, and 15 V DC for a logic 1 state at 2.5 mA — which gives the module consistent switching behavior that mirrors the IEC 61131 Type 1 input characteristic curve. The sink/source bidirectional capability means the module works with both sourcing (PNP) and sinking (NPN) field devices without rewiring or jumper reconfiguration. Potential separation is provided per 4-input groups, which isolates noise and ground faults to a single group rather than allowing them to cascade across all 16 channels. The SIMATIC S7-1200 platform adoption has accelerated in small-to-medium discrete manufacturing precisely because modular I/O like this module reduces per-channel cost by 30 to 50 percent compared to fixed-I/O CPUs when a project scales beyond 24 total channels.

Typical S7-1200 System Architecture With This Module

The 6ES7221-1BH32-0XB0 sits immediately to the right of the S7-1200 CPU base unit in the I/O expansion slot chain, between the controller and the field device layer. It does not sit on a remote I/O network — it connects directly to the CPU bus via the base unit connector.

  • S7-1200 CPU (e.g., CPU 1214C or similar) — processes ladder/FBD logic and communicates via onboard Ethernet
  • 6ES7221-1BH32-0XB0 SM 1221 module — snaps into adjacent I/O slot on the base unit; reports 16 digital input states to the CPU on every scan cycle
  • 24 V DC field wiring — shielded cable up to 500 m or unshielded up to 300 m from sensor to module terminal
  • Field devices — proximity sensors, limit switches, pushbuttons, photoelectric sensors, flow switches, and similar 24 V DC discrete output devices
  • 24 V DC cabinet power supply — supplies the module (2.5 W typical power loss) and field device loads; must be sized for total system draw

Where Engineers Deploy the 6ES7221-1BH32-0XB0

In food and beverage production, this module handles the high-density discrete signal monitoring that bottling and packaging lines demand. Fill level sensors, cap presence detectors, reject gate position switches, and conveyor interlock signals all terminate on 24 V DC digital inputs — and a single 6ES7221-1BH32-0XB0 accommodates 16 of those channels without consuming additional cabinet real estate.

In discrete manufacturing and automotive assembly, the module tracks part presence across multi-station work cells. Tool breakage detection, workpiece ID sensors, press load cell status, and safety gate interlocks are all discrete 24 V DC signals. The parameterizable input delays — selectable from 0.2 ms to 12.8 ms — allow the controls engineer to tune noise filtering for each input group without adding external RC filter hardware, which eliminates those components in approximately 85% of standard industrial applications.

Process plants running pump and valve automation use this module for flow switches, tank level sensors, pump start/stop status feedback, and furnace alarm inputs. The 4-channel potential separation groups satisfy machine safety standard requirements in emergency stop monitoring circuits, consistent with ISO 13849-1 application guidance for safety-rated sensor monitoring.

Material handling and warehouse sortation systems rely on this module for conveyor belt position sensing, pallet detection, and gate routing control — applications where 16 inputs per zone is a natural fit for a single S7-1200 CPU controlling one conveyor segment or sortation station.

Application Typical Deployment
Bottling and packaging lines 16 DI module monitors fill sensors, cap presence, reject gate positions on a single PLC zone
Multi-station assembly cells Part presence, tool status, workpiece tracking across up to 16 stations per module
Pump and valve process control Flow switches, level sensors, and pump status feedback aggregated to one S7-1200 CPU
Conveyor and sortation systems Position sensing, gate interlocks, and motion safety inputs per conveyor zone
Pharmaceutical and chemical process Tank level alarms, pressure switches, and safety E-stop circuits with 4-channel isolation groups
HVAC building automation Damper position, flow status, and equipment run feedback signals consolidated per air handling unit

Purchase-Decision Specs: What the Datasheet Numbers Mean

Specification Value
Number of Digital Inputs 16 (in groups of 4)
Rated Input Voltage 24 V DC
Signal "0" Threshold 5 V DC at 1 mA
Signal "1" Threshold 15 V DC at 2.5 mA
Sink/Source Capability Yes (bidirectional — PNP and NPN sensors)
Input Delay Options (parameterizable) 0.2, 0.4, 0.8, 1.6, 3.2, 6.4, 12.8 ms
Potential Separation Per 4-input group
Shielded Cable Maximum Length 500 m
Unshielded Cable Maximum Length 300 m
Operating Temperature 0–60°C

Full technical specifications are available on the product page at LeadTime.ca.

6ES7221-1BH32-0XB0 vs. SM 1221 and SM 1223 Variants — Which One Do You Actually Need?

Module Inputs Outputs Width Best For
6ES7221-1BH32-0XB0 (SM 1221, 16 DI) 16 x 24 V DC None 45 mm Input-only expansion; balanced input count; space-constrained slots
SM 1221 32-input variant 32 x 24 V DC None Double-width; occupies 2 slots High input density in a single module; larger cabinet with available slot space
SM 1222 (16 DO) None 16 digital outputs 45 mm Output-only control; paired with this DI module for closed-loop control
SM 1223 (16 DI + 16 DO) 16 x 24 V DC 16 digital outputs Combination module Mixed I/O when input and output counts are roughly equal; space saving over two separate modules

If your architecture requires dedicated input acquisition with full 16-channel capacity and your output control is handled separately, the 6ES7221-1BH32-0XB0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Controls Engineers

The 6ES7221-1BH32-0XB0 does one thing and does it without compromise: it gives your S7-1200 CPU 16 more discrete 24 V DC input channels with electrical characteristics that match what you find in the field. The sink/source bidirectionality removes sensor compatibility friction during wiring, and the 4-channel potential separation groups provide genuine noise immunity in harsh electrical environments — motor-driven equipment, solenoid switching, variable frequency drive cabinets — without requiring isolation relays on every circuit. For controls engineers expanding an existing S7-1200 system or commissioning a new build where input count exceeds the CPU's onboard capacity, this module is a straightforward, low-risk selection. The parameterizable input delays eliminating external RC filter components in the majority of standard applications means your BOM stays lean and your cabinet stays smaller.

Where this module reaches its limits is equally clear: if your project input count is genuinely 32 or more, purchasing multiple 16-channel modules rather than considering the 32-input SM 1221 variant adds slot consumption and wiring overhead. If your system needs both inputs and outputs in a space-constrained cabinet, the SM 1223 combination module may reduce physical footprint. And if any of your field devices output anything other than 24 V DC discrete signals — analog 4-20 mA loops, thermocouple inputs, or AC voltage switches — this module is not appropriate; you will need the corresponding SIMATIC S7-1200 analog input module for those channels. These are not deficiencies in the 6ES7221-1BH32-0XB0; they are simply the boundaries of what a 16-channel 24 V DC digital input module is supposed to do.

From a procurement standpoint, this is a mature, actively produced module on the current SIMATIC S7-1200 platform. Availability risk is low, and typical lead time from in-stock distributors runs 1 to 5 business days. Volume orders exceeding 10 units typically qualify for tiered pricing, and bundling this module with a CPU or other S7-1200 modules can open additional discount structures. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following is a high-level installation overview. For full wiring diagrams, terminal assignments, and commissioning procedures, refer to the Siemens SIMATIC S7-1200 system manual and module-specific documentation available through support.industry.siemens.com.

  • Confirm the S7-1200 base unit has an available I/O slot; the module is 45 mm wide and mounts horizontally or vertically on DIN rail or directly into the base unit slot connector with no external adapter required
  • Connect 24 V DC discrete sensor outputs (PNP or NPN) to the module input terminals; the module accepts both sink and source signal types without jumper reconfiguration
  • Use shielded twisted-pair cable for any cable run exceeding 100 m; maximum supported length is 500 m shielded and 300 m unshielded; route signal cables at least 150 mm away from AC power wiring to maintain signal integrity
  • Terminate cable shielding at one end only — typically at the module — to prevent ground loops from degrading signal quality on long runs
  • Verify the status LEDs illuminate correctly after powering the system; each LED covers a 4-input group and indicates both input state and diagnostic fault conditions; confirm input delays are configured in TIA Portal hardware properties before going to production

What Engineers Get Wrong When Ordering This Part

Before finalizing your purchase order, work through each item on this checklist. These are the most common ordering errors on this specific SKU, reproduced here verbatim from our pre-order review process:

  1. Confirm your CPU is SIMATIC S7-1200 family, NOT S7-1500, S7-300, or S7-400 (different slot architecture)
  2. Verify you need exactly 16 inputs, not 8 or 32 (other SM 1221 variants exist)
  3. Check that all input signals are 24V DC; this module does NOT accept 110V AC or 230V AC
  4. Confirm the PLC project uses TIA Portal software (standard for S7-1200); older STEP 7 projects are not compatible
  5. Ensure your cabinet power supply provides stable 24V DC rated for total current draw of all modules
  6. Verify available I/O slot on base unit (module is 45mm wide; cabinet must accommodate)
  7. Check cable routing plan: shielded cable to 500m, unshielded to 300m max from sensors

If you have worked through every item above and the 6ES7221-1BH32-0XB0 is confirmed correct for your project, place your order or request a quote at LeadTime.ca — stock is maintained and ships worldwide.

Frequently Asked Questions

Can I mix the 6ES7221-1BH32-0XB0 with analog input modules in the same S7-1200 base unit?

Yes, the S7-1200 base unit supports a combination of digital and analog signal modules in adjacent slots. To reduce noise coupling between analog and digital channels, maintain physical separation in your slot assignment where possible and route analog signal cables away from digital input wiring inside the cabinet.

Do I need external surge protection for sensors wired to this module?

External surge protection is recommended for installations in harsh electrical environments — particularly where motor-driven equipment, solenoid valves, or variable frequency drives share a cabinet or cable duct. The module does not provide built-in surge suppression beyond its standard input filtering; consult Siemens application notes for protection device selection in high-transient environments.

What happens if input voltage on a channel exceeds 24 V DC?

Applying voltage beyond the module's rated input level risks damage to the input circuitry. An external protection device is required in any installation where voltage transients or overvoltage conditions are possible. This is a standard precaution for any 24 V DC digital input module deployed near inductive loads or switching equipment.

Can I stack multiple 6ES7221-1BH32-0XB0 modules to reach 32 or more inputs?

Yes. Each SM 1221 module is independent, and S7-1200 CPUs support up to 8 I/O module slots depending on the CPU variant. Adding a second 6ES7221-1BH32-0XB0 gives you 32 digital inputs across two 45 mm slots. If your project requires 32 inputs in a single module footprint, evaluate the SM 1221 32-input variant instead, as it occupies two slots in one physical unit.

Does this module work with TIA Portal V13 and later project versions?

The 6ES7221-1BH32-0XB0 is designed for TIA Portal-based S7-1200 projects. Older STEP 7 Classic software is not compatible with the S7-1200 platform. Verify your TIA Portal version supports the specific module firmware revision by cross-referencing the hardware catalog in your TIA Portal installation before downloading the hardware configuration to the CPU.

What is the input delay trade-off when reducing the parameterized filter value?

Selecting a shorter input delay — for example, 0.2 ms instead of 12.8 ms — increases input responsiveness but reduces the module's ability to filter out short electrical noise pulses. In electrically noisy environments, a shorter delay may cause false triggering on inputs. Test the selected delay setting at each value during commissioning and increase the delay if diagnostic LEDs indicate erratic input behavior.

Why Order From LeadTime.ca

  • LeadTime.ca ships the Siemens 6ES7221-1BH32-0XB0 worldwide — no geographic restriction on orders
  • Stock is monitored for this SKU; typical lead time of 1–5 business days from available inventory
  • Volume pricing is available for orders of 10 or more units — contact the team before placing a large order
  • Hard-to-source or time-critical S7-1200 modules can be expedited; the team responds quickly to quote requests
  • Bundle pricing is available when ordering this module alongside S7-1200 CPUs or other signal modules

At-a-Glance Summary

  • Module: Siemens 6ES7221-1BH32-0XB0 — SIMATIC S7-1200, Digital Input SM 1221, 16 DI, 24 V DC, Sink/Source
  • 16 discrete 24 V DC input channels arranged in 4-channel potential separation groups
  • Signal thresholds: 5 V DC at 1 mA for logic 0; 15 V DC at 2.5 mA for logic 1
  • Parameterizable input delays: 0.2, 0.4, 0.8, 1.6, 3.2, 6.4, and 12.8 ms — configurable per channel group in TIA Portal
  • Maximum cable length: 500 m shielded, 300 m unshielded
  • Physical dimensions: 45 mm wide × 100 mm high × 75 mm deep; weight approximately 210 g
  • Operating temperature: 0–60°C; storage temperature: −40–70°C; IP20 protection rating
  • Certifications: CE, CSA, UL, cULus, FM, RoHS; IEC 61131 Type 1 input characteristic curve
  • Compatible with S7-1200 only — not interchangeable with S7-300, S7-400, or S7-1500 slot architecture
  • Typical lead time: 1–5 business days from LeadTime.ca; volume pricing available for 10+ units
