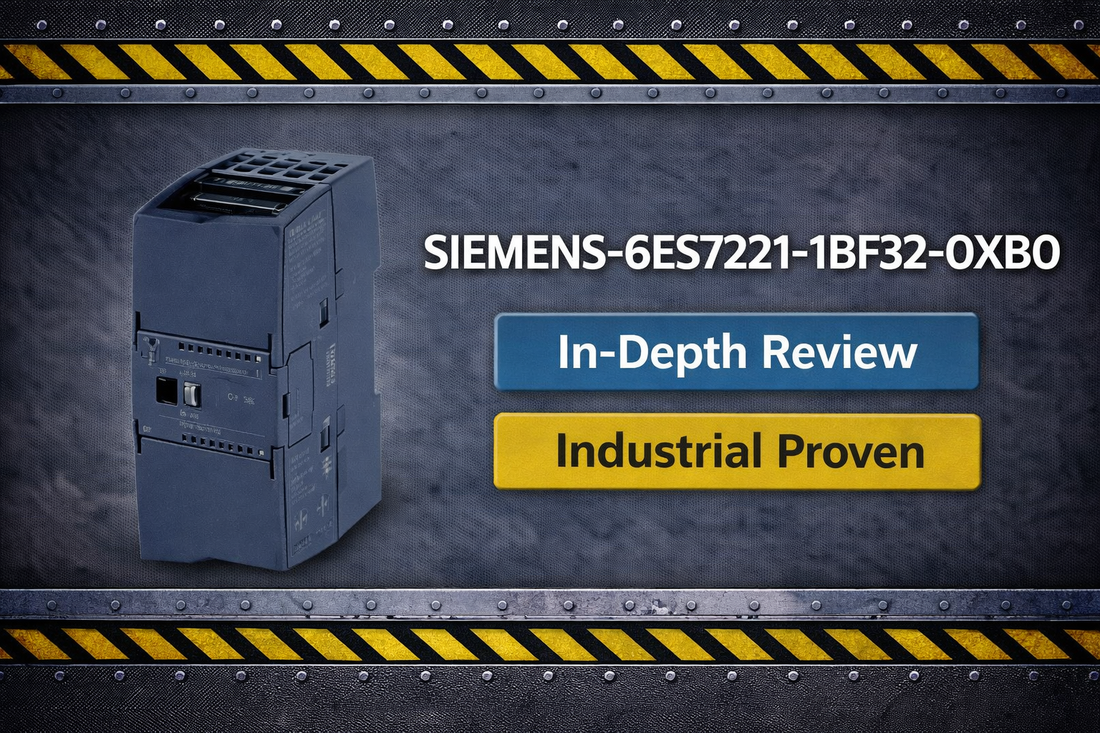

Siemens 6ES7221-1BF32-0XB0 SM 1221 8-channel 24V DC digital input module for SIMATIC S7-1200 PLC expansion

Siemens 6ES7221-1BF32-0XB0 — SIMATIC S7-1200 Digital Input SM 1221, 8 DI, 24V DC, Sink/Source: Specs, Selection and Installation Guide

Controls engineers expanding a SIMATIC S7-1200 system past its onboard I/O count reach for the Siemens 6ES7221-1BF32-0XB0 as the standard discrete input solution. This SM 1221 series module adds 8 digital input channels at 24V DC, supports both Sink and Source wiring configurations, and connects directly to the S7-1200 signal module interface — no additional base unit required. If you are validating this part number against your build documentation, the specs here confirm it. If you are still weighing it against alternatives, the comparison section will settle it.

If you have already confirmed this is the right part, check current pricing and availability for the 6ES7221-1BF32-0XB0 at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7221-1BF32-0XB0 — and Who Should Not

This module is the correct choice when all of the following apply to your project:

  • Your host controller is a SIMATIC S7-1200 CPU — not an S7-1500, S7-300, or S7-400 (the hardware interface is incompatible across families)
  • You need exactly 8 additional digital input channels rated at 24V DC nominal
  • Your field devices output 24V DC logic signals — proximity switches, photoelectric sensors, pushbuttons, or limit switches
  • Your wiring topology requires Sink mode, Source mode, or flexibility to support both in the same installation
  • Your S7-1200 CPU has at least one available signal module slot and your 24V DC supply can support the additional input channel current draw

If your application requires analog inputs such as 4–20mA or 0–10V signals, the SM 1221 is not the right selection — evaluate the SM 1231 analog input module instead. If you need 16 digital inputs, two 6ES7221-1BF32-0XB0 units stacked in adjacent slots is the standard approach. If you need discrete outputs rather than inputs, the 6ES7222-1BF32-0XB0 is the paired output variant.

On this page:

What the 6ES7221-1BF32-0XB0 Actually Does in a Live System

The 6ES7221-1BF32-0XB0 is a signal module in the SM 1221 series — a dedicated digital input expansion card for the SIMATIC S7-1200 platform. Its function in a running system is direct: it accepts 24V DC on/off signals from field devices and converts those states into data the S7-1200 CPU can read and act on through the PLC program. Eight input channels are available simultaneously, each independently monitored.

What distinguishes the SM 1221 from generic I/O expansion is the Sink/Source flexibility. Rather than requiring a specific wiring polarity at the factory, the 6ES7221-1BF32-0XB0 accommodates both current-sourcing sensors (Sink mode) and current-sinking sensors (Source mode) on the same module. This matters in mixed-sensor environments — packaging lines with both photoelectric and inductive proximity sensors, for example — where forcing a single polarity topology would require external conditioning hardware.

The module occupies one signal module slot on the S7-1200 CPU base or expansion connector. Physical dimensions are 100 x 45 x 75 mm, and the IP20 rating means it is rated for installation inside a clean industrial control cabinet — not for open-air or wet environments. The module is listed as an Active Product on Siemens SiePortal with EAN 6940408101937 and UPC 887621206093, confirming it is currently in production and supported.

Typical S7-1200 System Architecture with SM 1221

The 6ES7221-1BF32-0XB0 sits immediately adjacent to the S7-1200 CPU in the signal module chain, receiving field device states and passing them upstream to the controller over the internal module bus. Here is where it fits in a standard deployment:

  • 24V DC field devices (limit switches, proximity sensors, pushbuttons, photoelectric sensors) connect to the module's 8 input terminals
  • The SM 1221 module connects directly to the S7-1200 CPU signal module interface, occupying one of the available expansion slots
  • The S7-1200 CPU reads input states from the module and maps them to the input address region in the PLC program — typically %I or IB byte offsets assigned during hardware configuration in TIA Portal
  • An external 24V DC power supply provides voltage to the input channel side of the module; the CPU 24V rail handles module logic power
  • TIA Portal on the engineering workstation manages hardware configuration, slot assignment, and I/O address mapping for the installed module

Where This Module Gets Deployed: Industries and Use Cases

The most common deployment is straightforward: a production line where the S7-1200 CPU's onboard digital inputs are fully consumed by existing field devices, and a new sensor zone — a conveyor section, a secondary inspection station, a reject gate — requires additional discrete feedback channels. The 6ES7221-1BF32-0XB0 adds 8 channels without requiring a CPU swap or a new control panel layout.

Multi-zone machine interlock systems represent another frequent use case. Each machine zone sends discrete start, stop, and fault signals back to the controller. With 8 channels per module, a single SM 1221 can consolidate the status feedback from one complete machine zone — run state, idle state, fault condition, and maintenance mode — into one physical module with clean wiring organization.

Remote pushbutton panels and operator interface stations connected over hardwired cable also appear regularly in SM 1221 deployments. The 24V DC logic level is well-suited to moderate cable runs in plant environments. Emergency stop chain monitoring and status feedback for supervisory SCADA systems round out the common applications in discrete manufacturing, food and beverage processing, and pharmaceutical production environments.

Application Typical Deployment
Production line sensor monitoring 8 limit switches or photoelectric sensors feeding zone feedback to S7-1200
Multi-zone machine interlock system One SM 1221 per machine zone consolidating start/stop/fault discrete signals
Remote operator pushbutton panel Hardwired 24V DC inputs from panel-mounted switches to module input terminals
Emergency stop chain monitoring E-stop status feedback inputs monitored by S7-1200 safety logic
SCADA line state feedback Run, idle, fault, and maintenance mode signals consolidated per station
Conveyor and sorting systems Proximity and photoelectric sensor inputs tracking product position and sort decisions

Purchase-Decision Specs: What Engineers Need to Confirm Before Ordering

Specification Value
Article Number 6ES7221-1BF32-0XB0
Product Family SM 1221 Digital Input Module, SIMATIC S7-1200
Input Channels 8 digital inputs
Input Signal Type Digital (24V DC logic, on/off)
Input Voltage Nominal 24V DC
Input Voltage Operating Range 20.4V to 28.8V DC
Sink/Source Configuration Both supported
IP Rating IP20
Dimensions (H x W x D) 100 x 45 x 75 mm
Life Cycle Status Active Product (Siemens SiePortal confirmed)

Full technical specifications are available on the product page at LeadTime.ca.

6ES7221-1BF32-0XB0 vs SM 1222, SM 1231, SM 1232 — Which Module Do You Actually Need?

Module Number Type Channels Signal Best Fit
6ES7221-1BF32-0XB0 Digital Input 8 DI 24V DC Standard sensor feedback expansion for S7-1200
6ES7222-1BF32-0XB0 Digital Output 8 DO 24V DC Relay output control, solenoid actuation — paired with SM 1221
6ES7231-0HD32-0XB0 Analog Input 4 AI 0–10V / 4–20mA Temperature, pressure, speed feedback — when analog signals are required
6ES7232-0HD32-0XB0 Analog Output 2 AO Analog Signal conditioning, variable drive control
6ES7232-0ND32-0XB0 Mixed I/O 4 DI + 4 DO Digital Compact mixed control where panel space is constrained

If your architecture requires 8 discrete 24V DC inputs and an S7-1200 host CPU, the 6ES7221-1BF32-0XB0 is the correct and most cost-effective choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment for Engineers and Procurement Teams

The 6ES7221-1BF32-0XB0 does exactly what it claims and nothing more — which is precisely the point. For controls engineers working with SIMATIC S7-1200 platforms in discrete manufacturing, packaging, or process monitoring applications, this is the proven, low-risk way to add 8 digital input channels. The Sink/Source flexibility is a genuine practical advantage: it eliminates the need for external signal conditioning hardware when mixing sensor types on the same module. The 100 x 45 x 75 mm form factor and IP20 rating are appropriate for standard industrial control cabinet installations. The module is confirmed Active on Siemens SiePortal — not an end-of-life part requiring a last-time-buy decision.

Where the SM 1221 reaches its limits is straightforward: it does not support analog signals, it is not compatible with S7-1500 or S7-300/400 hardware interfaces, and 8 channels is the ceiling without stacking a second module. If your application is growing toward 32 or more discrete inputs, or if you anticipate adding analog feedback loops in the near term, the module selection conversation should widen to include mixed I/O options or a CPU platform reassessment. The SM 1221 also does not support safety-rated applications — if your E-stop chain requires SIL or PLe compliance, a safety-rated module is the correct selection regardless of cost differential.

On the procurement side, the 6ES7221-1BF32-0XB0 carries a typical lead time of 1 to 4 weeks from stock and 4 to 10 weeks when sourced on order depending on global supply chain conditions. It is an active product with EAN 6940408101937, which means authorized distributors carry it regularly. New modules carry a 12-month warranty from delivery date. If you are buying for a critical production line, ordering a spare module at the same time is standard practice — downtime cost on a line waiting for a replacement input module exceeds the cost of a spare unit within hours. If this matches your system requirements, view current stock and pricing for the 6ES7221-1BF32-0XB0 at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following points cover the key requirements and verifications for installing and wiring the 6ES7221-1BF32-0XB0. Controls engineers requiring full wiring diagrams and step-by-step procedures should refer to the Siemens SIMATIC S7-1200 system manual and SM 1221 installation documentation.

  • Power down the S7-1200 CPU and disconnect the 24V DC supply before inserting or removing the SM 1221 module — the signal module interface is not hot-swap rated for installation
  • Align the module connector with the CPU signal module slot, ensuring the keying notch is correctly oriented; seat the module firmly until the connector is fully engaged before securing retaining clips
  • Connect field device signal wires to input terminals 1 through 8; confirm Sink or Source mode matches the output type of each connected sensor before terminating — 3-wire sourcing sensors require Sink mode, 2-wire sinking sensors require Source mode
  • Provide a dedicated external 24V DC power supply to the module input channel side; verify the supply voltage at the module terminals is within the 20.4V to 28.8V DC operating range under full load
  • After restoring power, confirm module LED indicators are active, then use TIA Portal hardware configuration to verify the module is detected in the assigned slot and input addresses map correctly to the program's %I region

Compatible Modules and S7-1200 Expansion Options

The 6ES7221-1BF32-0XB0 is part of the broader SIMATIC S7-1200 signal module ecosystem. The following modules are compatible with the same S7-1200 CPU platform and are commonly deployed alongside or instead of the SM 1221 depending on I/O requirements:

  • 6ES7222-1BF32-0XB0 — SM 1222 Digital Output module, 8 DO, 24V DC; the standard output-side companion to the SM 1221 for controlling solenoids, relays, and indicators
  • 6ES7231-0HD32-0XB0 — SM 1231 Analog Input module, 4 AI; required when application signals are 0–10V or 4–20mA rather than discrete 24V DC logic
  • 6ES7232-0HD32-0XB0 — SM 1232 Analog Output module, 2 AO; for variable signal output applications such as drive speed reference or control valve positioning
  • 6ES7232-0ND32-0XB0 — SM 1232 Mixed I/O, 4 DI + 4 DO; a space-efficient option when the application requires both discrete inputs and outputs from a single module slot

Wrong-Part Prevention Checklist Before You Order

Before submitting a purchase order for the 6ES7221-1BF32-0XB0, verify every item on this checklist against your project documentation:

  1. Verify host controller is S7-1200, not S7-1500 or S7-300/400 (different slot interface)
  2. Confirm digital signal voltage is 24V DC; do not use 12V, 48V, or AC signals
  3. Check slot availability on CPU base unit or expansion connector
  4. Verify Sink/Source mode matches sensor output type (3-wire vs 2-wire)
  5. Ensure external 24V DC power supply is separate and dedicated to signal module inputs
  6. Confirm firmware of host CPU supports SM 1221 module (typically all S7-1200 FW versions)

If any item on this checklist does not match your project requirements, contact the LeadTime.ca team before ordering — we can help confirm the correct module variant for your application.

Frequently Asked Questions

Can the 6ES7221-1BF32-0XB0 be used with an S7-1500 or S7-300 CPU?

No. The SM 1221 module uses the SIMATIC S7-1200 signal module interface, which is physically and electrically incompatible with the S7-1500 and S7-300/400 hardware families. Installing this module into an S7-1500 or S7-300 rack is not possible without an adapter, and no such adapter is supported. If your host CPU is an S7-1500 or S7-300, you need a module from the corresponding family.

How do I determine whether to wire in Sink mode or Source mode for my sensors?

Check the output specification on your sensor's datasheet. A current-sourcing sensor — one that supplies 24V DC on its output wire — requires the module to be configured in Sink mode, where the module sinks current to ground. A current-sinking sensor — one that pulls its output to ground — requires Source mode, where the module provides 24V. If you have a mix of both sensor types across the 8 channels, confirm whether the module supports per-channel mode selection or requires a consistent topology across all channels; refer to the Siemens SM 1221 installation manual for the specific configuration supported by your firmware revision.

What happens if I need more than 8 digital inputs on a single S7-1200 system?

Stack additional 6ES7221-1BF32-0XB0 modules in the available signal module slots on the S7-1200 CPU. Each module adds 8 input channels and occupies one slot. The S7-1200 CPU supports up to 8 signal modules depending on the specific CPU variant, so verify available slots in your hardware configuration before ordering multiple units. Each additional module requires its own slot assignment in TIA Portal and maps to a separate %I address range in the program.

Is an external 24V DC power supply required, or can the module run from the CPU power rail?

The module logic power is supplied through the CPU signal module interface from the CPU 24V rail. However, the input channel side — the 24V DC that the field devices switch — must be supplied from a dedicated external 24V DC source. The external supply voltage must be within the 20.4V to 28.8V DC operating range at the module input terminals under full channel load. Using the CPU supply rail for field device power is not recommended practice and can cause voltage sag issues on the controller supply.

What is the typical lead time and is the 6ES7221-1BF32-0XB0 still in production?

The 6ES7221-1BF32-0XB0 is confirmed Active on Siemens SiePortal — it is a current production product, not an end-of-life item. Typical lead time from stock is 1 to 4 weeks through authorized distributors. Orders placed against production inventory may extend to 4 to 10 weeks depending on global supply chain conditions at the time of order. For the most current availability and lead time, check the product page at LeadTime.ca.

What does the 6ES7221-1BF32-0XB0 warranty cover and how long does it last?

New modules purchased through an authorized distributor carry a 12-month warranty from the delivery date. Refurbished units are available from select vendors with warranties ranging from 6 to 12 months depending on the supplier's terms. Warranty coverage applies to manufacturing defects under normal operating conditions within the module's rated electrical and environmental specifications. The IP20 enclosure rating requires the module to be installed inside a clean control cabinet — operation outside these conditions may affect warranty validity.

Why Source the 6ES7221-1BF32-0XB0 Through LeadTime.ca

At-a-Glance Summary

  • Article number 6ES7221-1BF32-0XB0 is the SM 1221 series 8-channel digital input module for SIMATIC S7-1200
  • 8 digital input channels, 24V DC nominal, operating range 20.4V to 28.8V DC
  • Supports both Sink and Source wiring configurations — no additional signal conditioning hardware required for mixed sensor types
  • Physical dimensions: 100 x 45 x 75 mm; IP20 enclosure rating for industrial control cabinet installation
  • Compatible with SIMATIC S7-1200 only — not compatible with S7-1500, S7-300, or S7-400 hardware interfaces
  • Active Product status confirmed on Siemens SiePortal; EAN 6940408101937, UPC 887621206093
  • Typical lead time 1 to 4 weeks from stock; 4 to 10 weeks on order
  • New module warranty: 12 months from delivery date via authorized distributor
  • TIA Portal hardware configuration required for slot assignment and %I address mapping after installation
  • For applications requiring more than 8 digital inputs, stack additional 6ES7221-1BF32-0XB0 modules in available S7-1200 signal module slots
