Siemens 6ES7215-1AG40-0XB0 CPU 1215C — Compact PLC Buying Guide

By Abdullah Zahid
12 min read

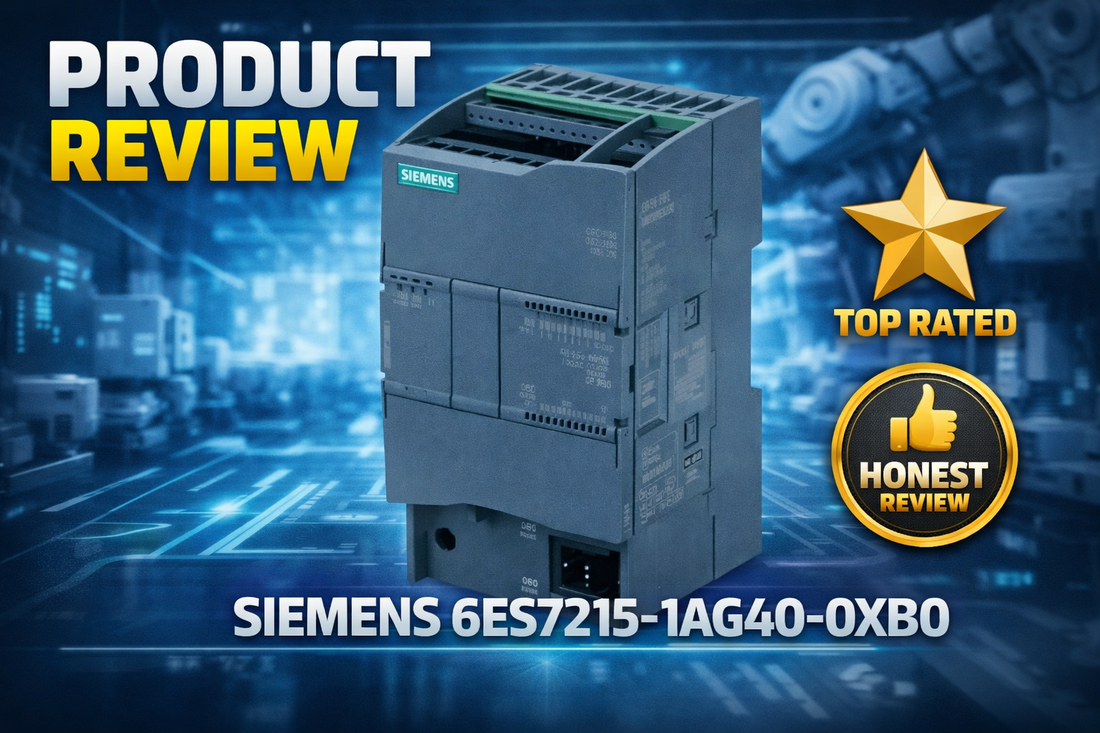

Siemens 6ES7215-1AG40-0XB0 CPU 1215C compact DC/DC/DC PLC mounted on DIN rail in industrial control panel

Siemens 6ES7215-1AG40-0XB0 CPU 1215C — SIMATIC S7-1200 Compact PLC Specifications, Features and Selection Guide

Controls engineers searching for a compact, networked PLC that handles 14 digital inputs, 10 digital outputs, 2 analog inputs, and 2 analog outputs — all in a single 130 x 100 x 75 mm housing — are typically evaluating the Siemens 6ES7215-1AG40-0XB0 as a final candidate before pulling the trigger on a purchase order. This is the SIMATIC S7-1200 CPU 1215C in DC/DC/DC configuration, running firmware V4.7, with two built-in PROFINET ports and 200 KB of work memory. The question most buyers are actually asking is not whether this CPU works, but whether it is the right size and the right firmware for their specific system — and what the lead time looks like right now.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7215-1AG40-0XB0 — and Who Shouldn't

The Siemens 6ES7215-1AG40-0XB0 is the right choice for engineers building space-constrained automation where a single compact CPU needs to handle moderate I/O locally and communicate over PROFINET without adding communication modules. It is a strong fit if all of the following are true for your project:

  • Your application requires no more than 14 digital inputs and 10 digital outputs onboard without mandatory expansion
  • Your control panel runs on 24V DC infrastructure (DC 20.4–28.8V supply required — no AC input)
  • Your engineering environment is running STEP 7 V20 or higher (firmware V4.7 is NOT compatible with V13 SP1)
  • You need at least one, and ideally two, PROFINET ports for network integration without a separate communication module
  • Your cabinet space accommodates a 130 x 100 x 75 mm DIN-rail mounted device
  • Your ambient operating temperature does not exceed +60°C, with awareness that I/O de-rating applies above +50°C horizontal or +45°C vertical

If your application requires AC mains input, consider an AC/DC variant within the S7-1200 range. If you need more onboard memory or denser I/O than the 1215C provides, the CPU 1217C is the next logical step up within the same platform family.

On this page:

What the 6ES7215-1AG40-0XB0 Actually Does in Your System

The Siemens 6ES7215-1AG40-0XB0 is the central processing unit of a SIMATIC S7-1200 automation node. It executes user logic written in STEP 7, manages all onboard I/O directly, communicates with upstream controllers, HMIs, or peer PLCs over PROFINET, and coordinates any signal modules or signal boards added to the system. In plain terms, it is the brain of the control panel — not a gateway, not a remote I/O block, but the actual CPU that runs the program.

What makes this specific model worth examining closely is the combination of onboard I/O density and dual PROFINET ports. Most compact PLCs at this price tier require a separate communication module to reach two network ports. The 6ES7215-1AG40-0XB0 delivers both natively, which directly reduces module count, wiring time, and panel real estate. The 6 high-speed counter inputs operating at up to 100 kHz and support for up to 8 position-controlled axes via pulse-direction interface are also native — no additional motion module required for basic positioning applications.

The 200 KB work memory and 4 MB integrated load memory are the practical upper boundary for this model. For typical small-to-medium logic programs — think 50 to 150 KB of structured ladder or function block code — the 1215C has comfortable headroom. Load memory can be extended to 24 MB via a SIMATIC Memory Card if program storage demands grow.

Typical System Architecture for the CPU 1215C

The 6ES7215-1AG40-0XB0 sits at the controller level in a flat or moderately hierarchical automation architecture, connecting field devices below it and PROFINET infrastructure above or beside it.

  • Engineering PC running STEP 7 V20 connects to PROFINET Port 1 for programming, diagnostics, and firmware updates
  • HMI panel or SCADA system connects via PROFINET Port 2 (or through a CSM 1277 switch if more nodes are required on the same segment)
  • CPU 1215C executes logic and drives onboard 24V DC digital and analog I/O directly wired to sensors, actuators, and drives in the field
  • Signal modules (SM) or signal boards (SB) connect directly to the CPU chassis for I/O expansion beyond the 14 DI / 10 DO onboard baseline
  • External regulated 24V DC industrial power supply feeds the CPU and I/O rail; an upstream fused disconnect protects the circuit

Where the CPU 1215C Gets Deployed: Industries and Use Cases

Food and beverage producers running small packaging, filling, or sorting lines consistently reach for the CPU 1215C because the onboard I/O count matches typical line complexity without forcing extra module spend. A filling line with a handful of level sensors, solenoid valves, and a conveyor drive fits cleanly within 14 DI and 10 DO.

HVAC and building automation engineers use the dual PROFINET ports to chain zone controllers without investing in additional communication hardware. The real-time hardware clock with 480-hour backup supports scheduled operations — damper cycling, setback routines, and time-stamped event logs — natively.

Systems integrators replacing legacy S7-200 controllers in existing panels find the 1215C particularly relevant. The footprint is 35% smaller than legacy S7-200 hardware while matching the I/O profile, and the migration to STEP 7 is well-documented within the Siemens ecosystem.

In discrete machine automation — conveyor sorting, woodworking cell control, textile loom management — the 6 high-speed counter inputs at up to 100 kHz handle encoder feedback and speed measurement without external counter modules.

Application Typical Deployment
Small conveyor or sorting system Standalone CPU 1215C managing up to 14 sensors and 10 actuators; no expansion modules needed
HVAC / building zone control Networked node on PROFINET communicating damper and circuit status to central HMI
Legacy S7-200 replacement Drop-in CPU swap in existing panel; equivalent I/O map, smaller footprint
Position tracking and tool control Up to 8 axes via pulse-direction interface; encoder feedback via high-speed counter inputs
Food and beverage packaging line Discrete and analog I/O for filling valves, level sensors, and conveyor speed control
Edge PROFINET node in multi-point plant CPU 1215C as subordinate controller reporting process data to central PLC or SCADA

Purchase-Critical Specifications at a Glance

Parameter Specification
Input Voltage DC 20.4–28.8V (nominal 24V DC)
Typical Power Loss 12W
Digital Inputs / Digital Outputs 14 DI at 24V DC / 10 DO at 24V DC, 0.5A per output
Analog Inputs / Analog Outputs 2 AI (0–10V DC) / 2 AO (0–20mA DC)
Work Memory / Load Memory 200 KB / 4 MB integrated (expandable to 24 MB via SIMATIC Memory Card)
PROFINET Ports 2 built-in RJ45
High-Speed Counters 6 integrated; up to 100 kHz
Real-Time Clock Backup 480-hour hardware backup; ±60 seconds/month deviation
Dimensions (W x H x D) 130 mm x 100 mm x 75 mm
Operating Temperature -20°C to +60°C (de-rate I/O above +50°C horizontal / +45°C vertical)

Full technical specifications are available on the product page at LeadTime.ca.

6ES7215-1AG40-0XB0 vs. 6ES7215-1AG31-0XB0 and Larger S7-1200 Models

The table below maps the key decision variables between the current model and its nearest alternatives. The most common selection error is ordering the predecessor 6ES7215-1AG31-0XB0 when the project engineering environment is already on STEP 7 V20 and firmware V4.7.

Model Work Memory Firmware Onboard DI / DO / AI / AO PROFINET Ports Best For
6ES7215-1AG40-0XB0 (current) 200 KB V4.7 14 / 10 / 2 / 2 2 New projects on STEP 7 V20+; current recommended selection
6ES7215-1AG31-0XB0 (predecessor) 125 KB V4.5 14 / 10 / 2 / 2 2 Existing STEP 7 V13 environments; legacy firmware compatibility
CPU 1211C Lower V4.x Fewer DI/DO 1 Minimal automation; no dual PROFINET needed
CPU 1217C Higher V4.x More DI/DO 2 Applications exceeding 14 DI / 10 DO or requiring higher memory

If your architecture uses dual PROFINET ports and your engineering environment is on STEP 7 V20 or higher, the 6ES7215-1AG40-0XB0 is the correct selection — check current availability at LeadTime.ca.

Expert Verdict: Is the 1215C the Right CPU for Your Project?

The Siemens 6ES7215-1AG40-0XB0 is a genuinely capable compact CPU for the application space it targets. The 14 DI / 10 DO onboard I/O density eliminates the need for separate I/O modules in most small machine and conveyor applications, the dual PROFINET ports are a real differentiator at this form factor, and the 6 high-speed counter inputs at up to 100 kHz cover the vast majority of encoder and frequency measurement requirements without additional hardware. The 200 KB work memory and 4 MB load memory represent a meaningful step up from the predecessor 6ES7215-1AG31-0XB0, which shipped with 125 KB work memory. For new project starts, there is no reason to specify the older model unless you are locked into a firmware V4.5 environment.

The real limits here are predictable: if your application genuinely needs more than 14 discrete inputs or 10 discrete outputs at the CPU level without adding expansion modules, or if your existing engineering environment has not been updated past STEP 7 V13 SP1, the 1215C will create friction. The DC-only power supply input is also a hard constraint — this unit cannot connect to AC mains without an intermediate step-down supply, and that is a control cabinet cost and space consideration that some buyers overlook at the BOM stage.

From a procurement standpoint, the 6ES7215-1AG40-0XB0 is an active, currently manufactured product with broad distributor coverage and typical order-to-ship timelines of 1 to 4 weeks for standard quantities. Volume pricing is available for orders of 10 or more units, and LeadTime.ca can source and ship globally. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

The following points cover the key requirements engineers should verify before beginning installation. Full wiring diagrams and terminal pinout assignments are in the Siemens SIMATIC S7-1200 hardware installation manual.

  • Power supply: Provide a regulated external DC 20.4–28.8V supply with sufficient current capacity for the CPU's 12W draw plus the total I/O load; include an upstream fused disconnect or circuit breaker — the CPU does not provide system-level overcurrent protection
  • Digital inputs: 14 x 24V DC source/sink inputs; signal threshold is 5V DC for logic "0" and 15V DC for logic "1"; 6 of the 14 inputs support high-speed counting functions
  • Digital outputs: 10 x 24V DC transistor outputs at 0.5A per channel; total output current is 5A maximum — plan load distribution accordingly
  • Analog signals: AI accepts 0–10V DC voltage inputs; AO provides 0–20mA current outputs; use shielded twisted-pair cable for all analog wiring to minimize noise pickup
  • PROFINET cabling: Both RJ45 ports accept Category 5e or 6 shielded industrial Ethernet cable; maximum segment length is 100 m per IEC 61158; extend via CSM 1277 switch if additional nodes are required beyond one segment

What Engineers Get Wrong When Ordering This Part

Before finalizing your purchase order for the Siemens 6ES7215-1AG40-0XB0, work through this checklist. Each item below has caused real-world commissioning delays or wrong-part returns:

  1. Confirm DC 20.4-28.8V DC input requirement matches your power distribution; cannot use AC mains without step-down transformer
  2. Verify onboard I/O count (14 DI, 10 DO, 2 AI, 2 AO) is sufficient; expandable via modules but model 1215C is fixed onboard
  3. Check that STEP 7 V20 or higher is available in your engineering environment; V13 SP1 is NOT sufficient for firmware V4.7
  4. Confirm PROFINET network integration is required or desired; S7-1200 variants without PROFINET ports (1211C) exist
  5. Validate compact dimensions (130 x 100 x 75 mm) fit your control cabinet panel space and mounting method (DIN rail or plate)
  6. Confirm maximum ambient operating temperature range (-20 to +60°C) suits installation location; de-rate at >50°C if outputs must remain active
  7. Check that firmware version (V4.7 or V4.5 in some stock) is compatible with your projects and software version

If you have worked through the checklist and confirmed this is the correct part, view pricing and current stock at LeadTime.ca or contact us to confirm firmware version in available stock before ordering.

Frequently Asked Questions

What STEP 7 version is required for the 6ES7215-1AG40-0XB0 running firmware V4.7?

STEP 7 V20 or higher is mandatory for firmware V4.7. If your engineering workstation is still on STEP 7 V13 SP1, it will not fully support this firmware version. You have two options: upgrade the software to V20 or higher, or specifically request stock with the older V4.5 firmware. Always confirm the firmware version in available stock with your supplier before ordering if this is a concern for your project.

Can the CPU 1215C be expanded beyond its onboard 14 DI / 10 DO if my application grows?

Yes. The 6ES7215-1AG40-0XB0 supports expansion via signal modules (SM) mounted on the right side of the CPU and signal boards (SB) that plug directly into the CPU housing. The onboard I/O count is fixed at 14 DI / 10 DO / 2 AI / 2 AO, but additional modules can be added to the chassis to increase total I/O capacity beyond that baseline.

What is the real-time clock backup duration and how accurate is it?

The hardware real-time clock in the 6ES7215-1AG40-0XB0 has a backup duration of 480 hours — approximately 20 days — and a typical deviation of ±60 seconds per month at 25°C. The backup is maintenance-free and integrated into the device; no external battery replacement is required. Time-of-day synchronization can be performed manually or via PROFINET.

Does this CPU support high-speed counting and at what maximum frequency?

Yes. The 6ES7215-1AG40-0XB0 includes 6 integrated high-speed counters with a maximum counting frequency of 100 kHz. Six of the 14 digital inputs are designated for high-speed counter functions and support up/down counting modes. This makes the CPU suitable for encoder feedback, speed measurement, and frequency-based process monitoring without any additional hardware.

What is the difference between the 6ES7215-1AG40-0XB0 and the 6ES7215-1AG31-0XB0?

Both models share identical onboard I/O (14 DI, 10 DO, 2 AI, 2 AO) and dual PROFINET ports. The key differences are work memory — 200 KB on the 1AG40 versus 125 KB on the 1AG31 — and firmware version: V4.7 on the current model versus V4.5 on the predecessor. The 1AG40 is recommended for all new projects. The 1AG31 remains relevant only for environments where upgrading to STEP 7 V20 is not feasible.

How long is the typical lead time for the 6ES7215-1AG40-0XB0?

As an active, currently manufactured product in the SIMATIC S7-1200 family, the 6ES7215-1AG40-0XB0 typically ships within 1 to 4 weeks for standard order quantities through major distributors. Lead times can extend during high-demand periods or supply constraint events. Confirm current stock status and lead time directly with LeadTime.ca before locking your project schedule.

Why Order the 6ES7215-1AG40-0XB0 from LeadTime.ca

  • LeadTime.ca ships the 6ES7215-1AG40-0XB0 worldwide — no regional restrictions on sourcing or delivery
  • Our team can confirm firmware version (V4.7 vs. V4.5) in available stock before your order is placed — a detail that prevents commissioning delays
  • Volume pricing is available for orders of 10 or more units; contact us for project-specific quotes
  • Hard-to-find SIMATIC S7-1200 variants and accessories can be sourced alongside the CPU in a single order to reduce procurement cycles
  • View current pricing and availability at LeadTime.ca
  • Contact the LeadTime.ca team for a quote or to confirm lead time

At-a-Glance Summary

  • Model: Siemens 6ES7215-1AG40-0XB0 — SIMATIC S7-1200, CPU 1215C, Compact CPU, DC/DC/DC
  • Onboard I/O: 14 DI / 10 DO (0.5A per output, 5A total) / 2 AI (0–10V DC) / 2 AO (0–20mA DC)
  • Work memory: 200 KB; load memory: 4 MB integrated, expandable to 24 MB via SIMATIC Memory Card
  • PROFINET: 2 built-in RJ45 ports; no additional communication module required
  • High-speed counters: 6 integrated at up to 100 kHz; supports up to 8 position-controlled axes
  • Power supply: DC 20.4–28.8V only; typical power loss 12W
  • Dimensions: 130 mm x 100 mm x 75 mm; 35 mm DIN-rail or plate mount; IP20 housing
  • Operating temperature: -20°C to +60°C; I/O de-rating applies above +50°C horizontal / +45°C vertical
  • Programming: STEP 7 V20 or higher required for firmware V4.7
  • Real-time clock: 480-hour hardware backup; ±60 seconds/month deviation at 25°C
  • Product status: Active; currently manufactured and supported by Siemens
