Siemens 6ES7214-1AG40-0XB0 — CPU 1214C Buying Guide

By Abdullah Zahid
12 min read

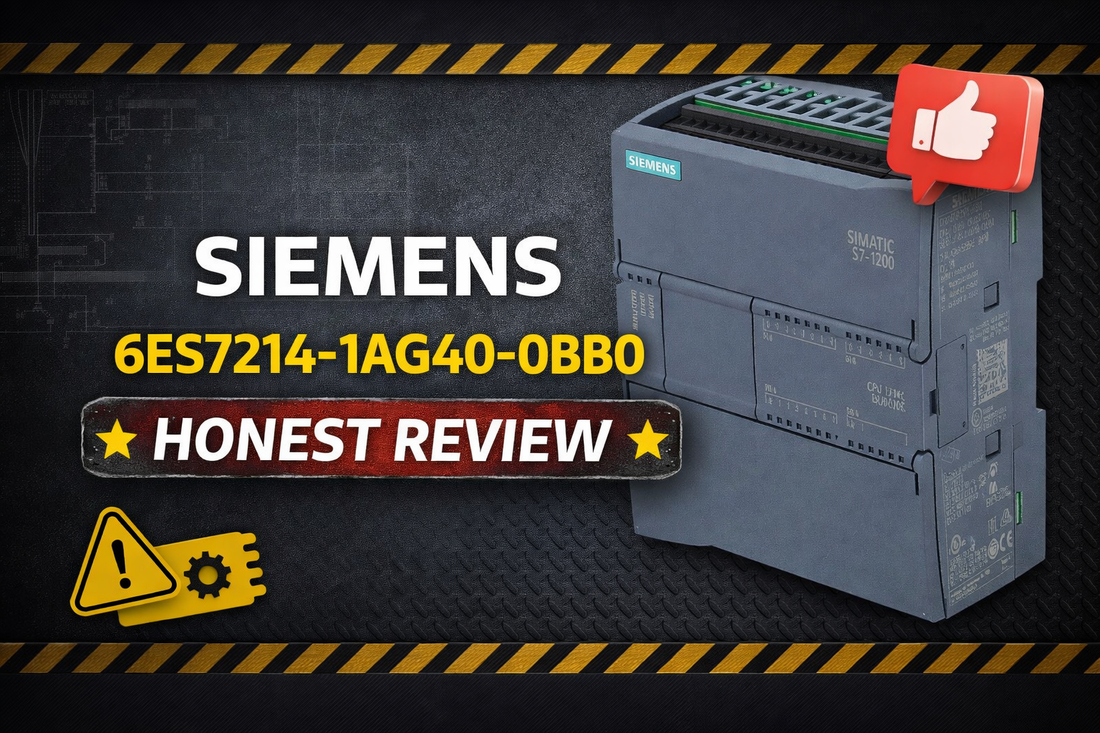

Siemens 6ES7214-1AG40-0XB0 SIMATIC S7-1200 CPU 1214C compact DC/DC/DC PLC module for industrial automation

Siemens 6ES7214-1AG40-0XB0 SIMATIC S7-1200 CPU 1214C DC/DC/DC: Specs, Price, and Alternatives Guide

Controls engineers specifying a compact PLC for a small-to-medium automation project typically arrive at the Siemens 6ES7214-1AG40-0XB0 after narrowing their options to the SIMATIC S7-1200 family. The decision that remains is whether this specific DC/DC/DC variant — with 14 digital inputs, 10 digital outputs, 2 analog inputs, 150 KB work memory, and a single PROFINET RJ45 port — covers the full application scope, or whether a relay-output version or a step up to CPU 1215C is the smarter call. This guide gives you the technical data, honest comparison, and procurement context to settle that decision fast.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7214-1AG40-0XB0 — and Who Shouldn't

The Siemens 6ES7214-1AG40-0XB0 is the right choice for engineers building compact machine controllers or distributed PROFINET nodes where onboard I/O and a 24 V DC supply are already part of the architecture.

  • Your cabinet uses a 24 V DC power supply in the 20.4–28.8 V DC range
  • Application I/O fits within 14 digital inputs, 10 digital outputs, and 2 analog inputs — or can be covered with up to 8 expansion signal modules
  • Program logic fits within 150 KB work memory and 4 MB load memory
  • PROFINET IO Controller or Device role is needed for network integration
  • Engineering environment runs STEP 7 V20 or higher (required for firmware V4.7)
  • Physical space allows a 110 x 100 x 75 mm DIN-rail mounted module

If you need relay outputs for AC loads, direct analog output for closed-loop valve control, or media redundancy, this variant is not the right fit — see the 6ES7214-1HG40-0XB0 relay-output variant or the CPU 1215C discussed in the comparison section below.

On this page:

What the SIMATIC S7-1200 CPU 1214C Actually Does in a Control System

The 6ES7214-1AG40-0XB0 is the central execution unit of the SIMATIC S7-1200 family — a compact CPU that combines the processor, power interface, and onboard I/O into a single 110 x 100 x 75 mm module. It reads 24 V DC signals from sensors across 14 digital inputs, executes user logic written in STEP 7, and drives actuators through 10 digital outputs and 2 analog inputs. The hardware clock with 480-hour backup keeps time-stamped events accurate during power interruptions, and the 6 integrated high-speed counters running at up to 100 kHz support pulse-based position tracking and rpm measurement without external counter modules.

What distinguishes this CPU from a basic relay controller is the depth of integrated functions: a PID controller, support for controlled positioning of up to 8 axes, 4 alarm inputs, and 4 pulse outputs at 100 kHz. These are not add-on options — they are built into every 6ES7214-1AG40-0XB0 unit. For a machine builder or systems integrator working within a tight panel budget, that integration directly reduces module count, wiring labor, and overall BOM cost relative to assembling equivalent functionality from discrete components.

Operating on a rated 24 V DC supply (permissible range 20.4–28.8 V DC) with a typical power loss of 12 W, the CPU fits into standard industrial cabinets powered by common rail supplies. It runs firmware V4.7 and requires STEP 7 V20 or higher on the engineering PC — a practical constraint to verify before purchase if your team is running an older TIA Portal version.

Typical System Architecture for the 6ES7214-1AG40-0XB0

The 6ES7214-1AG40-0XB0 sits at the intelligent edge of the control hierarchy — either as a standalone machine controller or as a PROFINET IO Device reporting to an upstream supervisor. Here is how it typically fits into a real deployment:

  • 24 V DC rail supply feeds the CPU and field devices; power enters directly at the CPU's supply terminals
  • Sensors (proximity switches, photoelectric eyes, encoders) wire to the 14 digital inputs; 0–10 V DC transmitters connect to the 2 analog inputs
  • CPU executes STEP 7 logic and drives outputs to solenoid valves, contactors, indicator lamps, or servo drive enable signals via the 10 digital outputs
  • PROFINET RJ45 port connects to a managed switch or directly to an HMI, drive, or upstream SCADA system
  • Optional signal modules snap onto the right side of the CPU to expand I/O (up to 8 modules), and a SIMATIC Memory Card extends load memory beyond the integrated 4 MB

Industries and Applications Where the CPU 1214C Earns Its Place

The CPU 1214C is a fixture in food and beverage lines where compact form factor and integrated counters cover conveyor speed regulation, PID-based temperature or pressure loops, and position tracking for diverters or accumulators. The onboard 14 digital inputs and 10 digital outputs handle the typical sensor and actuator complement of a single conveyor zone without expansion modules.

In packaging machinery — label applicators, case erectors, wrap systems — the 4 pulse outputs at 100 kHz and up to 8 positioning axes make the CPU 1214C a capable motion controller for linear or rotary indexing without reaching for a dedicated motion controller module. Machine OEMs building this type of equipment benefit from the reduced cabinet footprint and lower assembly labor.

Automotive and light assembly applications use this CPU as a discrete machine controller for press lines, welding jigs, and material handling fixtures. The 4 alarm inputs and fast HSC counting support tool-change detection, part-count monitoring, and emergency stop integration in a single module.

The CPU 1214C also appears frequently as a distributed intelligence node in larger PROFINET networks — collecting sensor data from a remote machine section and acting on local commands while exchanging process data with a central controller or SCADA platform via PROFINET IO Device role.

Application Typical Deployment
Conveyor and sorting system Standalone CPU with HSC inputs for encoder-based position tracking and PID for speed ramp control
Packaging machine (label, wrap, case) CPU with 4 pulse outputs driving stepper or servo drives; up to 8 positioning axes via integrated motion
Press and welding jig automation 14 DI monitoring limit switches and E-stops; 10 DO controlling solenoids and warning lamps
Distributed PROFINET node CPU 1214C as IO Device under upstream PLC; local logic execution reduces cable runs to central cabinet
Water treatment and HVAC PID controller managing pump speed or valve position via analog input feedback loop
Pharmaceutical assembly line PROFINET IO Controller coordinating downstream I/O modules and HMI on a star topology network

Purchase-Decision Specs for the 6ES7214-1AG40-0XB0

Specification Value
Onboard Digital Inputs 14 (24 V DC)
Onboard Digital Outputs 10 (24 V DC)
Onboard Analog Inputs 2 (0–10 V DC)
Work Memory (Program/Data) 150 KB
Load Memory 4 MB integrated
Power Supply Input 20.4–28.8 V DC (rated 24 V DC)
Typical Power Loss 12 W
Operating Temperature -20 to 60 °C (horizontal); -20 to 50 °C (vertical)
PROFINET Interface 1x RJ45, isolated, autosensing
Dimensions (W x H x D) 110 x 100 x 75 mm

Full technical specifications are available on the product page at LeadTime.ca.

CPU 1214C DC/DC/DC vs. Relay Output vs. CPU 1215C: Which Variant Do You Actually Need?

Model Power Supply Output Type Analog Output Best For
6ES7214-1AG40-0XB0 (this model) 24 V DC 10x 24 V DC None Standard discrete control, PROFINET nodes, motion with pulse outputs
6ES7214-1HG40-0XB0 24 V DC 10x Relay (2 A per contact) None Direct switching of higher-current DC loads or AC line voltage without external relays
6ES7214-1HF40-0XB0 AC 85–264 V 10x Relay None Panels without a 24 V DC rail; direct AC supply available
CPU 1215C DC/DC/DC 24 V DC 10x 24 V DC 2x 0–10 V DC Applications needing closed-loop analog output (proportional valves, VFD reference)

If your architecture uses 24 V DC discrete outputs and does not require analog output, the 6ES7214-1AG40-0XB0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Is the 6ES7214-1AG40-0XB0 Worth Buying in 2025?

For small-to-medium automation tasks — conveyor control, single-machine discrete logic, distributed PROFINET nodes, or basic motion indexing — the 6ES7214-1AG40-0XB0 is a genuinely well-balanced CPU. The combination of 14 DI, 10 DO, 2 AI, 150 KB work memory, 6 HSC counters at 100 kHz, 4 pulse outputs, PID, and 8-axis positioning in a 110 x 100 x 75 mm module is difficult to match at this price point. The SIMATIC S7-1200 ecosystem is one of the most widely taught and supported PLC platforms globally, which matters practically: finding a programmer, sourcing training materials, or getting support from a systems integrator is straightforward nearly anywhere in the world.

Where this model has real limits: it has no media redundancy (no MRP/MRPD), no PROFIsafe, no isochronous PROFINET, and no analog output. For applications where any of those capabilities are on the requirements list, this CPU will not fulfill them — and forcing workarounds is a design risk, not a solution. The single RJ45 PROFINET port (no integrated switch) also means that daisy-chaining devices requires an external managed switch; that is a minor cost and complexity addition worth planning for. If you need analog output, the CPU 1215C resolves that in a single upgrade. If you need relay outputs for AC loads, the 6ES7214-1HG40-0XB0 or 6ES7214-1HF40-0XB0 are the correct choices — not this model.

From a procurement standpoint, the 6ES7214-1AG40-0XB0 is a standard-stock item at authorized Siemens distributors globally, with typical lead times of one to four weeks for standard orders. Volume pricing is available and can meaningfully reduce per-unit cost for panel builders or OEMs running recurring builds. If this matches your system requirements, view current stock and pricing at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • Power connection: external 24 V DC supply (20.4–28.8 V DC range) wired to CPU supply terminals; reverse polarity protection must be provided externally as the CPU does not protect against reversed supply polarity
  • Digital inputs: 24 V DC sensors wire to the 14 DI terminals in sourcing or sinking configuration; 6 of the 14 inputs are high-speed capable at 100 kHz for encoder or HSC applications
  • Digital outputs: 10 DO terminals sink current to ground; external loads connect between the 24 V L+ rail and each output terminal; maximum 2 A per output point must not be exceeded
  • Analog inputs: 0–10 V DC signal sources connect directly to the 2 AI terminals; no external signal conditioning required for voltage-mode inputs
  • DIN rail mounting: snap onto standard 35 mm DIN rail in horizontal or vertical orientation; note the operating temperature difference between orientations (-20 to 60 °C horizontal; -20 to 50 °C vertical) and allow clearance for PROFINET cable routing at the RJ45 port

Compatible Signal Modules and System Expansion

The 6ES7214-1AG40-0XB0 supports up to 8 signal modules snapped directly onto the right side of the CPU, allowing I/O expansion when onboard points are insufficient. The following expansion options are commonly used with this CPU:

  • Digital input signal modules — extend DI count in 8- or 16-point increments using 24 V DC inputs compatible with the CPU's sourcing/sinking wiring scheme
  • Digital output signal modules — extend DO count in 8- or 16-point increments; relay-output signal modules are available for mixed DC/AC output requirements within the same rack
  • Analog input/output signal modules — add 4–8 channel analog I/O for applications requiring closed-loop analog control not covered by the 2 onboard AI
  • SIMATIC Memory Card — extends load memory beyond the integrated 4 MB; also used for firmware updates and program transfer between CPUs
  • Communication modules — PROFIBUS, RS-485/232 serial, or additional PROFINET ports can be added via left-side communication modules for legacy fieldbus integration

What Engineers Get Wrong When Ordering This Part

Before submitting a purchase order for the 6ES7214-1AG40-0XB0, verify every point on this checklist — each item represents a real ordering mistake that results in a return, a project delay, or a cabinet redesign:

  1. Confirm power supply requirement: 24 V DC (not AC/DC or AC/relay variants)
  2. Verify onboard I/O sufficiency: 14 DI, 10 DO, 2 AI (check if expansion needed via additional signal modules up to 8 max)
  3. Confirm PROFINET interface is required (this model includes 1 RJ45 port; no integrated Ethernet switch)
  4. Check program size fit: 150 KB work memory and 4 MB load memory (sufficient for most small-to-medium applications)
  5. Ensure STEP 7 V20 or higher is available (firmware V4.7 requires this; older versions may not support latest TIA Portal features)
  6. Verify operating temperature range fits deployment (horizontal -20 to 60 C; vertical -20 to 50 C; different from some relay-output variants)
  7. Confirm no backup/redundancy requirement (this model does not support media redundancy or MRP/MRPD)

If you have verified all seven points and the 6ES7214-1AG40-0XB0 fits, check stock and request a quote at LeadTime.ca — or contact the team if you need help confirming a variant before ordering.

Frequently Asked Questions

Does the 6ES7214-1AG40-0XB0 support analog output, or do I need an expansion module?

The 6ES7214-1AG40-0XB0 does not include any onboard analog outputs. The 2 analog inputs are 0–10 V DC only. If your application requires analog output — for example, a 0–10 V DC signal to a VFD or proportional valve — you will either need to add an analog output signal module or upgrade to the CPU 1215C, which includes 2 analog outputs natively.

What version of TIA Portal or STEP 7 is required for firmware V4.7?

Firmware V4.7 on the 6ES7214-1AG40-0XB0 requires STEP 7 V20 or higher. Engineers running TIA Portal V15 or earlier may encounter compatibility issues with this firmware level. Verify your engineering PC's installed version before downloading the project to the CPU.

Can I use this CPU without a PROFINET network — just standalone on local I/O?

Yes. The 6ES7214-1AG40-0XB0 operates fully as a standalone controller using only its onboard I/O. The PROFINET port is available but not required for operation. If networking is added later, the existing hardware supports PROFINET IO Controller and IO Device roles without hardware changes.

What is the maximum I/O count when fully expanded with signal modules?

The CPU supports up to 8 additional signal modules. The total addressable I/O count depends on the signal module types selected. The 14 onboard DI and 10 onboard DO are the baseline; expansion modules are added to the right side of the CPU rail and configured in STEP 7. Confirm your specific expansion module part numbers with the signal module datasheets to calculate exact totals.

Is the 6ES7214-1AG40-0XB0 suitable for safety applications or PROFIsafe?

No. This CPU does not support PROFIsafe, safety-rated I/O, or fail-safe functions. For applications requiring functional safety (SIL 2/3 or PL d/e), a fail-safe CPU such as those in the S7-1500F or S7-400F family is required. The 6ES7214-1AG40-0XB0 is a standard (non-safety) CPU only.

What is the real-time clock backup duration and accuracy?

The hardware real-time clock on the 6ES7214-1AG40-0XB0 has a backup duration of 480 hours (typical). Clock accuracy is rated at ±60 seconds per month deviation at 25 °C. This is suitable for time-stamped event logging and shift-based scheduling; applications requiring tighter time synchronization should use PROFINET-based clock synchronization.

Price, Lead Time, and How to Order From Anywhere in the World

  • LeadTime.ca ships the 6ES7214-1AG40-0XB0 worldwide — no geographic restrictions on ordering
  • Volume pricing is available for panel builders, OEMs, and systems integrators running recurring builds — contact the team for a project quote
  • Hard-to-source or extended lead time situations are handled directly; the team can advise on availability windows before you commit to a build schedule
  • Responses to quote requests are fast — if you need lead time confirmation before a project kickoff, reach out directly rather than waiting on automated pricing tools

At-a-Glance Summary

  • Model: Siemens 6ES7214-1AG40-0XB0 — SIMATIC S7-1200, CPU 1214C, compact CPU, DC/DC/DC
  • Onboard I/O: 14 digital inputs (24 V DC), 10 digital outputs (24 V DC), 2 analog inputs (0–10 V DC)
  • Work memory: 150 KB; load memory: 4 MB integrated
  • Power supply: rated 24 V DC, permissible range 20.4–28.8 V DC; typical power loss 12 W
  • Communication: 1x PROFINET RJ45 (isolated, autosensing); TCP/IP, ISO-on-TCP, PROFINET IO Controller/Device
  • Integrated functions: 6 HSC counters at 100 kHz, 4 pulse outputs at 100 kHz, PID controller, 8-axis positioning, hardware RTC with 480 h backup
  • Operating temperature: -20 to 60 °C (horizontal); -20 to 50 °C (vertical)
  • Dimensions: 110 x 100 x 75 mm; weight approximately 415 g; DIN rail mount
  • Firmware: V4.7; requires STEP 7 V20 or higher
  • Does not support: analog output, media redundancy (MRP/MRPD), PROFIsafe, isochronous PROFINET
  • Approvals: EU Declaration of Conformity, VDE, EAC, Chinese Quality Checkmark
